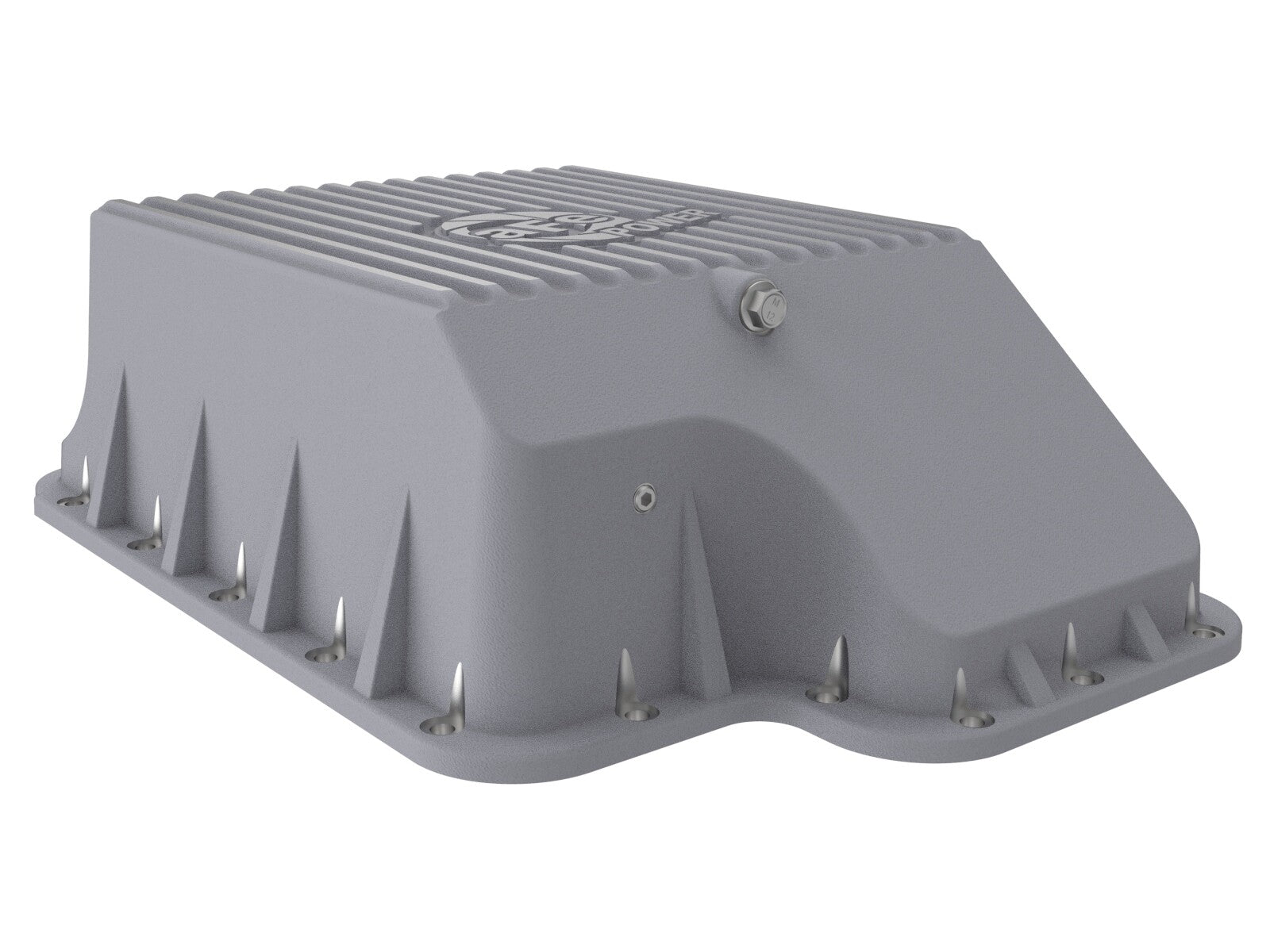

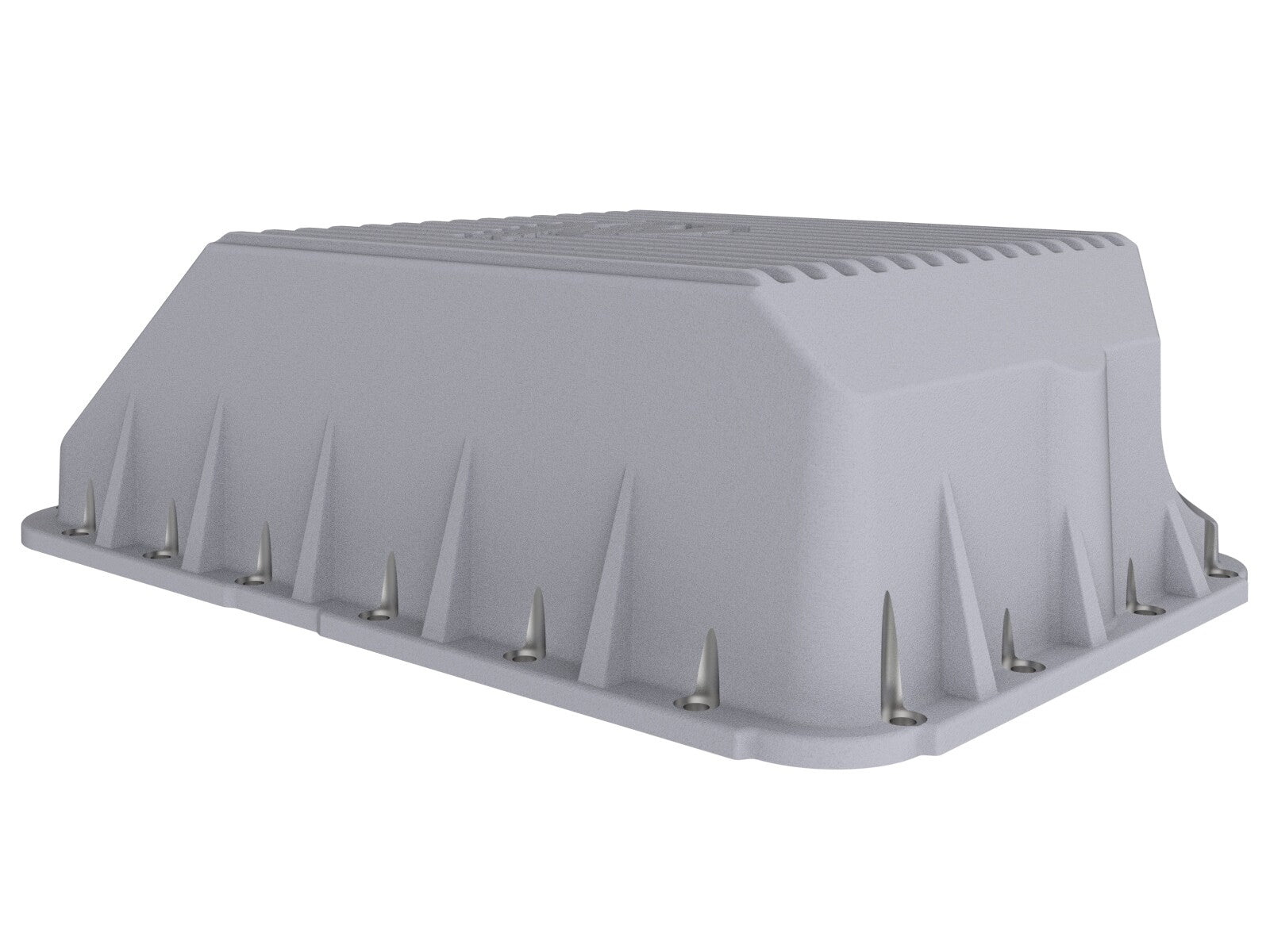

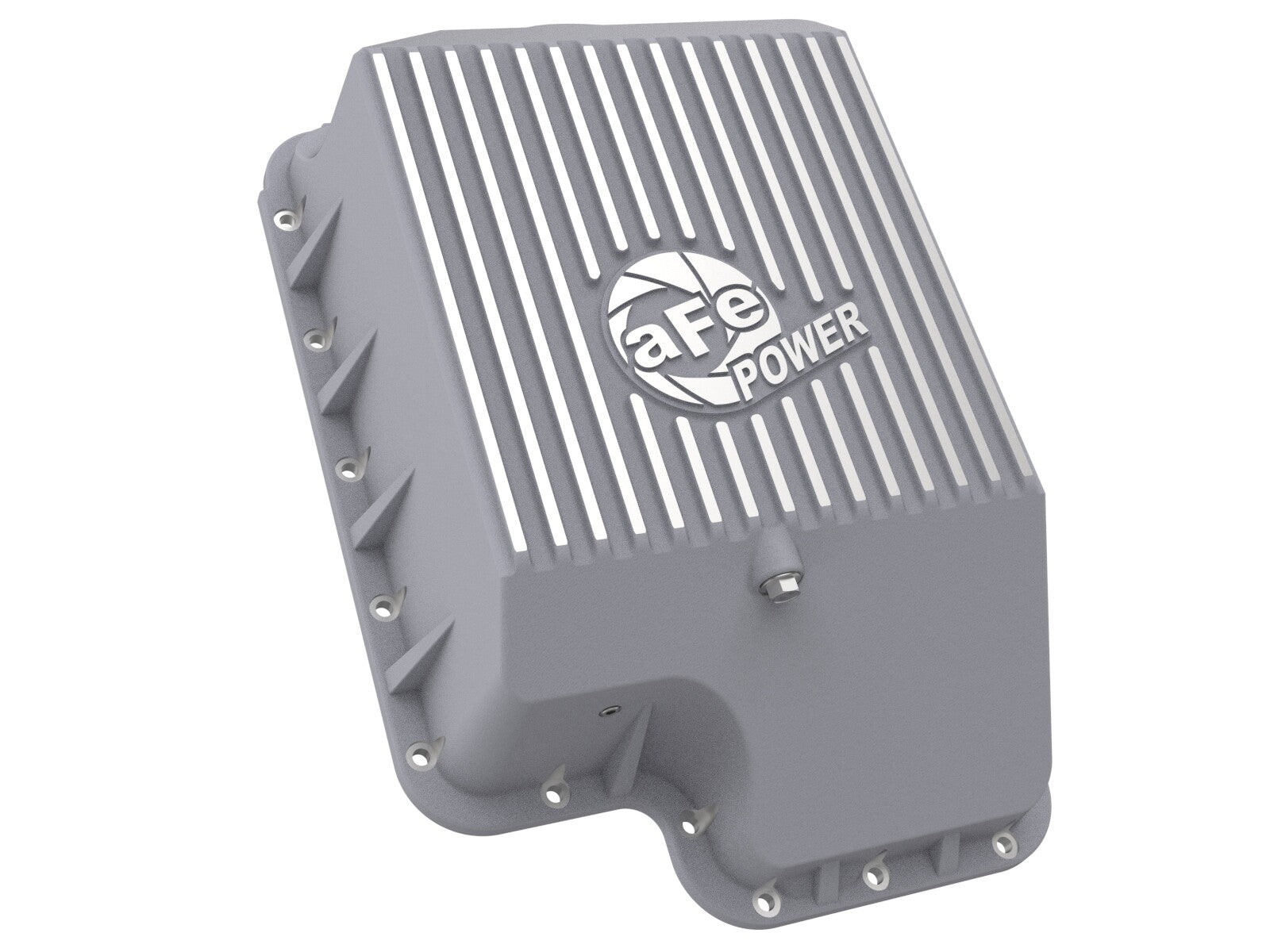

aFe Power Street Series deep transmission pan brings performance engineering to the protection of your trucks transmission. This transmission pan has additional capacity for 7-1/2 more quarts over stock at the factory line, a magnetic drain plug and a 1/8 Inch Npt port for your temperature sensor. Built-in internal and external fins transfer heat from the fluid to the outside air for maximum cooling.
This transmission pan is constructed out of durable die-cast A380 aluminum with reinforced ribs and a raw finsh with machined accents for maximum strength and styling.
Features and Benefits:

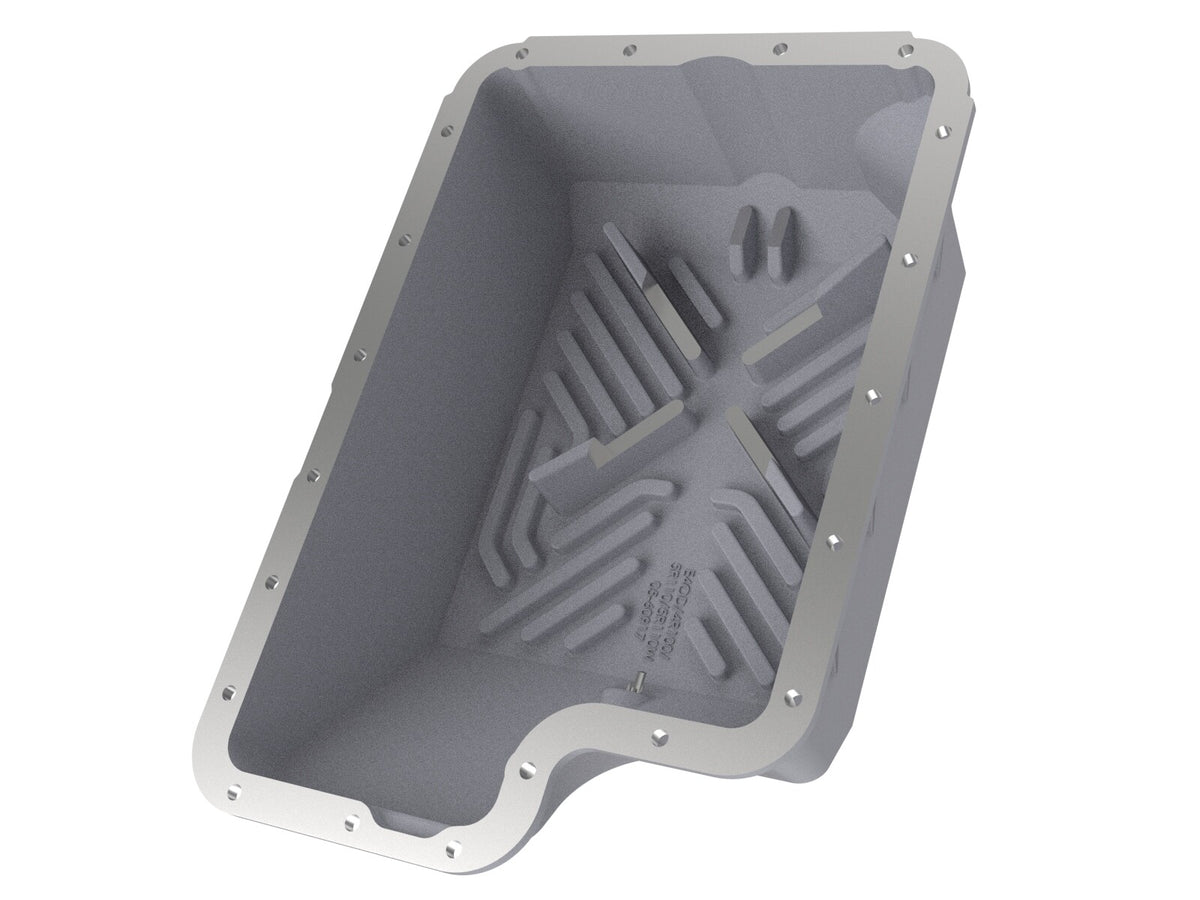

- Internal/External Fins Transfer Heat From Fluid To Ambient Air
- Large Neodymium Magnet Drain Plus Captures Loose Particles
- 1/8 Inch Npt Port Comes Ready To Use For Your Temp Sensor
- Comes Complete w/All Necessary Hardware To Bolt Directly On
- Compatible w/Stock Filter and Able To Reuse Stock Factory Gasket
- Adds An Additional 7-1/2 Quarts Over Stock
- Requires No Modification To Factory Dipstick
Details:
- Capacity: 16 U.S Quart
- Capacity Increase: 6
- Color: Raw
- Drain Plug Included: Yes
- Emission Code: 4
- Finish: Uncoated
- Fuel Type: Diesel
- Gasket Or Seal Included: Yes
- Liter: 7.3 Liter
- Material: Cast Aluminum
- Mounting Hardware Included: Yes
- Trans Model: Ford- 5R110 (Auto)5 Speed

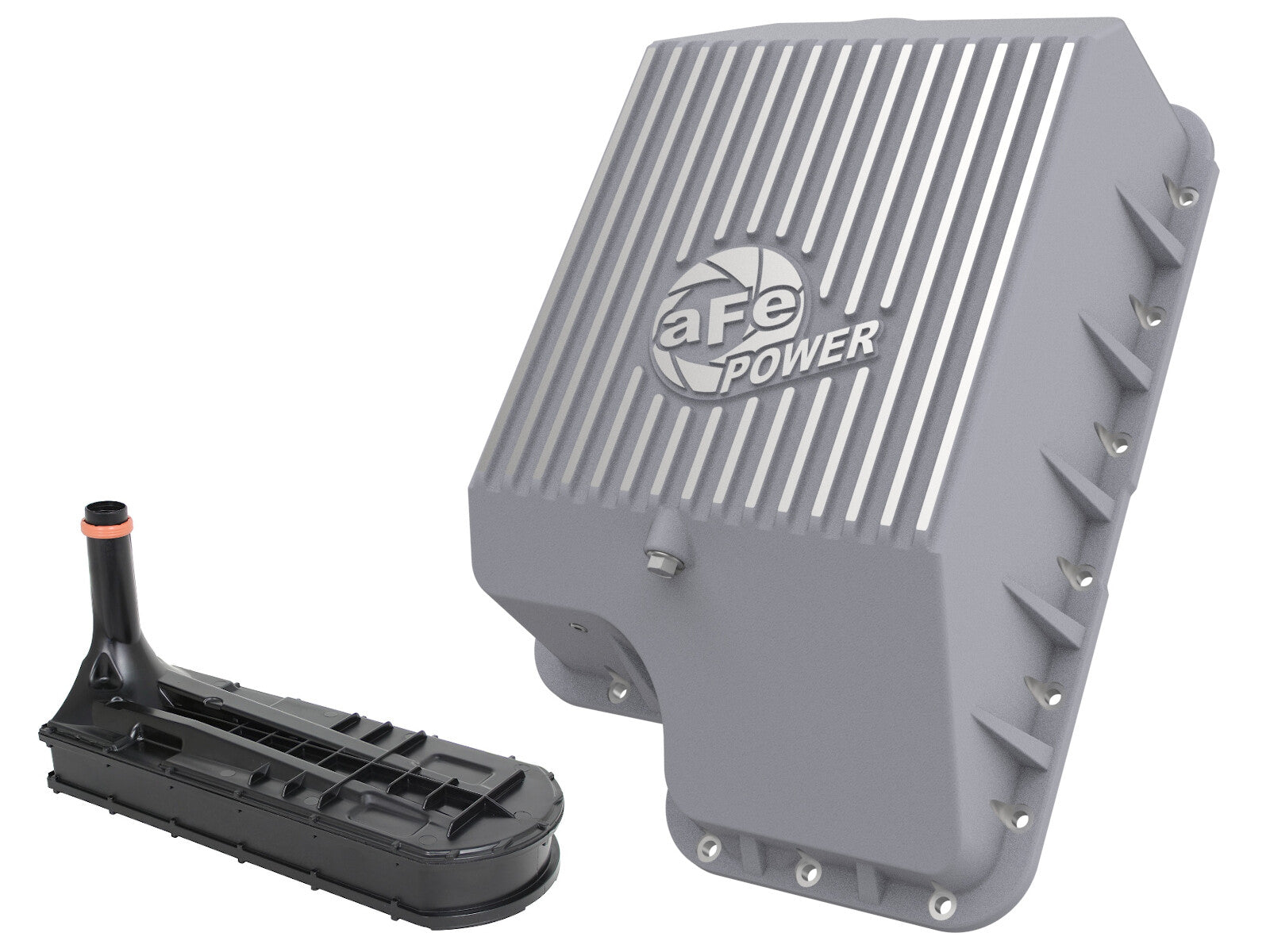

- Transmission Filter Included: Yes
- Warranty: Limited Lifetime Warranty
Applications:
- Ford Diesel Trucks 94-10 V8-7.3L/6.0L/6.4L (td)
