Features
- Bolt-on fitment compatible with Ford Bronco 2021+ with steel bumper.
- Adds SAE-compliant fog lights and powerful offroad lighting.
- Harnesses included for independent control of road-legal and offroad lighting.

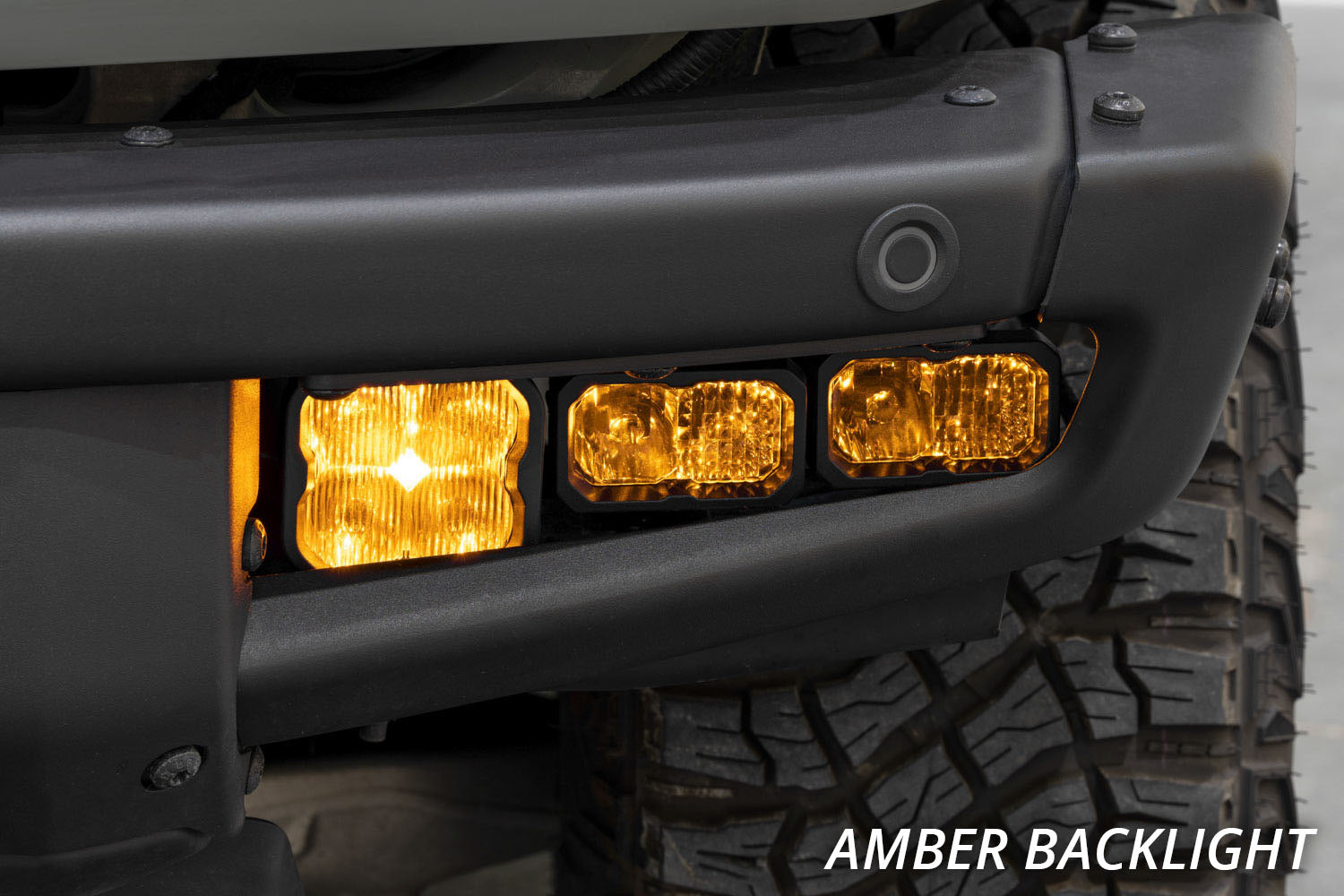

- Backlight feature provides amber accent light.
- Highly durable powdercoated stainless steel bracket.
- Engineered and assembled in USA.

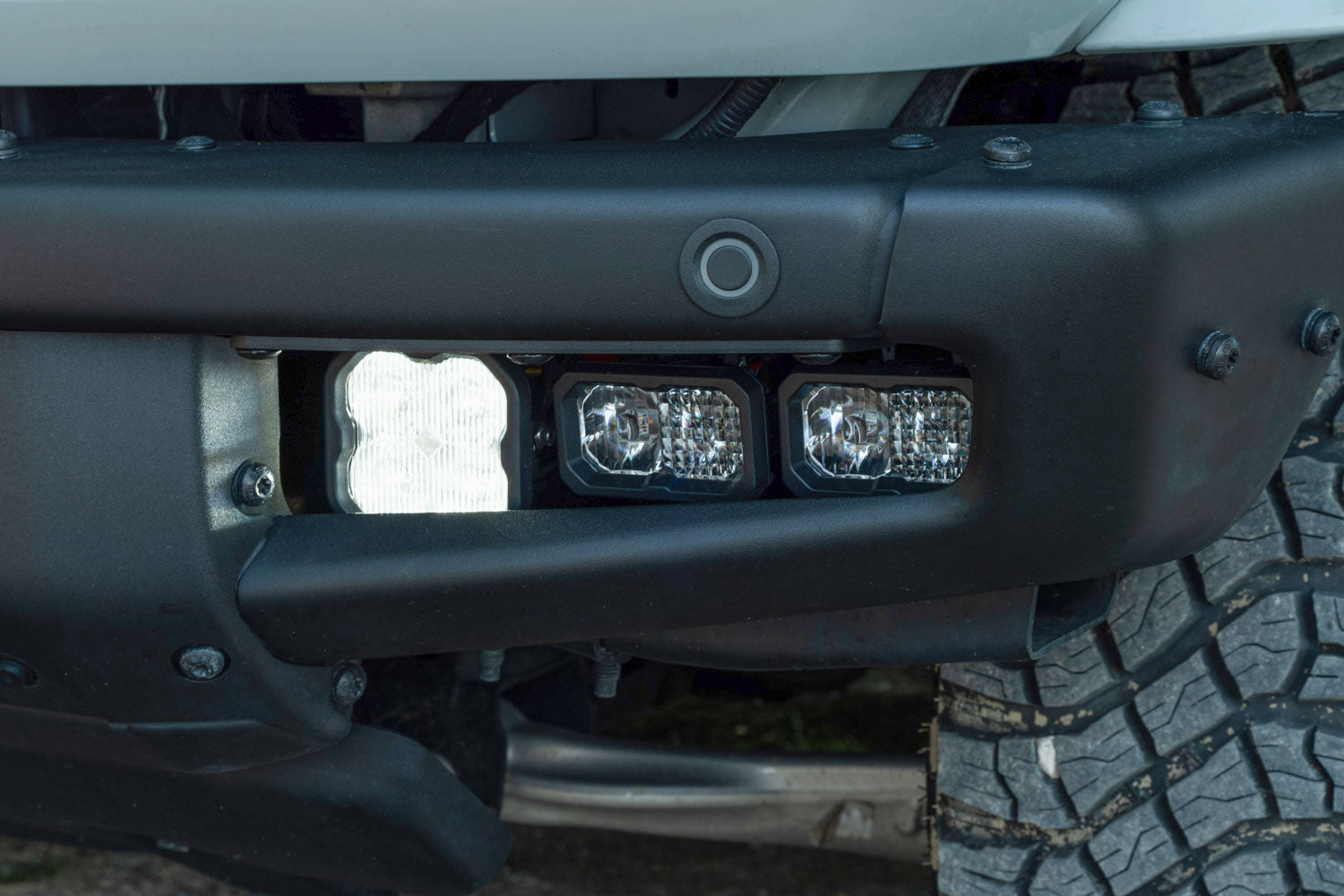

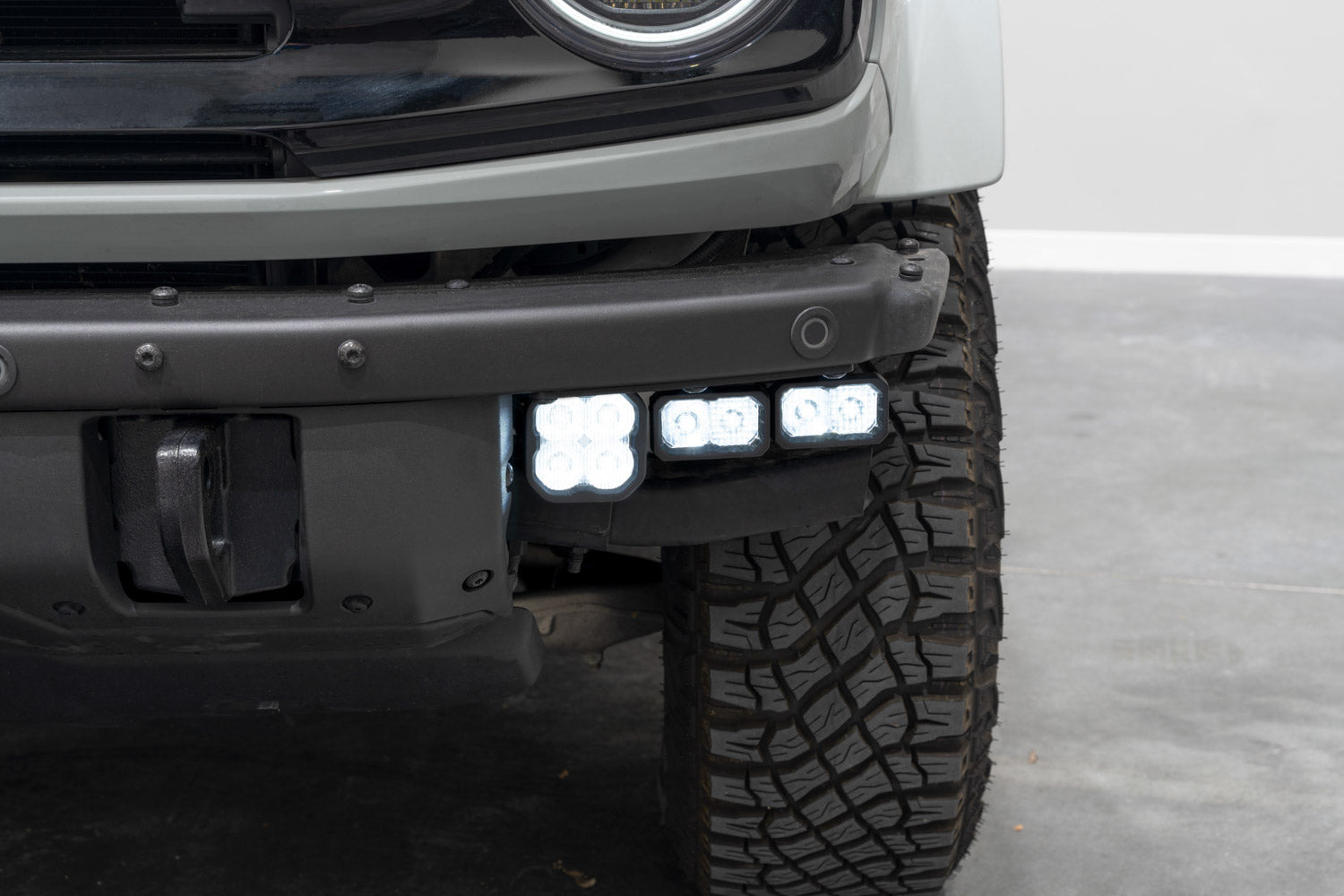

Overview. The Stage Series Fog Pocket Kit compatible with Ford Bronco 2021+ from Diode Dynamics allows you to mount two SS3 LED Pods and four SSC2 LED pods in the factory bumper openings. This kit adds some serious functionality to your Bronco with both road-legal fog lights and powerful offroad lighting. This kit includes application-specific brackets that were CAD-designed to install using factory mounting points. No cutting or drilling required!

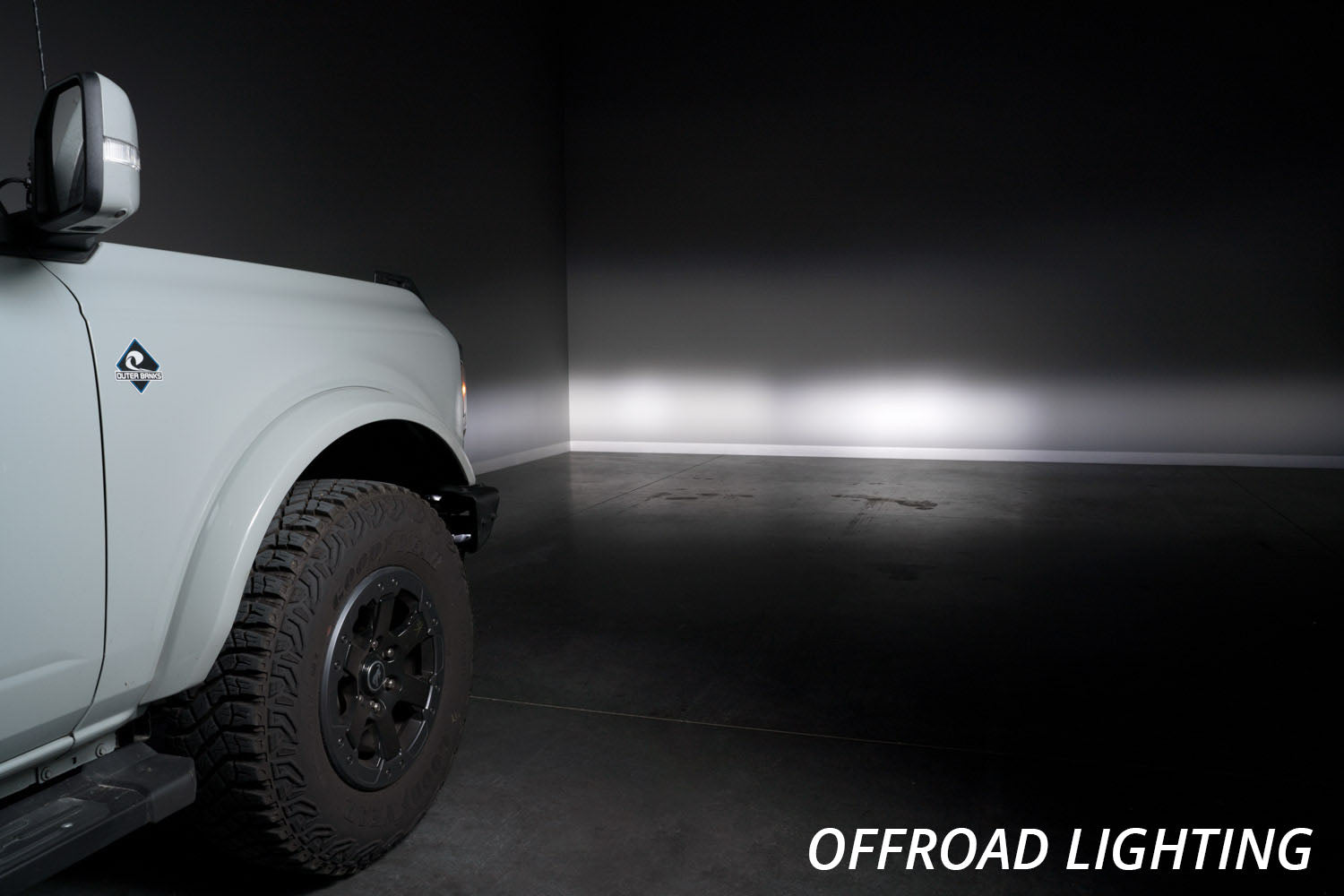

Lighting for Every Situation. This kit includes two SS3 LED Pods in the fog beam pattern and four SSC2 LED pods in the combo beam pattern. This combination gives you different options whether you are on or offroad. All options use high-intensity LED emitters and TIR optics for unmatched focus and overall output.

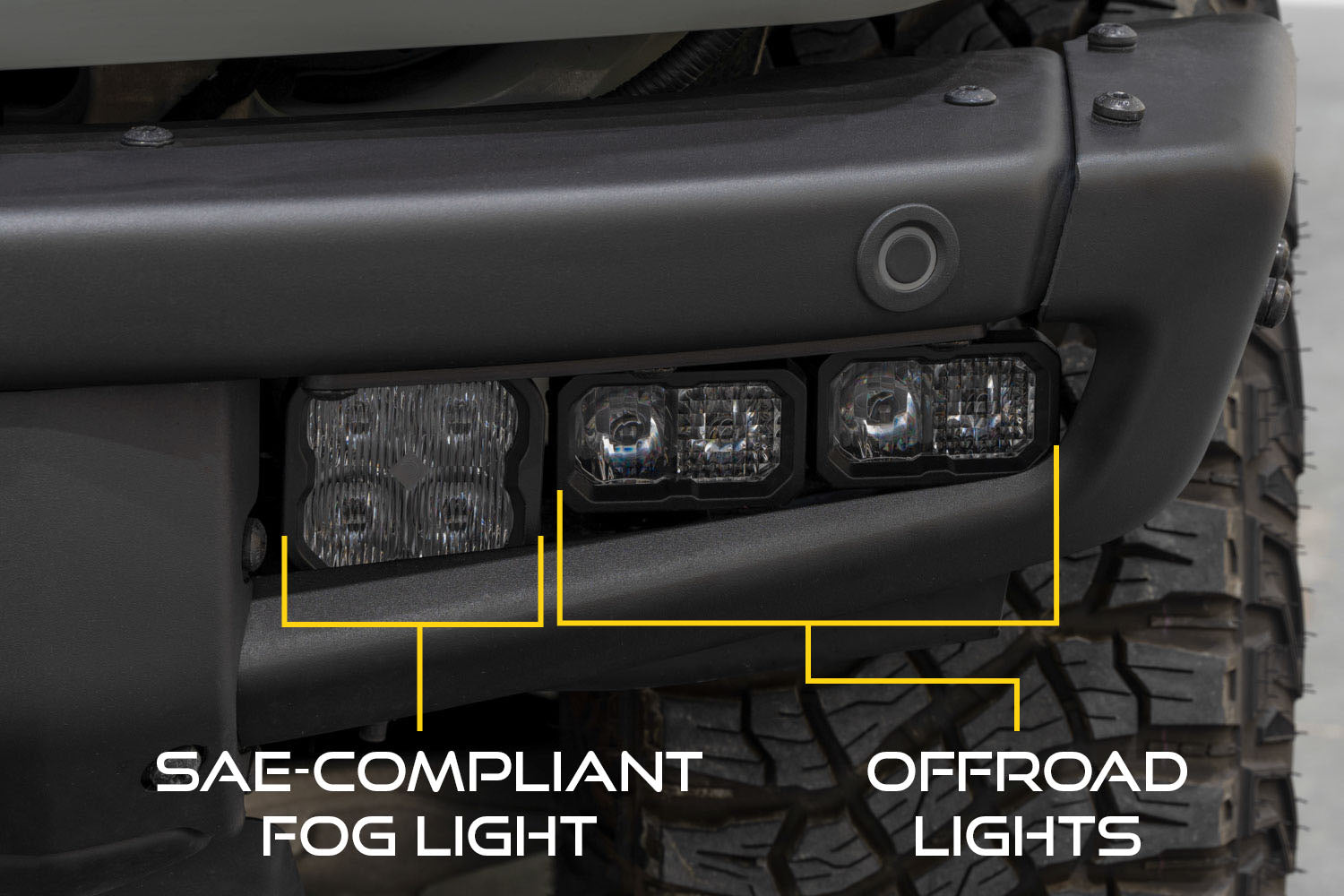

Separate Switches. With the included harnesses the two SS3 pods and four SSC2 pods in this kit can be controlled independently allowing you to switch between road-legal fog lights and offroad lights. This kit allows the SS3 fog pods to operate in the same way factory fog lights do automatically turning on when they are switched on and when your headlights are turned on. The off-road lights in this kit can be controlled either through factory aux switches or the included 3-way toggle switch.

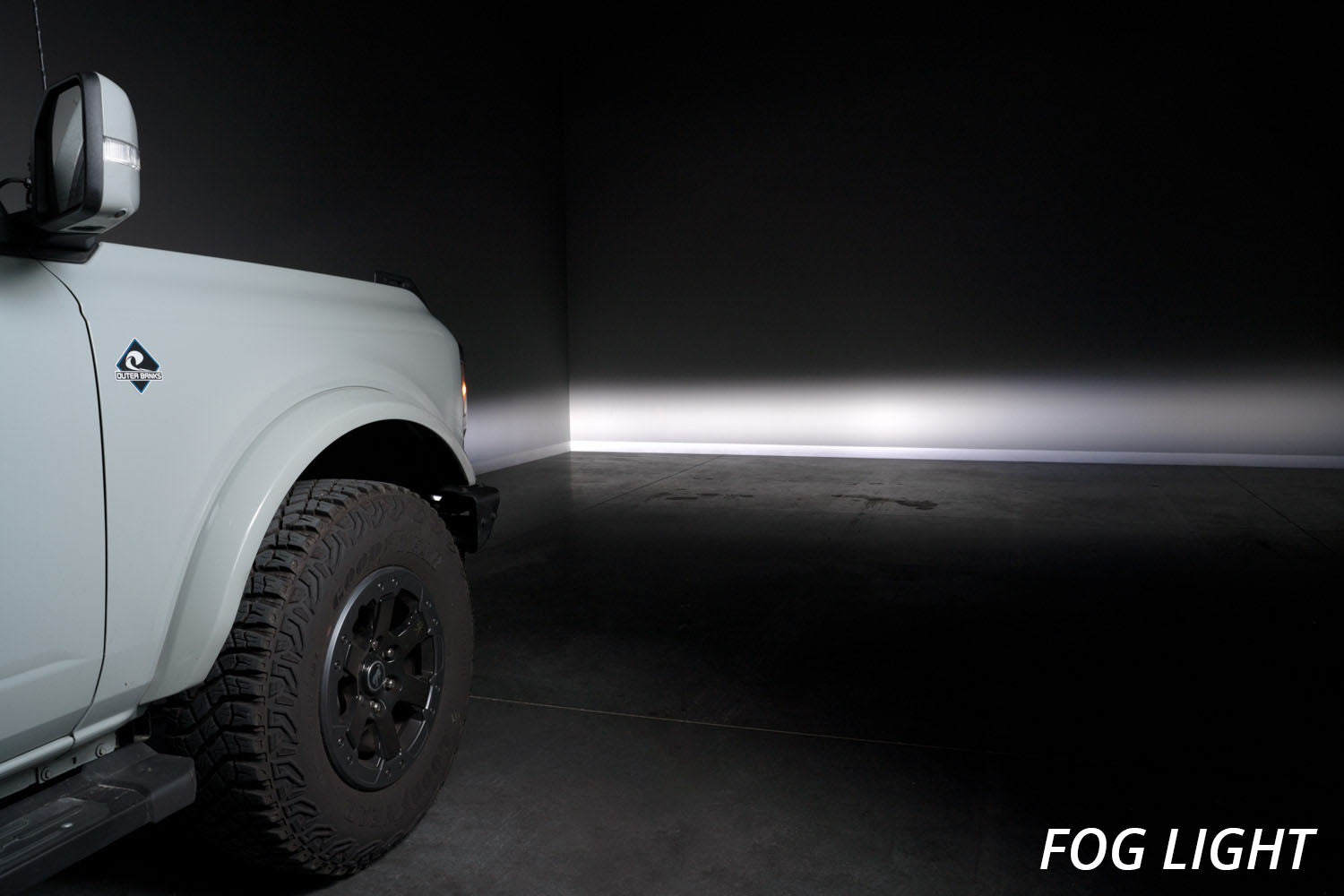

SAE Compliant. When installed as a pair and aimed in accordance with your state's regulations the Fog pattern meets SAE J583 standard as a Foglamp for legal on-road use.
Advanced TIR optics provide high efficiency and focus
Included in the box:

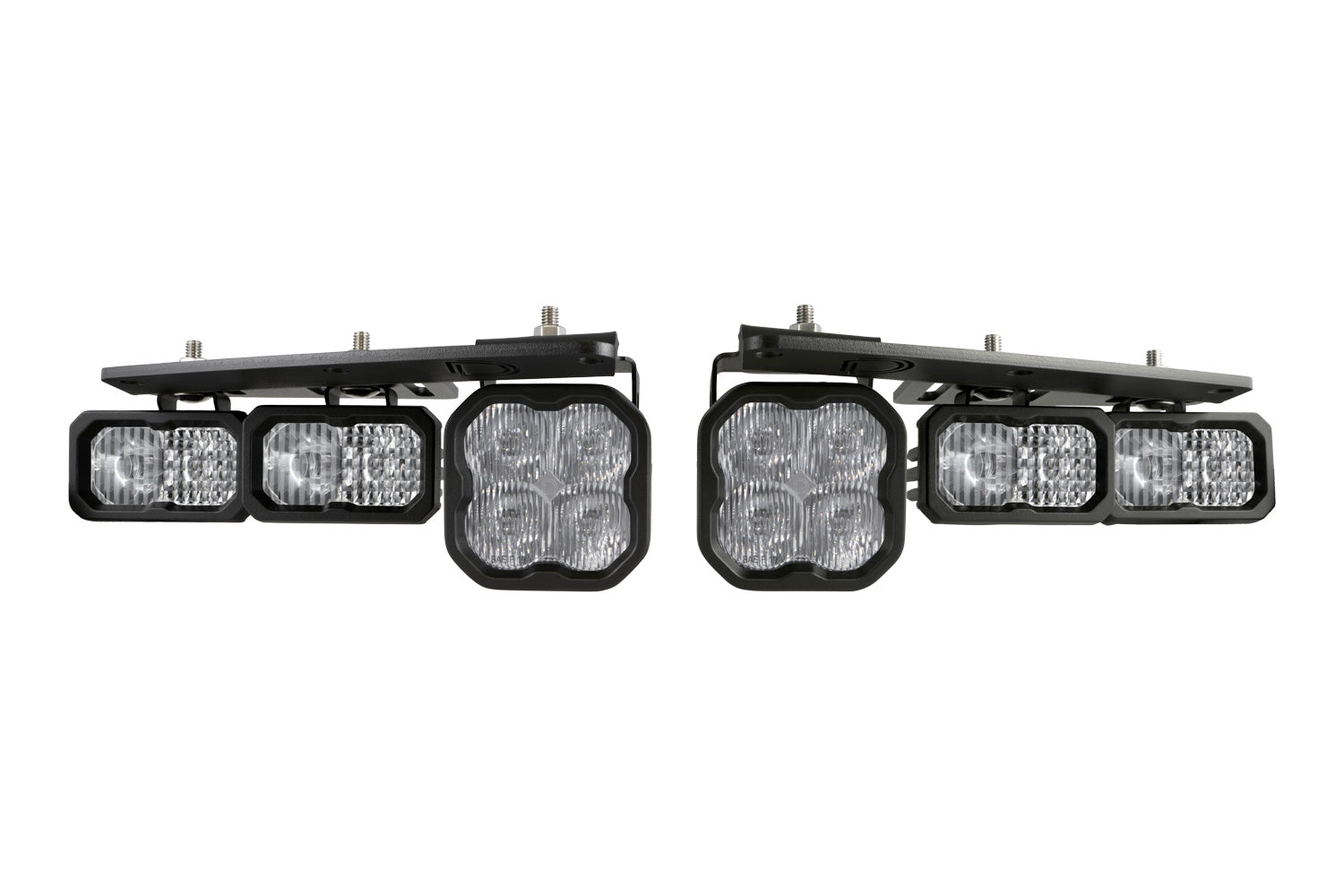

- Two (2) Ford Bronco fog pocket brackets
- Two (2) Sport or Pro SS3 LED pods
- Four (4) Sport or Pro SSC2 LED pods
- One (1) dual-output fog harness
- One (1) Heavy Duty Dual Output 4-pin harness
- Two (2) 3-way backlight splitters
- Four (4) zip ties
- Mounting hardware and guide
