Description

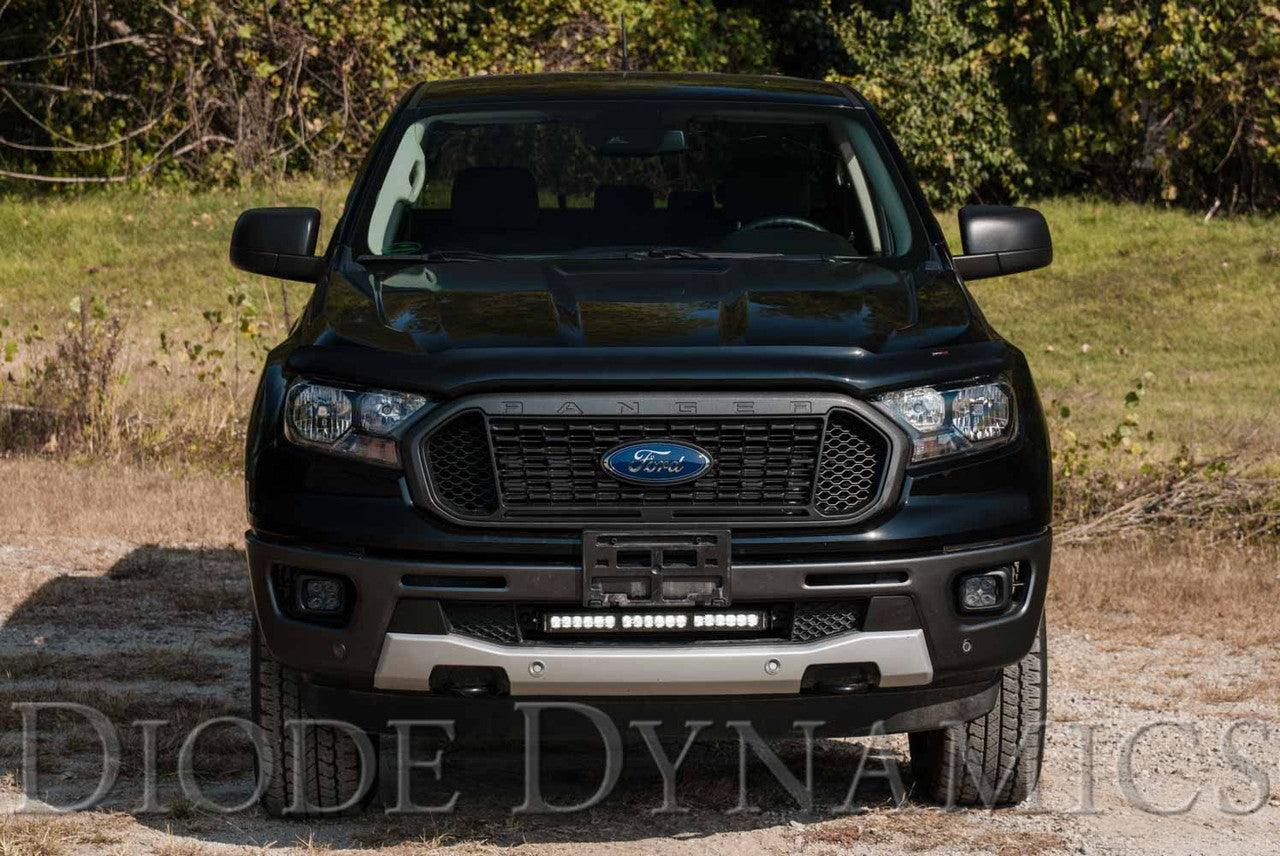

Perfect Fitment. The Stage Series LED Lightbar Kit for the 2019-2020 Ford Ranger from Diode Dynamics allows you to mount a pair of 6 inch light bars in the opening on the bumper. These application-specific brackets were CAD-designed to install using factory mounting points. No cutting or drilling required!
Street Legal Output. The 6 inch kit isn't just for off-road! When installed as a pair and aimed in accordance with your state's regulations the Driving pattern meets SAE J581 as a Driving/Auxiliary High Beam Light and the Wide pattern meets SAE J583 as a Foglamp for legal on-road use. Please check your local laws and regulations for aiming installation and applicability.
Designed For Performance. Using optical simulation modeling Diode Dynamics Stage Series light bars have been designed for maximum functionality with compact size custom-engineered TIR optics and a useful beam pattern all in a highly durable package.
Thanks to the high-intensity Lumileds LED chips coupled with our U.S. PATENT PENDING total internal reflection (TIR) optic the total intensity of the Stage Series is far higher than a standard generic light bar using basic optics or reflectors.
Standard optics lose light internally and to glare spreading a little bit of light in every direction. Instead the TIR optic in the Stage Series collects all of the light from the LED and directs it only where you need it drastically reducing glare and improving total efficiency.
Functional Patterns. All Stage Series beam pattern options were designed with optical simulation modeling to shape the output in a highly-functional beam pattern. No matter what your auxiliary lighting needs are there is a Stage Series optic for you!
The Driving pattern was designed to supplement your high beams. Rather than a simple spot pattern the Stage Series Driving pattern has a rectangular 20Wx8H degree pattern that is far more useful for directing light downrange at high speeds.
The Wide pattern provides an extremely wide field of view without wasting any light in the sky above and provides a 100Wx8H degree spread of light. It was designed to supplement your fog lights and is perfect for driving in inclement weather.
Proven Reliability. Stage Series lighting has been tested for long-term operation from -40 to 185 degrees F vibration moisture intrusion and corrosion. All of these tests are completed to SAE/DOT standards just like factory components. They've also been put to the test on-road and are in-use by dozens of rally and endurance racing teams for nighttime stages and laps.
Experience. After over a decade in business Diode Dynamics is the most trusted name in automotive LED lighting. Unlike every other LED distributor we assemble and engineer products ourselves in the United States for high quality and fast time-to-market of the newest and brightest LED technologies. We pride ourselves in offering only quality LED products that will exceed your expectations.
Features
- SS6 Series
- 6 inch LED Light Bar Kit
- White Wide Pattern
- Direct fitment on the 2019+ Ford Ranger.

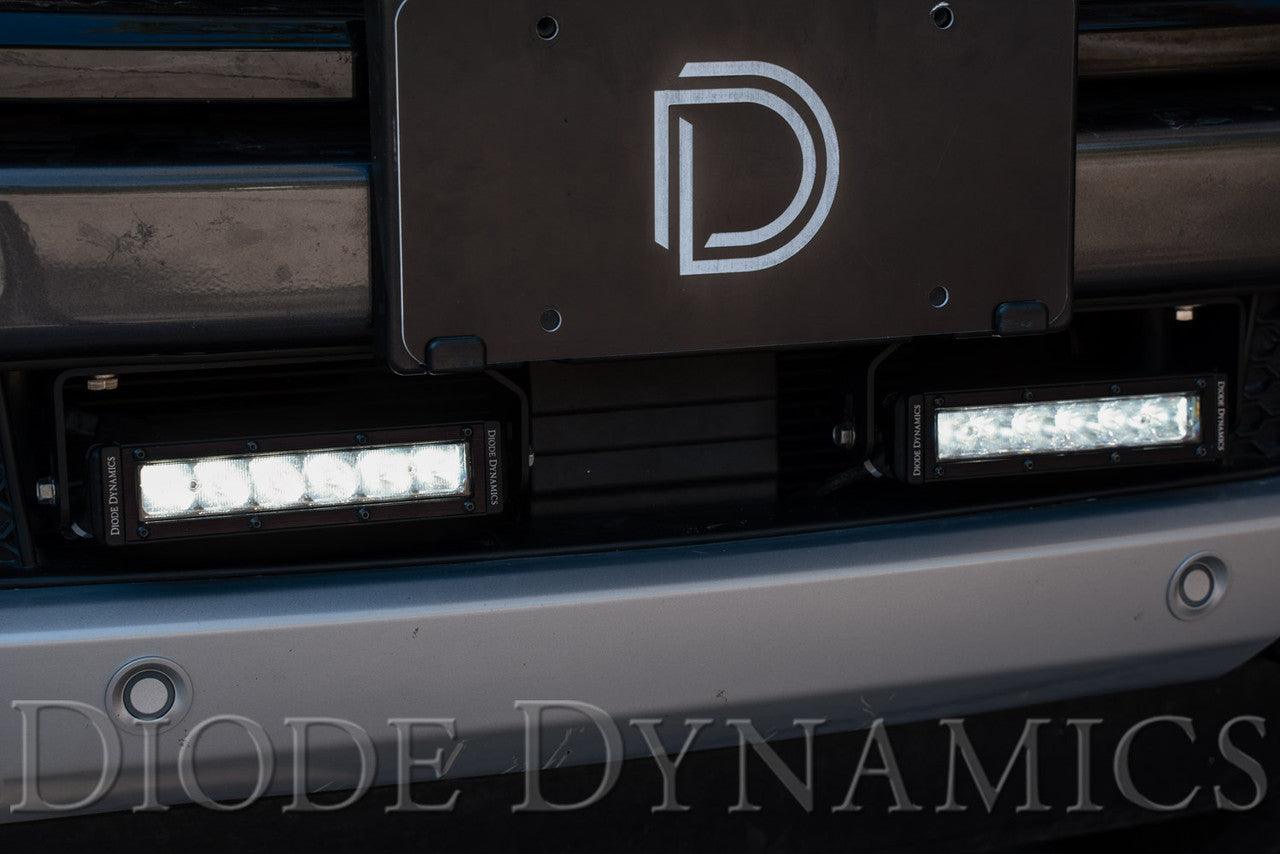

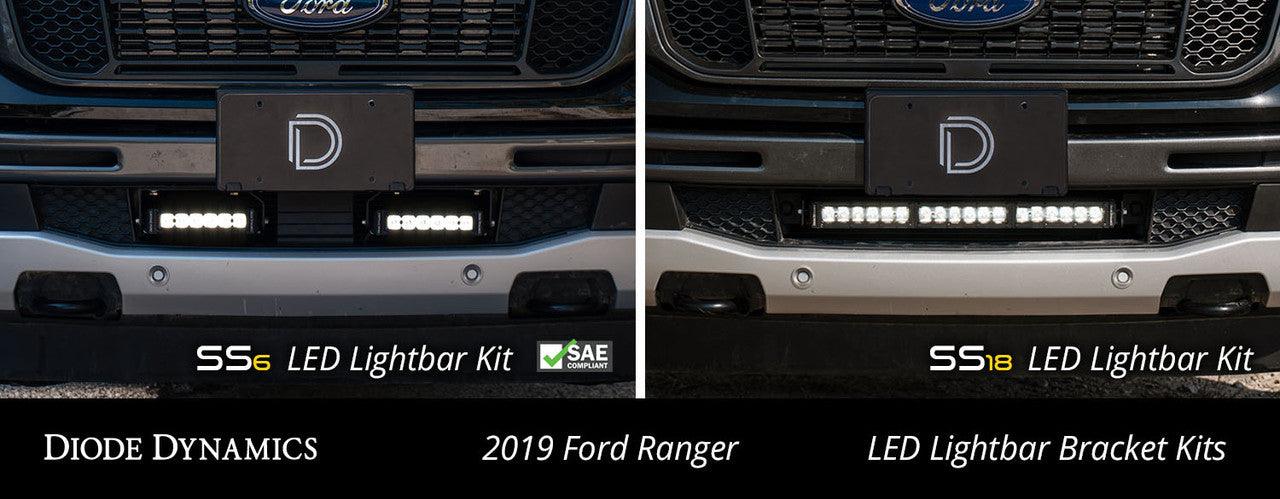

- Allows you to mount two 6 inch light bars in the front bumper opening.
- CAD-designed for perfect fitment and OEM-like appearance.
- Utilizes existing mounting points for easy installation - no cutting or drilling required.
- Highly durable powdercoated steel construction.
Included in the box:
- One (1) application-specific SS6 bracket kit
- Two (2) SS6 6 Stage Series Light Bars
- One (1) Heavy-Duty Dual-Output Wiring Harness
- All Necessary Hardware
