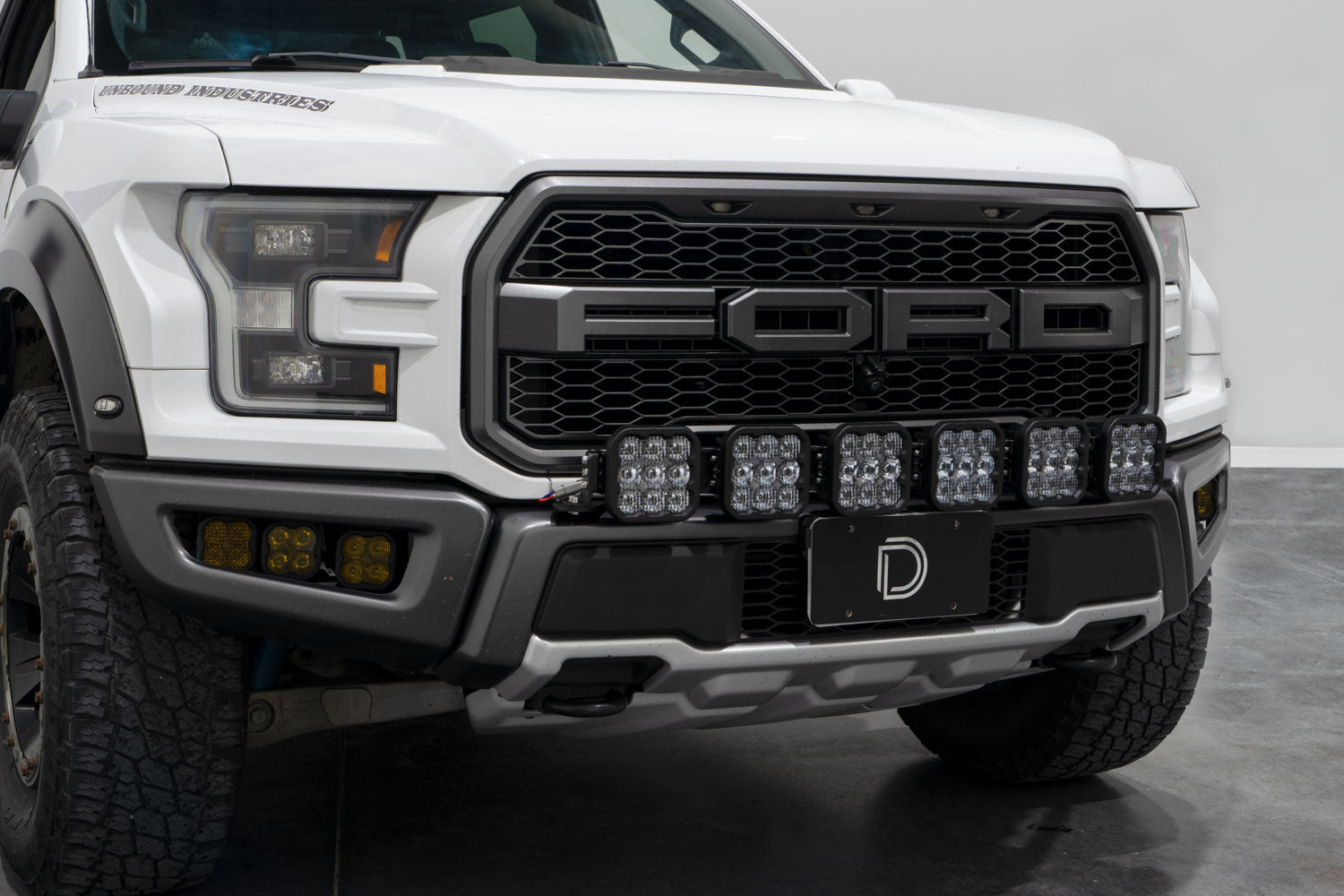

Perfect Fitment. The Grille CrossLink Lightbar Kit compatible with Ford Raptor 2017-2020 from Diode Dynamics allows you to mount a six-pod CrossLink lightbar on the factory grille. These application-specific brackets were CAD-designed to bolt into place using factory mounting points on the grille. No cutting or drilling required!

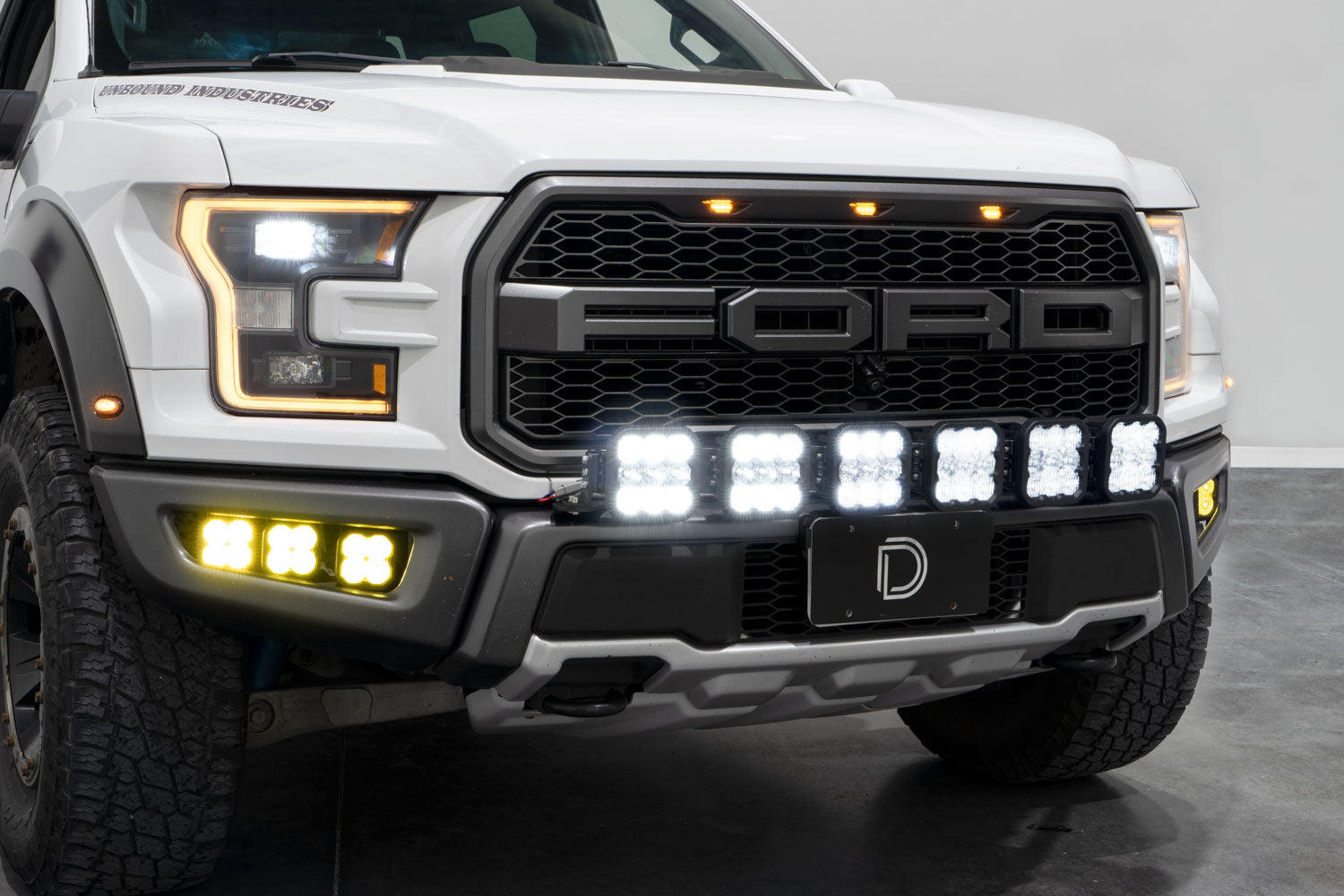

Designed for Performance. Featuring the highest output intensity of any 5-inch LED pod on the market these lamps have been designed for maximum functionality with patented technology and custom-engineered TIR optics all in a durable package.

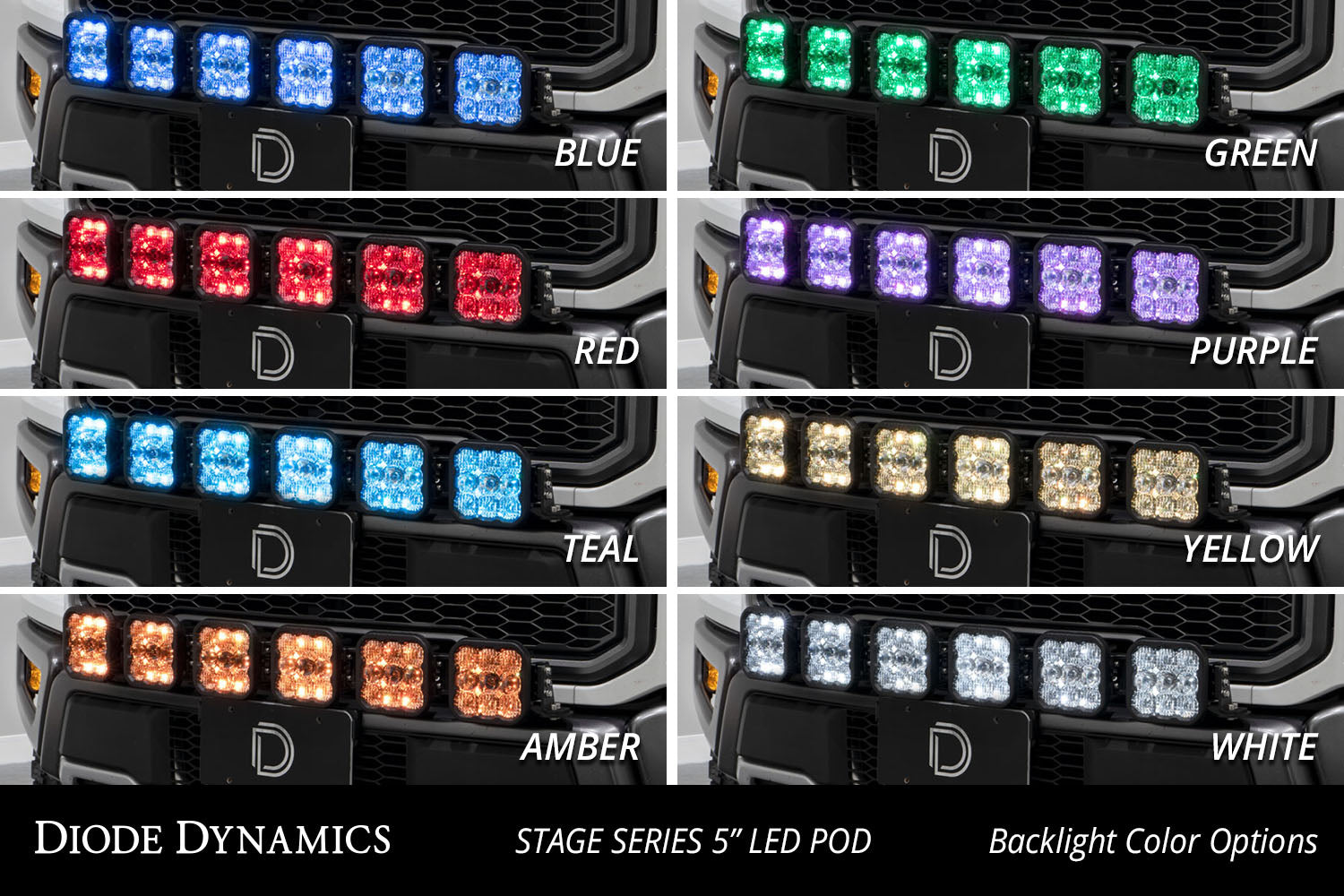

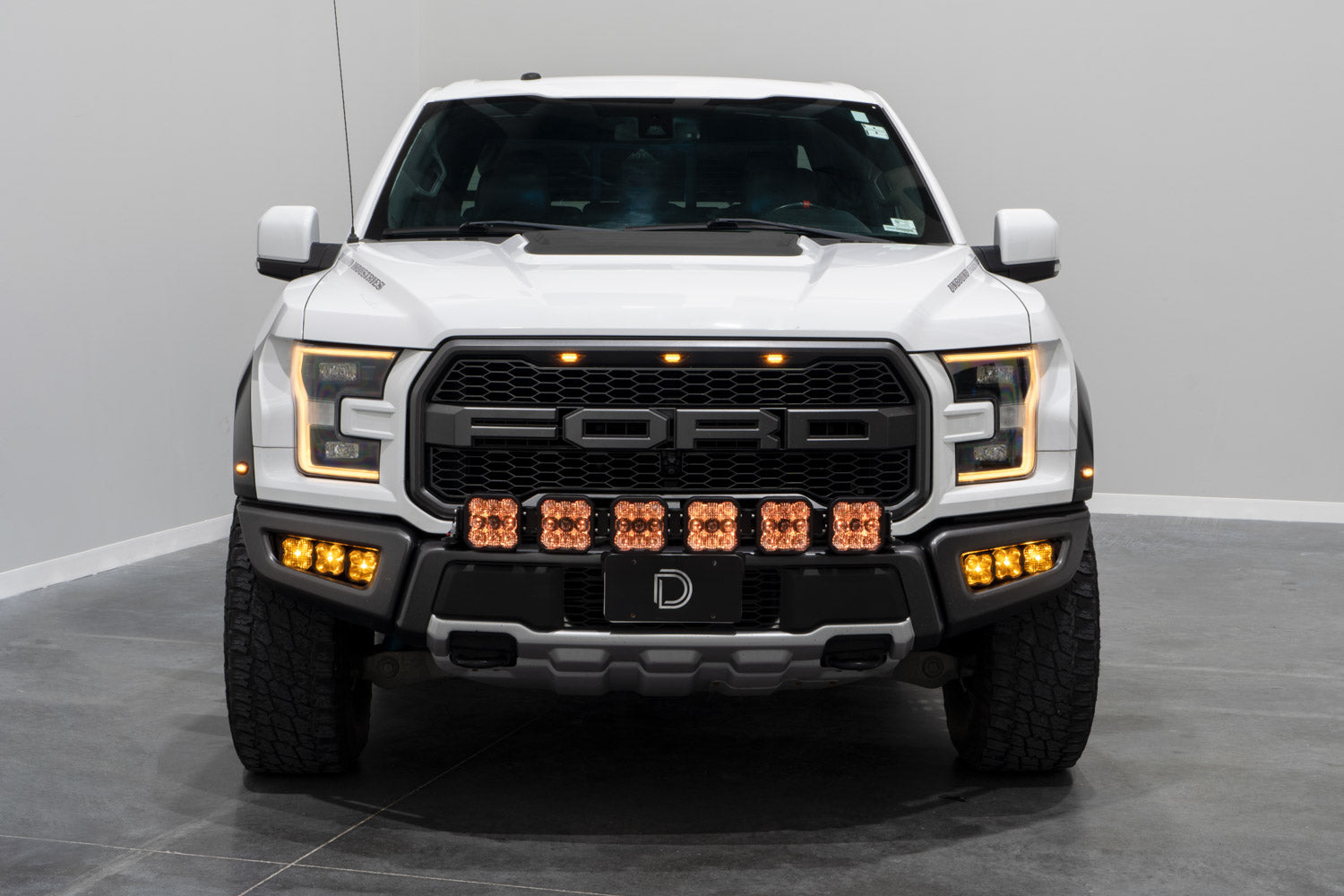

Selectable Backlight. The Stage Series 5inch LED Pods included in the White kit feature a selectable backlight with eight different color options perfect for an extra styling accent or for more visibility when you're not using the main beam. Selecting your backlight color is easy - simply alternate the power on and off! The SS5's backlight fully illuminates the TIR optic providing unique accent lighting that you won't find on other LED pods. Note: Due to the yellow lens the Yellow kit is only available with an Amber backlight color.
CrossLink. Our patent-pending CrossLink technology allows you to link up to eight SS5 pods together to create your own lightbar. The single-piece CNC aluminum link provides extreme rigidity but is fully adjustable. This kit was designed for a curved configuration.

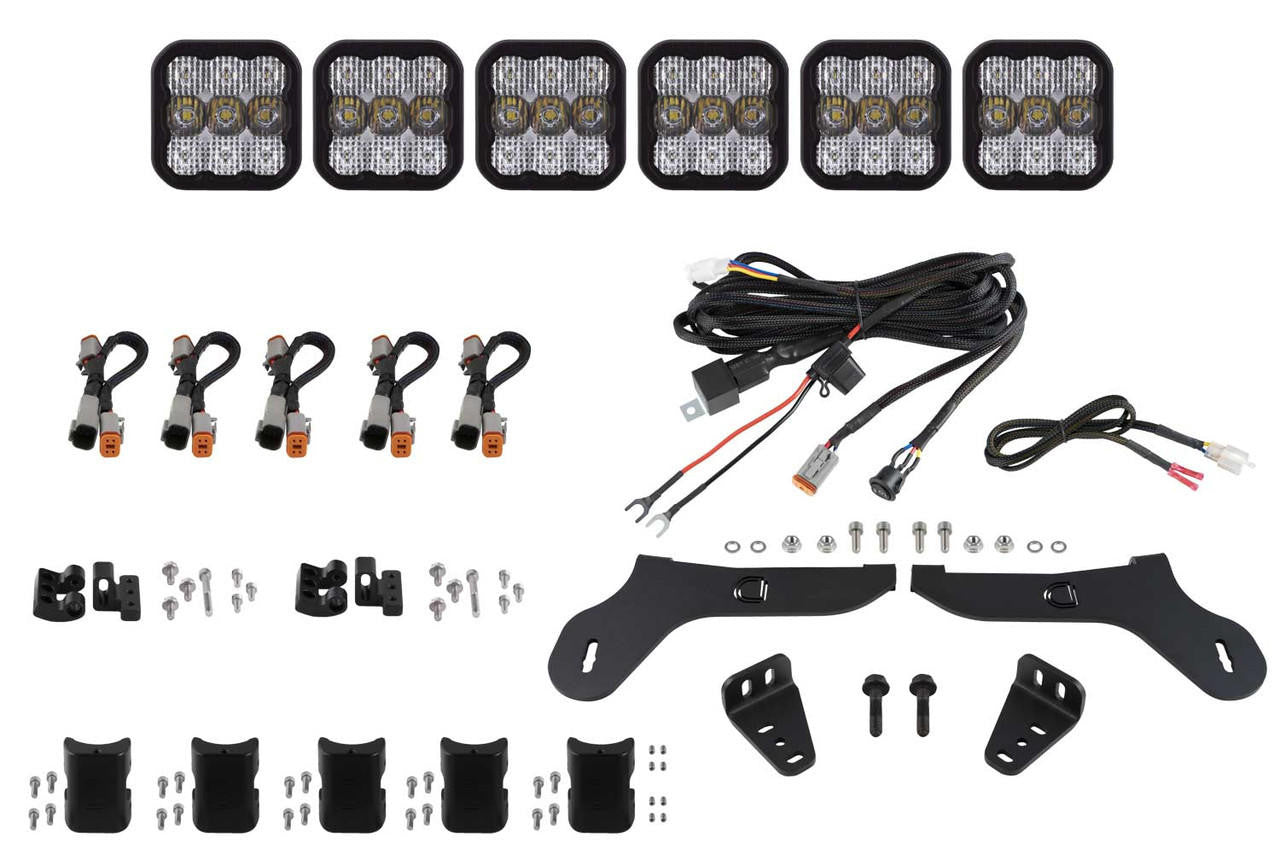

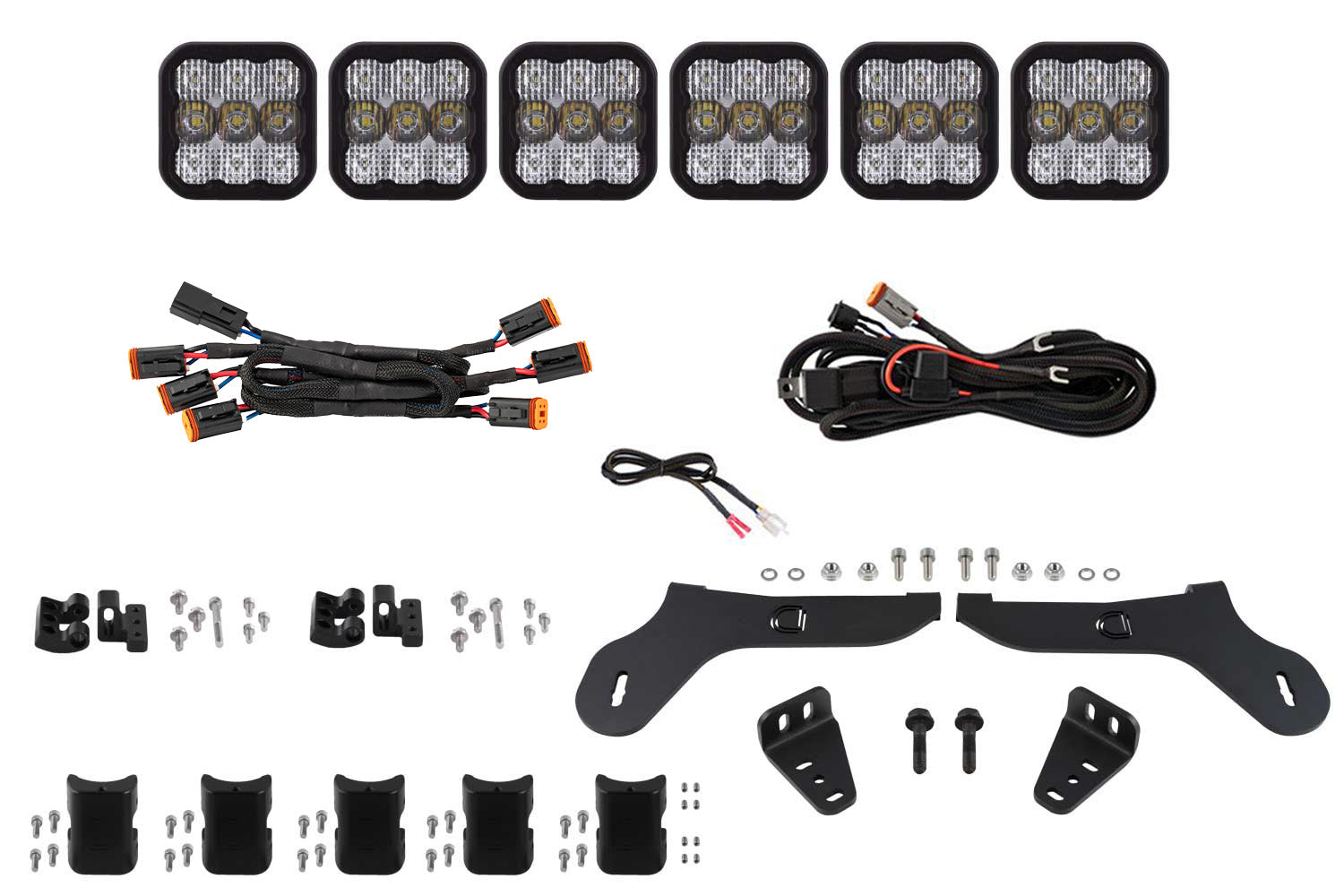

Included in the box:
- Two (2) Application-specific heavy-duty steel brackets
- Two (2) Low mount heavy-duty steel brackets
- Six (6) Stage Series 5" LED pods
- One (1) Heavy-duty single-output 4-pin wiring harness or One (1) Ultra heavy-duty single-output 4-pin wiring harness
- Five (5) Heavy-duty CrossLink splitter wiring harnesses or Four (4) Ultra heavy-duty CrossLink splitter wiring harnesses and One (1) Ultra heavy-duty terminating wiring harness
- One (1) CrossLink endmount kit
- Five (5) CrossLinks with hardware
- Installation Guide
