Description
Want the ultimate in strength for your steering? check out our billet tie rod kit.
This kit is made using aircraft grade aluminum for the tie rod and FK rod ends for the joints. The best components combined with CNC machined aluminum tie rod make the kit the best option for your Ram TRX
Our tie rod starts off with 6061-T6 aluminum hex stock and then CNC machined to our unique shape to ensure clearance and still give you the correct flat area to ensure you can get everything tight and secure.
Our kit used 7/8 FK rod ends at the spindle with 17-4 stainless steel custom high misalignment spacers to ensure proper cycle and solid feel. Attached with grade 8 bolts and lock nuts to keep things tight and strong.

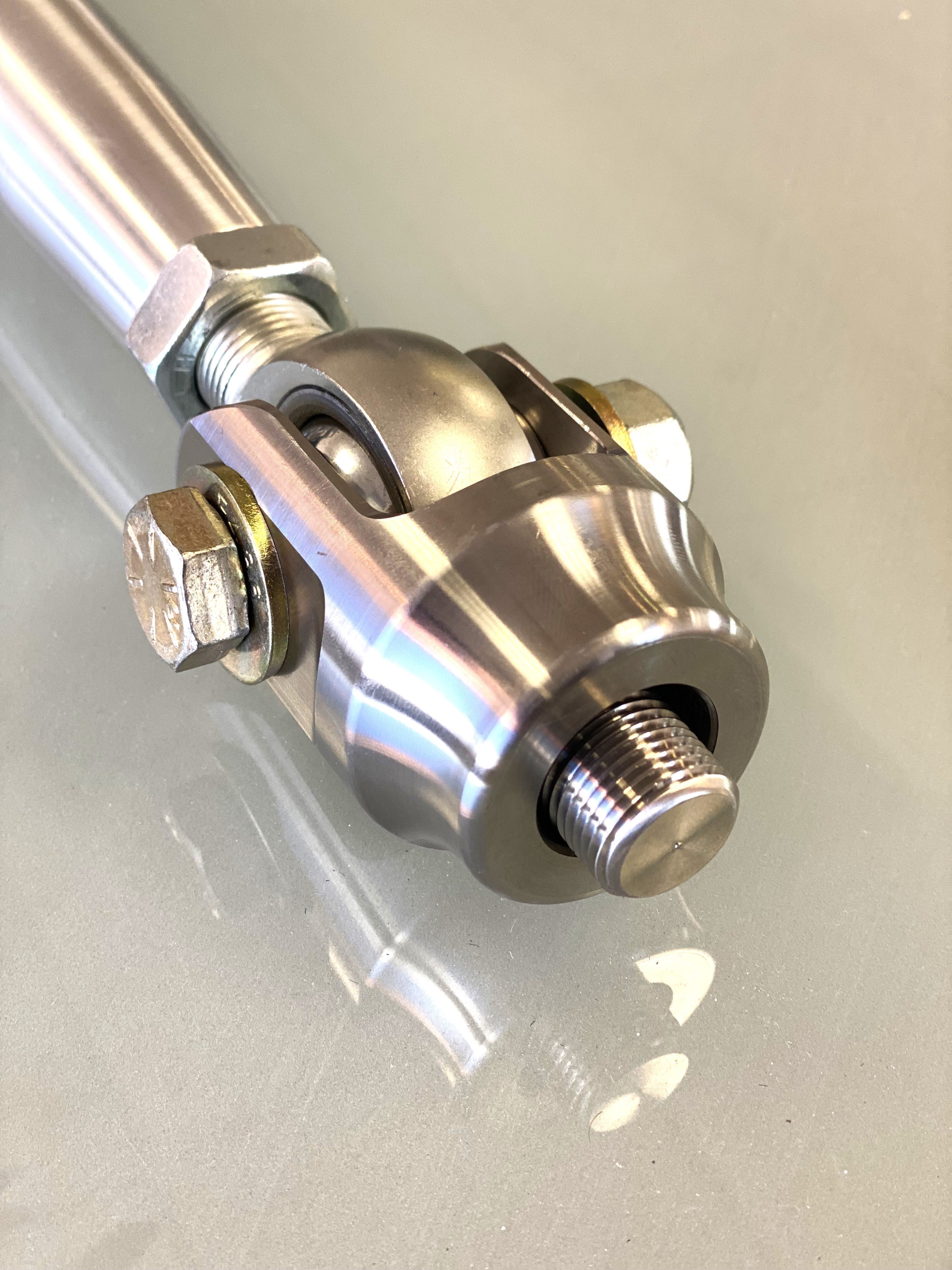

At the steering rack we use stainless steel clevis adapter and 3/4 FK rod ends with 17-4 stainless steel spacers and grade 8 bolts and lock nut again.
We also use a urethane boot to ensure you keep the rack sealed up and keep water and dirt out of the steering box which is very important.

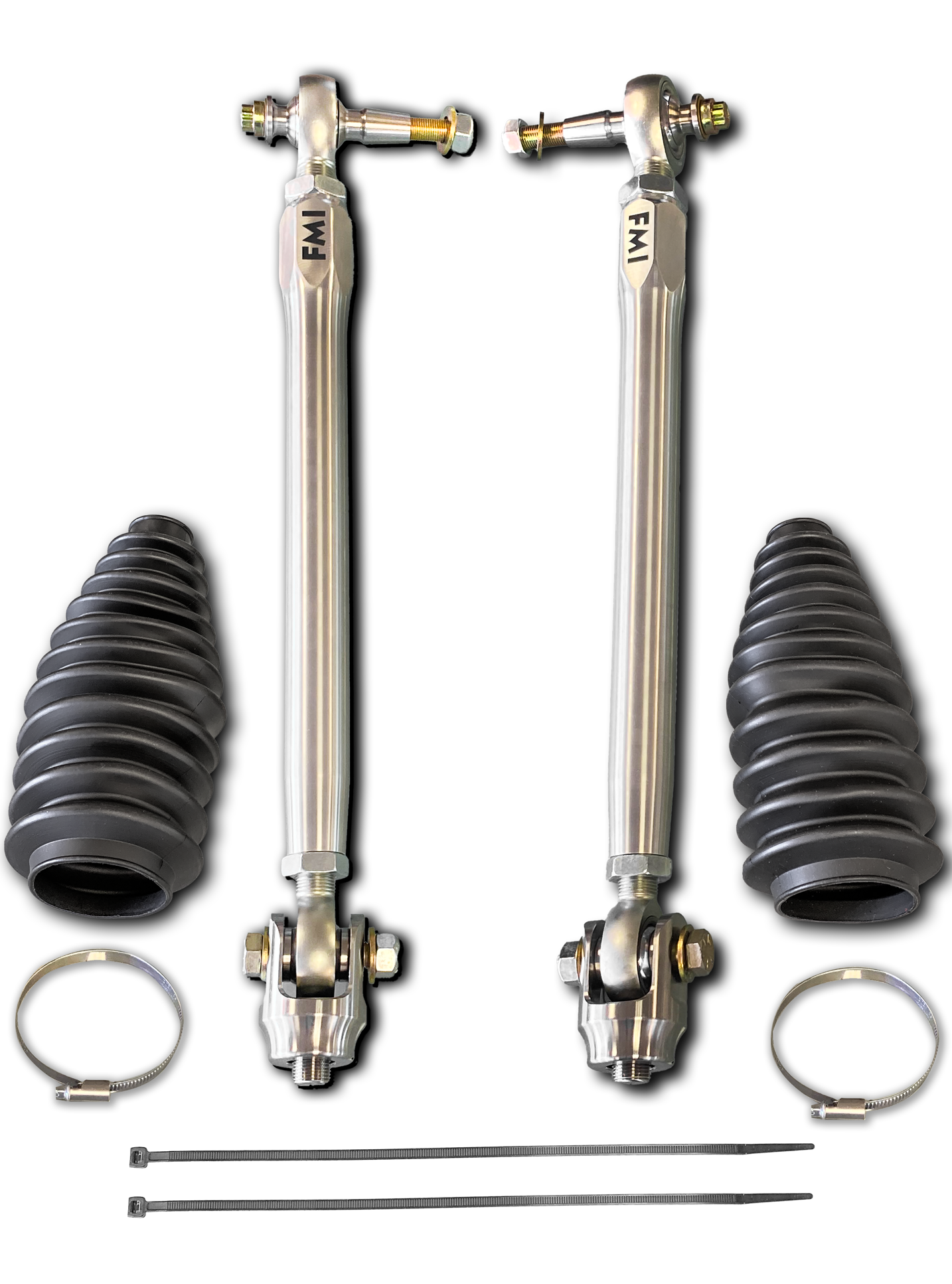

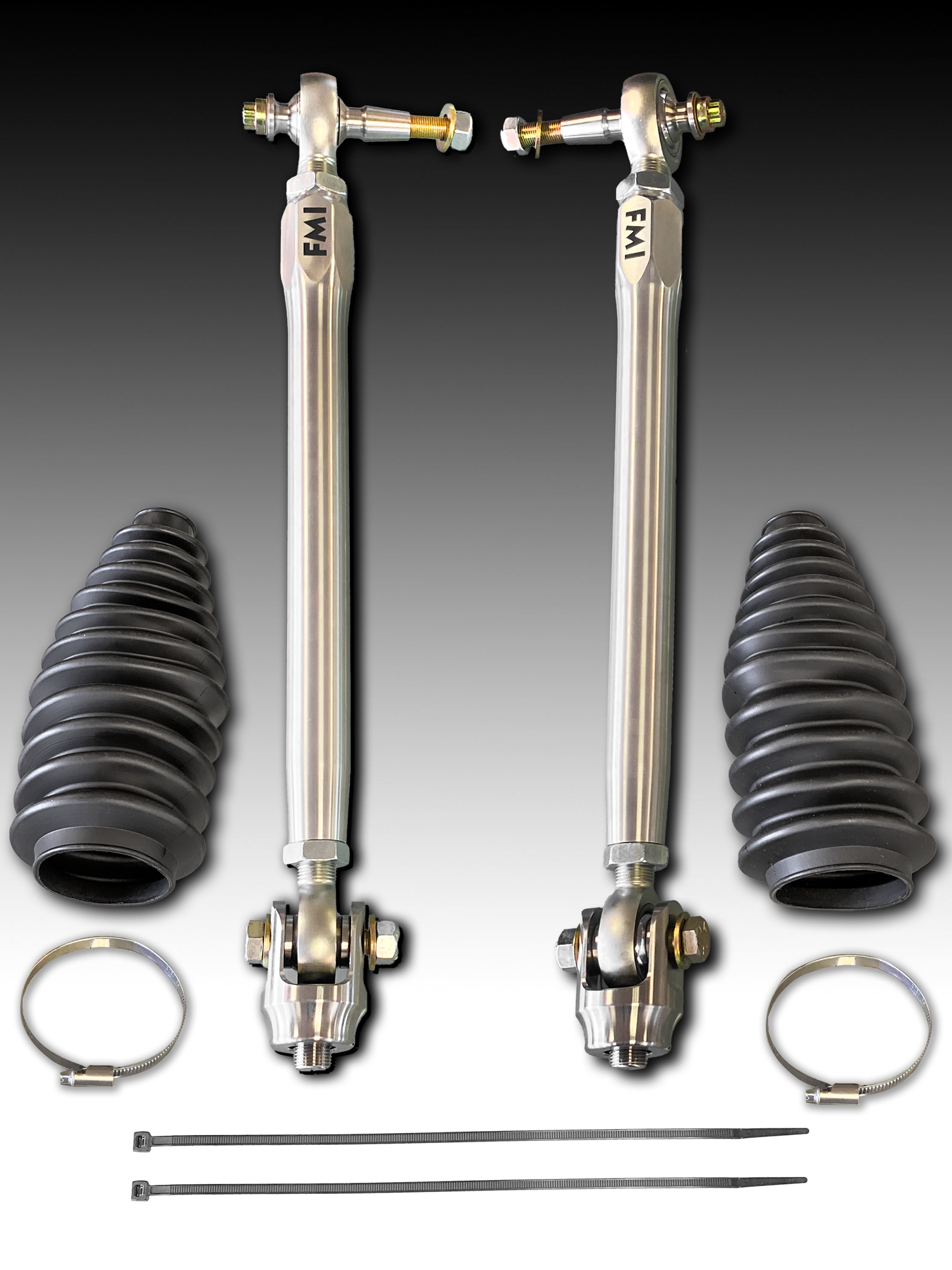

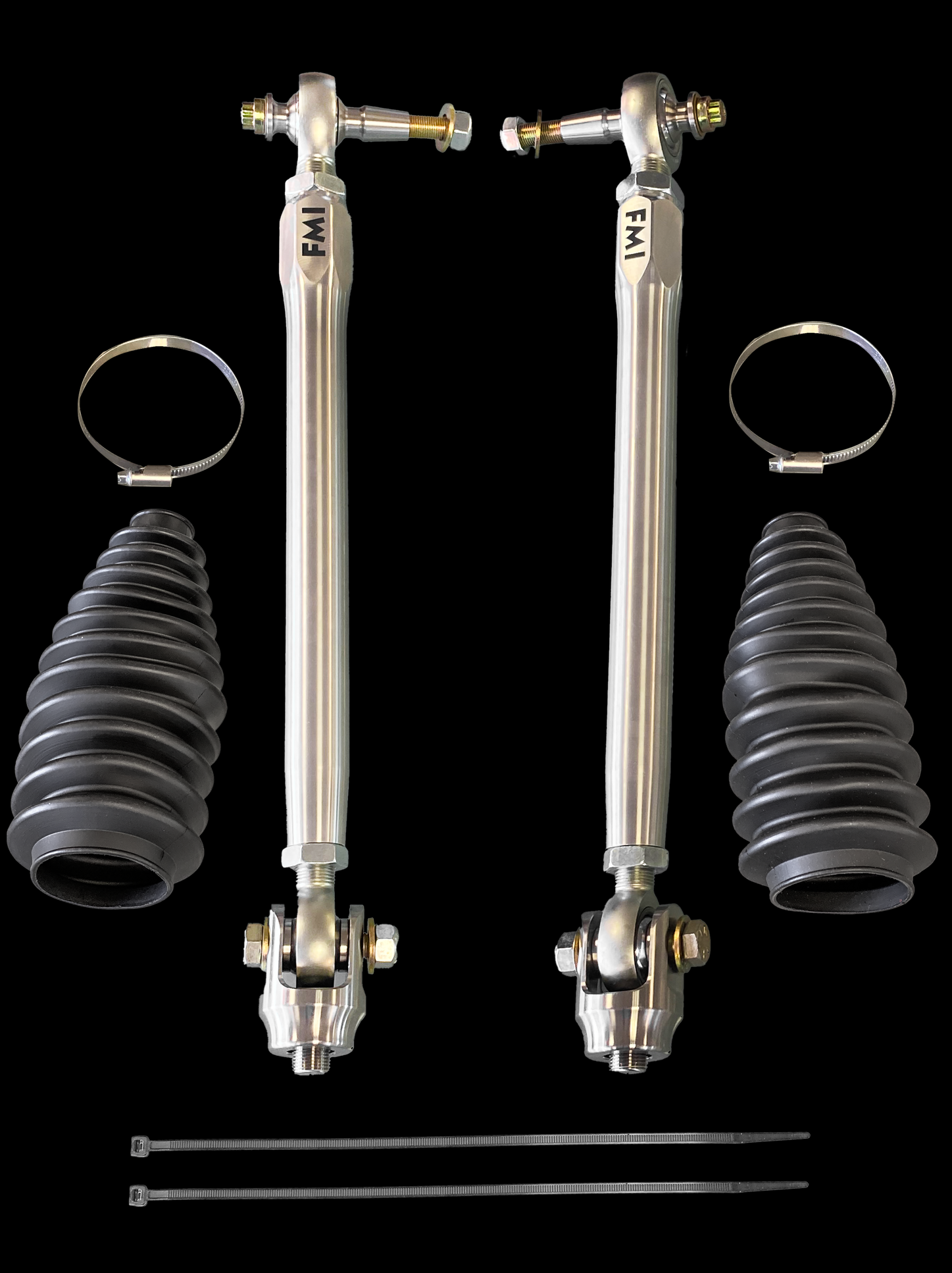

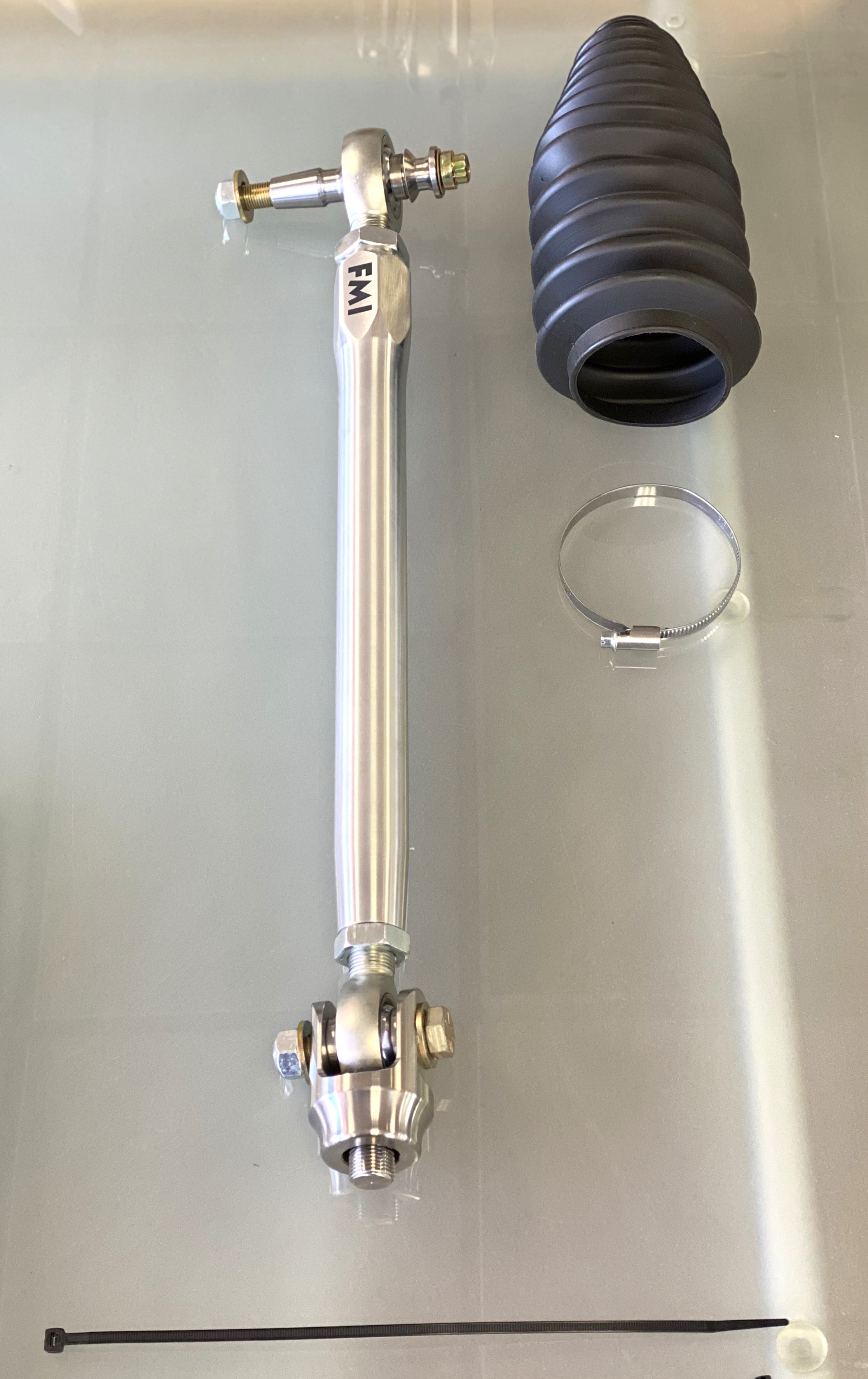

the kit includes:
2 ea Billet Tie rod tubes with 7/8 rod ends at the wheel and 3/4 rod ends at the steering rack
2 ea Steering rack clevis adapters
2 ea Tie Rod boots to keep it sealed up
1 kit of hardware which includes 17-4 stainless steel spacers, grade 8 bolts and nuts
***** kit designed to work with stock front shock. Other Aftermarket shocks could make contact with even the stock tie rod assembly. Use at your own risk ****
