Foutz Motorsports Rear Suspension Conversion Kit 2017-2020 Ford F-150 Raptor

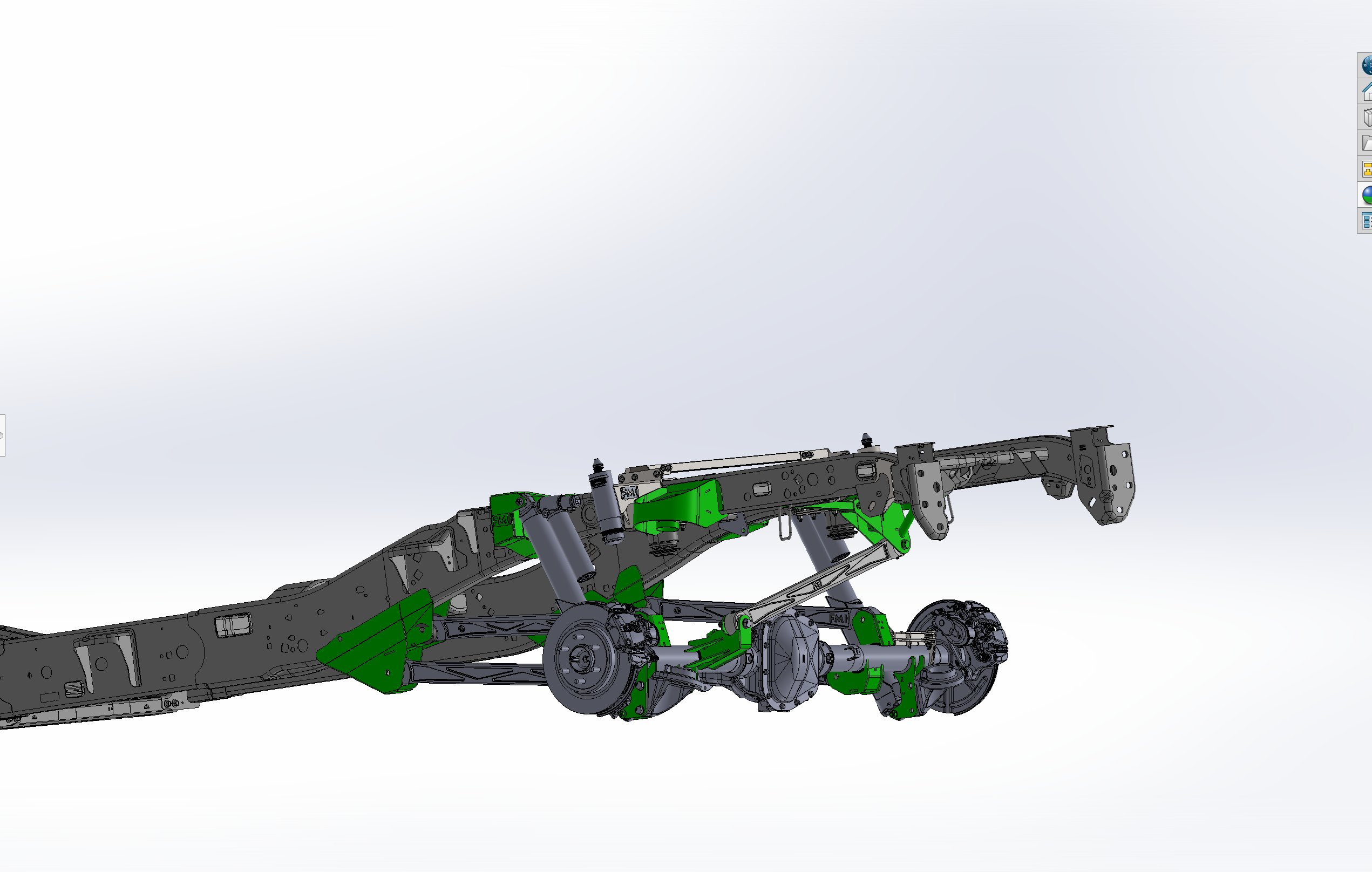

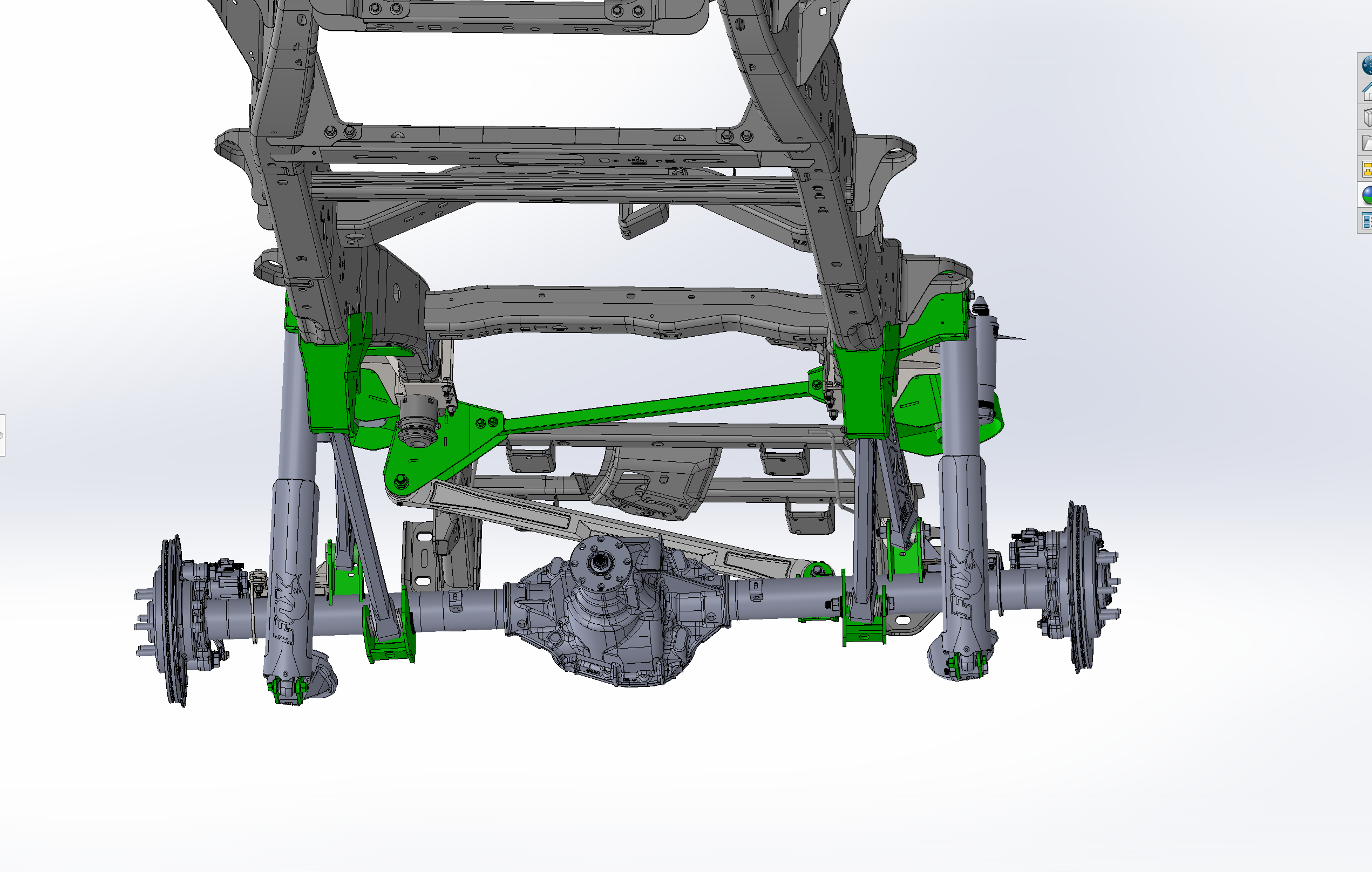

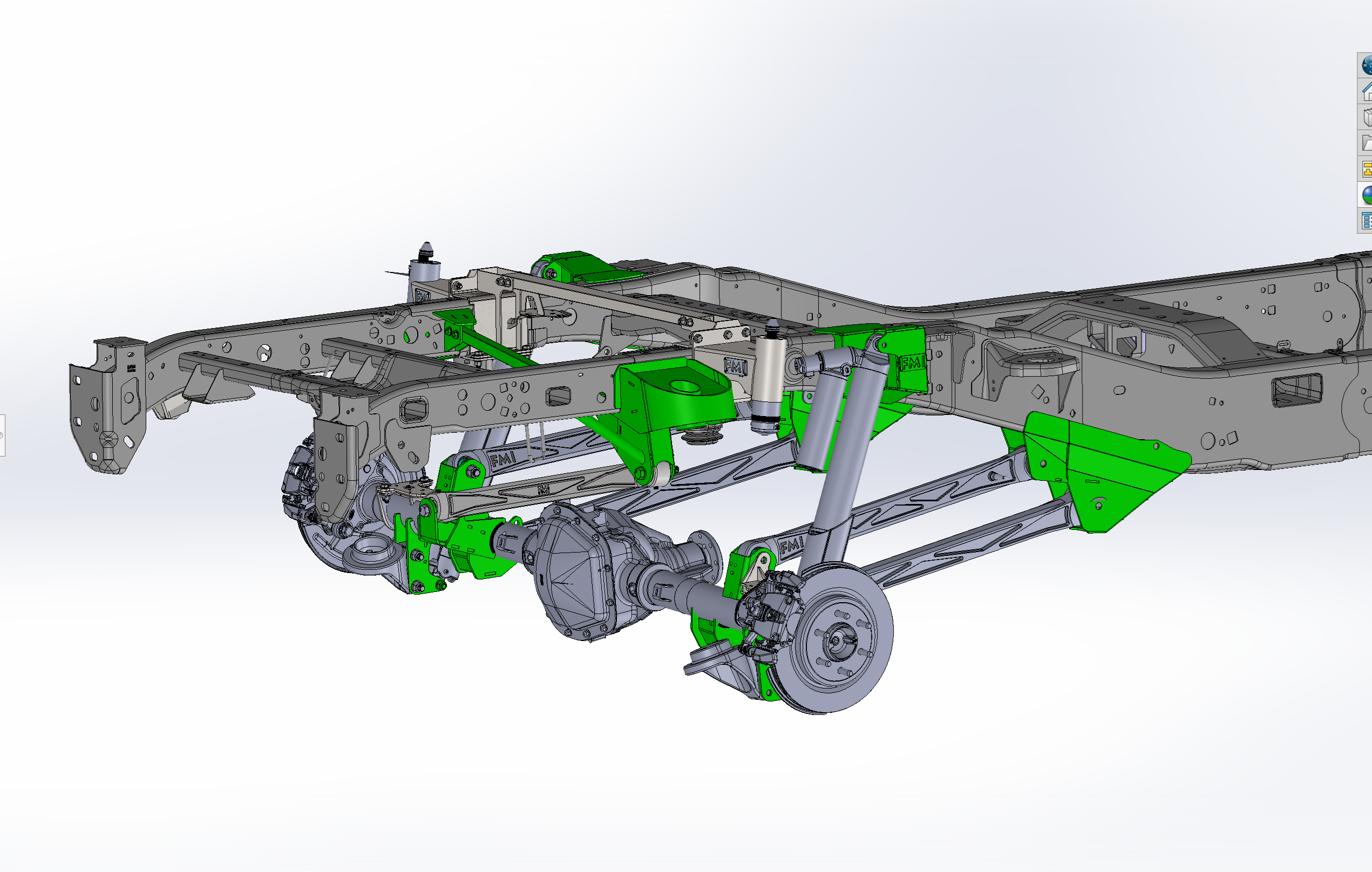

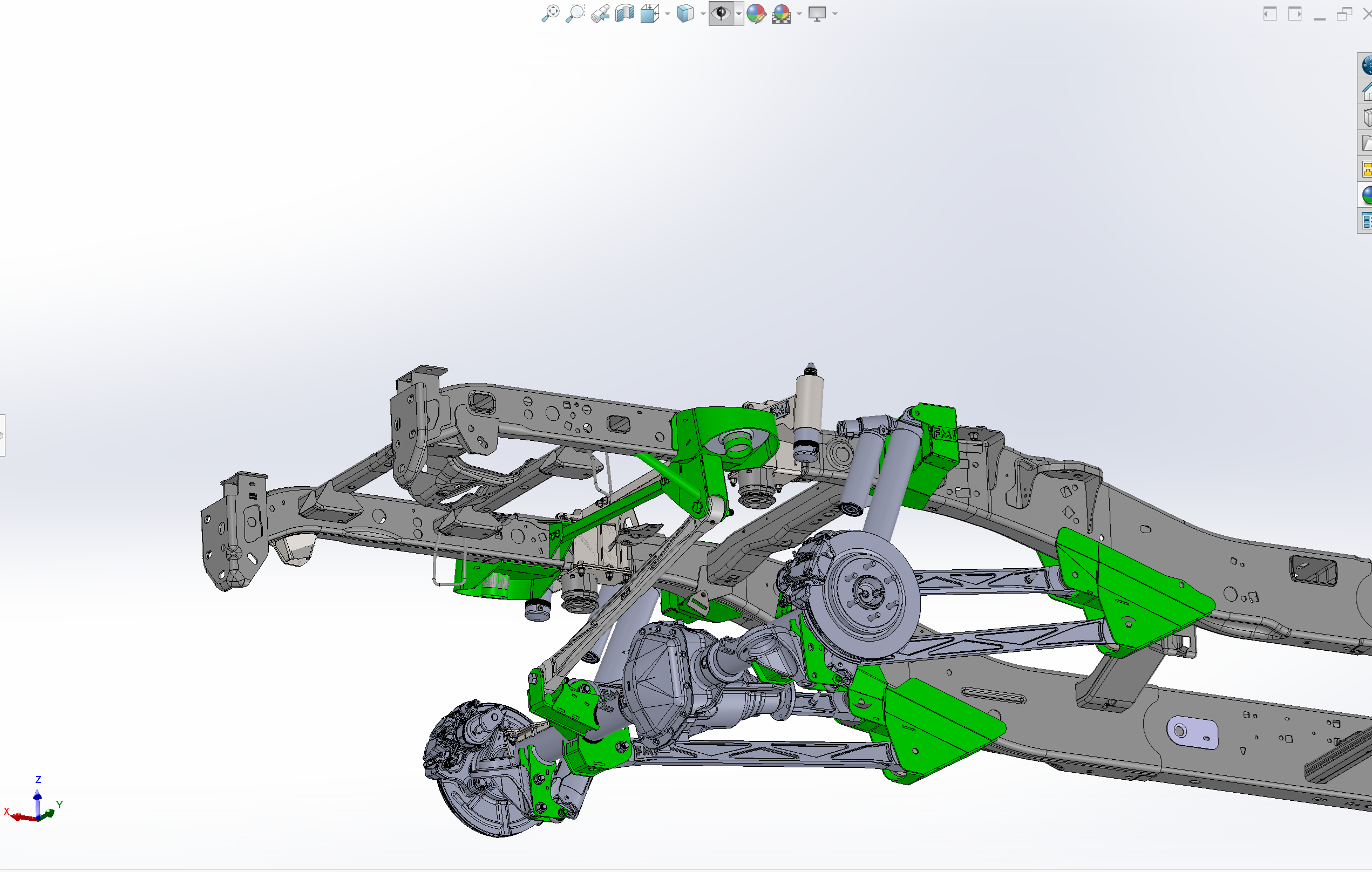

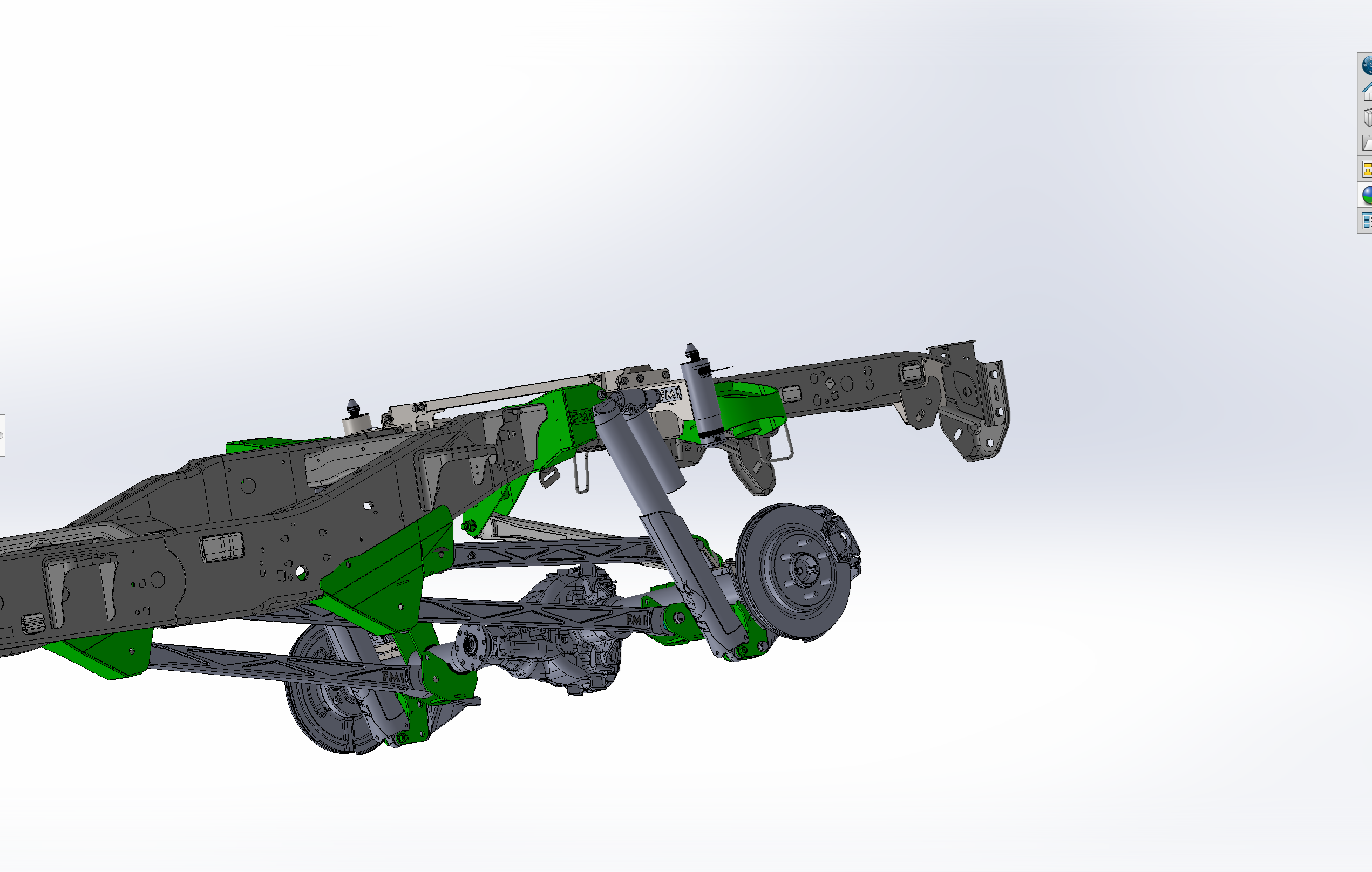

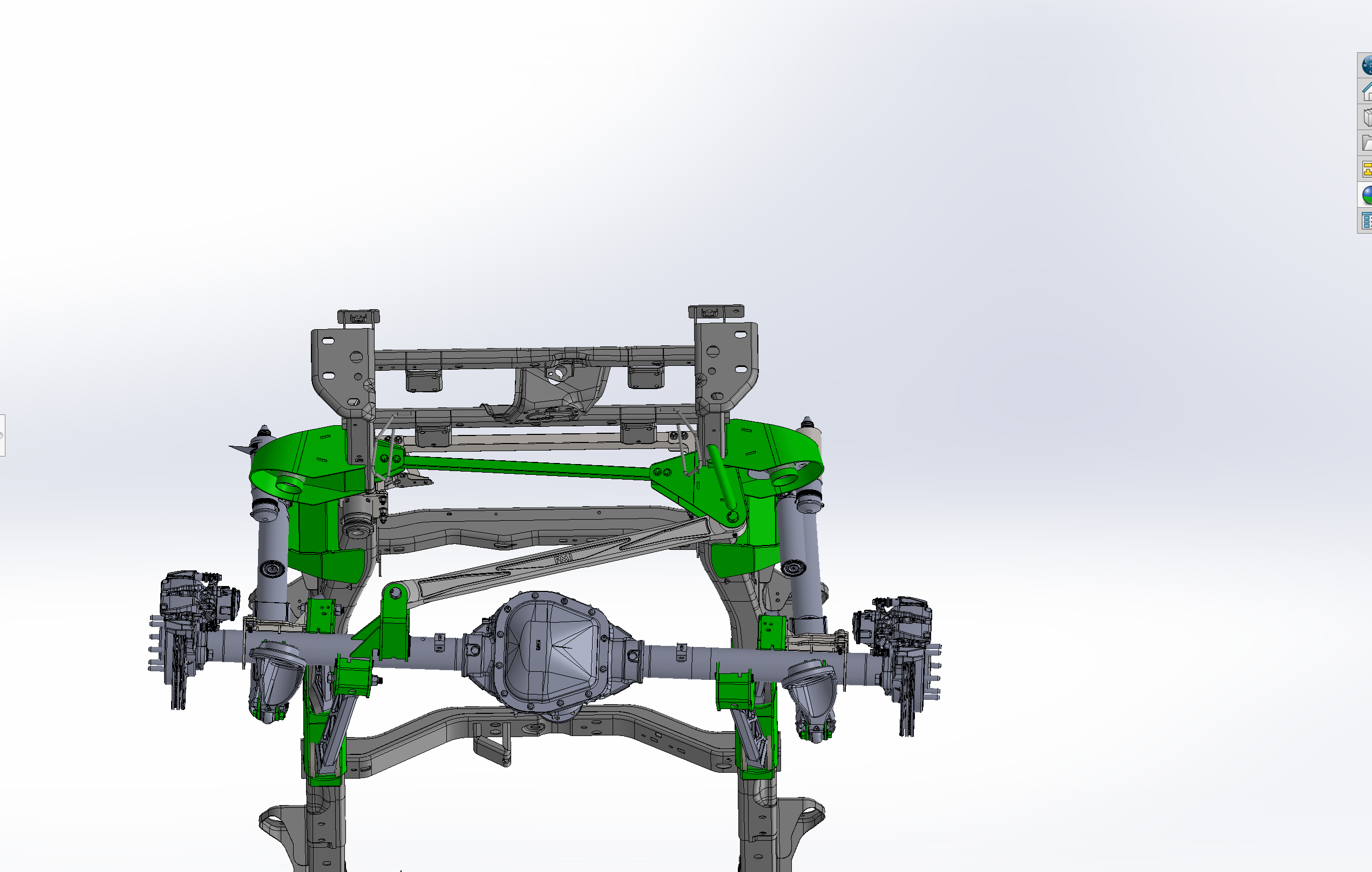

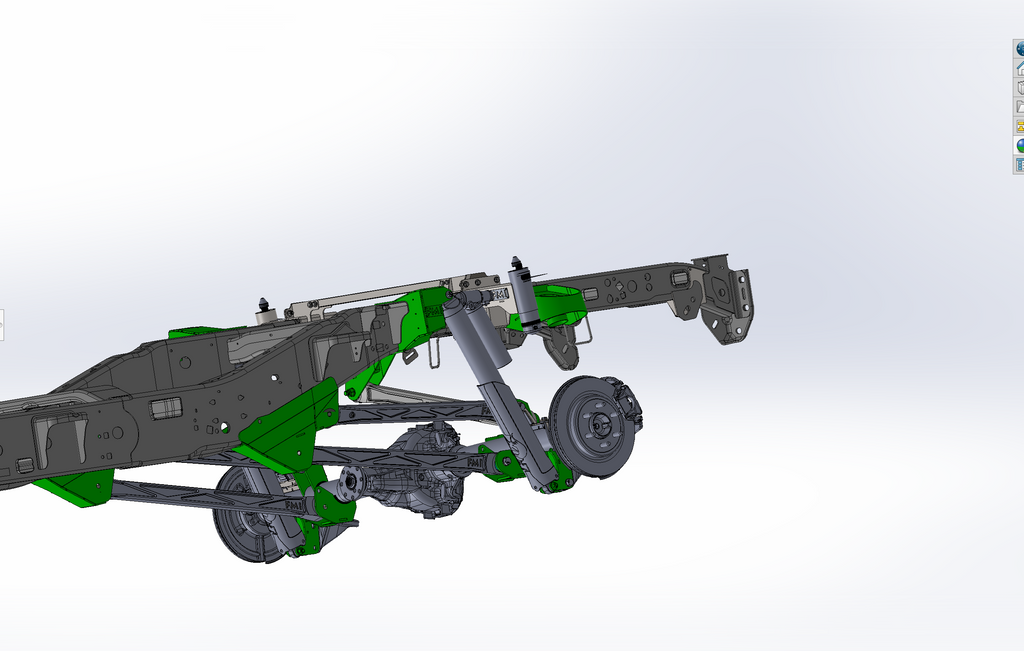

• Rear coil spring mounts with the panhard bar mount integrated, in the stock Gen 3 location
• Rear link frame mounts — weld to the frame in the stock Gen 3 location
• Rear shock mounts matching the Gen 3 stock shock location, built considerably stronger than factory
• Rear axle mount kit — every bracket needed to give your axle the full set of Gen 3 pick-up points
• Hardware kit — the nuts and bolts to assemble the kit and mount the axle and links

The kit deliberately does not include two Ford parts, because they are available from any dealer and there is no sense in us marking them up:

Stock rear coil spring lower cast mounts

The cast perch the bottom of the spring sits in. Order from the dealership.

Stock rear coil spring top rubber isolators

The rubber pad between the top of the spring and the frame. Also a dealer part.

Get these ordered before the truck comes apart rather than after.

The kit gives you the structure. Three components are yours to pick, and all the options genuinely work.

1. Springs

Run stock Gen 3 rear coil springs — take-offs are findable — or any aftermarket spring you prefer.

2. Links and panhard bar

Stock Gen 3 take-offs work. So do our billet aluminum rear links and billet panhard bar, or our stock-length fabricated links and adjustable panhard bar. Since you are building the rear end from scratch anyway, this is the moment to fit the good ones.

3. Shocks

A set of take-off Gen 3 rear shocks will work, or any aftermarket shock that mounts in the stock location.

Fits the 2017–2020 Gen 2 Ford Raptor and 2015-up Ford F-150.

The width limit that catches people out

This kit only works at stock Raptor width. You cannot use it on a standard F-150 without first fitting a Raptor-width rear axle and a wider rear body — the stock rear springs and the panhard bar will not clear the narrower body. If you are starting from a standard F-150, talk to us first.

Tires

Works with both 35" and 37" tires with no problem.

This kit requires substantial cutting and welding and should be done by a qualified fabricator. You are removing a leaf-sprung rear end and building a five link in its place — frame mounts, axle brackets, spring mounts and shock mounts all weld in, and their positions set the geometry.

We build these in-house in Mesa, Arizona. Install guides are at Install Instructions.

Will this fit a standard F-150?

Only at Raptor width. A narrower standard F-150 needs a Raptor-width rear axle and a wider rear body first — the stock springs and panhard bar will not clear otherwise.

How is this different from the long travel conversion?

This one gives you Gen 3 geometry at stock-style travel, with the shocks in the stock location. The long travel version relocates the panhard bar and runs the shocks through the bed for considerably more travel.

Can I upgrade to a through-the-bed coil over later?

Yes. Adding the bed cage kit to this conversion takes you there without redoing the rest of the work.

Can I use the rear bump stop kit?

Yes — the rear bump stop kit works with this conversion.

Will it work with a diff skid and shock guards?

Yes, our rear axle diff skid, rear shock skids and shock guards all work with this kit.

Do I need new springs and shocks?

You need some — the kit is the structure, not the suspension. Stock Gen 3 take-offs work if you can find them; so does anything aftermarket in the stock location.

Where is it made?

Designed, fabricated and finished in-house at our facility in Mesa, Arizona, USA.

• Billet or fabricated rear links and panhard bar — fit them now rather than later
• Complete rear suspension bolt kit — fresh hardware for the assembly
• Rear bump stop kit and rear limit strap kit
• Long travel version of this conversion — if you want the travel too

The full catalog is on Gen 3 Raptor Rear Suspension.
