Description

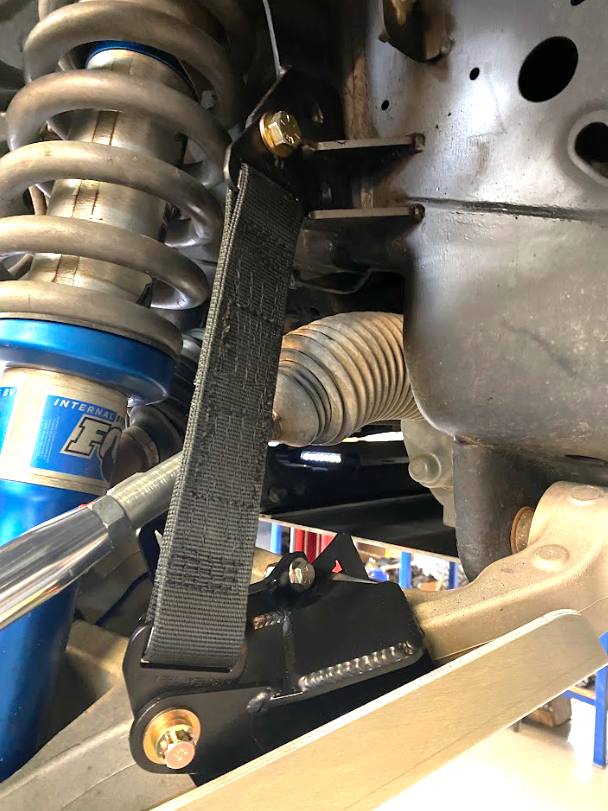

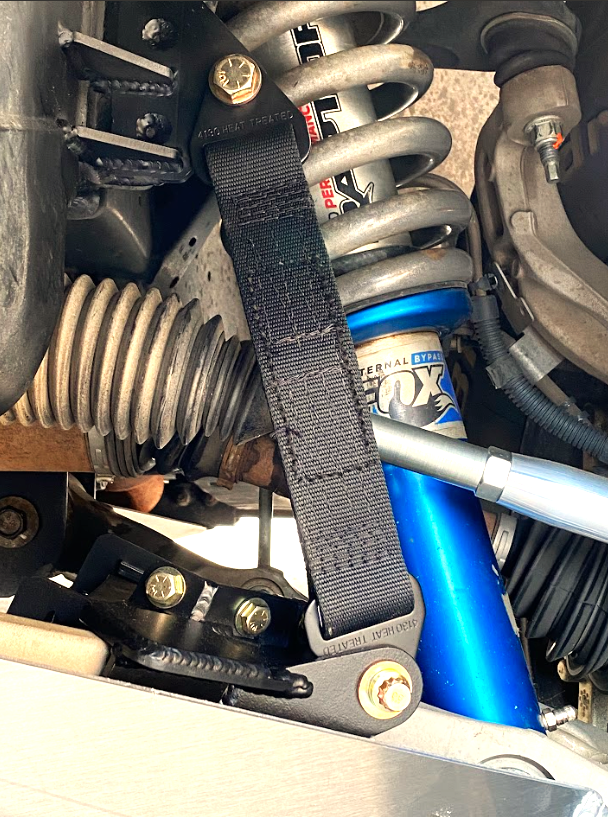

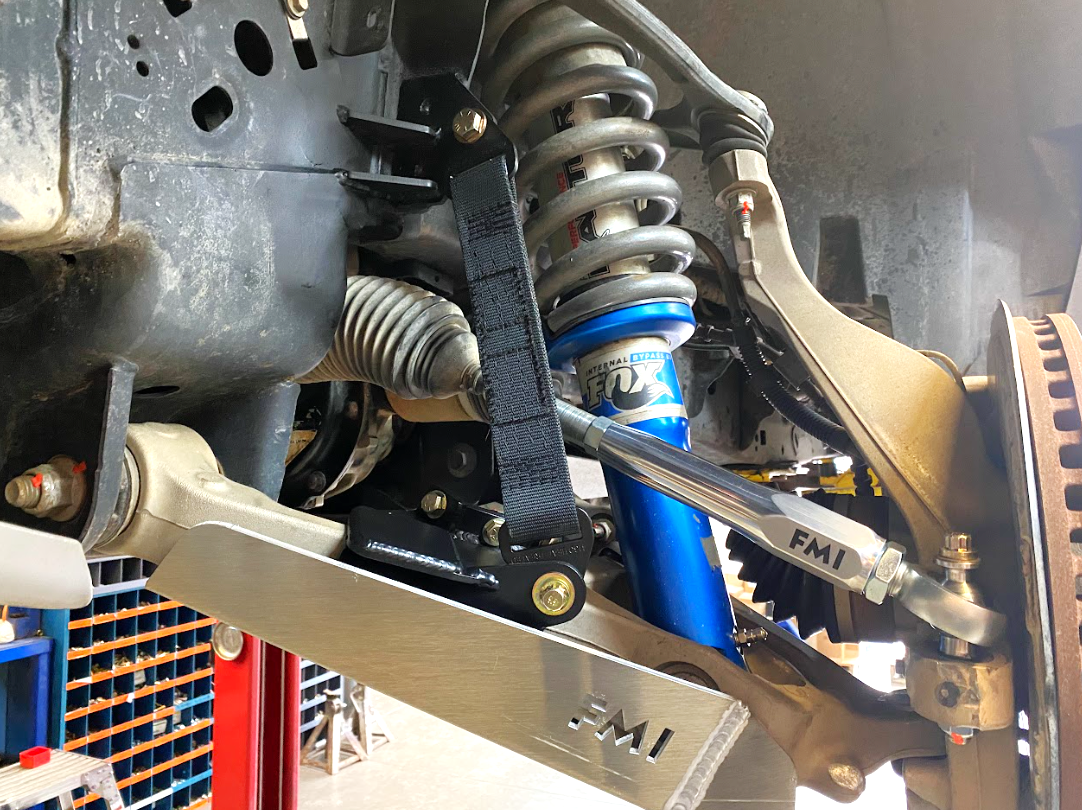

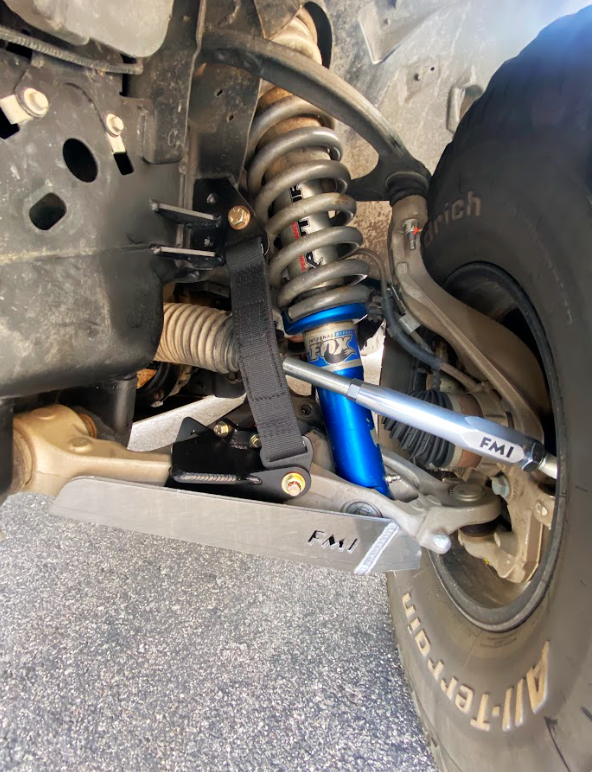

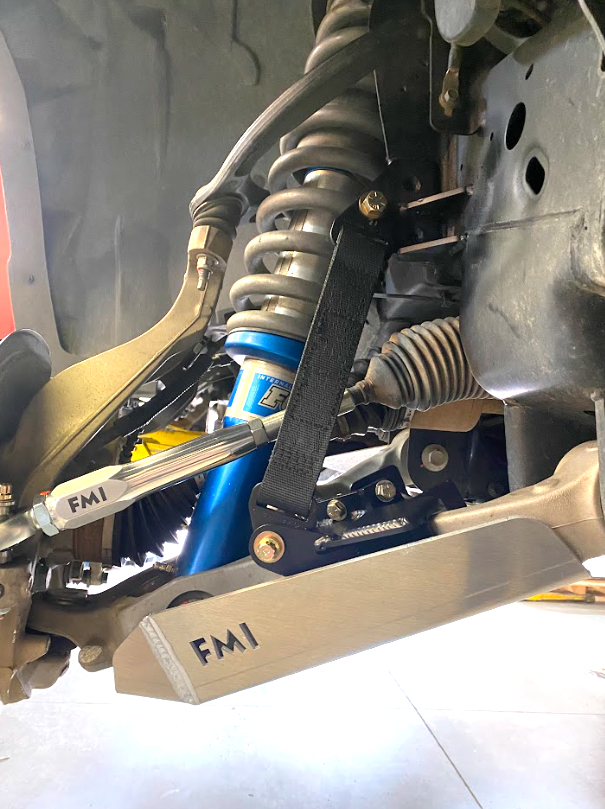

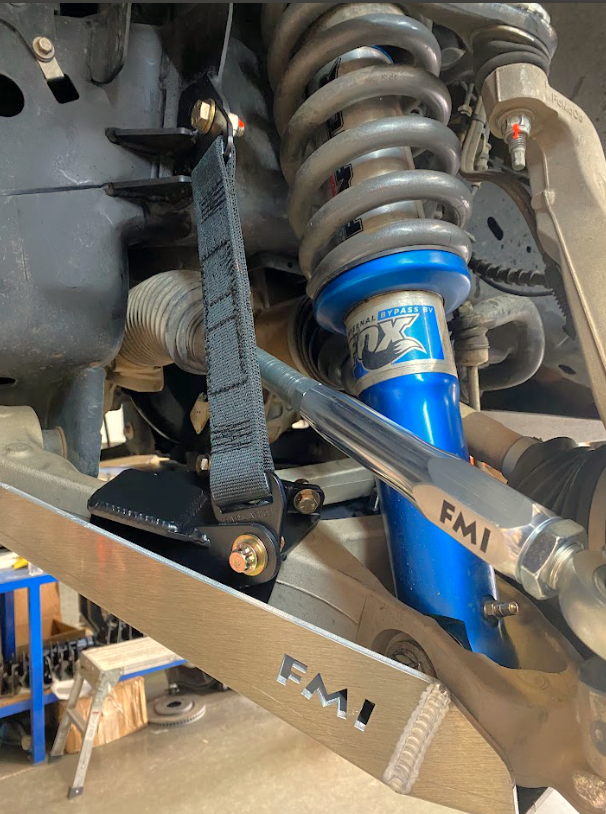

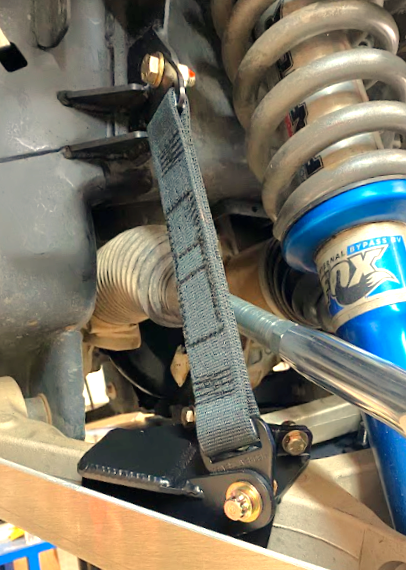

Extend the life of your front suspension components by limiting the top out travel and save your top shock mount from premature damage with this kit.
It is designed to work with your factory stock lower a-arm and bolt on to the cast aluminum and is easy to install.
- Unlike cheap straps that will stretch and wear out over time, Our durable 12" straps are made with high quality material that is capable to withstand abuse and will provide you with long lasting strength.
- This is an absolute must-have, especially when using aftermarket springs on your truck. We have seen several trucks rip out the top cap of the shock mount when off-roading from excessive top out pressure and we have heard the front top out noise when you go over a speed bump or have the front suspension come off the ground - this is why our kit will limit the top out so you don't have to rely on just the shock to stop the droop.
- A bump stop pad is built in to be an easy addition for a front bump stop kit that can be added at any time.

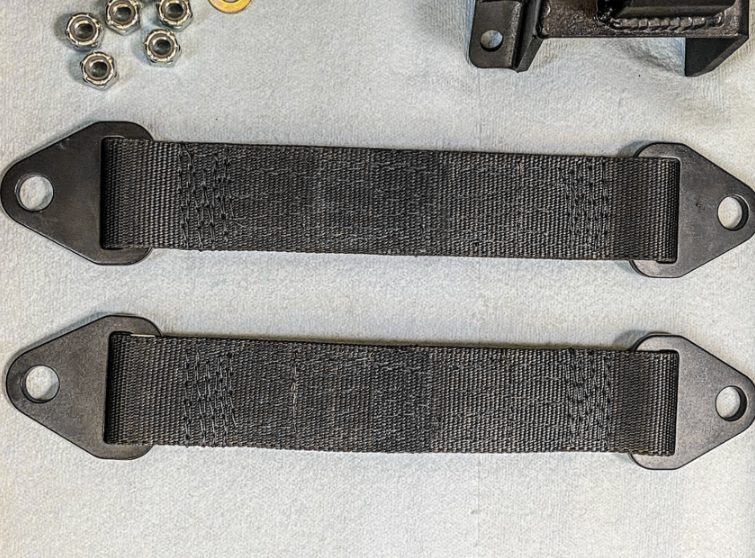

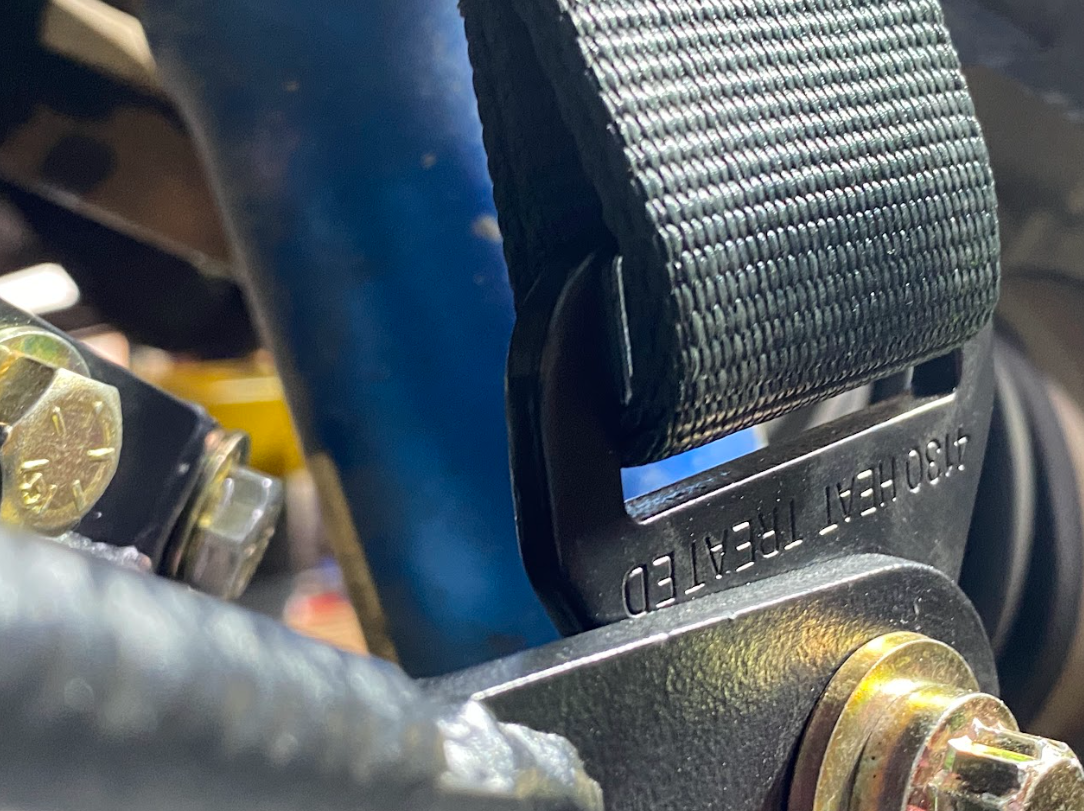

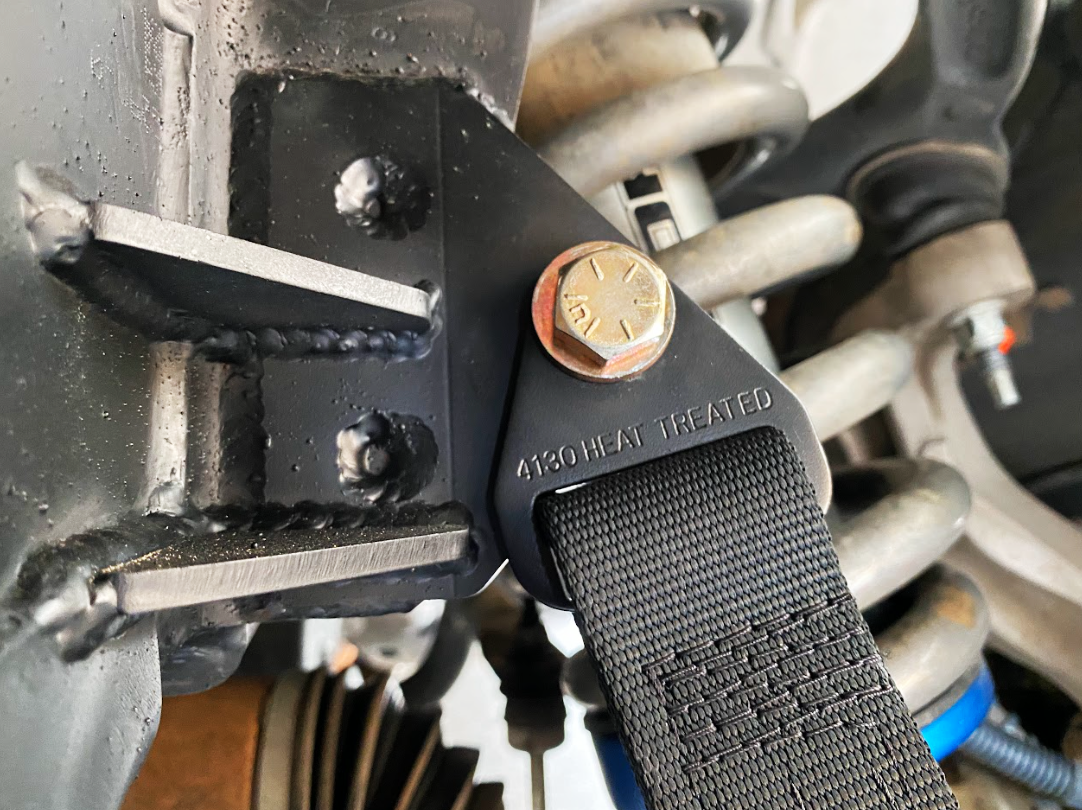

- Each strap features 4 layers of military grade webbing with steel mounting tabs at the end that are plated black.

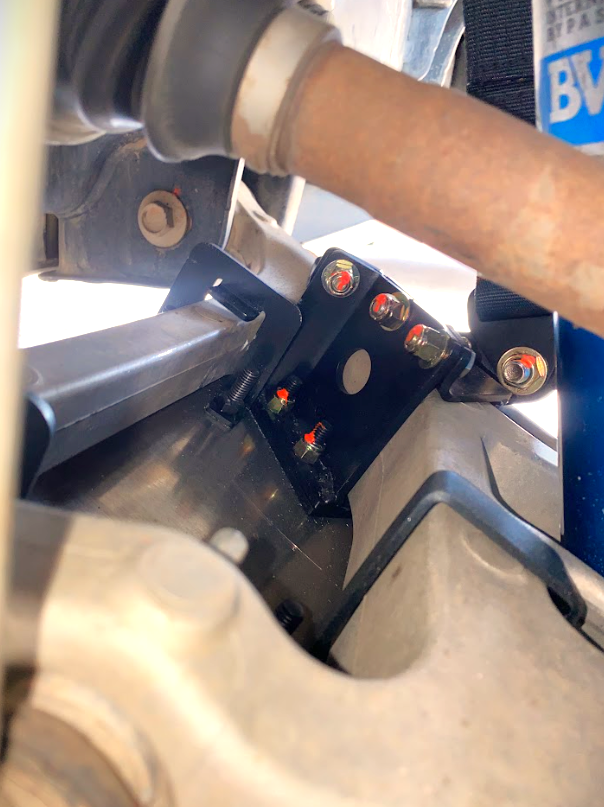

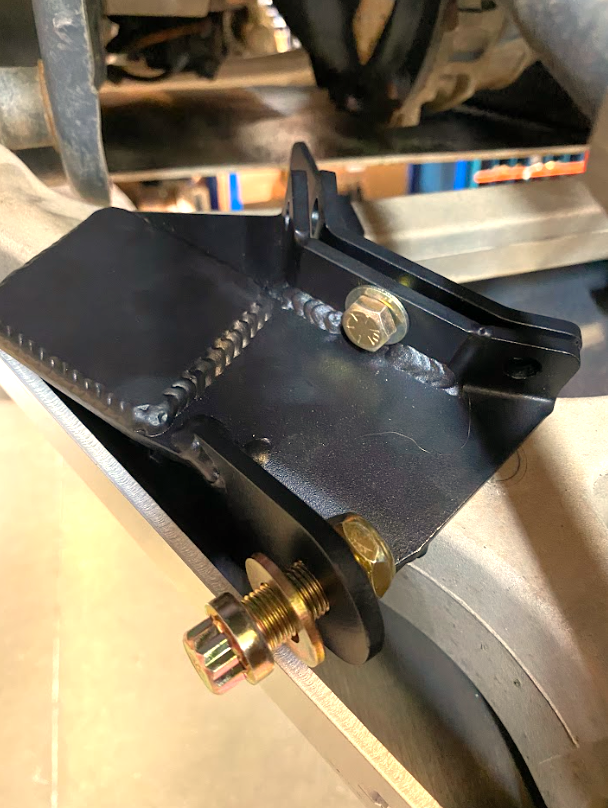

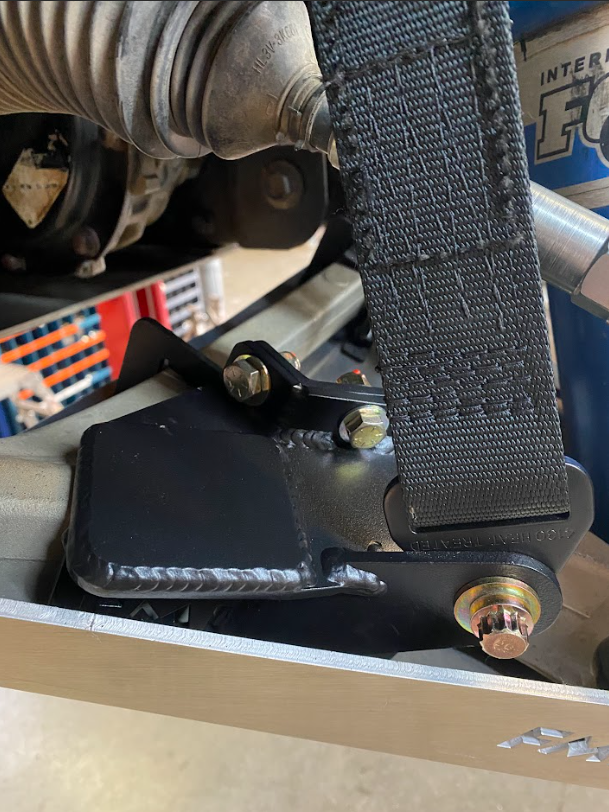

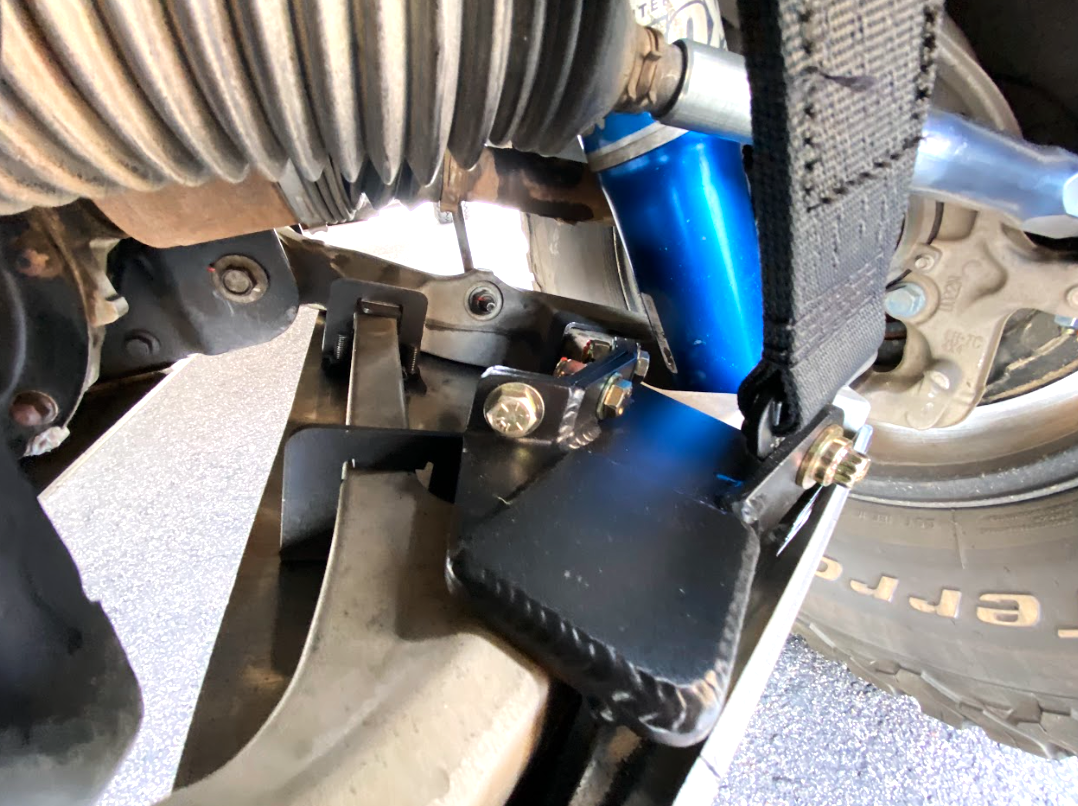

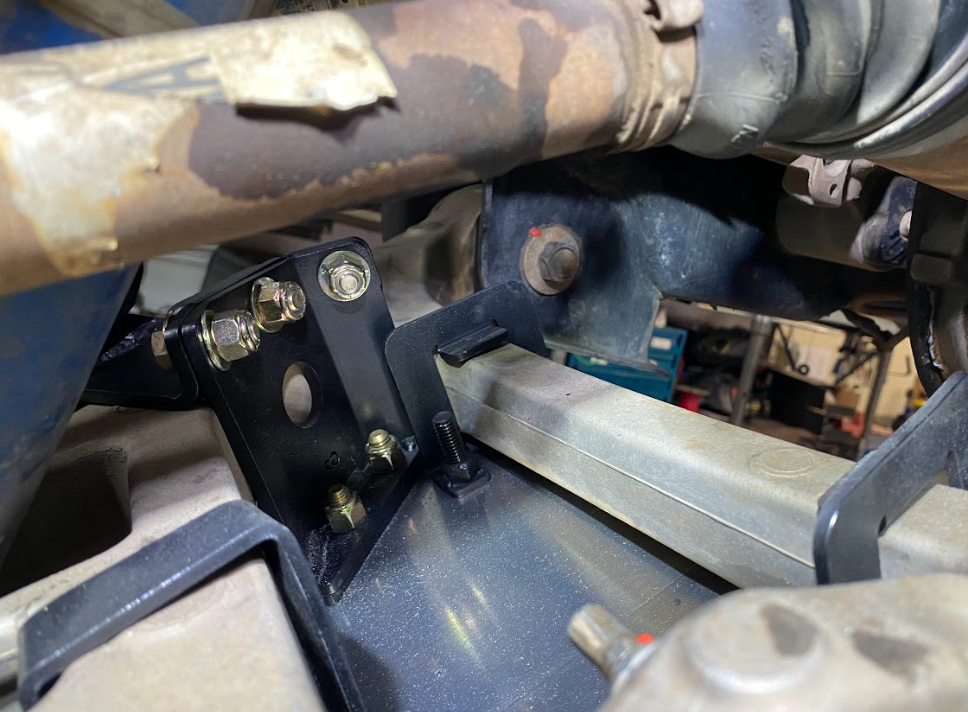

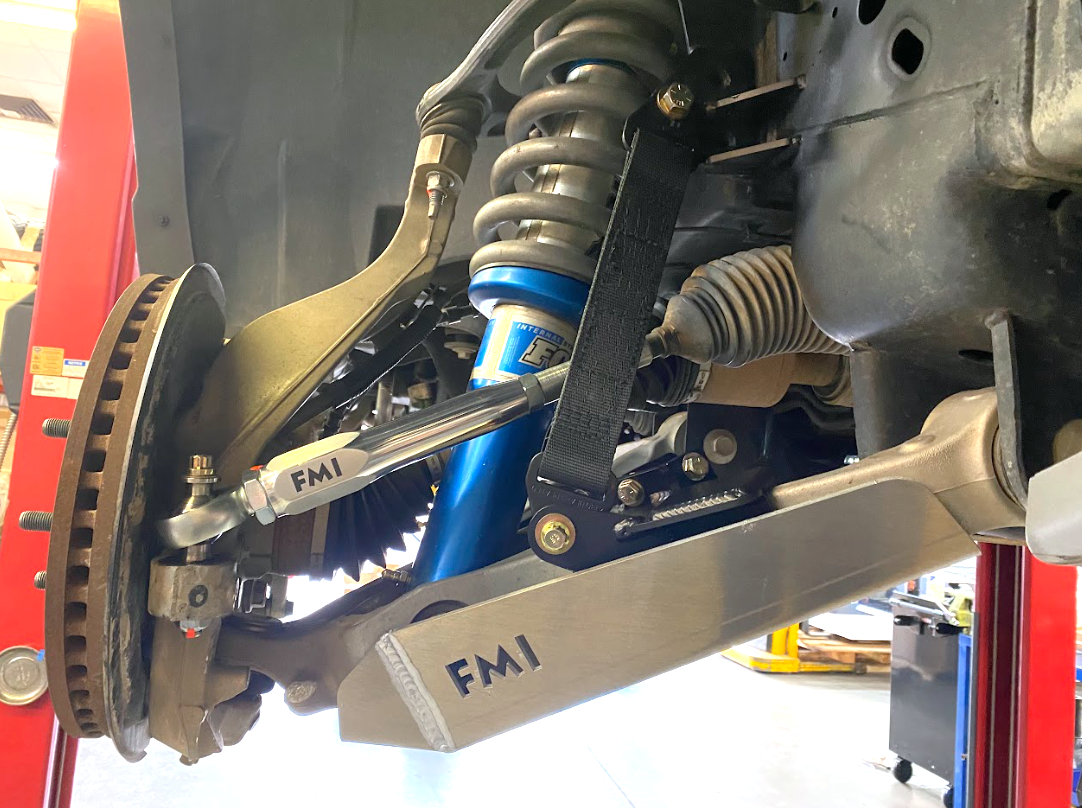

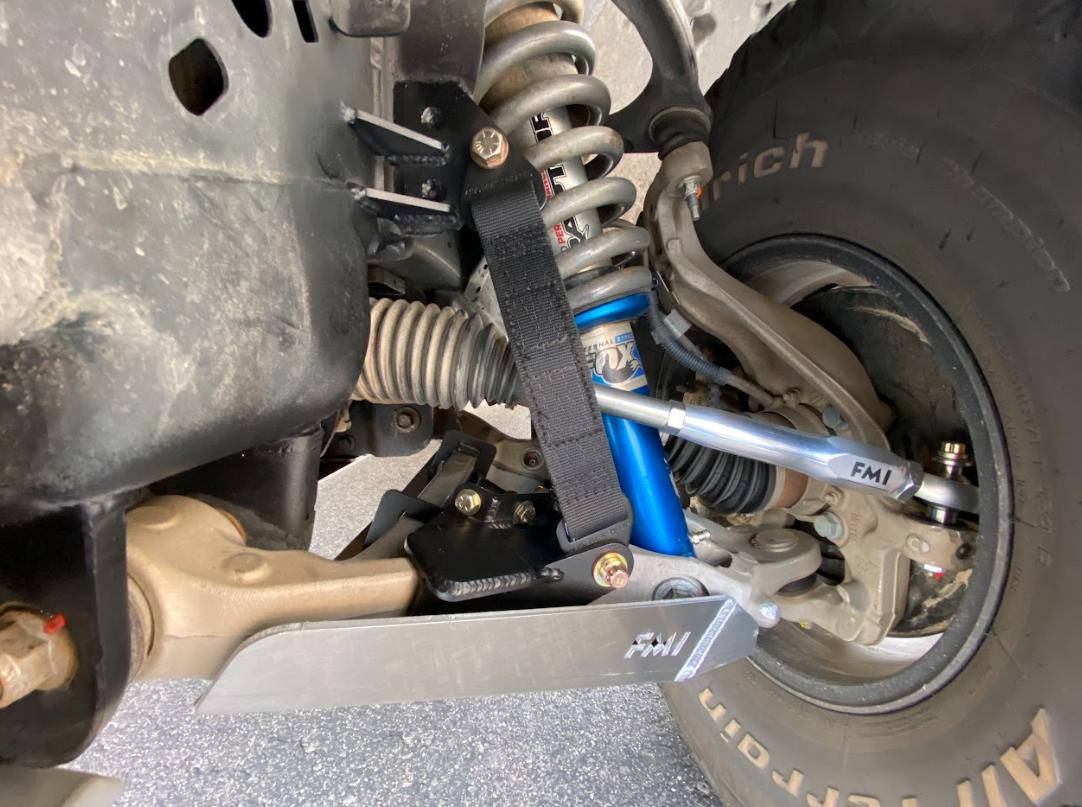

- The mounting brackets that secure around the front of the lower stock control arm are mig welded in house and powder coated in hammer black for ultimate durability and strength.

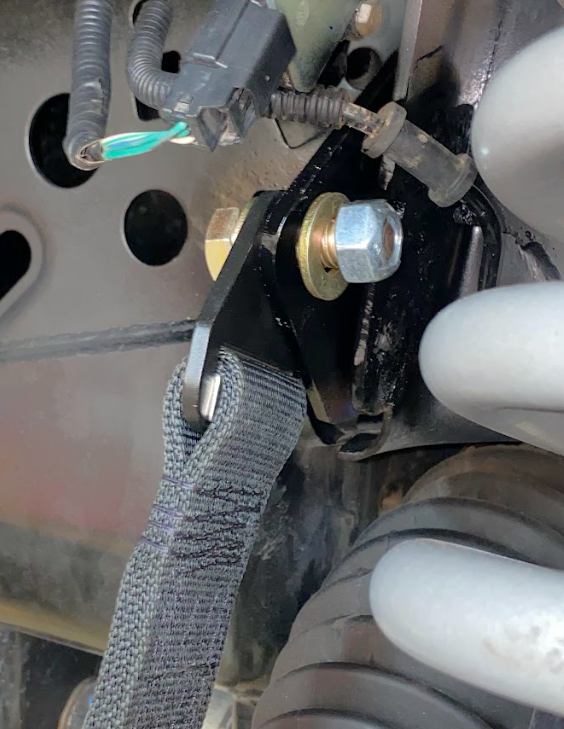

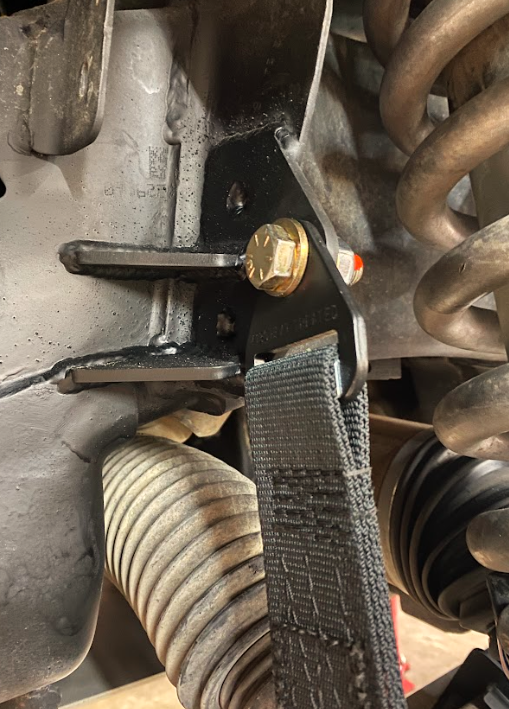

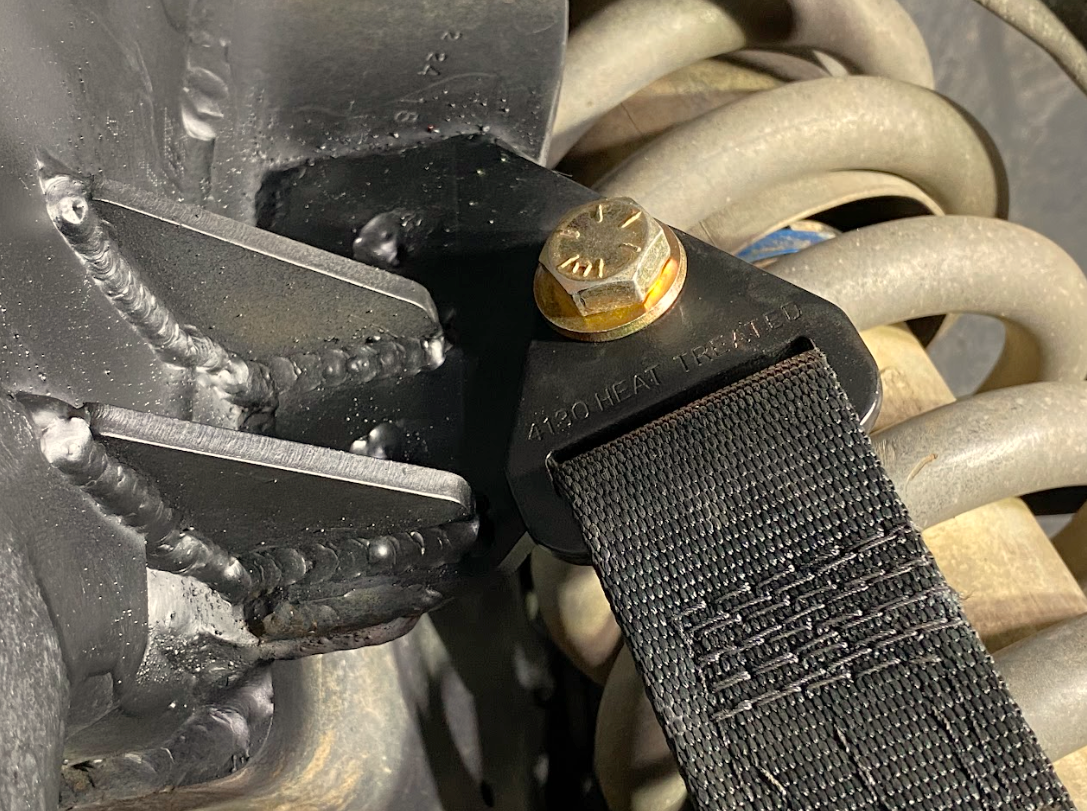

**This kit requires you to weld the upper limit strap tabs to the frame and should be installed by a qualified welder/fabricator. It will not work with Fox upgraded 3.0 hoses without rebuilding shocks and hose kit**

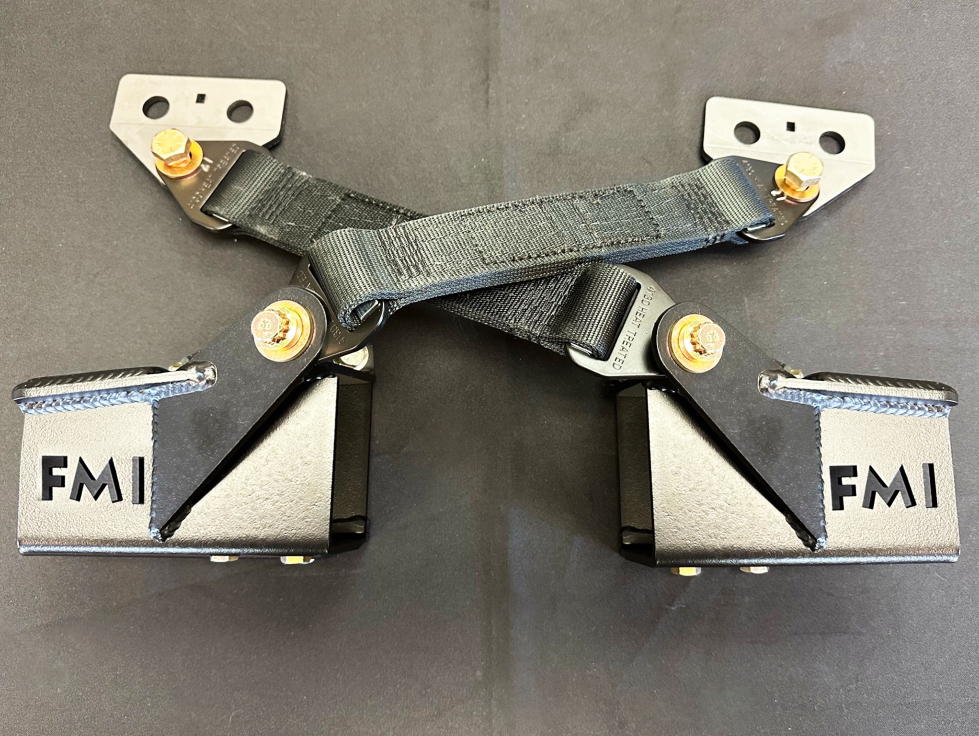

This kit includes:
( 2 ) 12" length Limit Straps
( 2 ) Weld-On Mounting Tabs
( 2 ) Gussets
( 2 ) Main Mounting Brackets
( 2 ) Mounting Bracket Backing Plates
Lower Control Arm Mounting Bracket Hardware:
( 10 ) 3/8-16 x 1 1/4" Bolts
( 10 ) 3/8-16 Nyloc Nuts
( 6 ) 3/8 Washers
Lower Strap Mounting Bracket Hardware
( 2 ) 1/2-20 Nyloc Nuts
( 2 ) 1/2-20 Shallow Nyloc Nuts
( 2 ) 1/2-20 12 point Bolts
( 4 ) 1/2 Washers
Upper Strap Mounting Bracket Hardware
( 2 ) 1/2-13 x 1 1/2" Bolts
( 2 ) 1/2-13 Nyloc Nuts
( 4 ) 1/2 Washers
