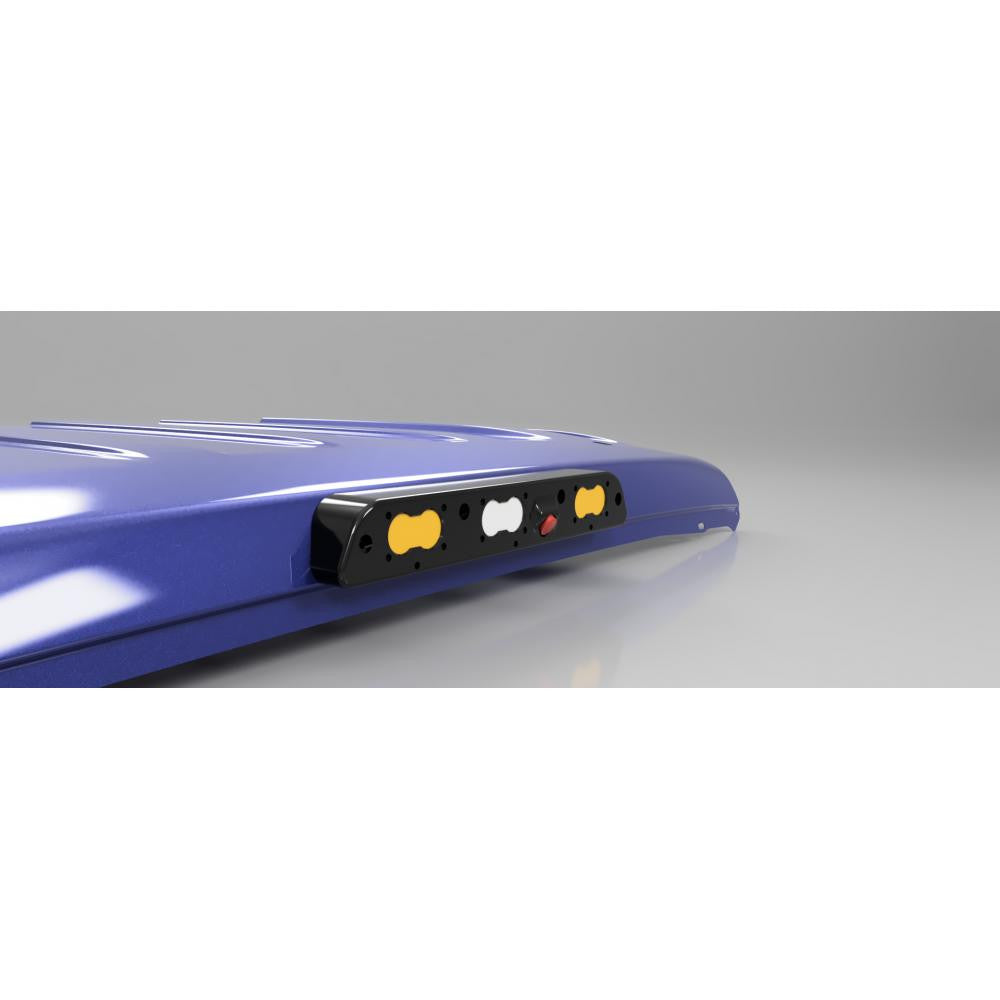

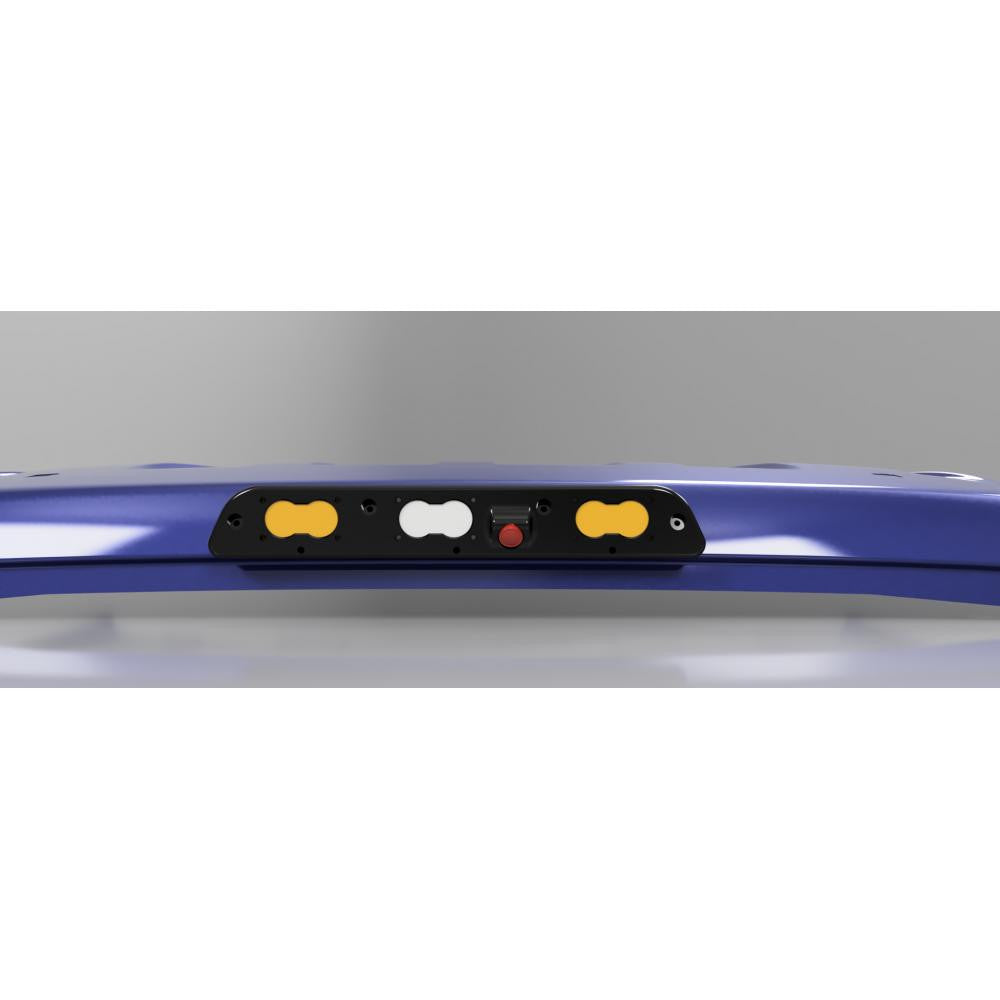

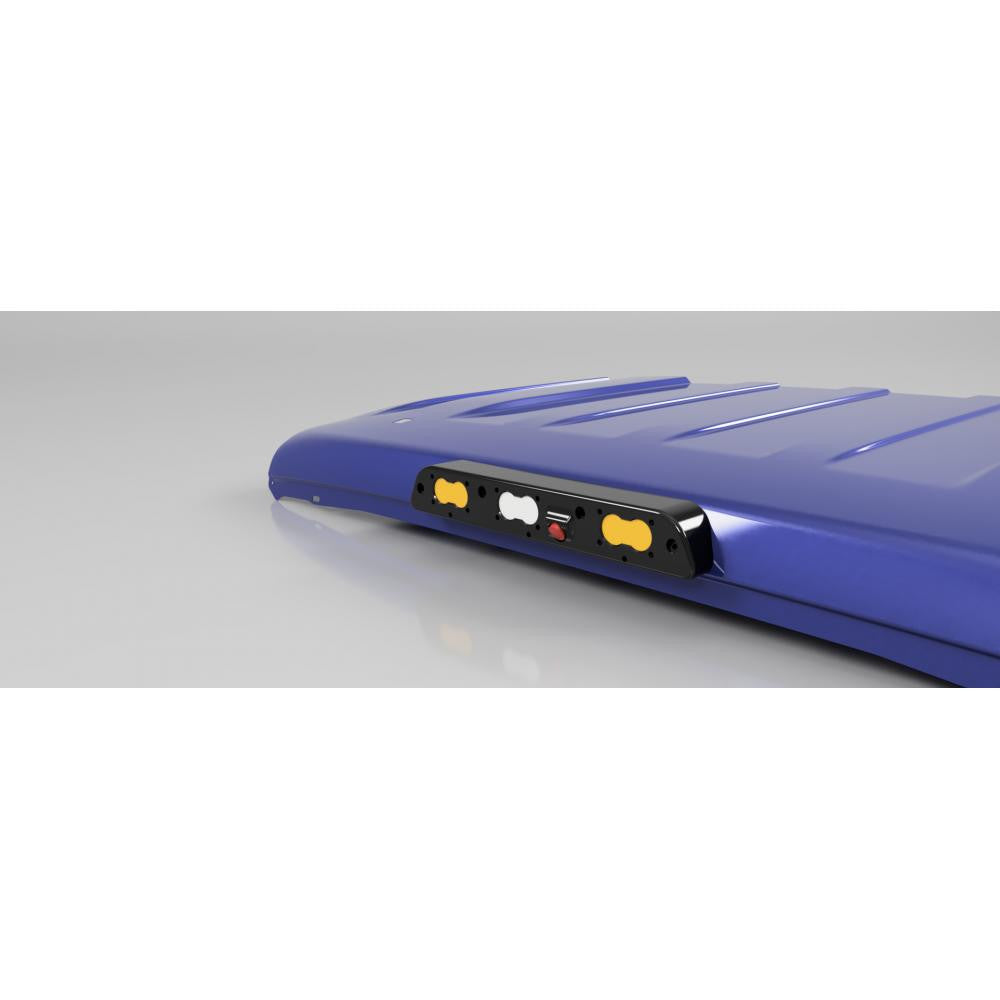

The GJ Motorsports billet aluminium 3rd brake light for the 2021+ Ford F-150 and Super-Duty with Camera is the first light to market that allows for installation of 3 Baja Designs S2 lights and retains the factory styling of the light.
VEHICLE FITMENT:
2021+ F-150
2021+ F-150 Raptor
2017+ Ford Super Duty (F-250, F-350, F-450, F-550, F-600)

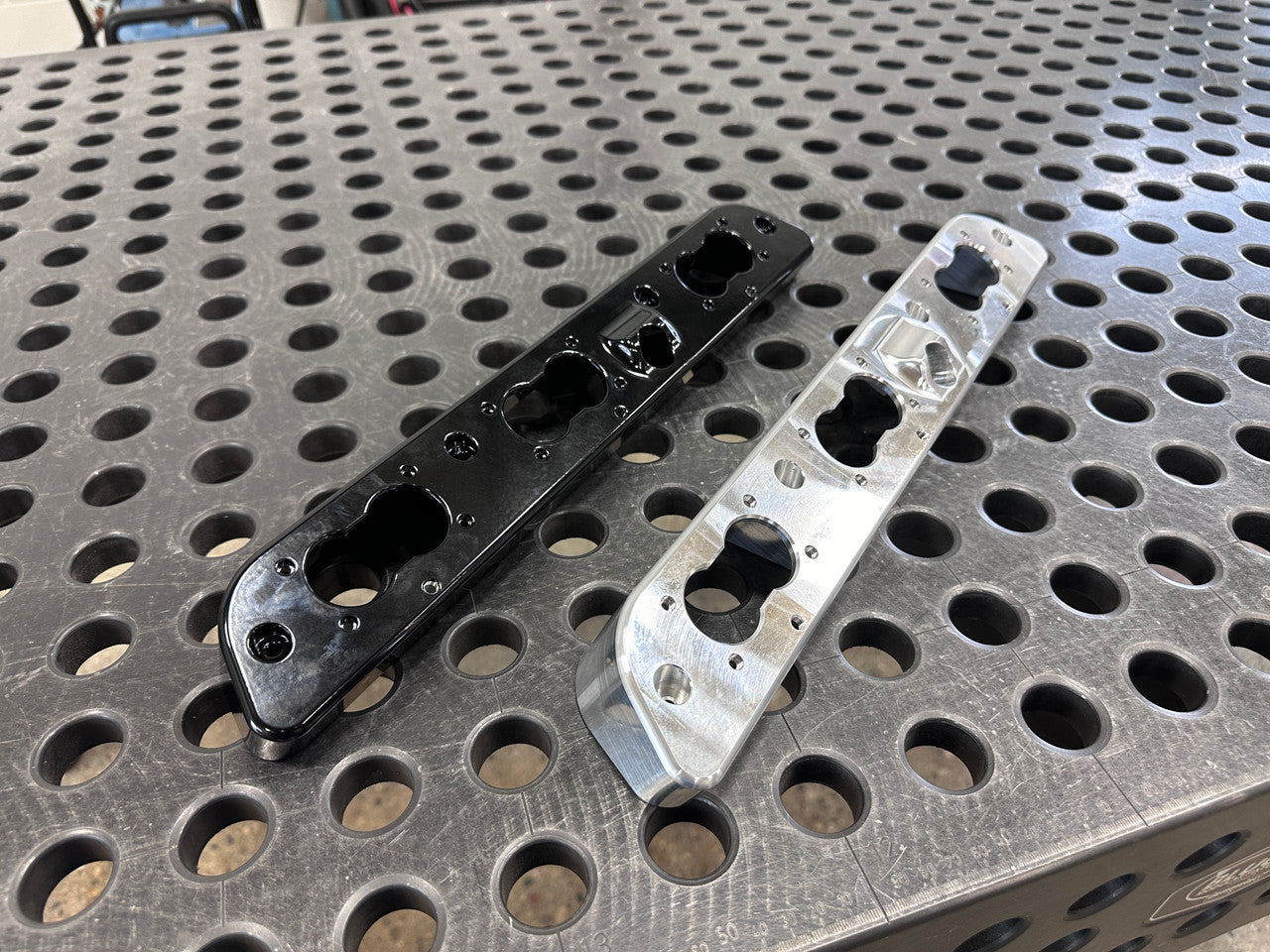

- CNC Machined from billet 6061 Aluminium
- Uses factory bolt holes
- Integrated gasket to seal the light enclosure to the cab
- Plug and play integration with the factory wiring for brake, marker and cargo lights
- Wiring harness included as standard
- No drill installation, uses factory mounting holes
- Three 1W Red LED marker and brake lights
Note: This housing is for trucks with the cargo camera in the 3rd brake light, if you do not have a camera you need the 2015+ housing which can be found here.
ANTENNA MOUNT:

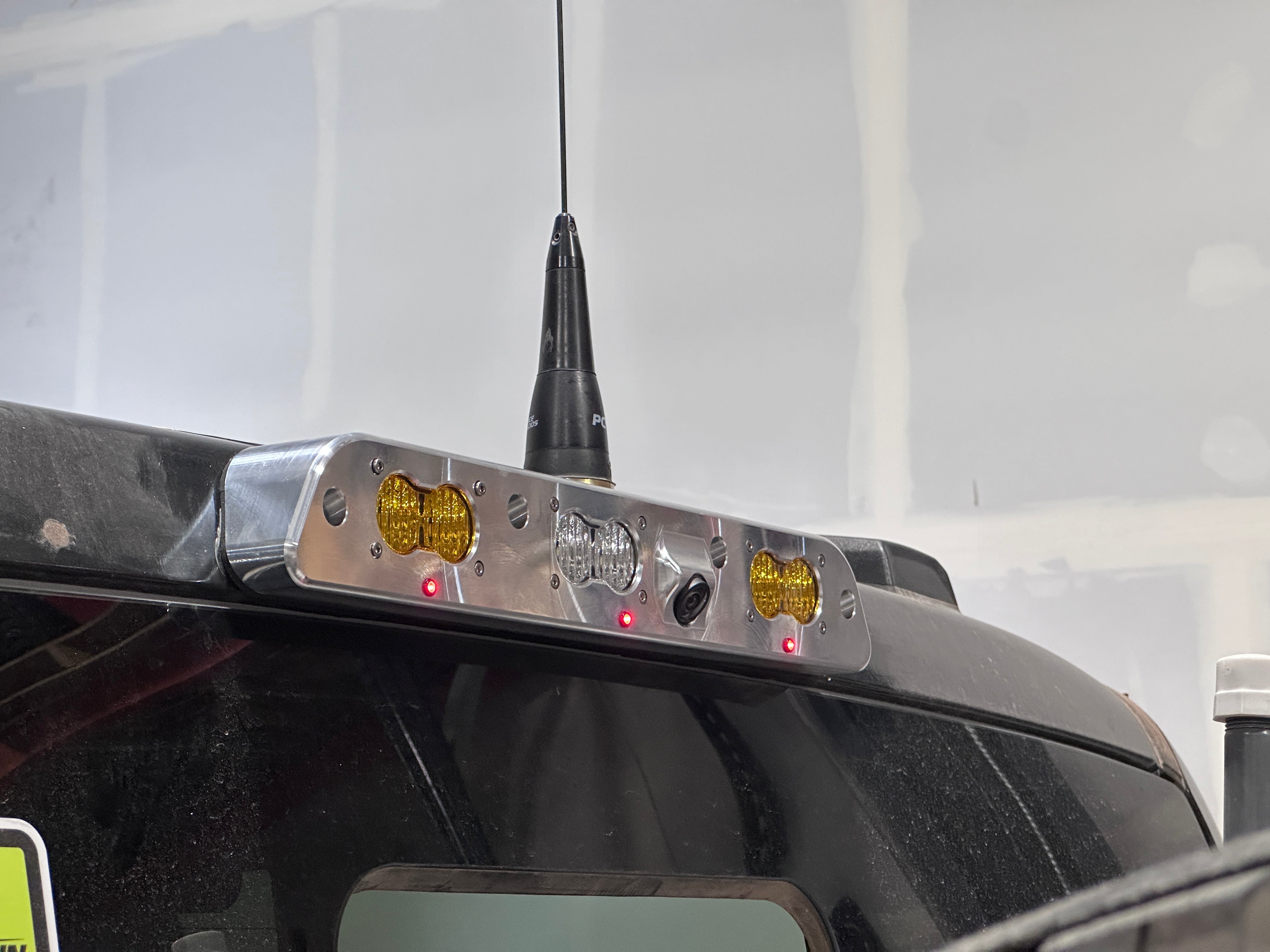

The antenna mount option adds a standard brass NMO antenna mount to the top of the housing, The mount includes 17ft of RG58 cable terminated with a PL-269 connector ready to plug straight into your radio. Please note the base of the antenna mount is not powder coated it is raw brass.
Wiring Harness Options
All wiring harnesses are cut to length and pre-terminated with weatherpack connectors and wrapped in soft loom for easy installation in your truck. The factory integration for the marker lights and cargo light uses the factory connector and does not require any cutting or soldering.
BASIC HARNESS
This harness provides integration of the 3 marker/brake light LEDs with factory wiring harness as well as connecting the center light to the cargo light circuit. Two additional circuits are provided to connect the outer lights to the factory upfitter switches in the passenger kick panel.
REVERSE LIGHT HARNESS
This harness has all the features of the basic harness, but also connects the center light to the brake light circuit so that it comes on automatically when the truck is placed in reverse.
STOP/TAIL/TURN HARNESS WITH REVERSE
This harness includes a stop/tail/turn controller to integrate the outer to lights with the factory brake/turn signals. It includes inputs for connecting to your aux switches for:
- Master power to turn the system on/off
- Strobe Function
- Strobe pattern change (momentary switch to be optionally mounted in the dash)
- Constant on override to disable the turn/brake integration
- Center Light Functions as additional reverse light when shifted into reverse
Y SPLITTER - 2 WAY
This allows you to connect two lights to the same aux switch with a pre-terminated Y cable. This cable is terminated with weatherpack connectors and is plug and play.
Lighting Options
We recommend going with the Baja Designs S2 Sports lights when mounted with the GJ Third Brake Lights. If you plan to use this setup as a chase light for off-road events, we recommend sticking with the S2 Sports in Amber Driving/Combo. This is not blinding to those following you, but bright enough to be seen. Additionally, the Driving/Combo pattern gives you 2 spot lenses rear facing and 2 wide lenses rear facing so you visibilty directly behind you and off-axis.
If you intend to use these lights as work lights, then you can go with the S2 Pro for the outer lights. For the center light, we highly recommend using the S2 Sport in a Work/Scene/Flood pattern as the S2 Pro is a little high on power draw for the OEM wiring, since it is tied into your cargo lights.
Overall, the most popular setup is to run S2 Sports in Amber Driving/Combo for the outer lights and a single S2 Sport Work/Scene for the center light.
