Overview

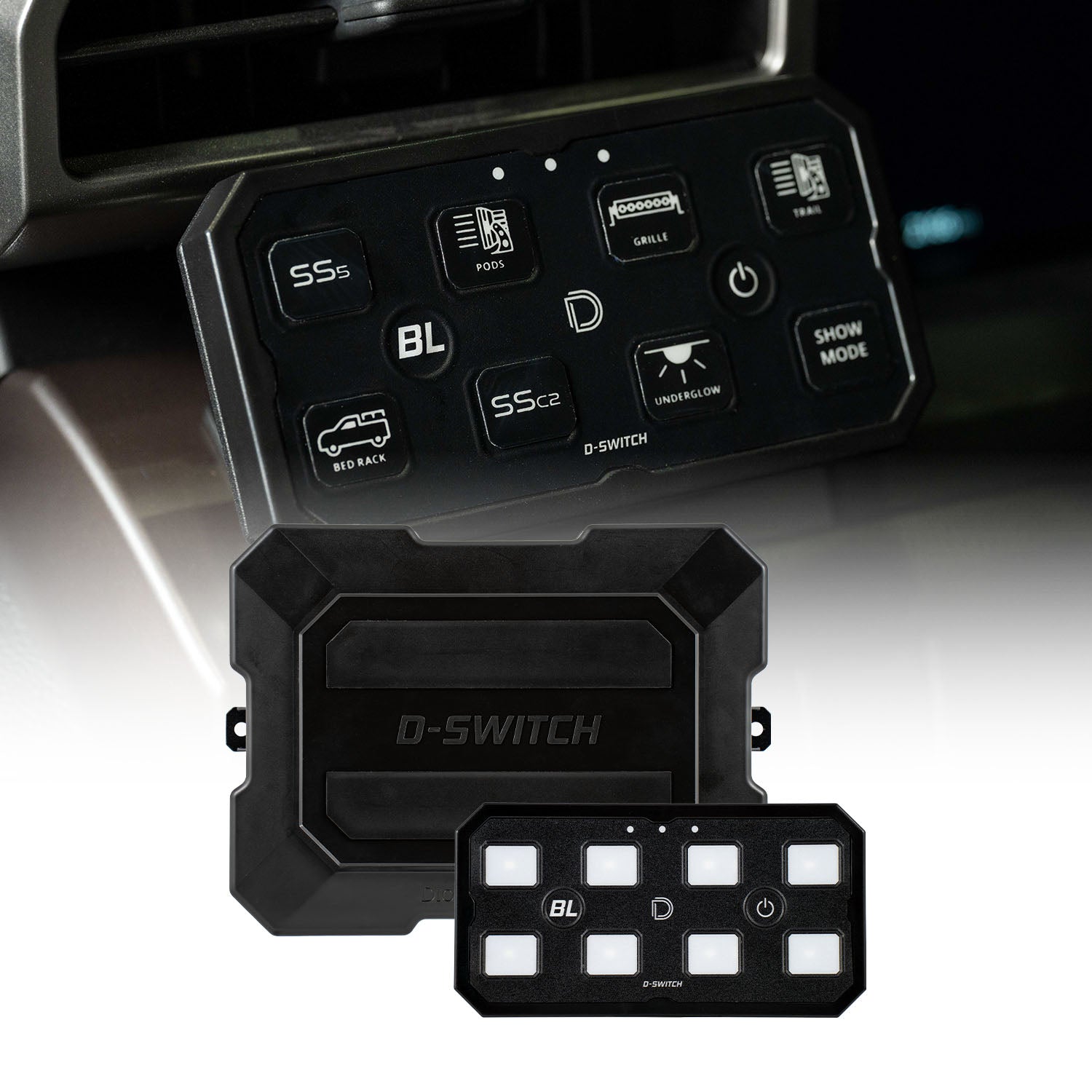

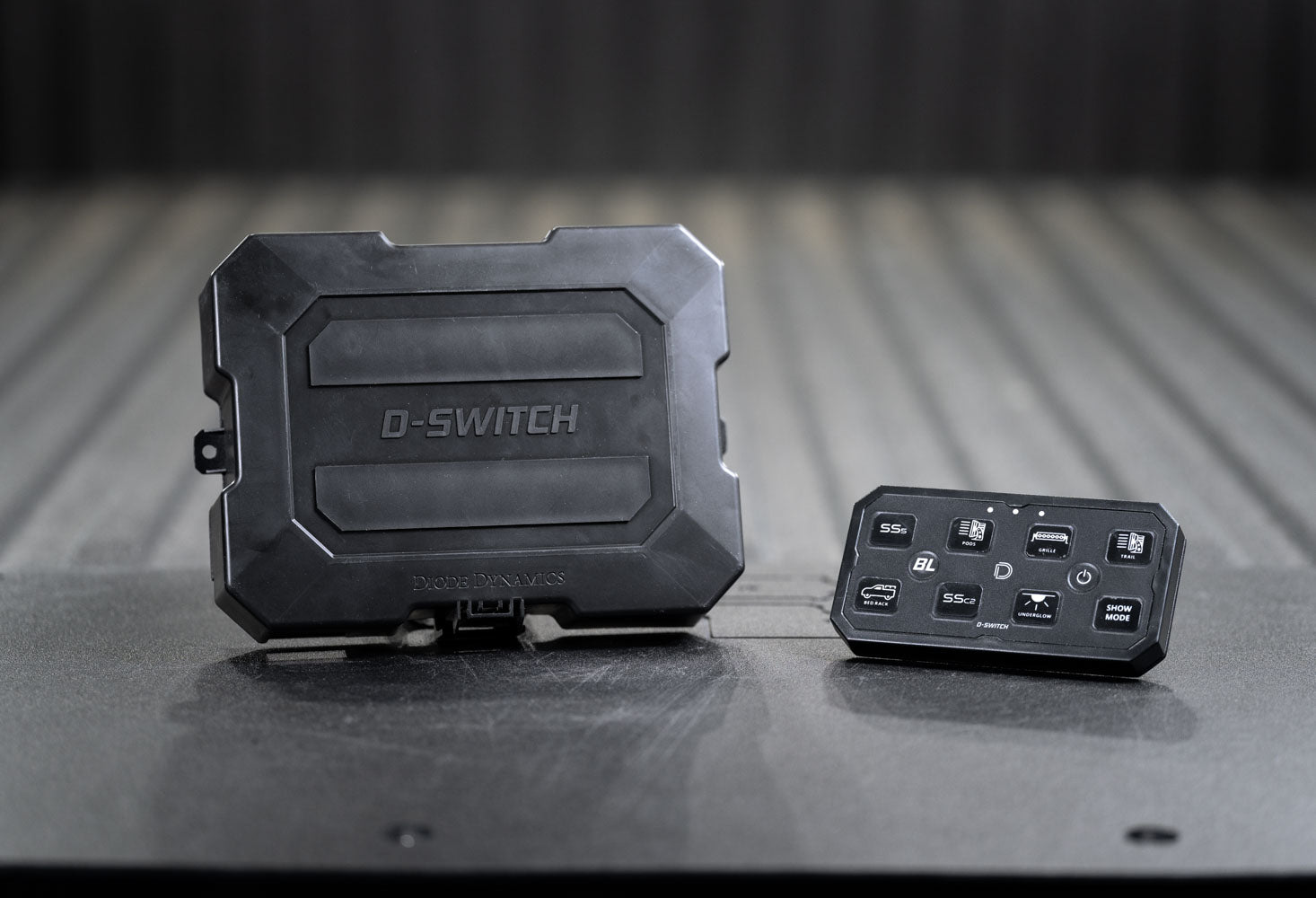

Upgrade your vehicles setup with the Diode Dynamics D-Switch! This advanced 8-channel switch panel gives you full control over any 12V accessory with four 30A and four 15A outputs, delivering serious power with unrivaled customization.

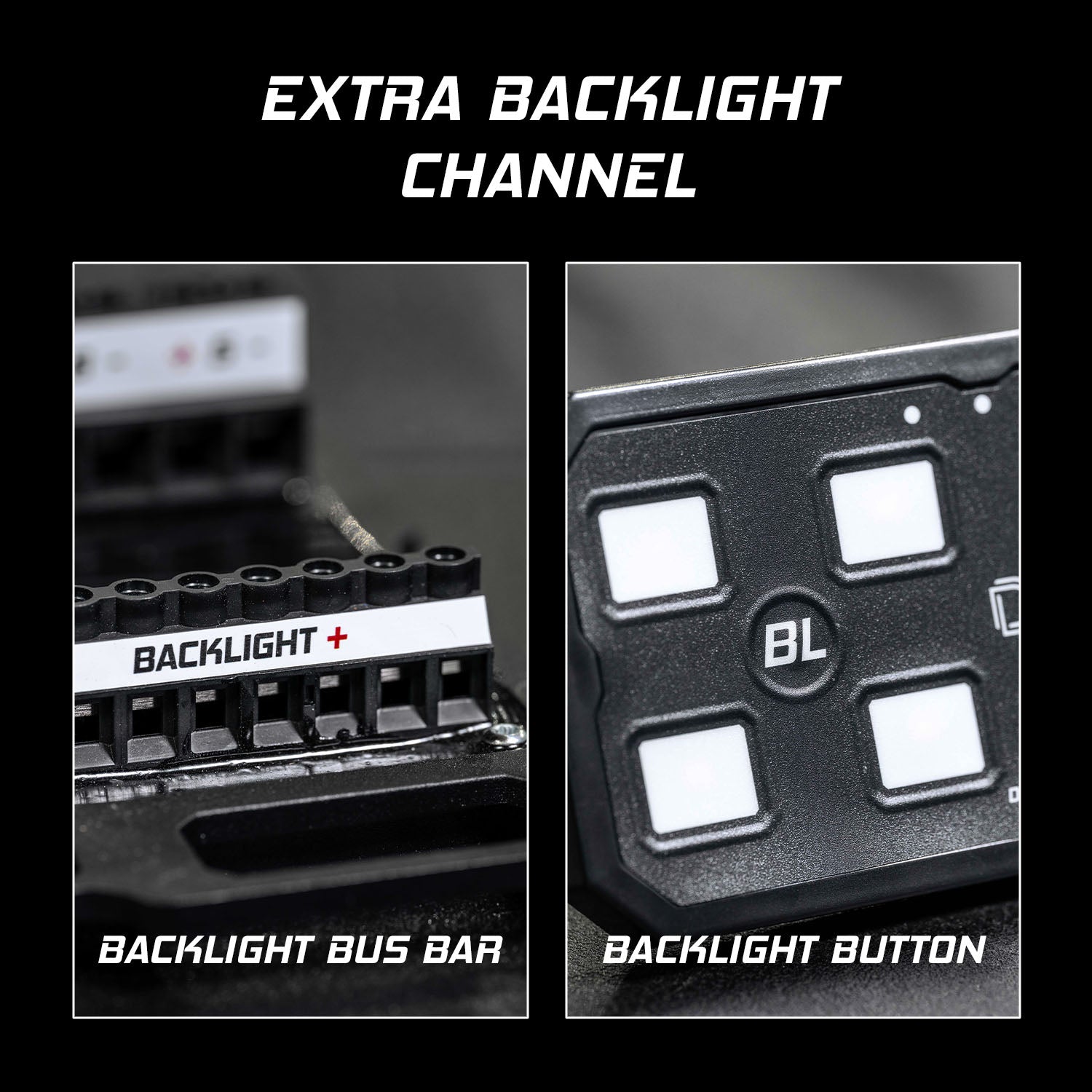

Dedicated Backlight Channel. Unlike other 8-button controllers, the D-Switch includes a 9th button for the dedicated backlight bus bar, providing eight extra outputs for accent lighting. Activate all backlit accessories with a single press, freeing up main outputs for other functions.
Dynamic Channel Assignment. Unlike one-to-one switch panels, the D-Switch allows multiple output channels per button, giving you complete control over your setup. You can also assign multiple functions of an output to different buttons, such as configuring one button for flashing and another for full power of the same light.

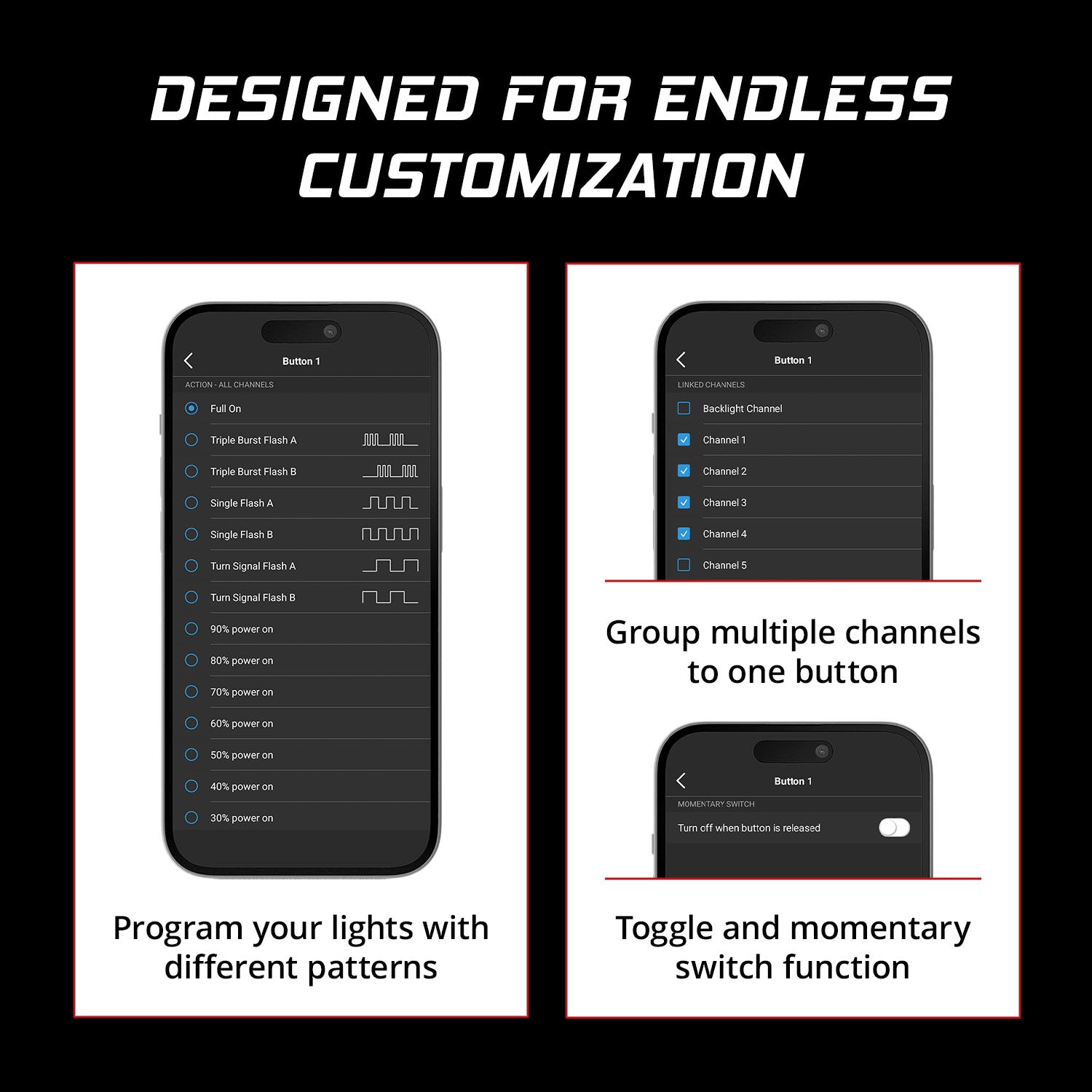

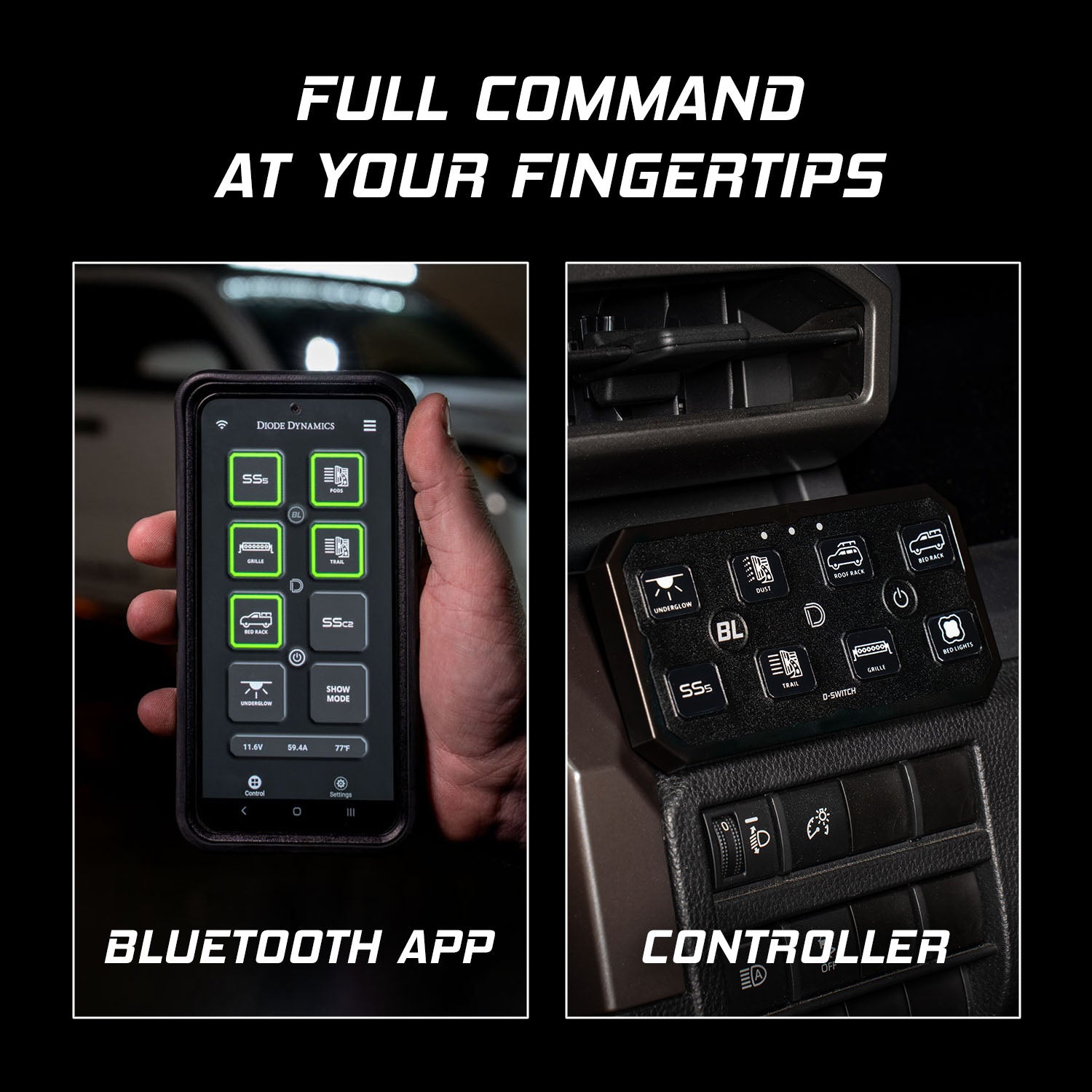

Fast, Responsive Bluetooth App. Control and configure settings using the Bluetooth app for iOS and Android, which delivers instant response, no lag, and seamless programming.
OEM Signal Integration. Three trigger wires are included to automatically activate your outputs with vehicle signals such as high beams, fog lights, or reverse lights. The ignition wire powers the controller when the vehicle starts, shutting it down automatically when turned off. The Night Mode wire adjusts output settings and controller brightness for low-light conditions.

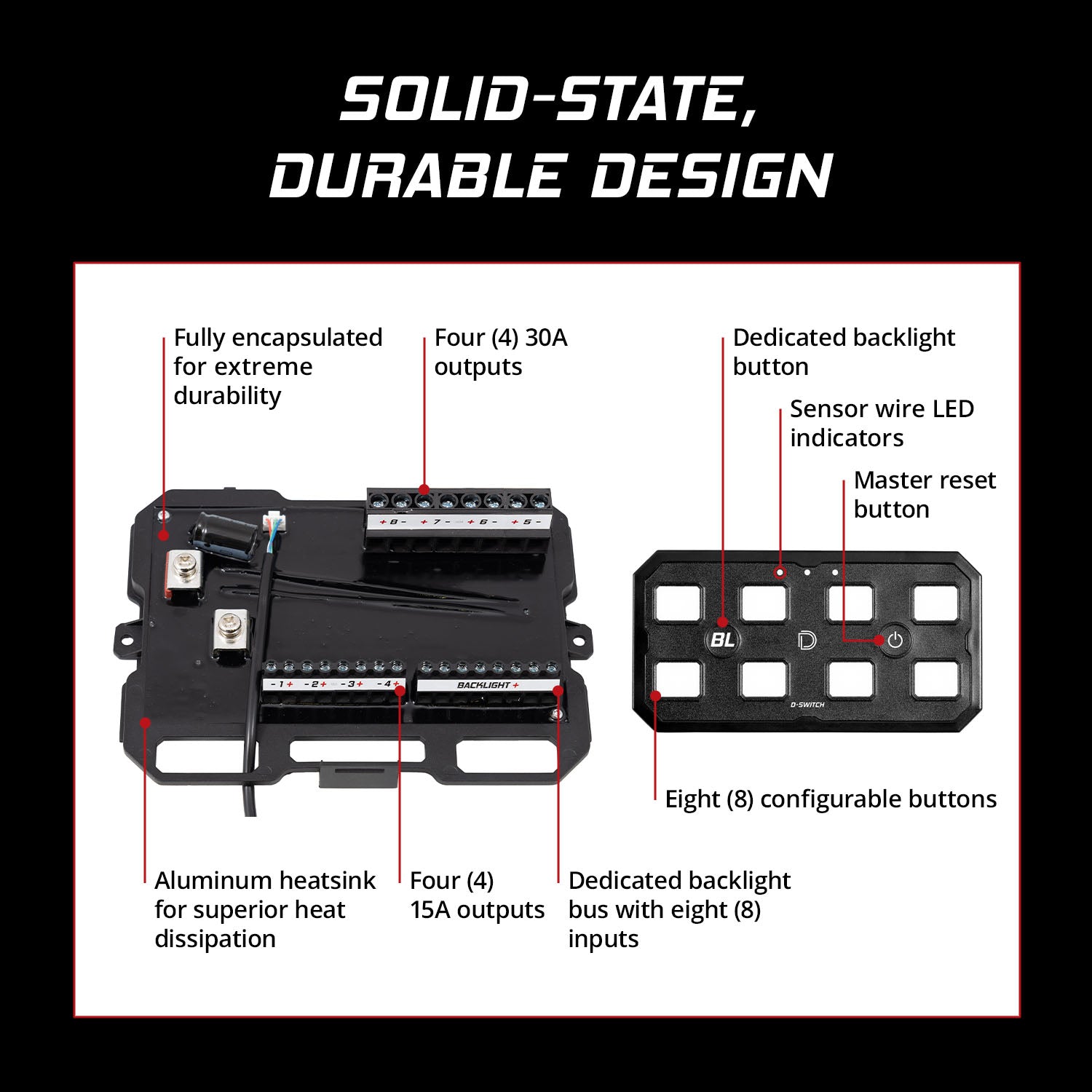

Solid-State, Durable Design. The D-Switch is built to withstand the toughest conditions, with a solid-state design and an IP67-rated aluminum heatsink for superior heat dissipation. No mechanical relays to wear out or physical fuses to replace!
Whether for off-road lighting or other 12V accessories, the D-Switch offers unmatched power, customization, and reliability.
Features & Benefits
- Group and control multiple outputs with a single button.
- Dedicated backlight channel to control your accent lighting.
- Fast responsive Bluetooth App - no lagging or loading screens!
- Solid-state fully-encapsulated design for extreme durability.
- Three trigger wires for OEM-like control through vehicle signals.
Included in the box:
- One (1) Switch Panel Hub
- One (1) Switch Panel Controller

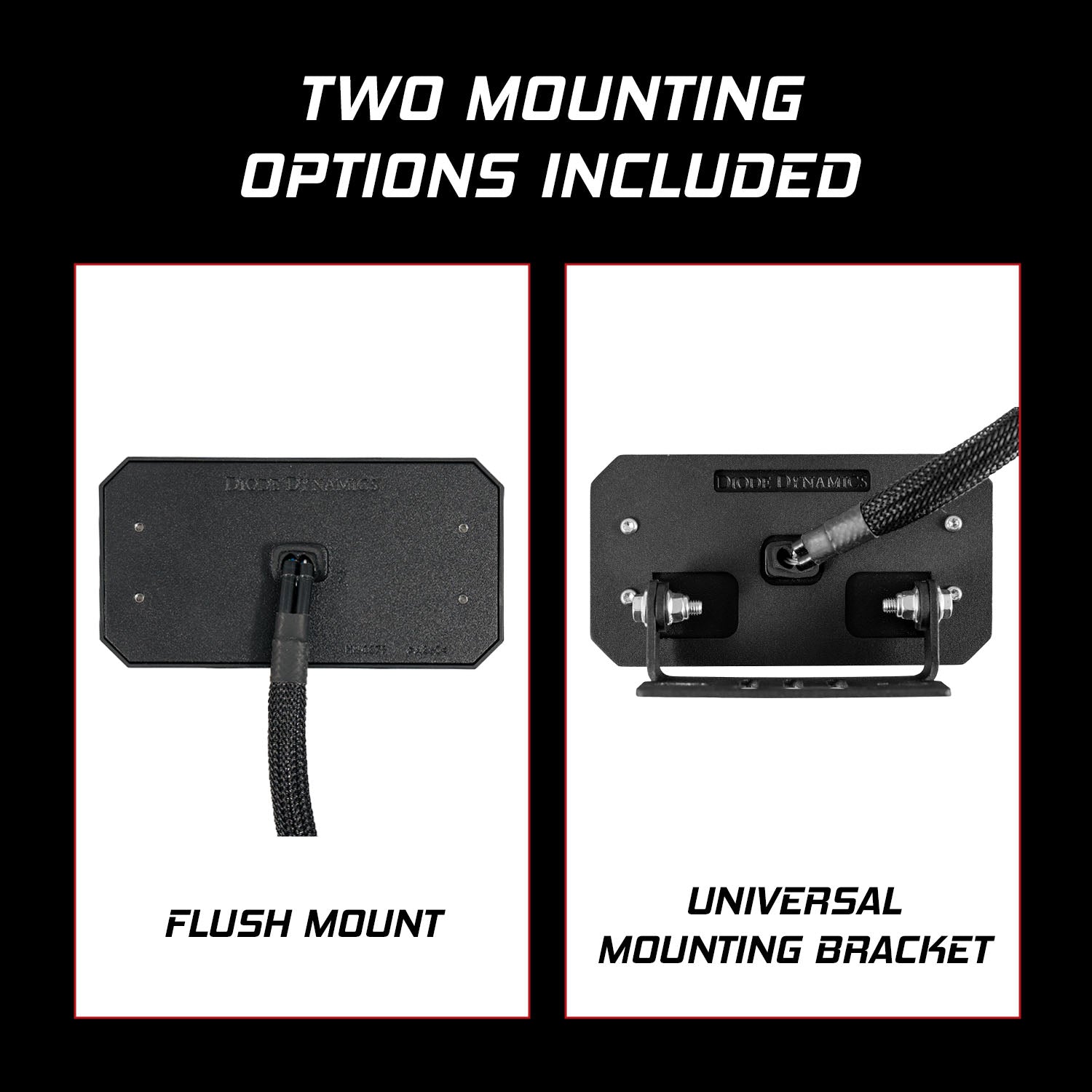

- One (1) Controller Universal Mounting Bracket
- One (1) 10-foot Controller Wiring Harness
- One (1) Trigger Wires + Night Mode Wiring Harness
- One (1) 3-foot 4AWG Battery Cable
- One (1) 3-foot 4AWG Ground Cable
- Two (2) Button Sticker Sheets
- Five (5) T-taps
- Six (6) Zip Ties
- Double-sided tape
- Installation Hardware
- Installation & Programming Guide
