If you're looking for the brightest, stealth mounted, behind the grille lighting kit on the market, then you found it!

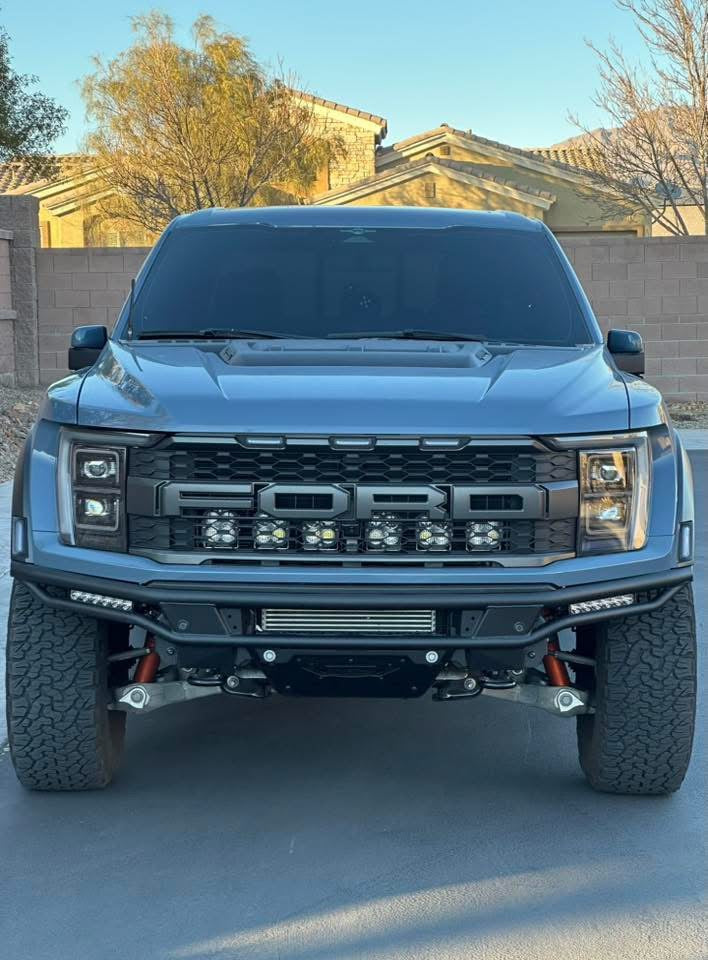

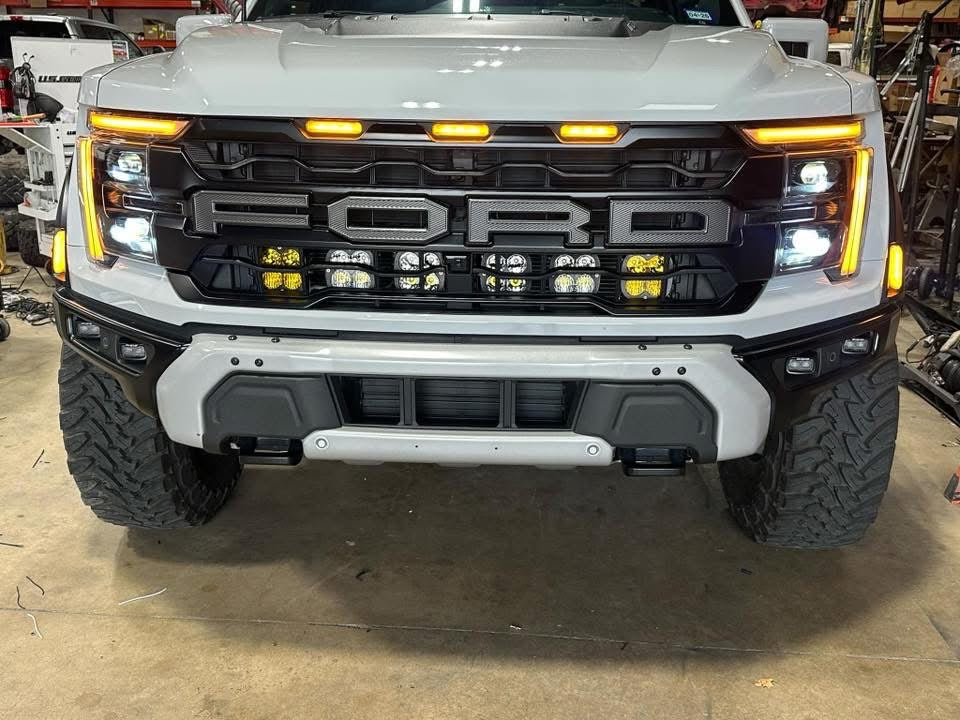

This 100% bolt-on kit allows you to run 6x Baja Designs XL80 lights behind the grille of your F-150, giving you a total output of 54,132 lumens.

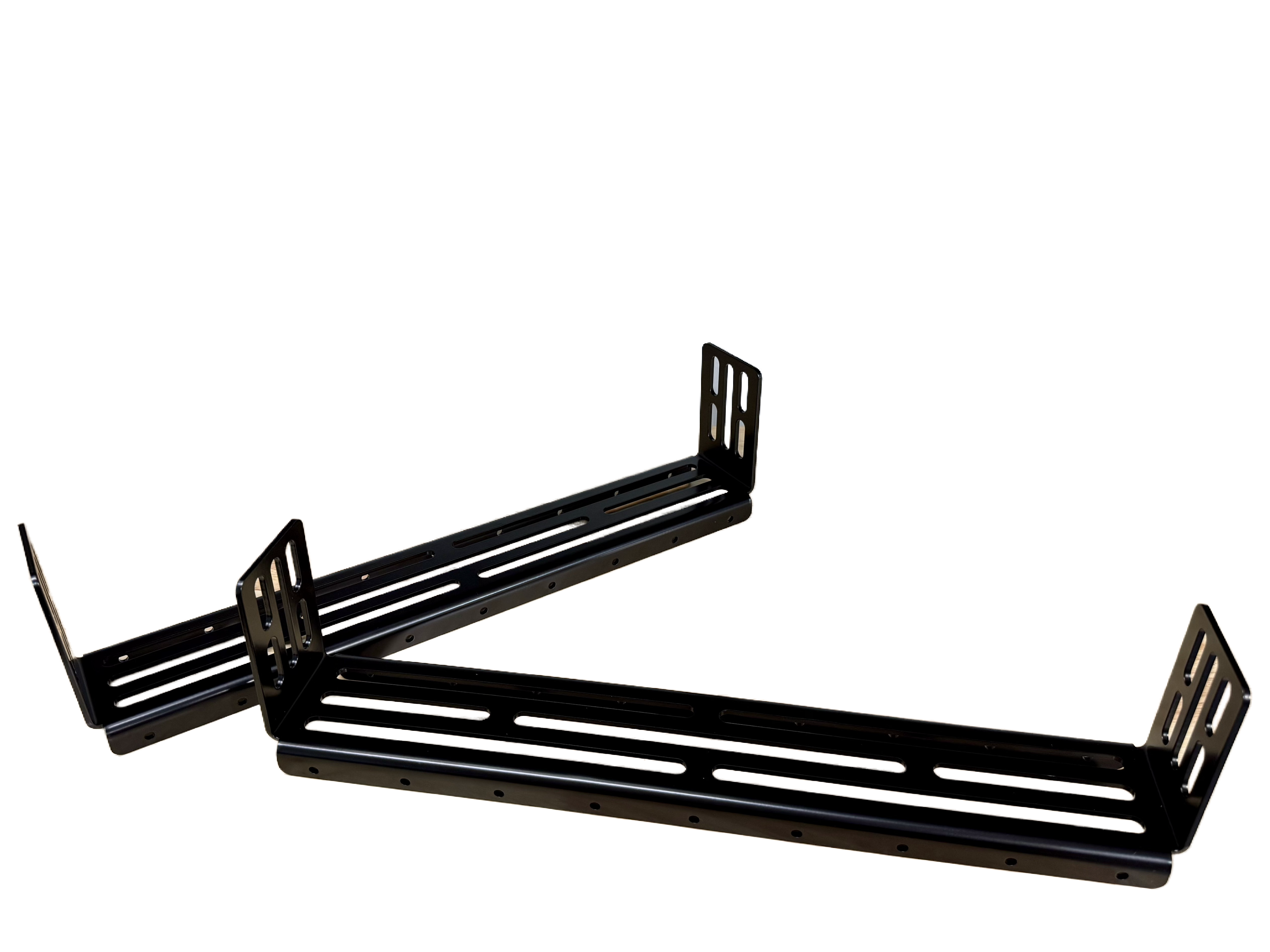

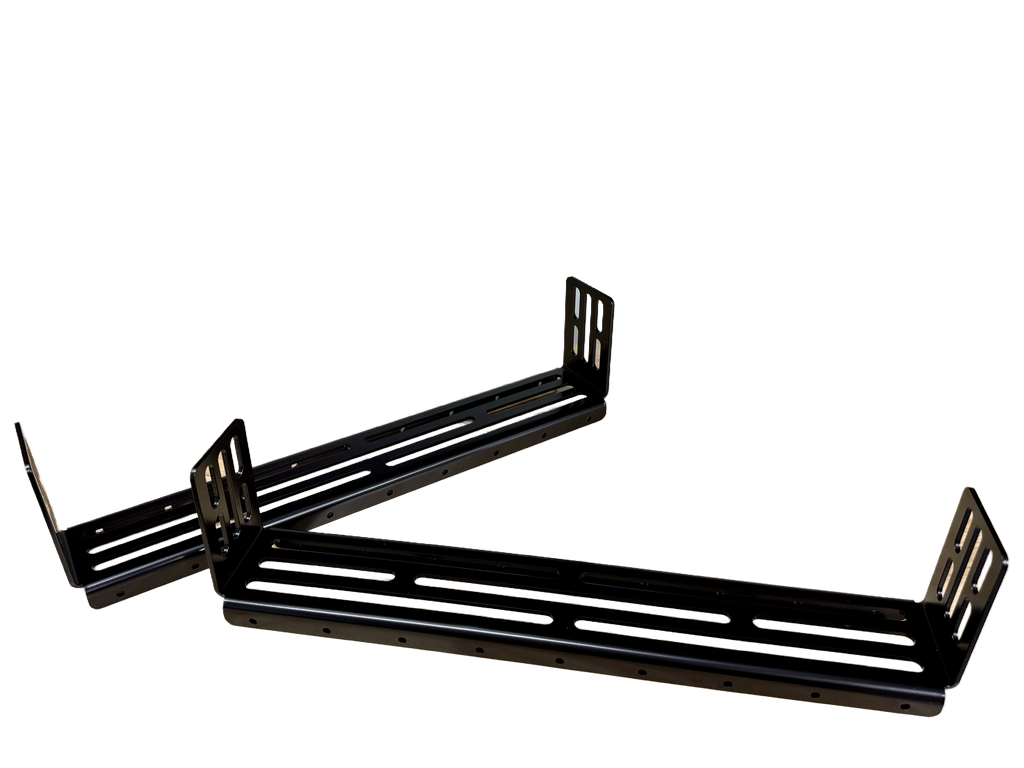

The base of this kit is our Apollo Off-Road bracket system. These brackets were designed in-house to be fully modular allowing you to mount them in the perfect location behind your grille. By being able to adjust the brackets vertically and the position of the lights horizontally, you'll be able to maximize output through your grille, no matter which grille you're running. Our Apollo Off-Road brackets are made in the USA and powder coated satin black.
Each pair of lights will come with its own wiring harness which includes a relay. Since the XL80s require more power than the factory upfitters provide, the includes relay harness will pull power from the battery and with a simple splice will connect to your upfitters. Using the included harnesses with their relays, you can even put all six lights on a single upfitter switch, since each harness is properly fused and relayed, and pulling power directly from the battery.
KIT INCLUDES:
- 1x Pair of Apollo Off-Road Brackets
- 3x Pairs of Baja Designs XL80 Lights
- 3x Baja Designs Wiring Harnesses
-
Mounting Hardware
FITMENT:
- 2015+ Ford F-150 (including Raptor and Raptor R)
FITMENT NOTE: This installation will require you to remove some of the shutters behind your grille to make clearance for the lights. This is standard for all behind the grille kit. You do not need to remove the shutter assembly, motor, or anything else. Just the individual shutter blades needed to make room for your lights and brackets.
Your truck must have the shutter mounts behind the grille for this install.
