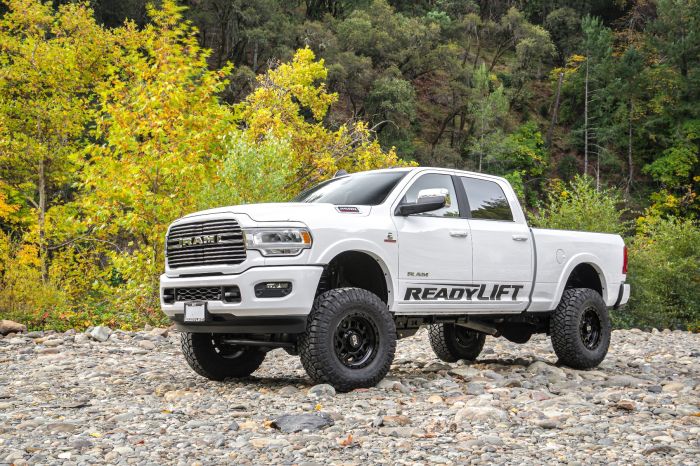

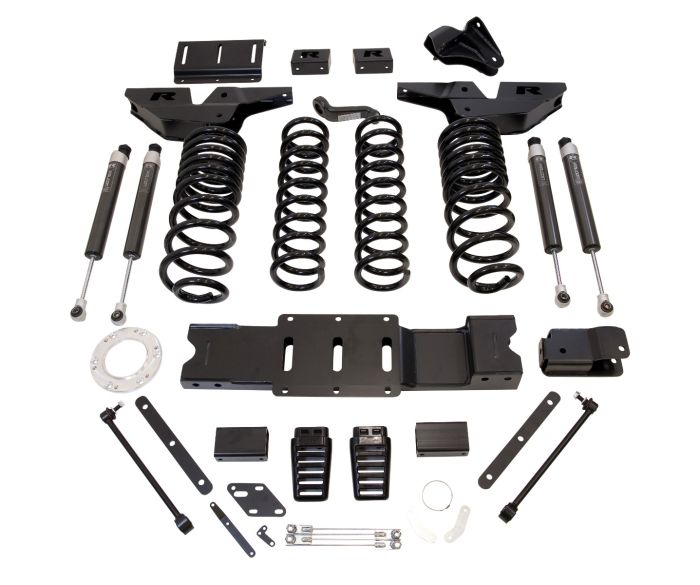

ReadyLIFT is excited to announce PN: 49-19610, an all-new 4-corner coil spring 6-Inch lift kit with Falcon 1.1 Monotube shocks for the 2019-2023 Ram 2500 HD trucks equipped with the Standard Output Cummins turbodiesel engine providing plenty of clearance for an aggressive 37x12.5 tire and up to -18 offset wheel with no rubbing; delivering a beefy, tough look. The 49-19610 is specifically designed for Ram Heavy Duty applications with proprietary front and rear coil springs, heavy-duty radius arm drop brackets, heavy-duty fabricated steel front and rear track bar brackets, forged dropped pitman arm, front/rear sway bar relocation brackets and bump stop extensions preventing over-compression of the new Falcon 1.1 Monotube front and rear shocks that are included in this premium kit.
This kit includes a unique CNC-machined 6061-T6 billet Aluminum Driveline Indexing System (DIS) that re-clocks the transfer case aligning the front output shaft for improved driveline angles. Some Ram HD trucks can experience a slight vibration after lifting due to driveline angle sensitivity.
ReadyLIFT 6-Inch lift kit with the Drive Line Indexing System (DIS) addresses this condition by re-clocking [indexing] the transfer case and providing a stout heavy-duty steel cross member that accommodates the new T-case position, all resulting in a smooth driving experience on or off-road.
Features and Benefits:
- Designed for Ram Heavy Duty applications
- Proprietary front and rear coil springs
- Heavy-duty radius arm drop brackets
- Heavy-duty fabricated steel front and rear track bar brackets
- Forged dropped pitman arm
- Front/rear sway bar relocation brackets
- Bump stop extensions
- Prevents overcompression of new Falcon 1.1 Monotube front and rear shocks
- Premium kit includes Falcon 1.1 Monotube front and rear shocks
- Only available for 2500 HD Standard Output Motor and 68RFE Transmission
- Note: Single Cab configuration not validated for fitment and drivability by ReadyLIFT
Details:
- 17 Inch Wheel Max Backspacing: 4.8 Inch
- 18 Inch Wheel Max Backspacing: 4.8 Inch
- 20 Inch or Larger Wheel Max Backspacing: 4.8 Inch
- Average Installation Time: 120 Minutes / 1.5 Minutes
- Bushings Included: No
- Fitment: Direct Fitment
- Front Lift Component: Coil Spring
- Front Lift Height: 6.0 Inch
- Front Shocks: Falcon 1.1 Monotube
- Front or Rear: Front and Rear
- Fuel Type: Diesel
- Install Difficulty: Difficult Requires Professional Installation
- Installation Time: 5+ Hours
- Lift Height: 6.0 Inch
- Max Tire Diameter Custom Fit: 37 Inch
- Max Tire Diameter Sure Fit: 35 Inch
- Max Tire Size: 37 Inch
- Maximum Lift: 6.0 Inch
- Mounting Hardware Included: Yes
- Rear Lift Component: Coil Spring
- Rear Lift Height: 6.0 Inch/4.0 Inches
- Rear Shocks: Falcon 1.1 Monotube
- Shock Brand: Falcoln
- Shocks Included: Yes
