The new Ram HD trucks are more popular than ever and our ReadyLIFT 6-Inch lift kit we introduced two years ago has been an extremely popular lift option. How can we take an already great 2019-2023 Ram HD 6-Inch lift kit and make it better?
How about adding a new CNC-machined billet Aluminum transfer case clocking ring to reposition the transfer case pinion angle? Some Ram HD trucks can experience a slight vibration after lifting due to driveline angle sensitivity.
Our new 49-1961 6-Inch lift kit addresses that inherent driveline system issue with the addition of a heavy-duty transfer case clocking [indexing] ring and new transmission cross-member. This Driveline Indexing System (DIS) combination works great with our ReadyLIFT 6-Inch lift kit while re-positioning the transmission and pinion position for a smooth driving experience on or off road.

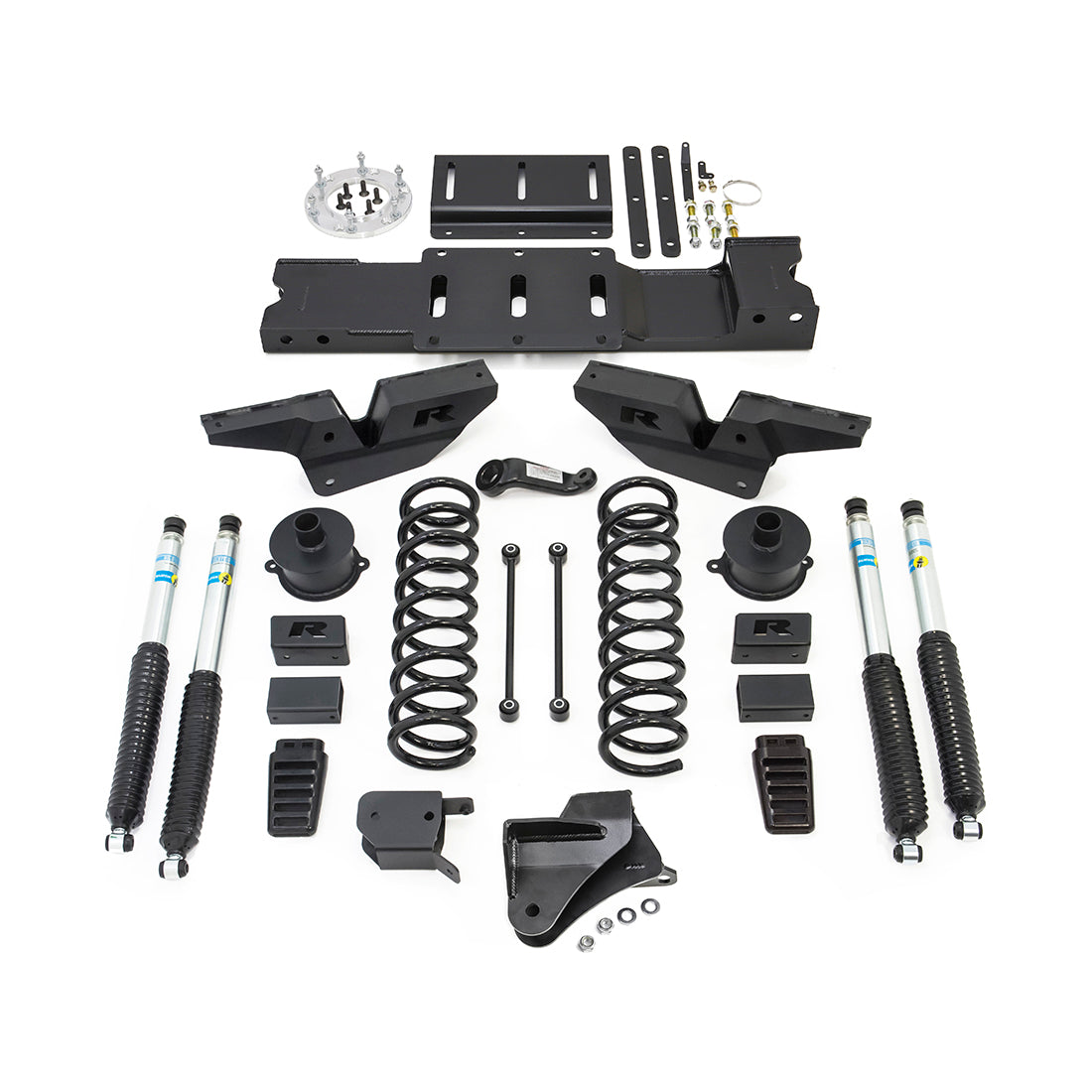

Kit 49-1961 includes everything in our popular 49-1960 6-Inch lift kit as well as these new DIS re-positioning components. Heavy duty and great riding 6-Inch lift front springs, 3.5-Inch lift rear coil spring spacers, heavy-duty radius arm drop brackets, heavy-duty fabricated steel front and rear track bar brackets, dropped cast iron pitman arm, front/rear sway bar relocation brackets and bump stop extensions preventing over- compression of the new Bilstein 5100 series front/rear shocks are all included in this premium kit.
For use on diesel 2500 trucks only.
Features and Benefits:
- 2019-2023 Ram 2500 4WD HD 6-Inch lift kit
- 6inch front/3.5inch rear lift
- Includes all-new transfer case clocking ring
- New heavy-duty transmission cross-member
- 4 Bilstein 5100 series shocks tuned specifically for Ram 2500 HD
- For use on Diesel engine Ram 2500 4WD HD trucks only
- Allows for up to 37x13.50 tires on 9.5-Inch wide wheels with 18 offset
- Does not work with Factory Air suspension or Auto Level system (factory helper bags)
- Note: Single Cab configuration has not been validated for fitment and drivability by ReadyLIFT
Details:
- Fitment: Direct Fitment
- Front Lift Component: Coil Spring
- Front Lift Height: 6.0 Inch
- Front Shocks: Bilstein 5100
- Front or Rear: Front and Rear
- Fuel Type: Diesel
- Install Difficulty: Difficult Requires Professional Installation
- Installation Time: 5+ Hours
- Lift Height: 6.0 Inch
- Max Tire Size: 37 Inch
- Rear Lift Component: Coil Spring Spacer
- Rear Lift Height: 3.5 Inch
- Rear Shocks: Bilstein 5100
- Shocks Included: Yes
