Description

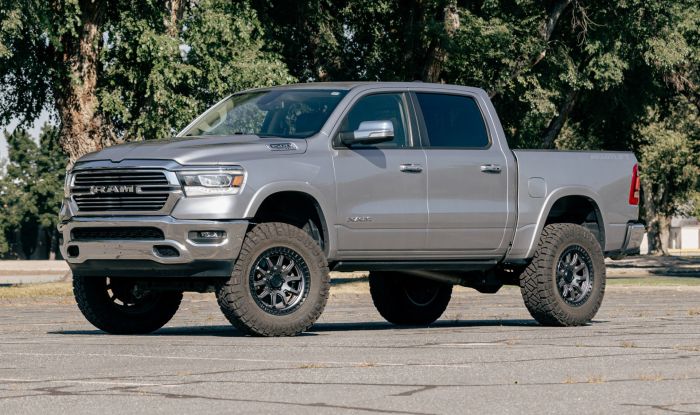

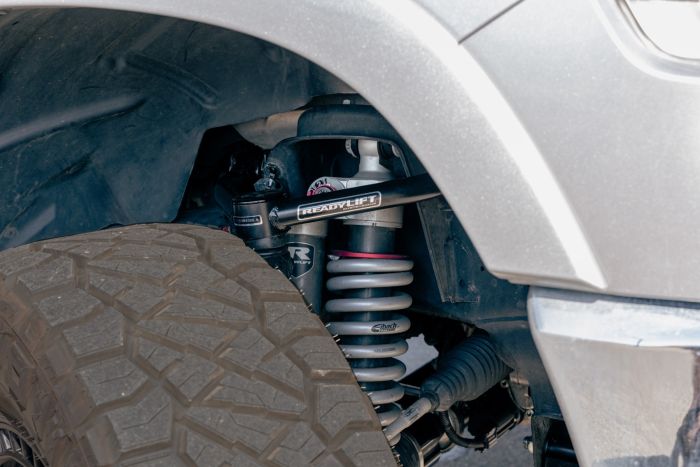

ReadyLIFT is excited to announce our all-new 6-Inch MAX3.3 Suspension Systems delivering unmatched performance, control, and capability for the 2019-2024 Ram 1500. On the current generation Ram 1500, the new MAX3.3 Suspension System provides a 6-Inch lift specifically engineered with the all-new Falcon 3.3 series struts and shocks.
To complement the advanced Falcon strut/shock architecture, our engineers also developed upgraded DOM tube steel upper control arms with corrected ball joint angles for greater strength and articulation.This Ram 1500 MAX3.3 system pairs front 3.3 Fast Adjust struts with rear adjustable piggyback shocks. The new 3.3 Falcon's are Fast Adjust Dampers offering a wide range of adjustability for specific terrain and/or handling characteristics with two separate knobs to tune to your preference.
Falcon Performance Shocks improve performance and comfort regardless of the terrain. The versatility of these systems makes them ideal for daily driving, off-road excursions, and tow/haul duties.

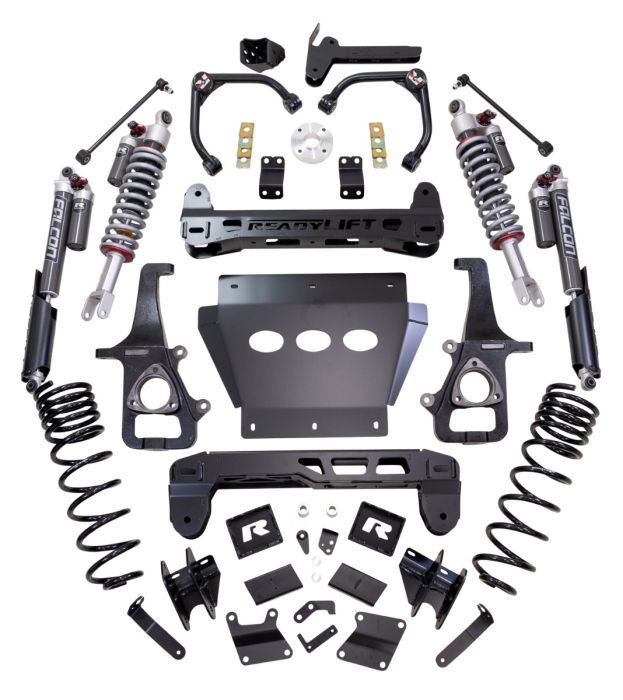

This 6-Inch lift kit adopts all the important elements of a premium lift kit to ensure the truck rides and drives remarkably. The longer rear sway bar end links, heavy-duty cast iron knuckles, and unusually robust steel skid plates are just a few of the ingredients contributing to an amazing driving experience on up to 37x12.50 tall tires on 9-Inch wide wheels with 0 offset.
Features and Benefits:3.3 Fast Adjust Dampers offer a wide range of adjustability for specific terrain and/or handling characteristics with two separate knobs to tune to your preference. 3-Position Fast Adjust Knob for Soft, Custom, and Firm Compression.
Soft mode allows a partial bypass of the main piston for a softer ride 8-Position Micro Adjust Dial offers refined damping adjustments Reservoir design increases nitrogen to oil ratio for consistent damping over wide temperature ranges. Hard Anodized Large Bore 6061-T6 Aluminum Shock Body for impact and corrosion resistance as well as increased oil volume for consistent performance.
VOD (Volume Optimized Damping) features a digressive linear piston for quicker ramp-up for reduced body roll and an overall increase in damping to reduce bottom out when pushed to the limit. Red Line high VI shock oil for consistent performance across all temperatures from -50F to 450F with anti-wear and lubricity agents.
DOM tube steel upper control arms with Proprietary Heavy-Duty High-Angle Ball Joint. Heavy-duty fabricated steel components utilizing 3/16-Inch and 1/4-Inch steel plate Full-coverage differential skid plate constructed from 3/16-Inch steel plate Tire size 37x12.50R20 with a 20Р§9-Inch with a 0 offset wheel Max tire with trimming 37Р§12.50-Inch with a 20Р§10-Inch with a -18 offset wheel Note: RAM 1500 with factory 22-Inch wheels requires a larger bore knuckle assembly due to larger wheel bearing assembly.
Vehicles with 22-Inch factory wheels should use #44-1961 or install replacement standard wheel bearing assemblies (not included). If installing this kit any Off-Road Group Package‚ equipped truck, ReadyLIFT recommends foregoing the front preload spacer installation - the lifted vehicle will sit about 1/2-Inch front high with the preload spacer installed or 3/8-Inch low without the preload spacer.
This kit is NOT compatible with (1) adjustable models equipped with air suspension- or (2) Ram TRX.
Features and Benefits:
- ReadyLIFT is excited to announce our all-new 6-Inch MAX3.3 Suspension Systems delivering unmatched performance, control, and capability for the 2019-2024 Ram 1500.
- On the current generation Ram 1500, the new MAX3.3 Suspension System provides a 6-Inch lift specifically engineered with the all-new Falcon 3.3 series struts and shocks.
- 3.3 Fast Adjust Dampers offer a wide range of adjustability for specific terrain and/or handling characteristics with two separate knobs to tune to your preference.

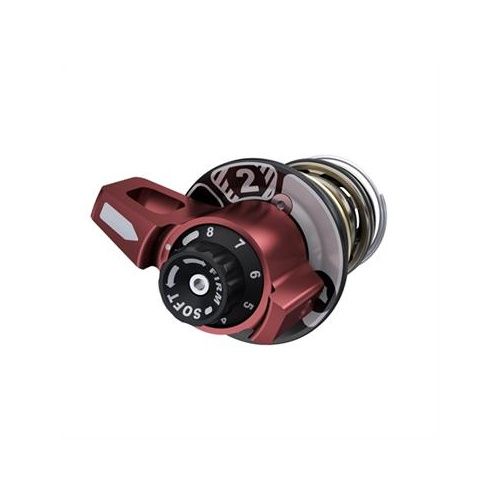

- 3-Position Fast Adjust Knob for Soft, Custom, and Firm Compression. Soft mode allows a partial bypass of the main piston for a softer ride
- 8-Position Micro Adjust Dial offers refined damping adjustments
- Reservoir design increases nitrogen to oil ratio for consistent damping over wide temperature ranges.
- DOM tube steel upper control arms
- Tire size 37x12.50R20 with a 20Р§9-Inch with a 0 offset wheel
- Note: RAM 1500 with factory 22-Inch wheels requires a larger bore knuckle assembly due to larger wheel bearing assembly.
- Vehicles with 22-Inch factory wheels should use #44-1961 or install replacement standard wheel bearing assemblies (not included).
- If installing this kit any Off-Road Group Package‚ equipped truck, ReadyLIFT recommends foregoing the front preload spacer installation.
- The lifted vehicle will sit about 1/2-Inch front high with the preload spacer installed or 3/8-Inch low without the preload spacer.
- This kit is NOT compatible with (1) adjustable models equipped with air suspension- or (2) Ram TRX. Does not work with 3.0-liter twin-turbo inline-six Hurricane engine ( available in some late 2024 models).
Details:
- Color: Black
- Fitment: Direct Fitment
- Front Lift Component: Strurt with Crossmember
- Front Lift Height: 6.0 Inch
- Front Shocks: Yes
- Front or Rear: Front and Rear
- Install Difficulty: Difficult Requires Professional Installation
- Installation Time: 5+ Hours
- Lift Height: 6.0 Inch
- Max Tire Size: 37 Inch
- Maximum Lift: 6.0 Inch
- Rear Lift Component: Block and U-bolt
- Rear Lift Height: 4.0 Inch
- Rear Shocks: Yes
- Shocks Included: Yes
