The new Ram HD trucks are more popular than ever and the ReadyLIFT 6-Inch lift kit for 5th generation Ram 2500 HD trucks are extremely popular. What more could we do for RAM owners?
How about engineering a 6-Inch solution for the RAM 3500 HD trucks? That is exactly what ReadyLIFT has done by adding a new CNC-machined billet Aluminum transfer case clocking ring to improve driveline angle?
Well, that's exactly what we did for this all-new Ram 3500 application. We designed an application-specific lift kit and included an innovative Driveline Indexing System (DIS) with a transfer case clocking ring, OEM output shaft seal, and adjustable transmission cross-member.
Why go to all that trouble to achieve 6-Inch Ram 3500 lift? Some Ram HD trucks can experience a slight vibration after lifting due to driveline angle sensitivity.

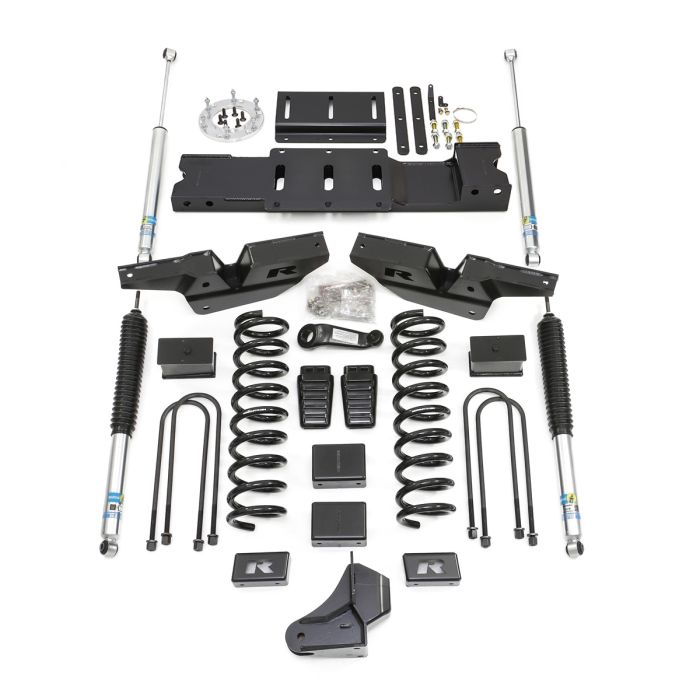

Our new 49-19630 6-Inch lift kit addresses that inherent (albeit infrequent) driveline system phenomenon with the addition of our DIS a heavy-duty transfer case clocking [indexing] ring and new transmission cross-member-positioning the transmission and pinion position for a smooth driving experience on or off-road. Kit 49-19630 includes the new DIS re-positioning components, heavy-duty and great riding 6-Inch lift front springs, 5-Inch lift rear taper blocks, heavy-duty radius arm drop brackets, heavy-duty fabricated steel front, and rear track bar brackets, dropped cast iron pitman arm, front/rear sway bar relocation brackets, and bump stop extensions preventing over-compression of the new Bilstein 5100 series front/rear shocks.
Standard 6.7L diesel with the 68RFE transmission - the transmission dipstick is on the right (passenger) side of the truck. (PN 49-19630) *Kit will not fit any models with the high output 6.7L diesel motor with Aisin transmission, Hemi Gasoline engine, dually models, Classic models, and any automatic-leveling rear air suspension models.
Features and Benefits:
- All-new 2019-2023 Ram 3500 4WD HD 6-Inch lift kit
- Includes 6-Inch front lift springs with 5-Inch rear spacers
- Fabricated steel radius arm drop brackets
- Track bar drop bracket
- New pitman arm
- Sway bar drop brackets
- Longer bump stops
- (4) Bilstein 5100 series shocks
- All-new DIS transfer case clocking ring kit
- New transmission cross-member
- Does not work with Hemi Gasoline engine
- Not compatible with dually models
- Not compatible with Classic models
- Not compatible with automaticleveling rear air suspension models
- Only available for the 3500 HD
Details:
- Fitment: Direct Fitment
- Front Lift Component: Coil Spring
- Front Lift Height: 6.0 Inch
- Front Shocks: Bilstein 5100
- Front or Rear: Front and Rear
- Fuel Type: Diesel
- Install Difficulty: Difficult Requires Professional Installation
- Installation Time: 5+ Hours
- Lift Height: 6.0 Inch
- Max Tire Size: 37 Inch
- Rear Lift Component: Block
- Rear Lift Height: 4.0 Inch
- Rear Shocks: Bilstein 5100
- Shocks Included: Yes
