The all-new 4.5-Inch Coil Spring Lift Kits allow for even more ground clearance while going to a 37-Inch tire. Springing up to the new 4.5-Inch lift yields all the bells and whistles of a big 6-Inch kit but at a slightly lower, garage-able stance.

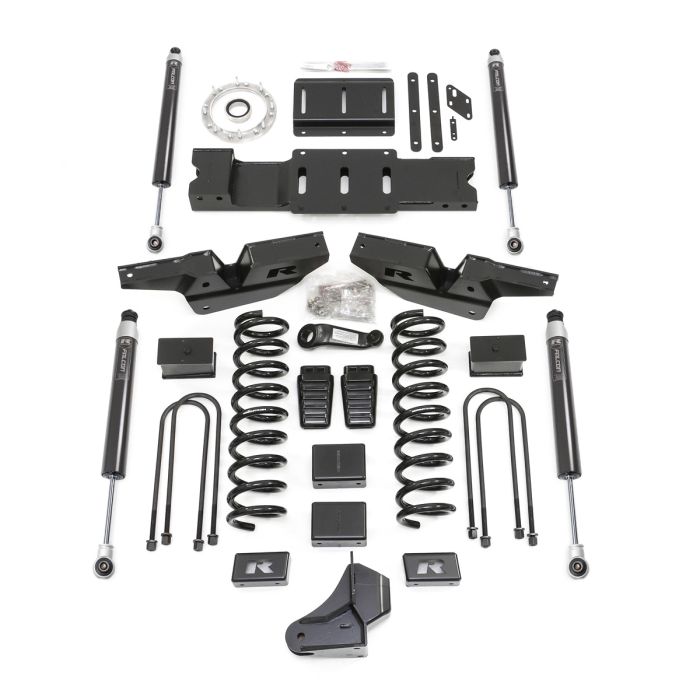

These kits come with heavy-duty steel radius arm drop brackets, heavy-duty fabricated steel front track bar brackets, forged dropped pitman arm, sway bar relocation brackets, and bump stop extensions preventing over-compression of the included Falcon 1.1 Monotube front and rear shocks. The 4.5-Inch Ram HD kit includes our unique CNC-machined 6061-T6 billet Aluminum Driveline Indexing System (DIS) that re-clocks the transfer case to properly align the front output shaft for improved driveline angles.
The Ram 3500 HD comes with a high-output diesel engine DIS system. Kit 49-19430 includes the new DIS re-positioning components, heavy-duty and great riding 4.5-Inch lift front springs, 3-Inch lift rear taper blocks, heavy-duty radius arm drop brackets, heavy-duty fabricated steel front, track bar brackets, dropped cast iron pitman arm, front/rear sway bar relocation brackets, and bump stop extensions preventing over-compression of the new Falcon 1.1 Monotube front/rear shocks. *Kit will not fit any models with the standard output 6.7L diesel motor, Hemi Gasoline engine, dually models, Classic models, and any automatic-leveling rear air suspension models.
Features and Benefits:
- 2019-2023 Ram 3500 4WD HD 4.5-Inch lift kit
- 4.5inch front with rear blocks lift kit
- Includes all-new transfer case clocking ring and new heavy-duty transmission cross-member
- Includes 4 Falcon 1.1 Monotube shocks tuned specifically for the Ram 3500 HD
- For use on Diesel engine Ram 3500 4WD HD trucks only
- Allows for up to 37x13.50 tires on 20-Inch x 9-Inch wide wheels with 18 offset
- Does not work with Factory Air suspension, Auto Level system (factory helper bags), Hemi Gasoline engine, dually models, Classic
- 4.54.5inch front with rear blocks lift kit
Details:
- Fitment: Direct Fitment
- Front Lift Component: Coil Spring
- Front Lift Height: 4.5 Inch
- Front Shocks: Falcon 1.1 Monotube
- Front or Rear: Front and Rear
- Fuel Type: Diesel
- Install Difficulty: Difficult Requires Professional Installation
- Installation Time: 5+ Hours
- Lift Height: 4.5 Inch
- Max Tire Size: 37 Inch
- Rear Lift Component: Block
- Rear Lift Height: 3.0 Inch
- Rear Shocks: Falcon 1.1 Monotube
- Shocks Included: Yes
