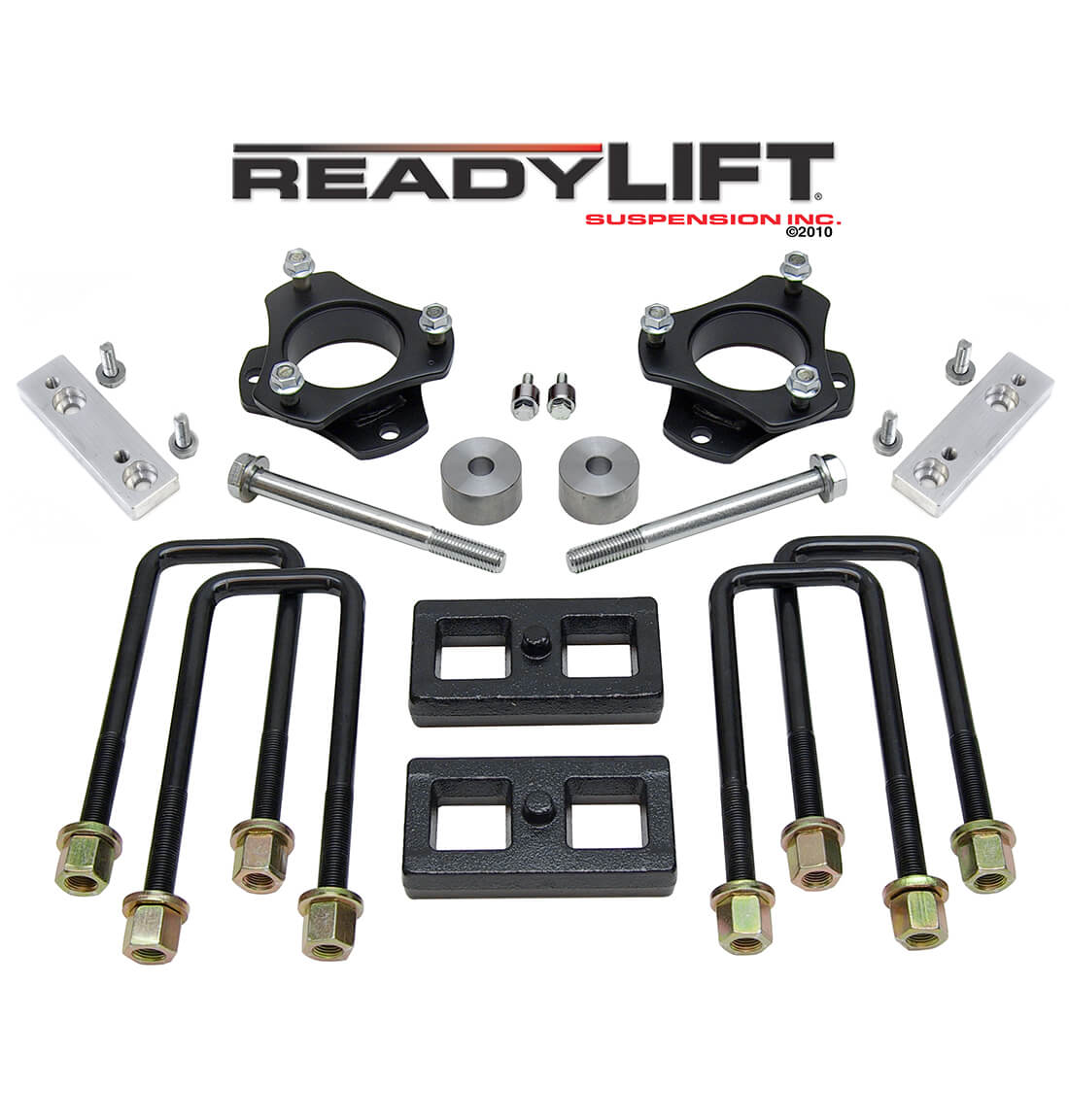

ReadyLIFT's SST Lift Kits offer an economical, safe way to adjust vehicle ride height, allowing for larger tire upgrades. Their SST Suspension Lift System, specifically for 2005-2022 Six-Lug Toyota Tacoma TRD / SR5 / Rock Warrior / Prerunner trucks (P/N 69-5112), raises the truck by 2.75 Inch-3.0 Inch.
This kit includes a 1.0-Inch tapered rear lift block and fits all 2005-2023 Tacoma and Prerunner models, both 2WD and 4WD. It enables the use of up to 33-Inch tire diameters while maintaining the stock ride and handling, although 32.5-Inch tires are recommended.
Minor trimming of the inner fender well is necessary for fitting 33-Inch tires, and the kit includes sway bar drop brackets. For 2016-2022 models, a deceleration vibration issue is noted, and trucks with the Crawl Feature transfer case should avoid using differential drop spacers.
The lift amount varies between 2.75-Inch and 3.0-Inch due to differences individual trucks. TRD-equipped trucks usually have less front-to-rear rake.
Some older Tacomas with factory 2 leaf plus overload rear spring packs, prone to sagging, are being updated by Toyota to a 3+1 pack. This kit, with its 1.0-Inch rear lift block, compensates for this, aiming for a 0.5-Inch rear to front rake.
Additionally, post-2010 Tacomas with leveling kits may require aftermarket Upper Control Arms with adjustable caster/camber to correct alignment issues.
Features and Benefits:
- 3 inch lift for front and 1 inch lift for rear
- Maximum tire diameter of 32.5 inches
- Compatible with 2005-2023 2WD and 4WD models
- Designed for TRD, SR5, and Rock Warrior trims
- Includes sway bar drop brackets for improved stability
Details:
- Fitment: Direct Fitment
- Front Lift Component: Spacer
- Front Lift Height: 3.0 Inch
- Front or Rear: Front and Rear
- Install Difficulty: Difficult Requires Professional Installation
- Installation Time: 5+ Hours
- Lift Height: 3 Inch
- Max Tire Size: 33 Inch
- Rear Lift Component: Block and U-bolt
- Rear Lift Height: 1.0 Inch
- Shocks Included: No
