ReadyLIFT offers a mild lift solution to properly enhance the stance and driving quality of the 2019-2023 Ram 1500 truck 2WD/4WD. Like the body design, the suspension design of the 2019-2023 Ram 1500 features some unique design elements that differ from the previous generation Ram.

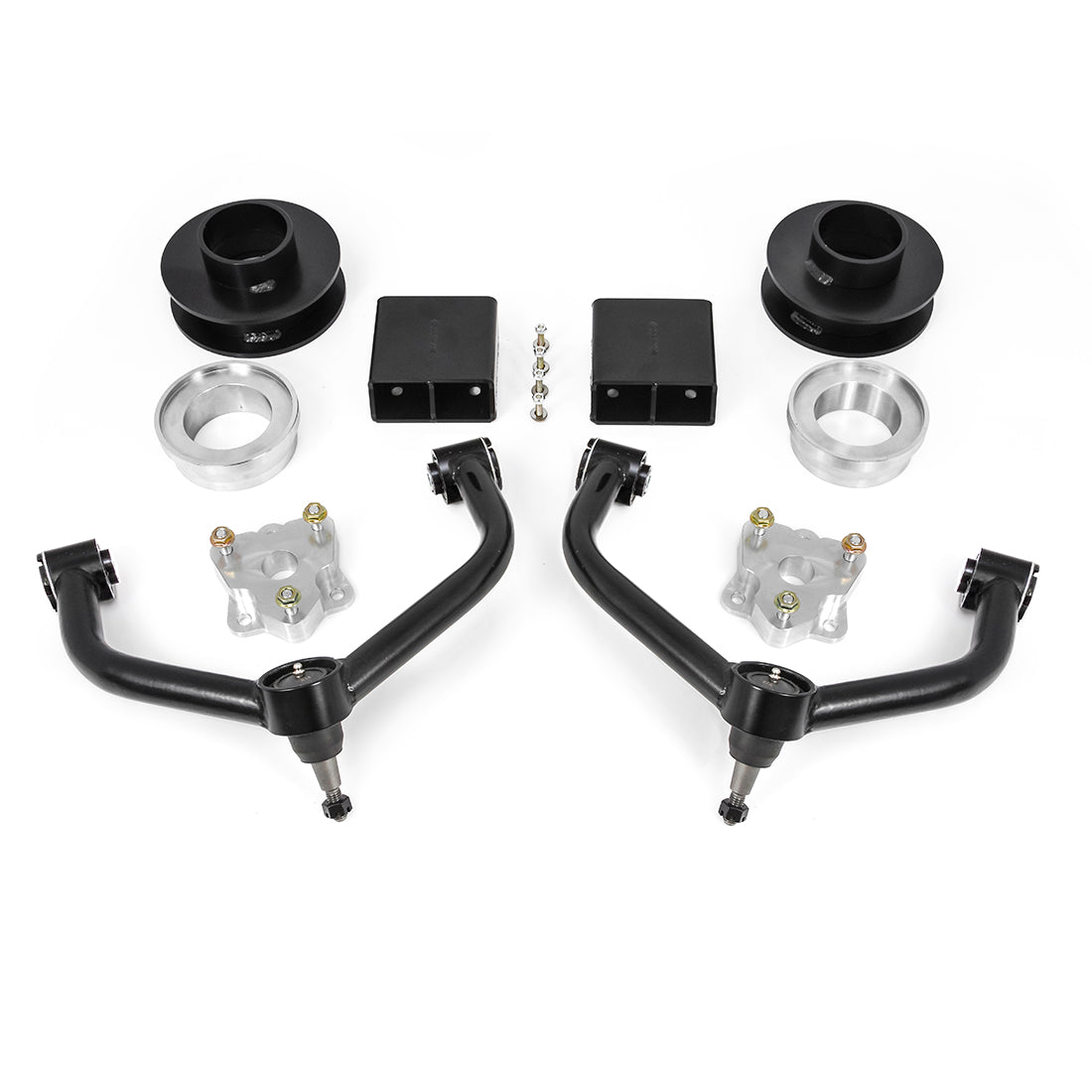

These differences were tackled by our engineers as a result, we now offer a new SST lift kit exclusively for the new Ram 1500 2WD/4WD trucks. The 69-1935 SST lift kit provides 3.5-Inch of front lift and 2-Inch of rear lift.
The new body style Ram now comes with a composite upper control arm with a sheet metal cover. Our engineers determined the best kit solution would be to include our DOM tube steel upper control arms with corrected ball joint angles.
The lift is delivered by way of CNC-machined billet aluminum top mount strut extensions and spring pre-load spacers. This combination generates a true 3.5-Inch of front lift which is perfect for installing up to a 35-Inch tall tire on a 20x9 inch wheel with a 0 offset.
This lift works great without exceeding the CV limits which works well within the OEM tolerances. The 2019-2022 has a new rear set up which requires an all-new fabricated steel rear coil spring spacer.
This spacer provides 2 inches of rear lift and also includes rear bump stop extensions to control compression. Our 69-1935 3.5-Inch SST Lift Kit will get the job done right and affordably.
Not for use on factory air suspension equipped trucks. Note: NOT intended for off-road use or abuse.
Note: If running a 35x12.50-20, the minimum wheel offset is 0 offset on a 9-Inch wide wheel. If running a 295/65-20 the minimum is a +18 offset to ensure the tire does not rub the control arm at full turn.
Features and Benefits:
- 3.5 inch lift kit for 2019-2023 Ram 1500 2WD/4WD trucks
- Not compatible with airsuspension equipped trucks
- CNC machined billet Aluminum front spacers
- Fabricated steel rear spacers
- Includes heavy-duty control arms for added strength
- Solid mount and even load distribution for improved performance
- OEM style cast blocks for a seamless fit
- Will not deform or change shape over time
- No cutting or welding required for installation
- Made in the USA for quality assurance
- Recommended tire size: 35x12.50 20x9 +0
- Not suitable for trucks with factory prelifted/leveled or
Details:
- Fitment: Direct Fitment
- Front Lift Component: Coil Spring Spacer
- Front Lift Height: 3.5 Inch
- Front or Rear: Front and Rear
- Install Difficulty: Difficult Requires Professional Installation
- Installation Time: 5+ Hours
- Lift Height: 3.5 Inch
- Max Tire Size: 35 Inch
- Rear Lift Component: Coil Spring Spacer
- Rear Lift Height: 2.0 Inch
- Shocks Included: No
