ReadyLIFT Suspension has engineered a 3.5-Inch lift kit made to fit the 2017-2022 Ford F250/F350 Super-duty 4WD trucks with a one-piece drive shaft. This 3.5-Inch lift kits allow for wheel and tire combinations up to 37-Inch while keeping the smooth OEM ride and drivability.

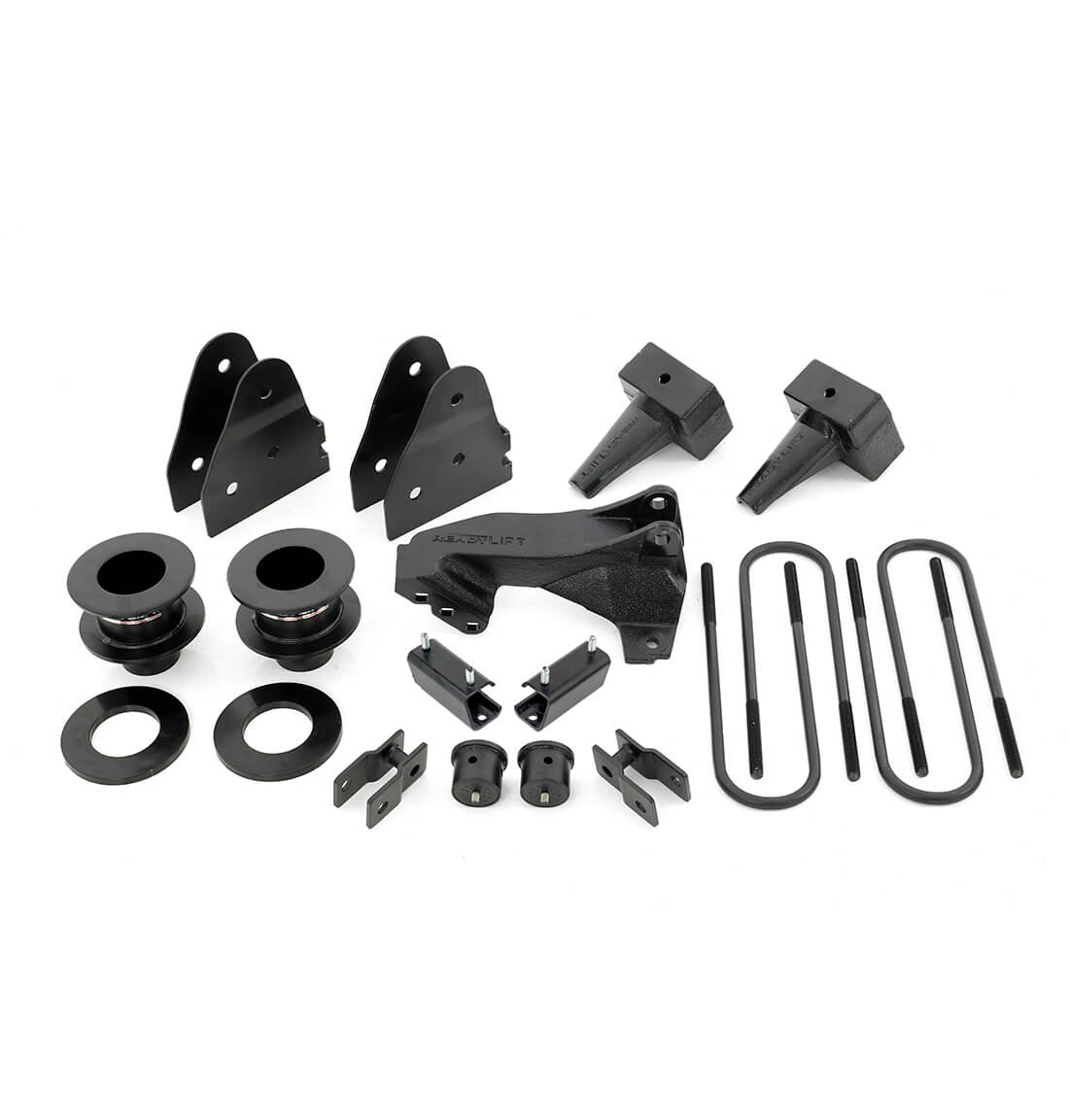

This is a complete lift kit includes 4-Inch OEM-equivalent rear blocks with integrated bump stop landings, 3.5-Inch coil spring extensions with sound isolators, an OEM-style panhard drop bracket, front bump stops OEM shock extension brackets, a pair of radius arm drop brackets, and all needed hardware. When used with the maximum size tires, the F250 truck body is raised over 6 Inch.
ReadyLIFT Smart Suspension Technology is used to make this kit very user-friendly to install, requiring no cutting or drilling. Like all other ReadyLIFT kits, the F250/F350 3.5-Inch SST Lift Kit is guaranteed for life against manufacturing defects.
Popular wheel and tire sizes used for this vehicle include the stock rims (17x8, 6.5-Inch backspacing) with 37x12.5 tires, 20x9.5 rims (+25-Inch backspacing) with 37x12.5 tires, and 22x9.5 rims (+25 backspacing) with 37x12.5. Note: For use with trucks with a one-piece drive shaft.
Note: Single Rear Wheel Trucks Only -- Not compatible with Dual Rear Wheels Note: The lift blocks in this kit are not designed to work with aftermarket or factory add-on air spring/load leveling kits that attach to the bump stop tangs. Use of this type of air bag system will void all block warranties and can cause failure of the block bump stop tang.
Note: 2020-2022 Super Duty may sit slightly taller in the rear than prior model years due block height variations from the Ford factory. The additional rake works well visually with the vehicle's body lines.
Note: Not compatible with Tremor editions.
Features and Benefits:
- Max Lift: 3.5
- Maximum Tire Diameter: 37
- Compatible with 2017-2022 Super Duty 4WD with 1-piece drive shaft
- Includes radius arm drop brackets
- Track bar relocation bracket
- Front coil spring spacers
- Tapered 4-Inch lift rear blocks
Details:
- Fitment: Direct Fitment
- Front Lift Component: Coil Spring Spacer
- Front Lift Height: 3.5 Inch
- Front or Rear: Front and Rear
- Install Difficulty: Difficult Requires Professional Installation
- Installation Time: 5+ Hours
- Lift Height: 3.5 Inch
- Max Tire Size: 37 Inch
- Rear Lift Component: Block and U-bolt
- Rear Lift Height: 3.5 Inch
- Shocks Included: No
