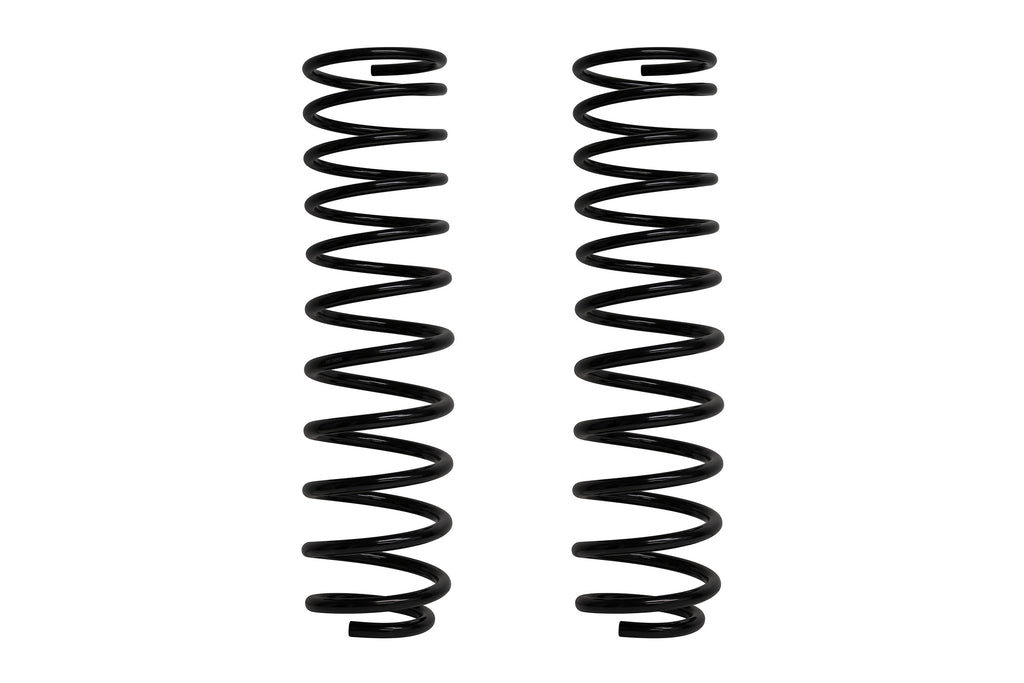

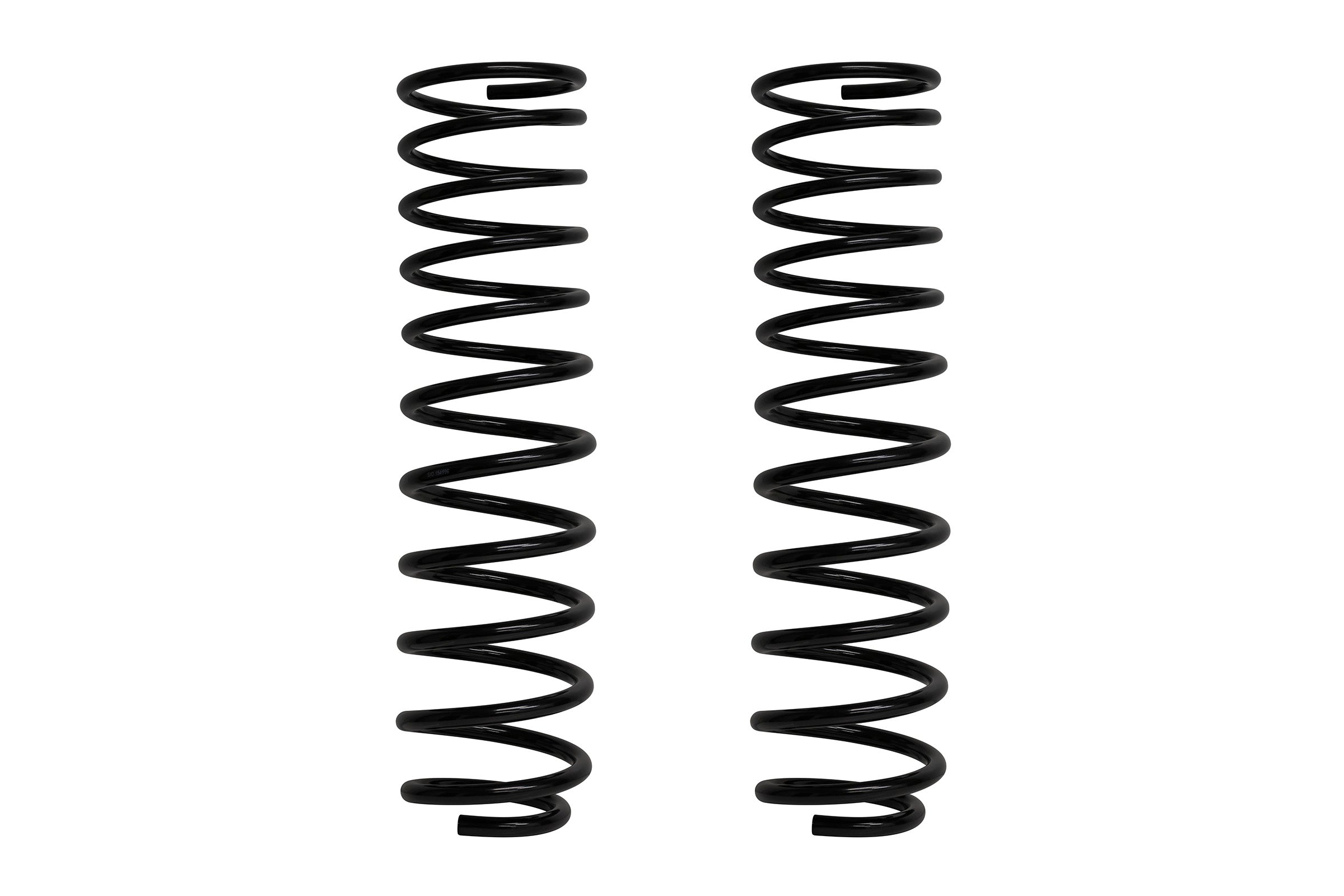

ICON Triple Rate rear coil springs for 2021-2024 Ford F-150 Raptor provide a modest increase in ground clearance while greatly enhancing on- and off-road performance, especially when used with ICON shocks and suspension components. The triple-rate coil design combines a performance ride rate for compliance and comfort, with an overload rate for load and bottom out resistance, and an extra soft initial rate for maximum droop travel. A unique tapered wire design helps achieve maximum travel and efficiency and an extra-long free height ensures the coils stay seated in their coil buckets for up to 17” of droop travel. In addition, these springs are also designed to net 1" of rear lift on a stock weight Gen3 Raptor for a more aggressive stance and increased fender clearance for larger wheels and tires. "Overland" version (p/n 95231) offers the same lift and performance with an additional constant load of 300 lbs in the rear of the truck to accommodate extra gear. Like all ICON coil springs, these feature a lifetime guarantee against sagging/breakage to provide confidence in knowing that you have the best suspension products available for the 2021-2024 Ford F-150 Raptor.
Key Features:
- Vehicle specific design for the Gen3 F-150 Raptor
- 95230: 1" rear lift height over stock on Raptors without additional weight in the rear
- 95231 "Overland" version: 1" rear lift height over stock on Raptors with approximately 300lbs of additional weight in the rear
- Triple rate rear coil springs with ICON-engineered droop, ride, and overload rates
- Performance ride rate for compliance and comfort, overload rate for load and bottom out resistance, extra soft initial rate for maximum droop travel
- Tapered wire design achieves maximum travel and efficiency
- Tall free height - will not come loose from coil buckets for up to 17” of droop
- Significantly improves on- and off-road ride quality and performance over stock
- Dual stage powder coating for maximum corrosion resistance
- Lifetime guarantee against sagging/breakage
Tech Notes:
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset
- Recommended Aftermarket Tires: 37" x 12.50" (depending on bumpstop configuration)
- APPLICATION NOTE #85: Advertised lift height ranges are for a stock equipped vehicle. Increasing weight of vehicle due to accessories will alter lift range.
- APPLICATION NOTE #180: Do not combine with coil spacers or damage may occur
- APPLICATION NOTE #181 (95231 "Overland" version only): Advertised lift height ranges are for a vehicle with approx 300lbs of additional weight in rear. Increasing or decreasing weight of vehicle due to accessories will alter lift range.
