This ICON Vehicle Dynamics 4.5 Inch suspension system is a great way to lift your 4WD 2023-2025 Ford F-250/F-350 Super Duty while drastically improving ride quality and performance and allowing fitment of larger, more aggressive wheel and tire combinations. This Stage 3 system is perfect for on-road and towing use, as well off-road use like job site duty, washboard gravel roads and general off-road adventures.
Features and Benefits:

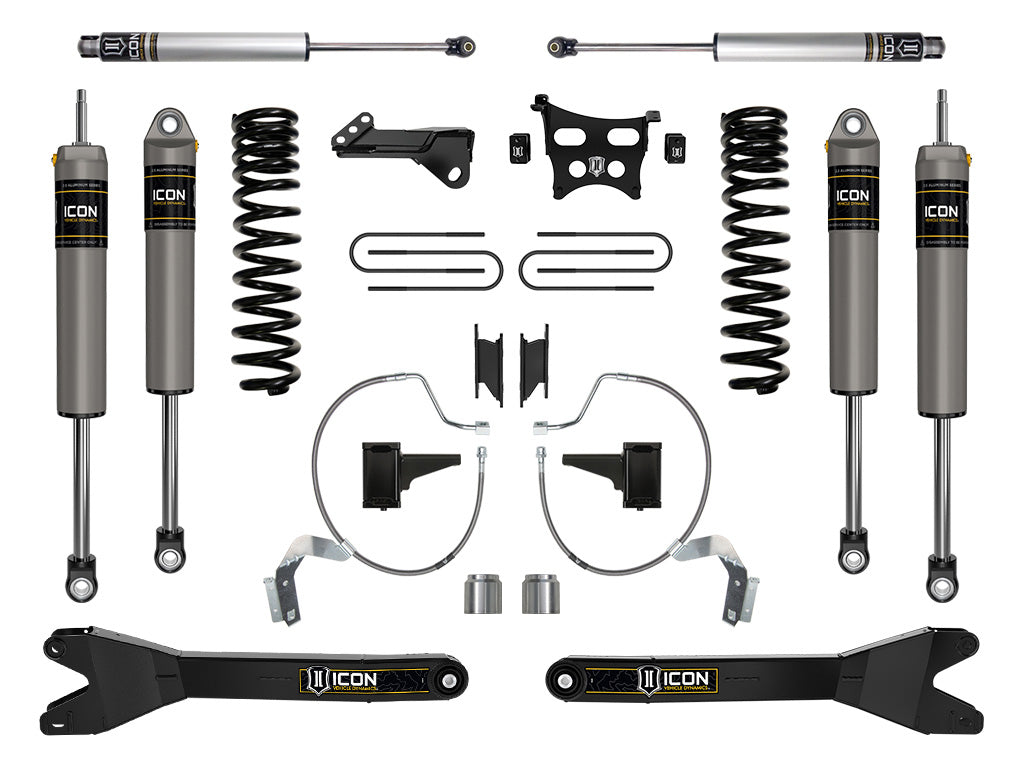

- ICON's 4.5 Inch Stage 3 System is comprised of 4.5 Inch lift coil springs optimized for trucks equipped with gasoline engines with a dual rate design that allows for a softer initial rate for superb on-road comfort and a firmer secondary rate that increases during compression for excellent bottoming resistance and off-road performance. Fabricated radius arms offer significantly more strength over the OE units and feature built in caster cams for on-vehicle caster adjustment, maintenance free bushings, and improved tire clearance at full steering lock, all while eliminating the need for drop brackets and thus raising ground clearance under the chassis. The fabricated track bar drop bracket allows the axle to be properly centered under the frame and reduces road feedback throughout the steering system with improved on- and off-road manners thanks to the elimination of bump steer. ICON's dual opposing steering stabilizer kit featuring ICON 2.0 Aluminum Series shocks improves steering damping to better control undesirable steering feedback caused by larger tires. Heavy-duty fabricated 5 Inch rear blocks and U-bolt kit lift the rear of the vehicle and are designed to withstand heavy towing/hauling duty as well as the stresses of aggressive off-road use. ICON 2.5 Aluminum Series internal reservoir front and rear shocks feature a vehicle specific tune for improved vehicle handling and excellent ride quality on- and off-road with improved performance compared to 2.0 Aluminum Series shocks. The included box kit includes fabricated front sway bar drop brackets to prevent bind, heavy-duty aluminum bump stop spacers, and high quality stainless steel extended brake lines.
- This suspension system features high quality CNC machined, laser cut, and brake formed components and with the endless hours ICON has spent testing and tuning our suspension components and shock absorbers as a complete system, you can rest assured you have the best suspension solution on the market.
- Fits 2023-2025 F-250 / F-350 4WD gas applications
- ICON engineered dual rate coil springs deliver 4.5 Inch of front lift with exceptional vehicle control over varying terrain
- ICON 2.5 Aluminum Series internal reservoir shocks feature vehicle specific tune for superior performance and ride quality
- Approximately 50 Percent increased front wheel travel over stock
- Fabricated radius arms provide increased strength, on vehicle caster adjustment, improved tire clearance at steering lock, and higher ground clearance
- Track bar drop bracket reduces track bar angle and corrects bump steer geometry
- Dual steering stabilizer kit offers increased steering damping
- Stainless steel braided front brake lines
- Heavy-duty fabricated rear lift blocks
- 2.5 Aluminum Series shocks feature corrosion resistant hard anodized shock bodies with 7/8 Inch shafts
- 2.0 Aluminum Series steering stabilizers feature corrosion resistant anodized shock bodies with 5/8 Inch shafts
- Shocks are fully rebuildable and re-tunable
- Lifetime guarantee against coil spring breakage or sagging
- Lifetime guarantee against ICON fabricated component breakage or manufacturer defect
Details
- Active Or Passive Suspension: Passive
- Adjustable Compression: No
- Adjustable Control Arm: Yes
- Adjustable Damping: No
- Adjustable Rebound: No
- Bushings Included: Yes
- Coil Quantity Front: 2.0
- Coil Spring Color: Black
- Coil Spring Material: Steel
- Coils Quantity Front: 2.0
- Front Reservoir Style: Internal
- Front Shock Body Diameter: 2.5
- Front Spring Rate Type: Progressive Dual Rate
- Grade Type: Performance
- Leaf Spring Bracket Color: Black
- Leaf Spring Bracket Material: Steel
- Maximum Lift: 4.5 Inch
- Maximum Lift Front: 4.5 Inch
- Maximum Lift Height Front: 4.5 Inch
- Maximum Lift Height Rear: 2.0 Inch
- Maximum Lift Rear: 2.0 Inch
- Minimum Lift Front: 4.5 Inch
- Mounting Hardware Included: Yes
- Oem Wheels & Tires Fitment: Yes
- Rear Reservoir Style: Internal
- Rear Shock Body Diameter: 2.5
- Recommended Aftermarket Tires: 37 Inch X 12.50 Inch (Larger Tires May Fit But Fender Trimming And Modifications Will Be Required.)
- Recommended Aftermarket Wheels: Icon Alloys - 20x9 Inch W/ 5.25 Inch Backspace / 6mm Offset, Icon Alloys - 18x9 Inch W/ 5.25 Inch Backspace / 6mm Offset, Icon Alloys - 17x8.5 Inch W/ 5 Inch Backspace / 6mm Offset
- Shocks Included: Yes
- Spring Color: Black
- Spring Material: Steel
- Add On Part: 66204 - 23-25 FSD Icon Radius Arm Scale Mount Kit 4.5 Inch, 64038 - 17-25 FSD Adj Track Bar Kit
