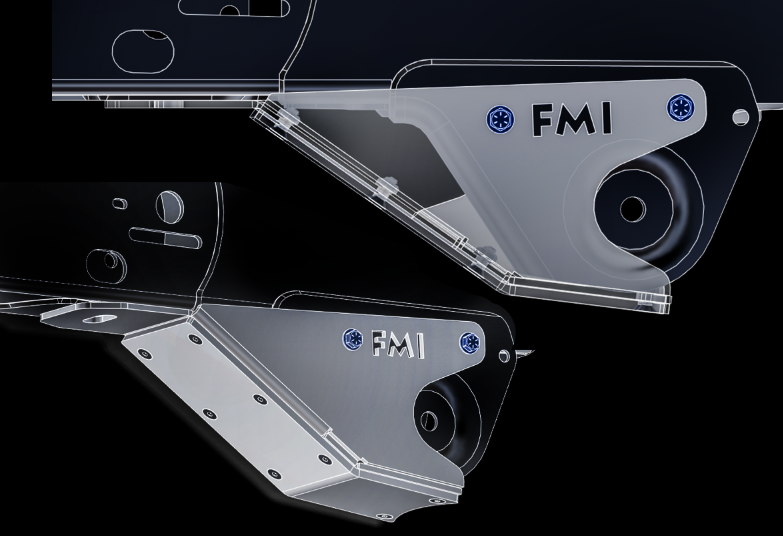

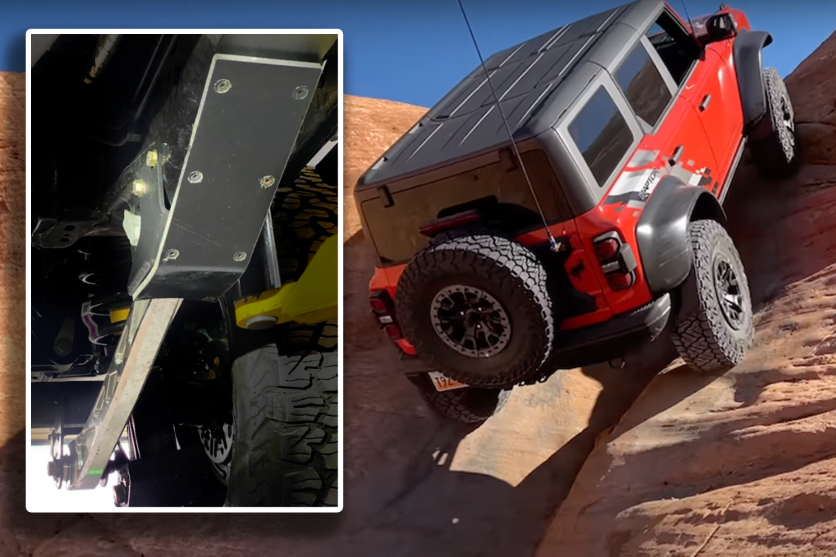

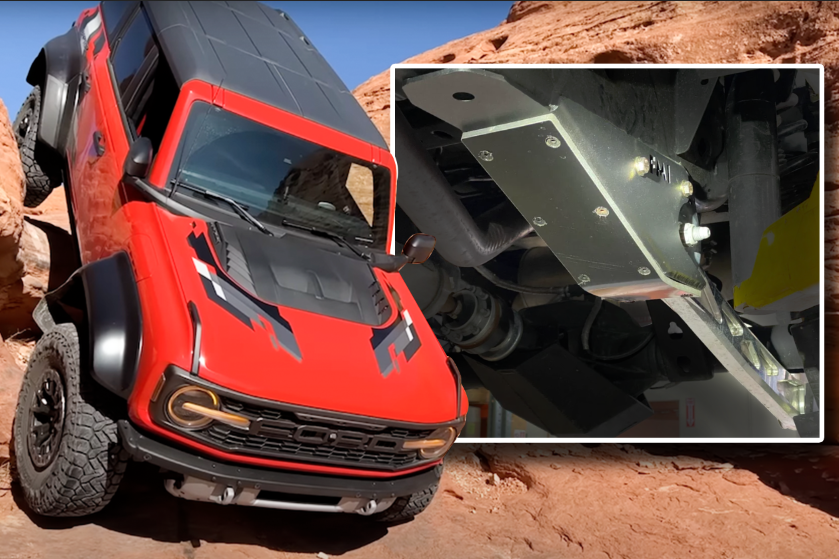

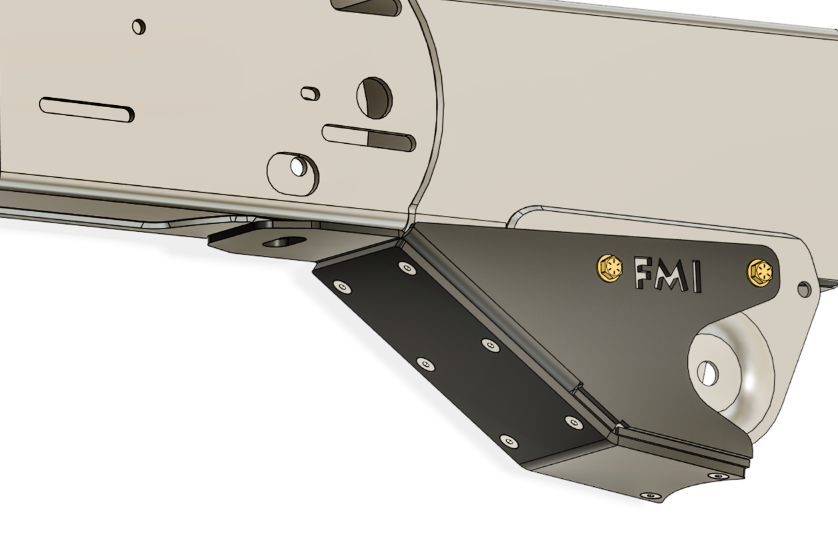

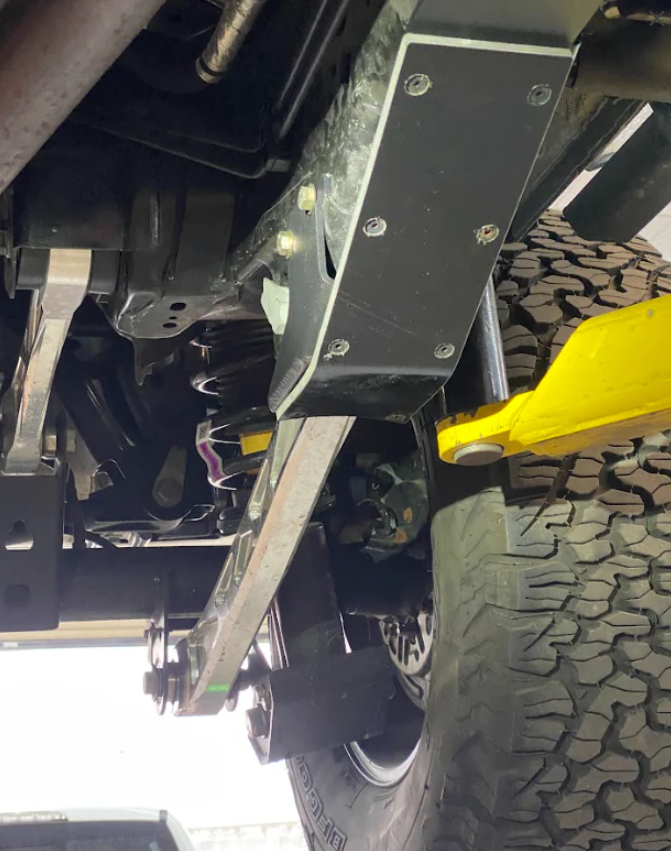

Foutz Motorsports REAR LOWER ARM FRAME GUARD with HDPE SLIDE 2022-2026 Ford Bronco Raptor

• Protects the rear lower link mount and surrounding frame area from off-road impacts
• Improves the approach angle around the lower link mount
• Helps prevent the mount from catching on rocks and other obstacles
• Bolt-on installation using the existing frame mounting points
• No drilling or frame modifications required
• HDPE sliding surface helps reduce drag when crossing obstacles
• Designed specifically for the 4-door Ford Bronco Raptor

The main guard is made from 3/16" steel plate and MIG welded for strength and durability.

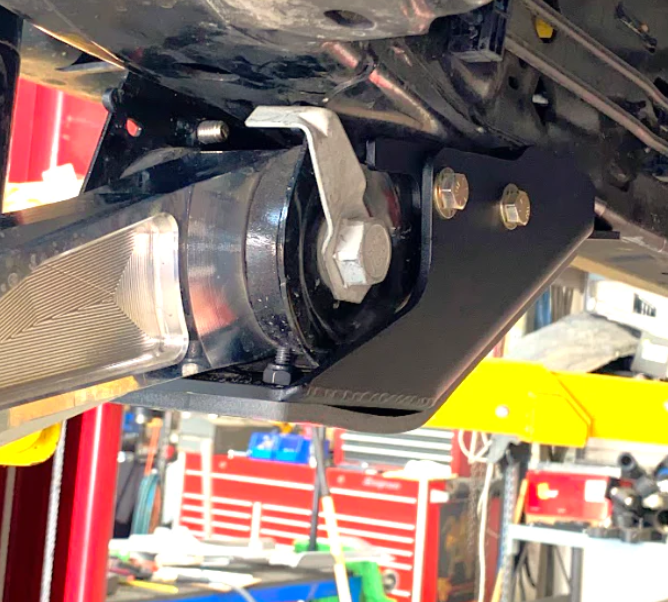

It bolts directly to the existing lower link mount on the frame and improves the approach angle around the mount, helping the truck slide over rocks and other obstacles without getting hung up as easily.

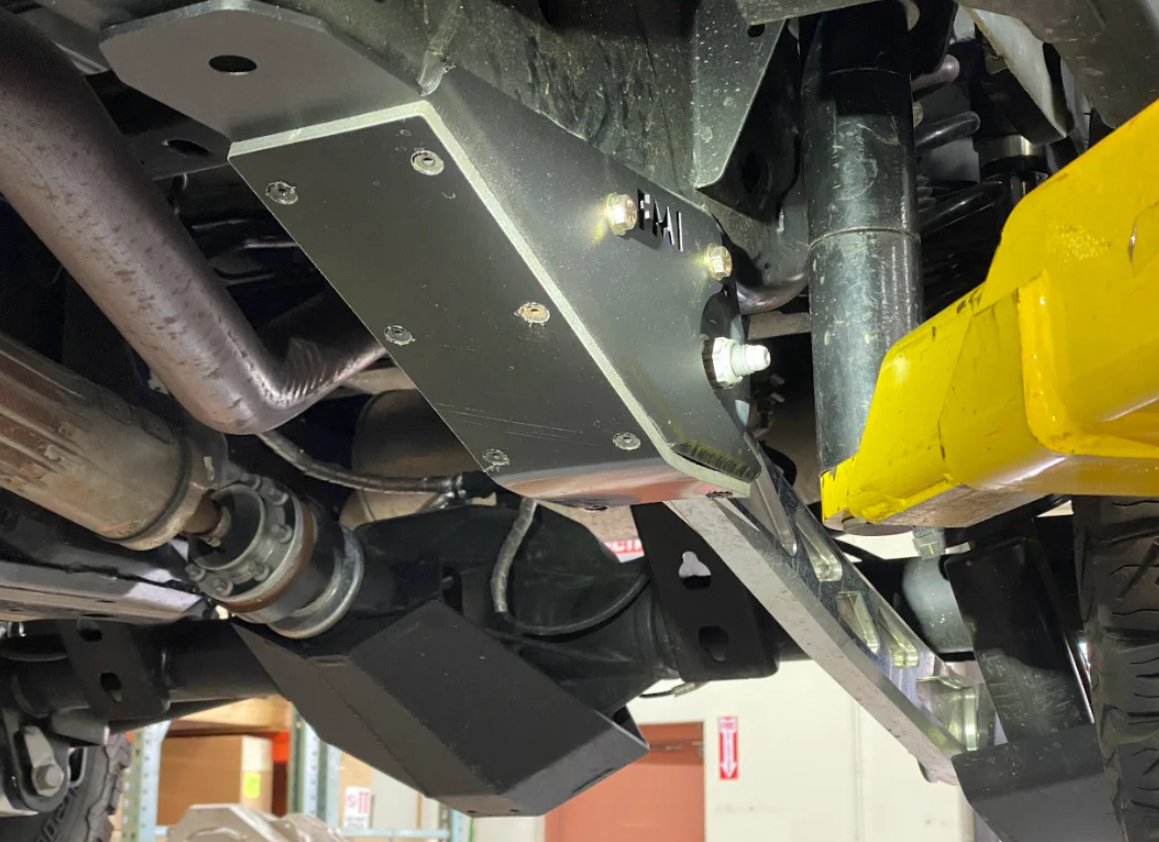

The bottom angle of the guard is covered with High Density Polyethylene (HDPE).

The low-friction plastic surface is designed to slide more easily over rocks and other obstacles, reducing the drag that can occur when the steel portion of the guard contacts the ground.

• 3/16" steel plate construction
• MIG welded for strength and durability
• High Density Polyethylene sliding surface
• Designed for demanding off-road use

• All years of the 4-door Ford Bronco Raptor
• Not compatible with the standard Ford Bronco
• May not be compatible with aftermarket fuel tank skid plates depending on how the skid plate mounts to the passenger-side frame

Because aftermarket fuel tank skid plate designs vary, compatibility should be verified before ordering if you have an aftermarket fuel tank skid plate installed.

The Lower Arm Frame Guard is a bolt-on installation using the existing frame mounting points.

• No drilling required
• No frame modifications required
• Uses existing mounting locations

• (1) Driver-side Lower Arm Frame Guard
• (1) Passenger-side Lower Arm Frame Guard
• (1) Hardware mounting kit

What does the Bronco Raptor Lower Arm Frame Guard protect?

It protects the rear lower link mount and surrounding frame area from rocks and other obstacles encountered during off-road driving.

What is the benefit of the HDPE slide?

The HDPE surface provides a low-friction sliding surface that helps the guard move over rocks more easily and reduces the drag created when steel contacts the obstacle.

What is the guard made from?

The main guard is made from 3/16" steel plate and is MIG welded for strength and durability.

Is the Lower Arm Frame Guard bolt-on?

Yes. The guard bolts to the existing lower link mount on the frame. No drilling or frame modifications are required.

Will this fit the standard Ford Bronco?

No. This guard is designed specifically for the Ford Bronco Raptor and will not work with the standard Ford Bronco.

Does it fit all Bronco Raptor years?

Yes. It is designed to fit all years of the 4-door Ford Bronco Raptor.

Will it work with an aftermarket fuel tank skid plate?

It may. Compatibility depends on how the aftermarket fuel tank skid plate mounts to the passenger-side frame. Because aftermarket designs vary, compatibility should be verified before ordering.

Does the kit include both driver and passenger sides?

Yes. The kit includes one driver-side guard, one passenger-side guard, and the required mounting hardware.
