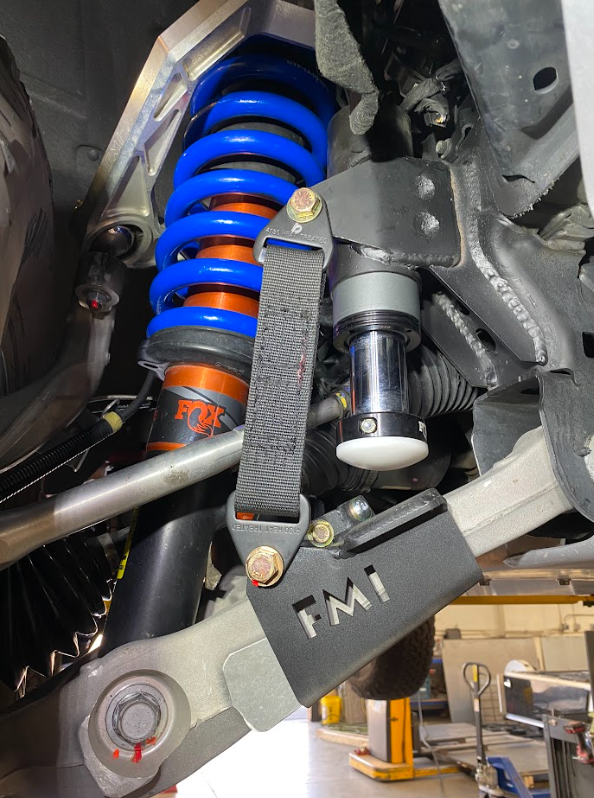

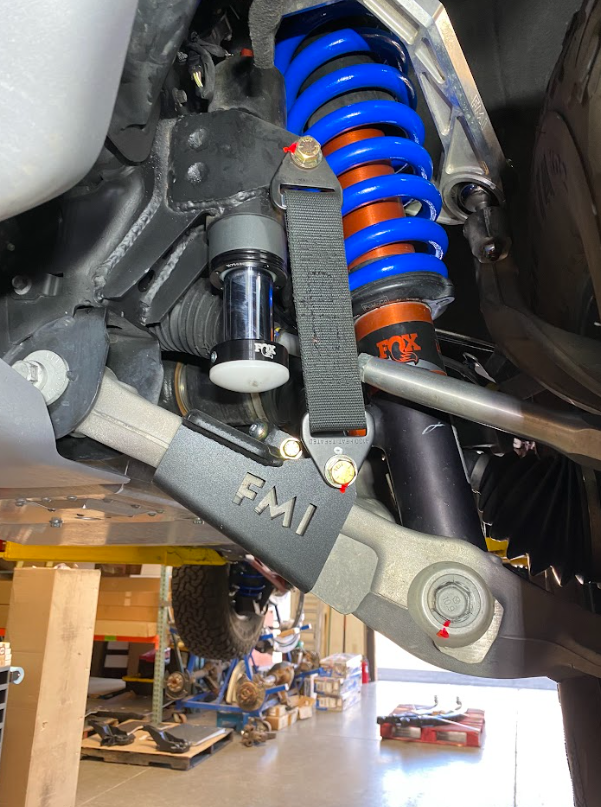

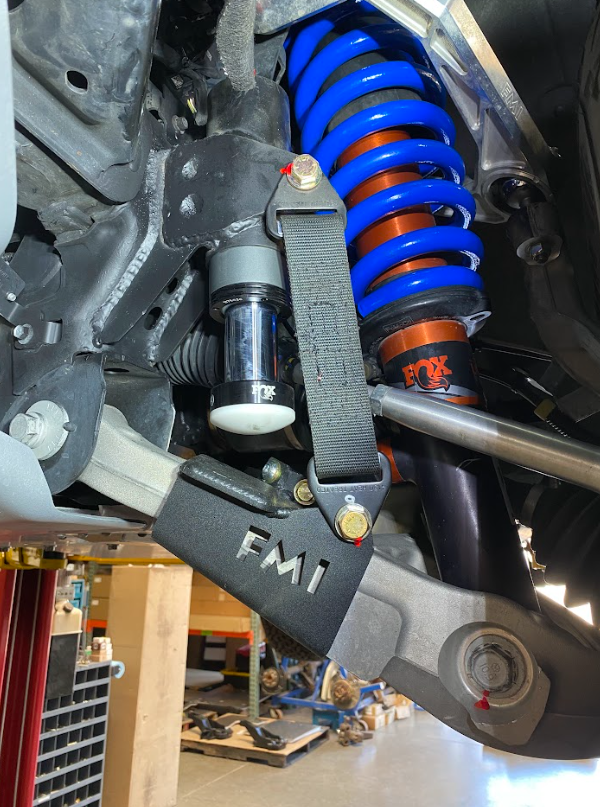

Foutz Motorsports Front Limit Strap & Bump Stop - Stock Lower Arm 2022-2026 Ford Bronco Raptor

• Designed to work with the factory lower control arm and bolt to the cast aluminum arm
• Limits front suspension top-out travel
• Helps protect the upper shock mount from premature damage
• Reduces the amount of load placed on the shock when limiting droop
• Helps extend the service life of front suspension components
• Recommended when running aftermarket springs on the Bronco Raptor
• Designed to work with Fox, King, or ADS front bump stops
• Accepts 2.5" OD bump stops with 2.5" of travel for additional bottom-out protection
• Fits 2022–2024 Ford Bronco Raptor

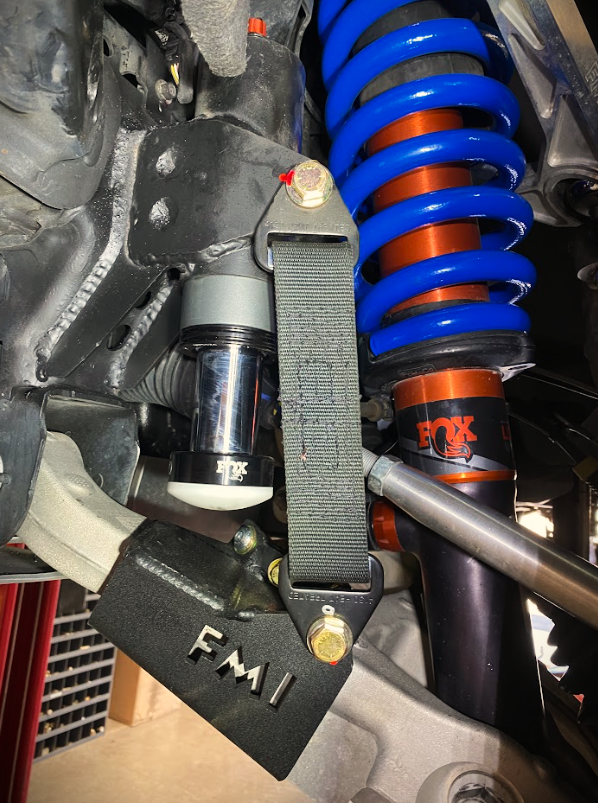

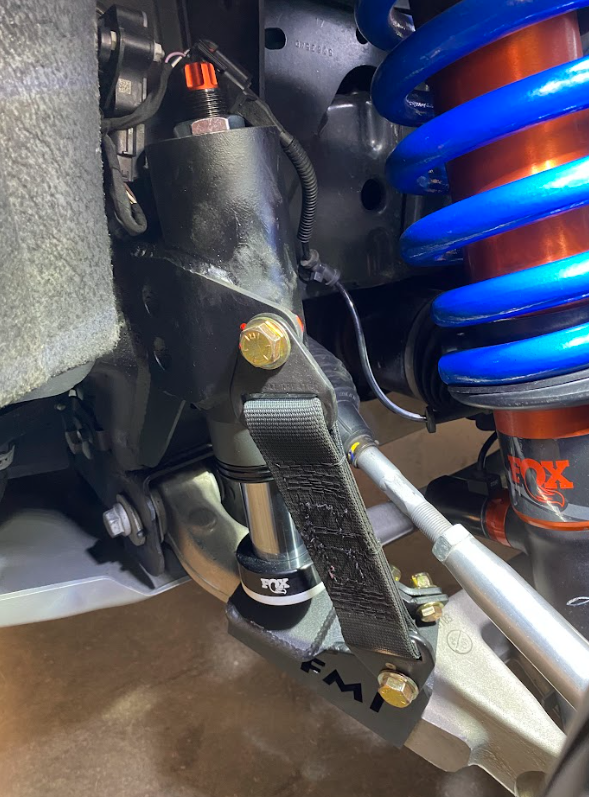

The 9" limit straps are built for demanding off-road use and designed to withstand repeated suspension loads.

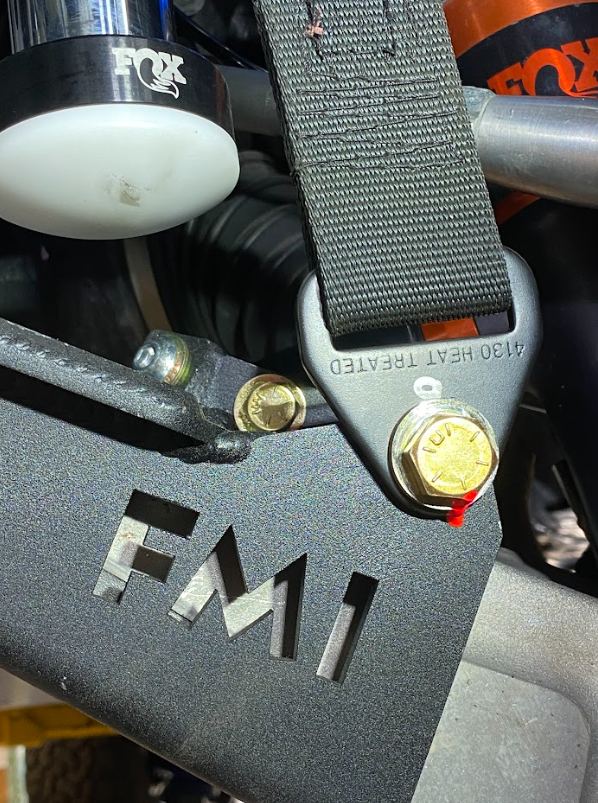

Each strap uses 4 layers of military-grade webbing with black-plated steel mounting tabs for added strength and durability.

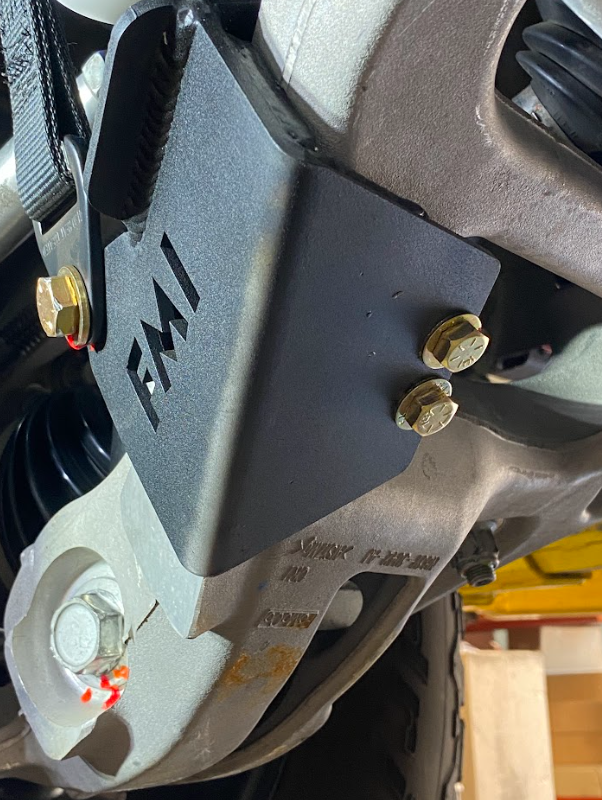

The mounting brackets secure around the factory lower control arm and are MIG welded in-house for strength and durability. The brackets are finished with Hammer Black powder coat.

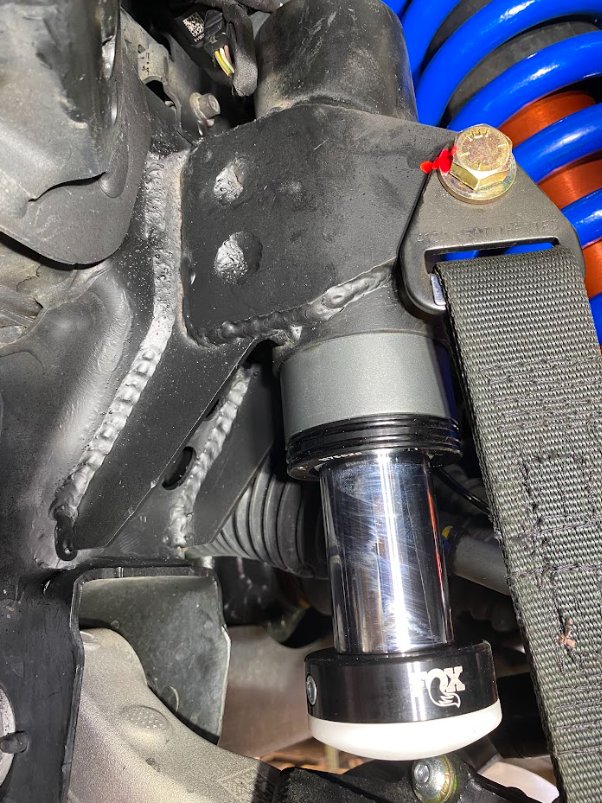

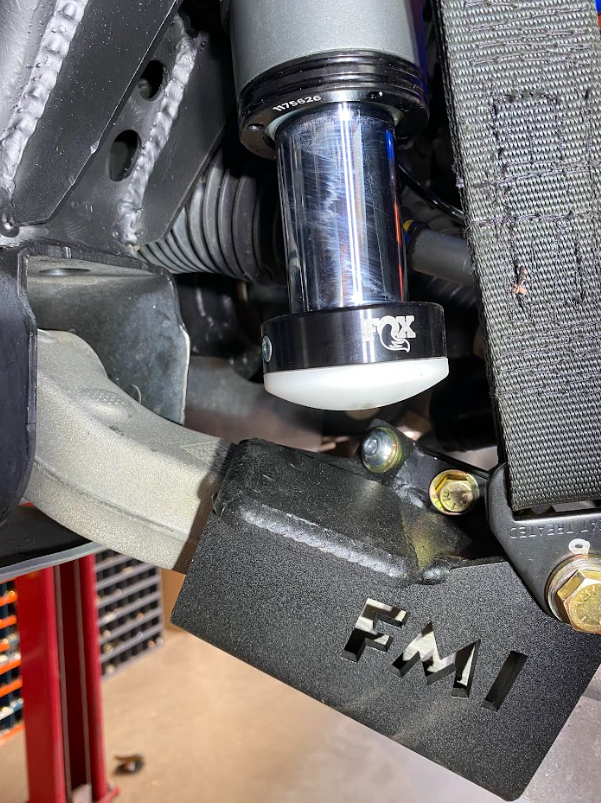

A built-in bump pad provides a mounting point for adding a front bump stop to the system.

The kit is engineered to work with Fox, King, and ADS front bump stops.

• Fox 2.5" OD x 2.5" travel
• King 2.5" OD x 2.5" travel
• ADS 2.5" OD x 2.5" travel

Fox, King, or ADS bump stops can be added by selecting the appropriate option before adding the kit to your cart.

• 2022 Ford Bronco Raptor
• 2023 Ford Bronco Raptor
• 2024 Ford Bronco Raptor
• Works with the factory lower control arm
• Designed for use with aftermarket springs

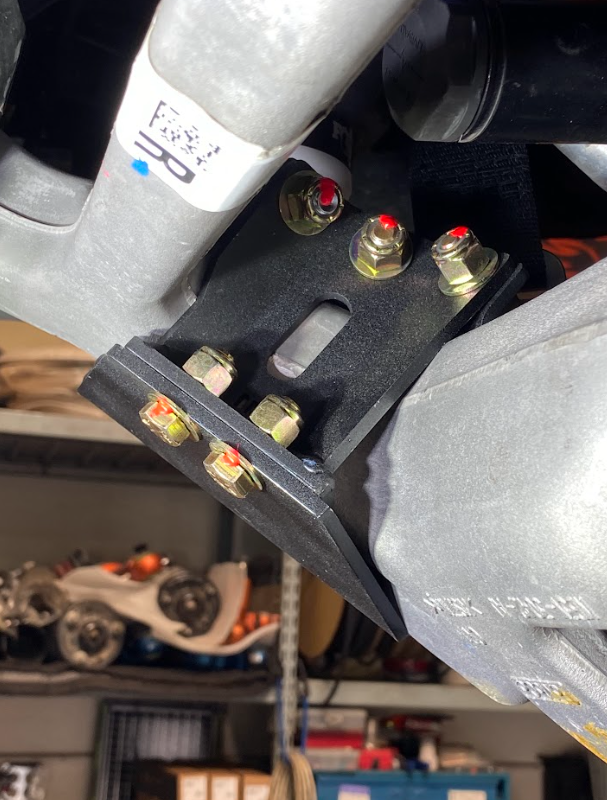

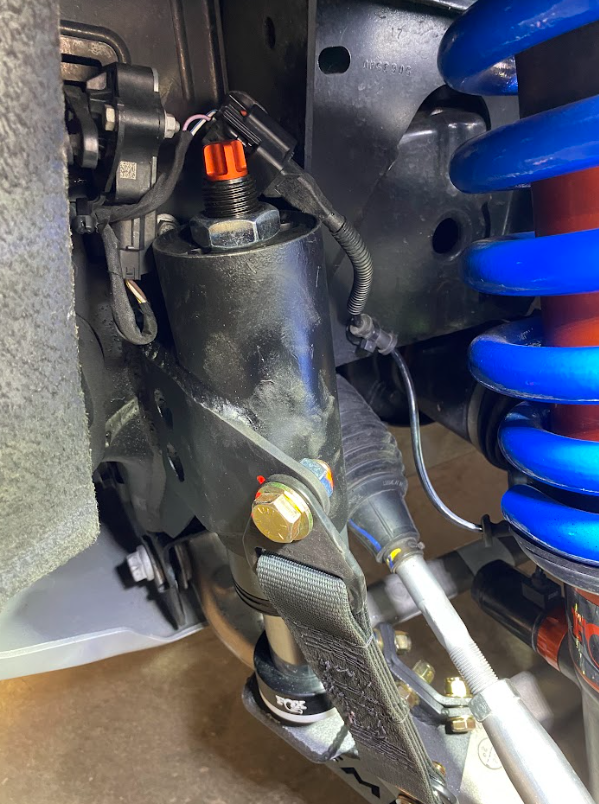

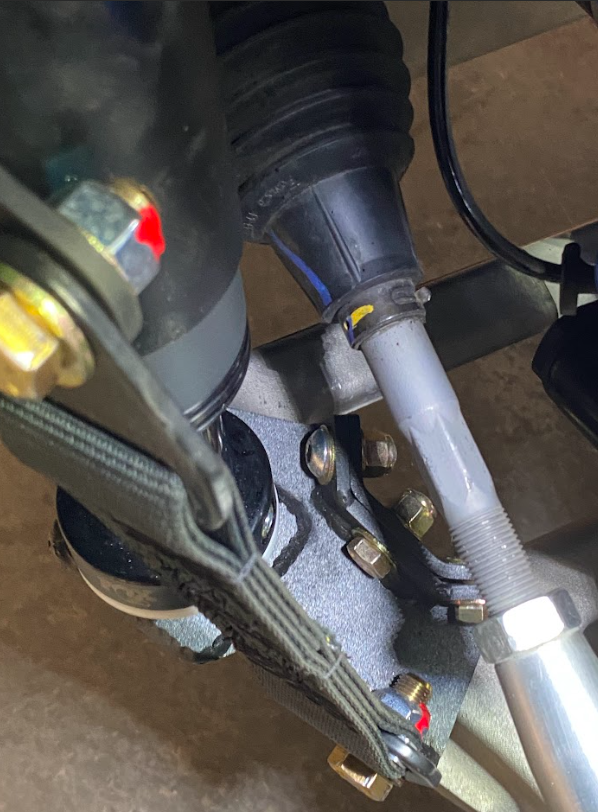

The lower control arm brackets bolt to the factory lower control arm. The bump stop mounting components require welding to the vehicle frame.

⚠️ The bump stop mount must be welded to the frame. Installation should be performed by a qualified welder or fabricator.

Limit Strap & Mounting Components

• (2) 9" limit straps
• (2) bump stop can mounts
• (2) weld-on mounting tabs
• (2) gussets
• (2) main mounting brackets
• (2) mounting bracket plates

Lower Control Arm Mounting Hardware

• (10) 3/8-16 x 1-1/4" bolts
• (10) 3/8-16 Nyloc nuts
• (6) 3/8" washers

Lower Strap Mounting Hardware

• (2) 1/2-20 Nyloc nuts
• (2) 1/2-20 12-point bolts
• (4) 1/2" SAE washers

Upper Strap Mounting Hardware

• (2) 1/2-13 x 1-1/2" bolts
• (2) 1/2-13 Nyloc nuts
• (4) 1/2" SAE washers

This is a new kit. Please allow 4–6 weeks for production and delivery.

• Fox bump stop version: FMI050603955030101
• King bump stop version: FMI050603955130101
• ADS bump stop version: FMI050603955230101

What does the Bronco Raptor Front Limit Strap Kit do?

It limits front suspension top-out travel and reduces the amount of work the shock has to do when controlling suspension droop.

Why use a limit strap on a Bronco Raptor?

A limit strap provides a dedicated mechanical limit for suspension droop. This helps reduce top-out loads and can help protect the upper shock mount and other suspension components.

Is this kit recommended with aftermarket springs?

Yes. The kit is especially recommended when running aftermarket springs on the Bronco Raptor.

Does the kit work with the factory lower control arm?

Yes. The mounting brackets are designed around the factory lower control arm and bolt to the cast aluminum arm.

What bump stops work with this kit?

The kit is designed for Fox, King, and ADS front bump stops measuring 2.5" OD with 2.5" of travel.

Can I buy the kit without bump stops?

Yes. Fox, ADS, or King bump stops can be added by selecting the appropriate option before adding the kit to your cart.

Does the bump stop mount require welding?

Yes. The bump stop mount must be welded to the vehicle frame, so installation should be performed by a qualified welder or fabricator.

What years does this kit fit?

This kit fits the 2022, 2023, and 2024 Ford Bronco Raptor.

How long does this kit take to ship?

Please allow 4–6 weeks for production and delivery.
