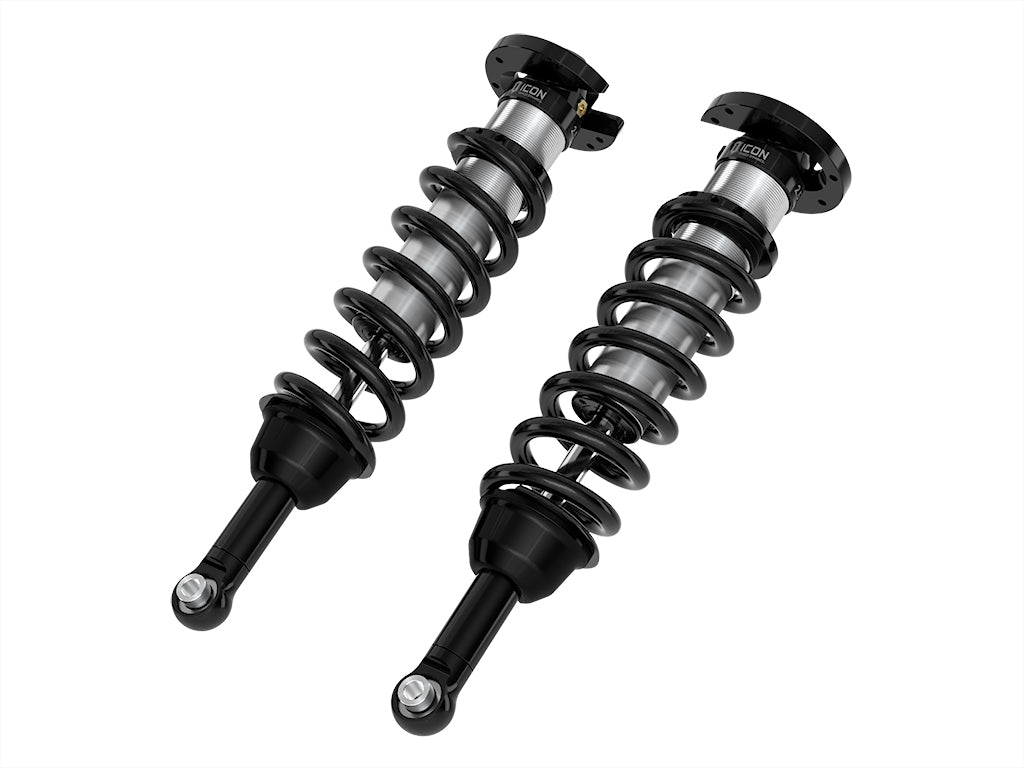

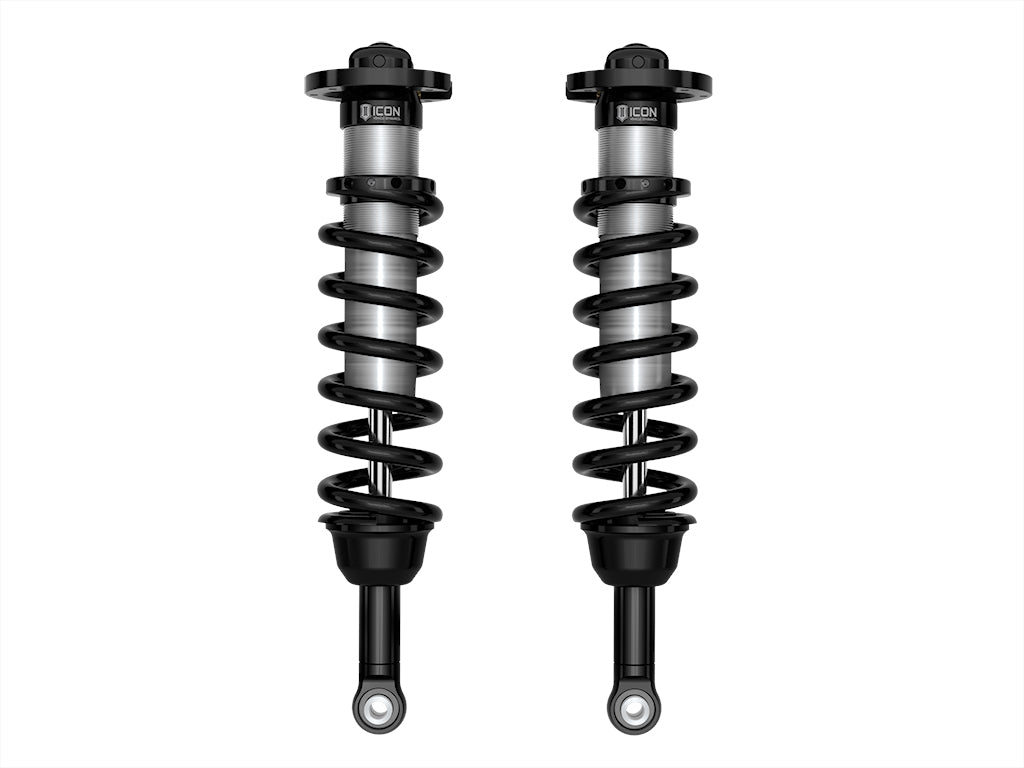

ICON Vehicle Dynamics V.S. 2.5 Series internal reservoir front coilover shocks are an incredible upgrade for the front end of the 2022-2025 Toyota Tundra and 2023-2025 Toyota Sequoia. These adjustable coilovers allow up to 1.25-3.5 Inch of lift height adjustability on a Tundra or 3-4.5 Inch of lift height adjustability on a Sequoia, allowing the use of larger, more aggressive wheel and tire combinations.
ICON's Vehicle-specific shock length and valving along with the larger 2.5 Inch shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tundra or Sequoia.
Features and Benefits:
- Increased wheel travel and improved ride quality over stock
- Vehicle specific tuned for superior shock damping and control
- Adjustable ride height offers 1.25-3.5 Inch of front lift over stock on Tundra or 3-4.5 Inch of front lift over stock on Sequoia
- ICON engineered coil springs
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated shock bodies with 7/8 Inch diameter shafts
- FK rod end bearings for extended longevity and minimal deflection
- Fully rebuildable and re-tunable
Details
- Material: Steel, Aluminum
- Active Or Passive Suspension: Passive
- Adjustable Compression: No
- Adjustable Damping: No
- Adjustable Rebound: No
- Adjustable Ride Height: Yes
- Assembled: Yes
- Body Diameter: 2.5 Inch
- Coil Over Springs Included: Yes
- Compressed Length: 16.73
- Cylinder Color: Silver
- Cylinder Finish: Cadmium Plated
- Cylinder Material: Steel
- Damping Type: Oil
- Dust Shield Included: No
- Extended Length: 22.08
- Front Spring Rate: 700 Inch
- Gas Charged: Yes
- Grade Type: Performance
- Includes Bump Stop: No
- Internal Construction Type: Single Tube
- Lower Mount Type: Eyelet
- Maximum Lift: 3.5 Inch
- Maximum Ride Height Raising Distance: 3.5
- Minimum Lift: 1.0 Inch
- Oem Wheels & Tires Fitment: Yes
- Recommended Aftermarket Tires: 35 Inch X 12.50 Inch (Minor Fender Trimming And Modifications May Be Required)
- Recommended Aftermarket Wheels: 17x8.5 Inch W/ 5.75 Inch Backspace / 25mm Offset
- Remote Reservoir: No
- Reservoir Style: Internal
- Self Leveling: No
- Service Parts: 252010 - 2.5 Ifp Rebuild Kit
- Shaft Diameter: 0.875
- Shock Absorber Body End Measuring Point: Top Of Upper Mount Plate
- Shock Absorber Rod End Measuring Point: Center Of Eylet
- Spring Color: Black
- Spring Material: Steel
- Spring Rate Type: Linear
- Travel Length: 5.36
- Upper Mount Type: Mounting Plate
- Valving Type: Digressive
- Add On Part: 55164 - 22-25 Tundra/23-24 Sequoia Aluminum Skid Plate Spacer Kit, 198001 - Billet Spanner Wrench Kit, 55154 - 22-25 Tundra/23-25 Sequoia Sway Bar Drop Kit, 198000 - 2 Pin Coilover Spanner Wrench Kit
