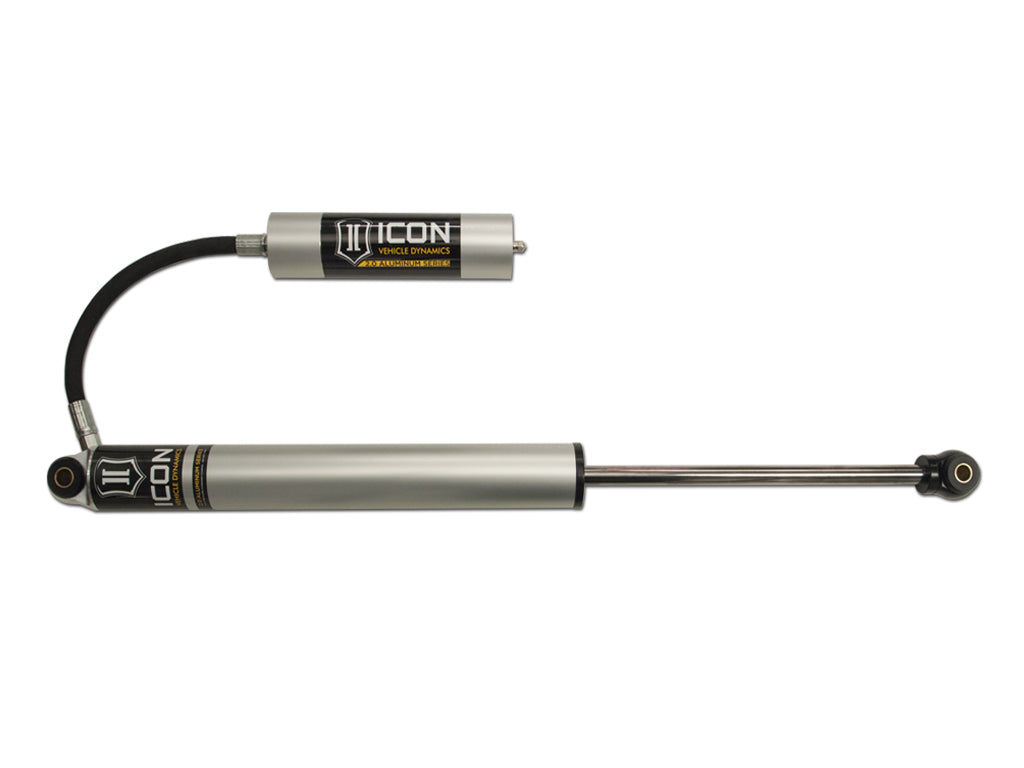

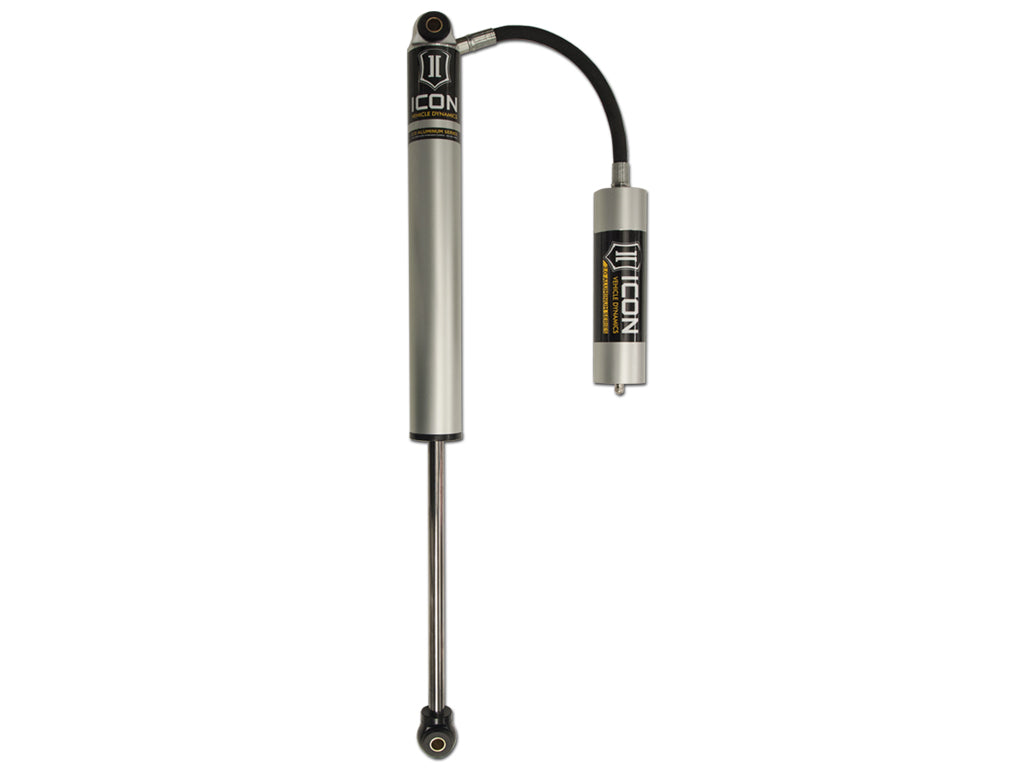

ICON Vehicle Specific (V.S.) 2.0 Aluminum Series shock absorbers are the ultimate in cost effective upgrades, specifically tailored by ICON engineers for your application. The V.S. 2.0 Aluminum Series shocks are a high quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance.
Like all ICON shock absorbers, V.S. 2.0 Aluminum Series shocks are 100 Percent rebuildable and 100 Percent revalveable. For those using their vehicle in extreme off-road situations, consider the ICON V.S. 2.5 Series shocks to handle extra abuse and punishment your suspension will need to endure.
Features and Benefits:
- Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
- Nitrogen charged monotube design with remote reservoir
- One piece linear/digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
- 5/8 Inch chrome plated hardened steel shaft resists corrosion and pits
- 6061 aluminum rod end, top cap, and internals ensure strength and durability
- Polyurethane bushings, zinc plated sleeves, and forged steel mounting stems for OE factory type fitment
- Application-specific reservoir mounting hardware
- 6063 anodized aluminum body and reservoir tubing for superb heat dissipation, excellent corrosion resistance, and high-tech appearance
- Nitrile rubber top out bumper for noise free operation
- 100 Percent rebuildable
- 100 Percent revalveable
Details
- Color: Black, Gray, Silver
- Material: Aluminum
- Finish: Anodized
- Active Or Passive Suspension: Passive
- Adjustable: No
- Adjustable Compression: No
- Adjustable Damping: No
- Adjustable Rebound: No
- Adjustable Ride Height: No
- Body Color: Gray
- Body Diameter: 2 Inch
- Body Material: Aluminum
- Boot Included: No
- Bore Diameter: 1.75
- Bushing Color: Black
- Bushing Included: Yes
- Bushing Material: Polyurethane
- Coil Spring InsulatorS Included: No
- Configuration: Performance
- Cylinder Color: Gray
- Cylinder Finish: Anodized
- Cylinder Material: Aluminum
- Cylinder Outside Diameter: 2.0
- Damping Type: Oil
- Dust Boot Included: No
- Dust Shield: No
- Dust Shield Included: No
- External Reservoir: Yes
- Gas Charged: Yes
- Grade Type: Performance
- Hydraulic Lockout: No
- Includes Bump Stop: No
- Internal Construction Type: Single Tube
- Internal Rebound Bumper: Yes
- Internal Rebound Spring: No
- Lower Mount Sleeve Inside Diameter: 0.56
- Lower Mount Sleeve Overall Length: 1.475
- Lower Mount Type: Eyelet
- Maximum Ride Height Raising Distance: 5.0
- Minimum Ride Height Raising Distance: 2.0
- Mounting Hardware Included: No
- Quantity: 1 Inch
- Remote Reservoir: Yes
- Reservoir Diameter: 2.0
- Reservoir Hose Inside Diameter: 0.25
- Reservoir Hose Length: 5.75
- Reservoir Length: 8.0
- Reservoir Type: Remote
- Rod Diameter: 0.625
- Self Leveling: No
- Service Parts: 254101G - 1/2 Gallon Icon Performance Shock Oil, 252002 - Universal Spanner Wrench (2.0/2.5/3.0)
- Shaft Diameter: 0.625
- Shaft Material: Chrome
- Shock Absorber Body End Measuring Point: Center Of Eylet
- Shock Absorber Bore Size: 1.75
- Shock Absorber Rod End Measuring Point: Center Of Eylet
- Suspension Type: Spring
- Upper Mount Type: Eyelet
- Valving Type: Digressive, Linear
- Add On Part: 252012 - -4 To -10 Hose Shield Kit, 614600 - 2.0 Icon Billet Resi Clamp Kit
