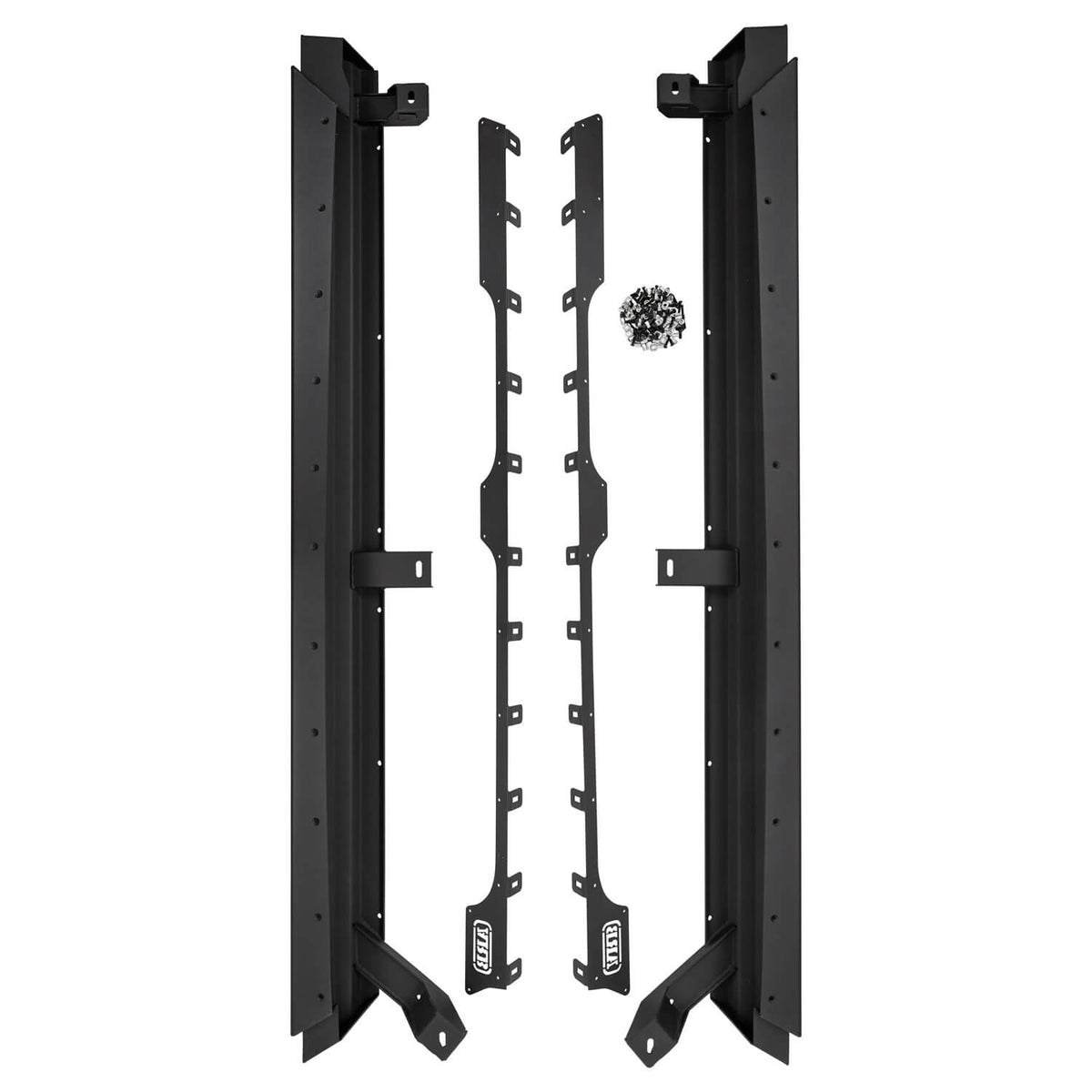

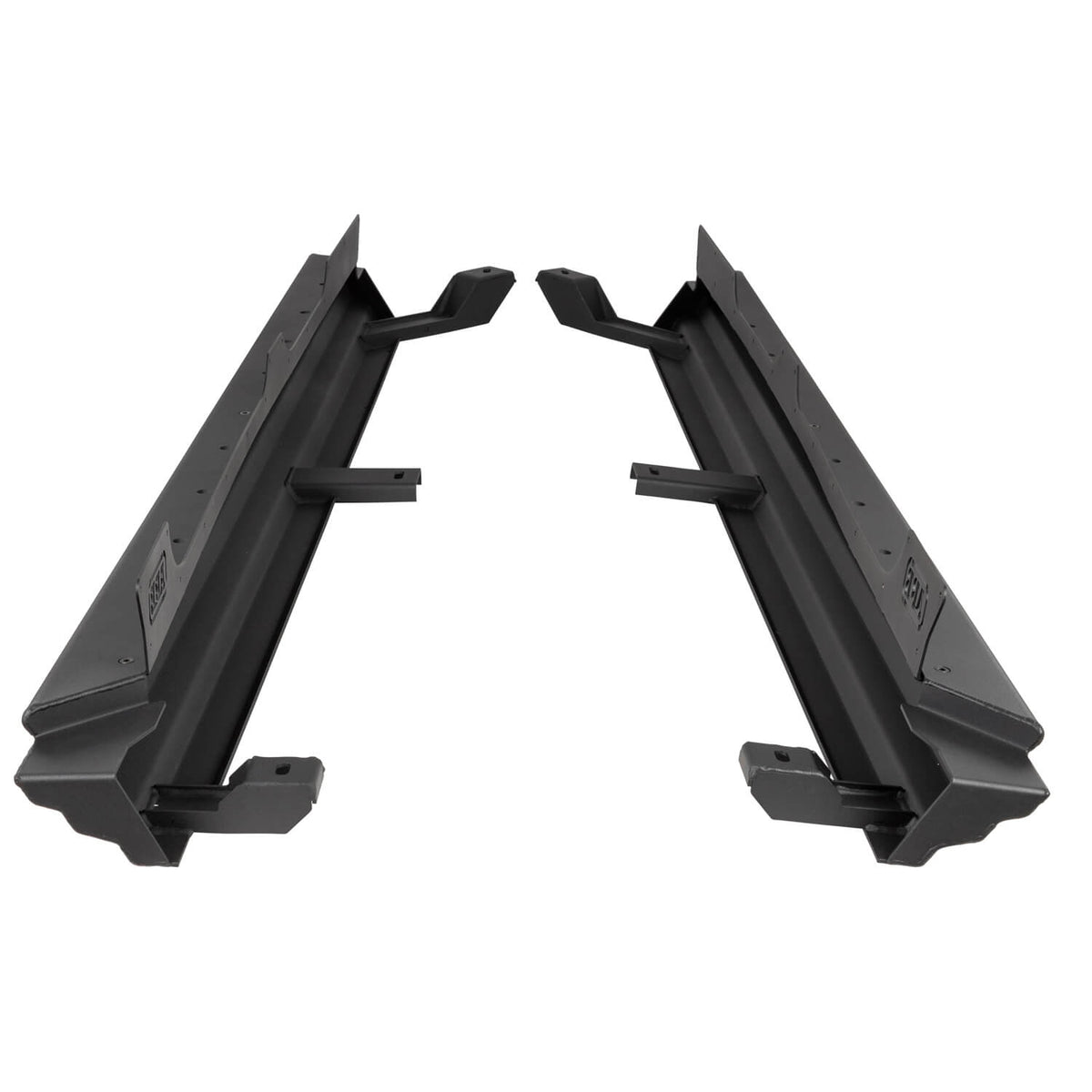

Combining functionality, strength, protection and a visually unique design, ARB has developed an all-new rock slider to suit the JT Gladiator. These ARB Rock Sliders are made up of both the slider assembly and a lower body mount to spread the load and protect the vulnerable lower sill area of the JT when used off road. The multi-folded slider uses chassis-mounted body mounts to spread the load along the length of the vehicle sills and not restrict breakover angle. The sliders are manufactured from multi-folded 4mm laser cut and pulse welded sheet steel. The multi-folded sheet steel provides strength without the need for thicker material to keep weight to a minimum. The profile of the slider against the body is curved to match the vehicle shape. To provide additional mounting, a sill plate is fitted with M6 nutserts and M6 button head zinc-plated Torx bolts. The plate is manufactured from 3mm laser cut and folded sheet steel and features a laser cut ARB logo at the front of the sill plate. To complement the ARB JT protection equipment range the Rock Sliders are finished in Integrit textured black powder coat.
Features
- Vehicle-specific design to suit the Jeep Gladiator.
- Durable steel construction for maximum protection.
- Two-piece design of sill mount and slider assemblies.
- Slider section manufactured from 4mm laser cut steel.
- Slider section mounts to chassis-mounted body mounts.
- Mounts to vehicle sill, 3mm laser cut steel.
- Sill panels mount to vehicle with M6 nutserts and M6 button head Torx bolts.
- Approximate weight of the sliders are 79lbs (pair).
- Finished in Integrit textured black powder coat.
Installation instructions (PDF)
