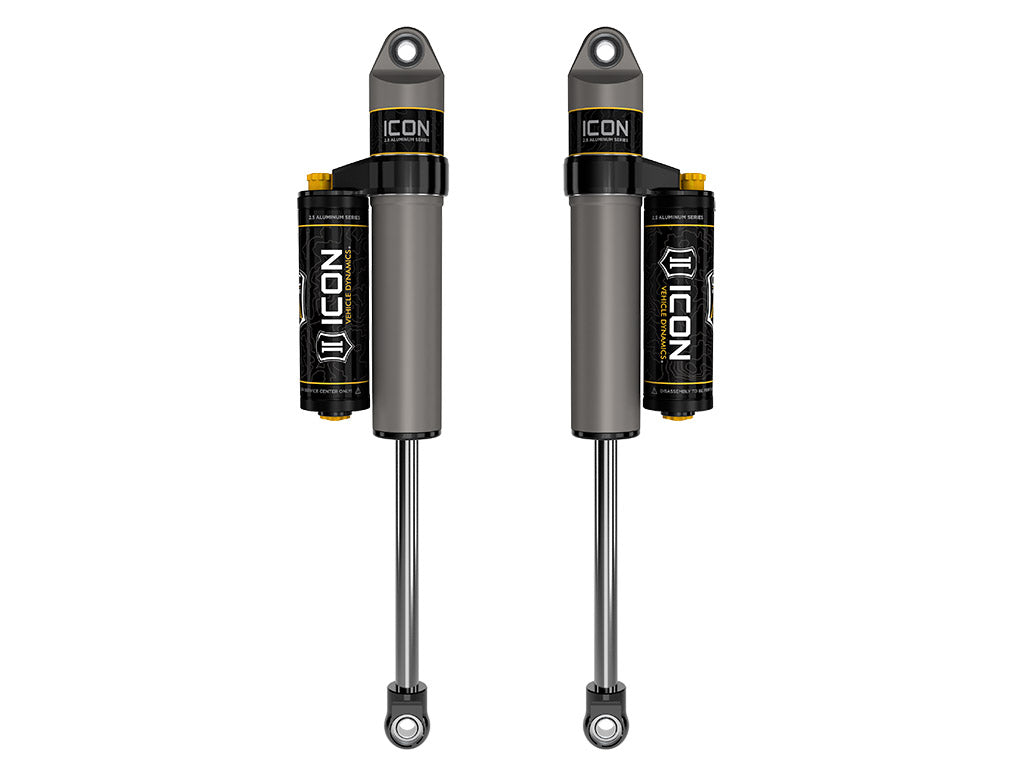

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune.
Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are 100 Percent rebuildable and 100 Percent revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20 Percent of damping force.
This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges.
Features and Benefits:
- Nitrogen charged monotube design with piggyback reservoir
- Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
- 6061 aircraft grade aluminum CNC machined components
- ICON's internal InchBump Zone Inch increases damping by 20 Percent to provide more control as the shock approaches full compression
- PTFE lined spherical bearings and application specific mounting hardware
- ICON's CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knob
- 7/8 Inch diameter induction hardened, chrome plated shock shaft
- One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
- Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
- One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
- 100 Percent Revalveable
- 100 Percent Rebuildable
Details
- Adjustable: Yes
- Adjustable Compression: Yes
- Adjustable Damping: Yes
- Adjustable Rebound: No
- Boot Included: No
- Bore Diameter: 2.25
- Cylinder Color: Gray
- Cylinder Diameter: 2.5
- Cylinder Material: Aluminum
- Damping Adjustment Type: Manual
- Damping Type: Oil
- External Reservoir: Yes
- Gas Charged: Yes
- Grade Type: Performance
- Lower Mount Type: Eyelet
- Mounting Hardware Included: Yes
- Reservoir Type: Piggyback
- Service Parts: 254100G - 1 Gallon Icon Performance Shock Oil, 252003 - Seal Install Tool 2.5/3.0, 191016 - 7.5 Inch Finned Resi Upgrade Kit, 252011 - 2.5 Piggyback/Remote Resi/Bypass Rebuild Kit, 257340 - 7/8 Shaft 14.25 Oal, 10.00 Travel, 252001 - 2.5 Fixed Spanner Wrench, 252002 - Universal Spanner Wrench (2.0/2.5/3.0)
- Shaft Diameter: 0.875
- Shaft Material: Chrome
- Shock Absorber Body End Measuring Point: Center Of Eylet
- Shock Absorber Rod End Measuring Point: Center Of Eylet
- Tube Outside Diameter: 2.5
- Upper Mount Type: Eyelet
- Valving Type: Digressive
- Add On Part: 39010 - 99-04 FSD Dual Shock Mount Kit
