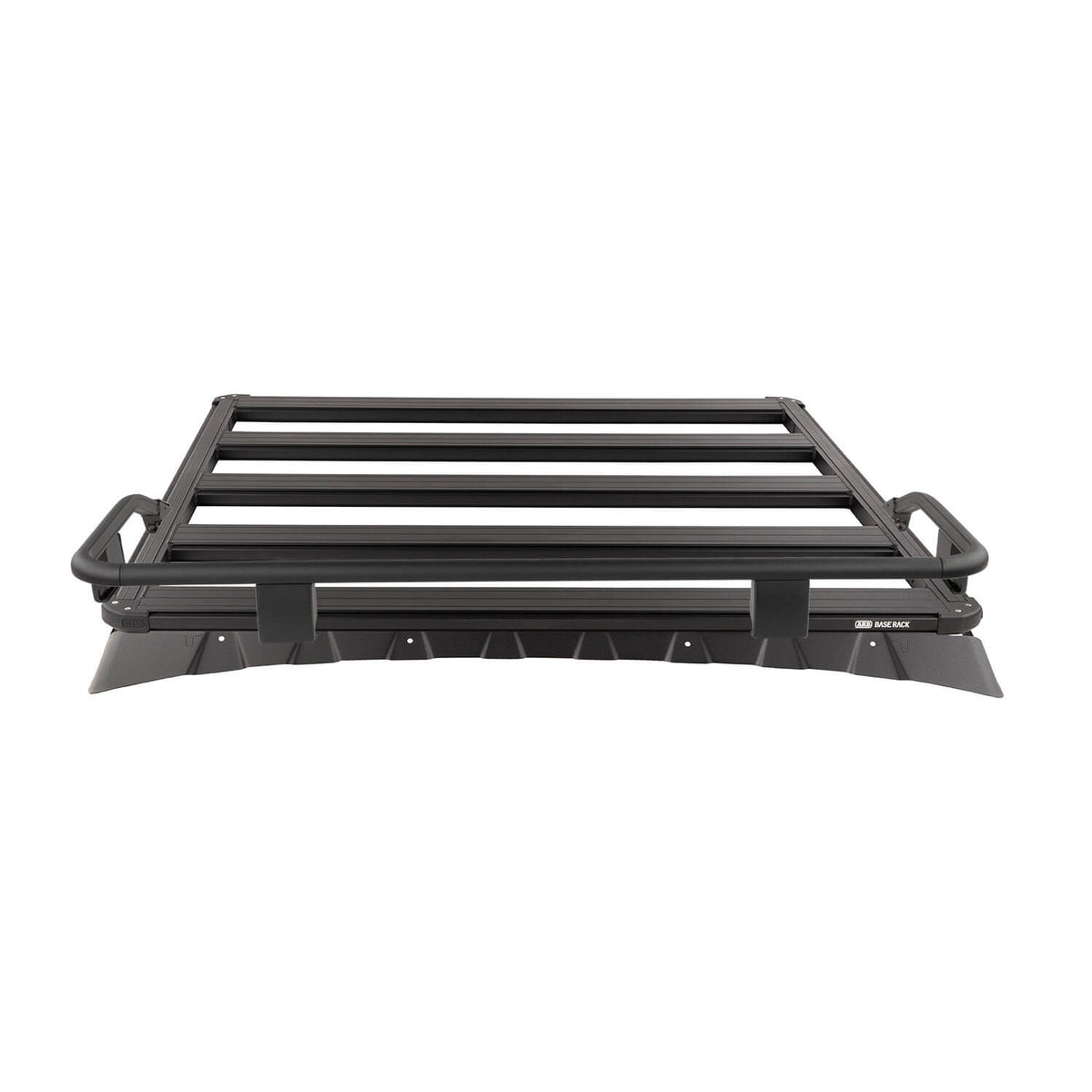

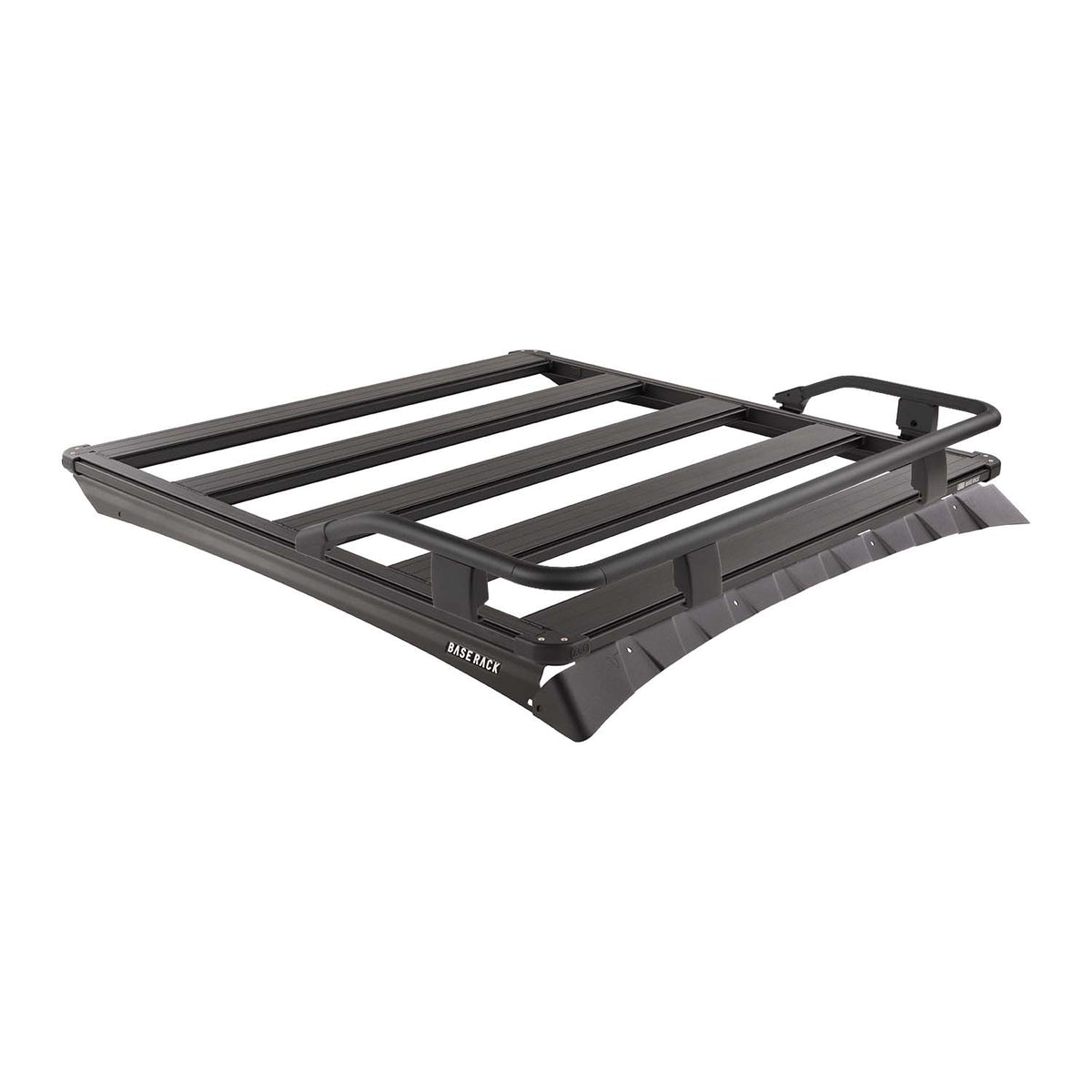

The BASE Rack takes accessories and cargo loading to a whole new level of simplicity, speed, and personalization. The BASE Rack is fully-welded aluminum for lightweight strength that doesn't flex under load. It can therefore be mounted close to the vehicle roof for a slimline aesthetic and reduced drag. Its dovetail extrusion attachment system runs the full perimeter of the rack and along each internal beam providing endless mounting and attachment options. Adding, removing, and repositioning accessories and roof loads is quick and easy and individual items may be installed or removed without disturbing the whole load. Unlike traditional roof rack channels, the BASE Rack dovetail system doesn't collect dust and debris. This kit includes a 49 in (L) x 51 in (W) BASE Rack, mount kit with wind deflector to suit the Toyota Tacoma along with quarter guard rails. The rails attach quickly and easily to the dovetail extrusion around the rack's perimeter with some additional fixing points at the rack corners. Quarter Rails allow for ample storage and load security at the front of the rack. The BASE Rack does not interfere with the OE mounted antenna. The wider rack option allows for more accessories to be hung to the side without interference with the vehicle. It also allows for certain accessories such as aux lights to be mounted underneath the rack and for accessories to be mounted east-west (e.g., recovery boards) offering greater flexibility with cargo loading.
Features
- Fully-welded from extruded aluminum with a cross beam design, the BASE Rack has no need for a supporting subframe and exerts no flex under load.
- Net payload is 119 lbs per vehicle manufacturer stated load carrying capacity.
- Maximum load per BASE Rack beam is 55 lb. Loads must be evenly distributed and adequately secured.
- The cross beam design provides a loading platform for a more versatile range of cargo, particularly long, thin items such as timber.
- Finished in Integrit textured black powder-coat. This finish creates a durable, anti-corrosive, scratch-resistant surface allowing you to easily clean off debris while the black color adds a sleek modern look to your vehicle.
- Removable end caps allow access to the channel for installing hidden electrical cables for roof lighting and solar.
- Unique dovetail mounting extrusion offers greater versatility, flexibility and speed in accessory placement and attachment. The dovetail design means less dirt entrapment and easy cleaning.
- The BASE Rack does not interfere with the OE mounted antenna and clears the rear beam by approximately 1.2 inches.
- The wind deflector mounted to the underside of the rack results in a quiet driving experience.
- Suited to a dual-cab the BASE Rack is 49 in (L) x 51 in (W) and approximately 31.5 lb. The added minimum height to the vehicle is 2.4 inches.
