Experience full adjustment and total performance with the Baja Designs XL Sport Linkable LED light bar kit, engineered for enthusiasts seeking to take charge with a lighting package that is completely customizable. Built around our popular XL shallow moto housing, each light offers 3,162 raw lumens each from our next generation LEDs and can be configured with 3 up to 9 forward projecting lights that provide a smooth blend due to the use of multiple lens pattens illuminating zones 1, 2, 3 and 4 simultaneously. The unique feature of our XL Linkable system provides 45 degrees of vertical pitch adjustment within each light or the entire unit. Completely independent horizontal adjustment per light allows for straight or arc configurations to perfectly match the lines of your vehicle’s bumper or roofline. The wiring comes fully crimped and trimmed, allowing for easy installation and the ability to add links down the road, and black rock guards are included to protect the lights when not in use. If you're looking to have a lighting system that performs as well as it looks, this is the auxiliary light kit for you!
Features:
- 45 degrees of vertical pitch adjustment within each light or the entire unit.
- Independent horizontal adjustment per light allows for straight or arc configurations.
- Pre-Load kit included.
- Black rock guards included.

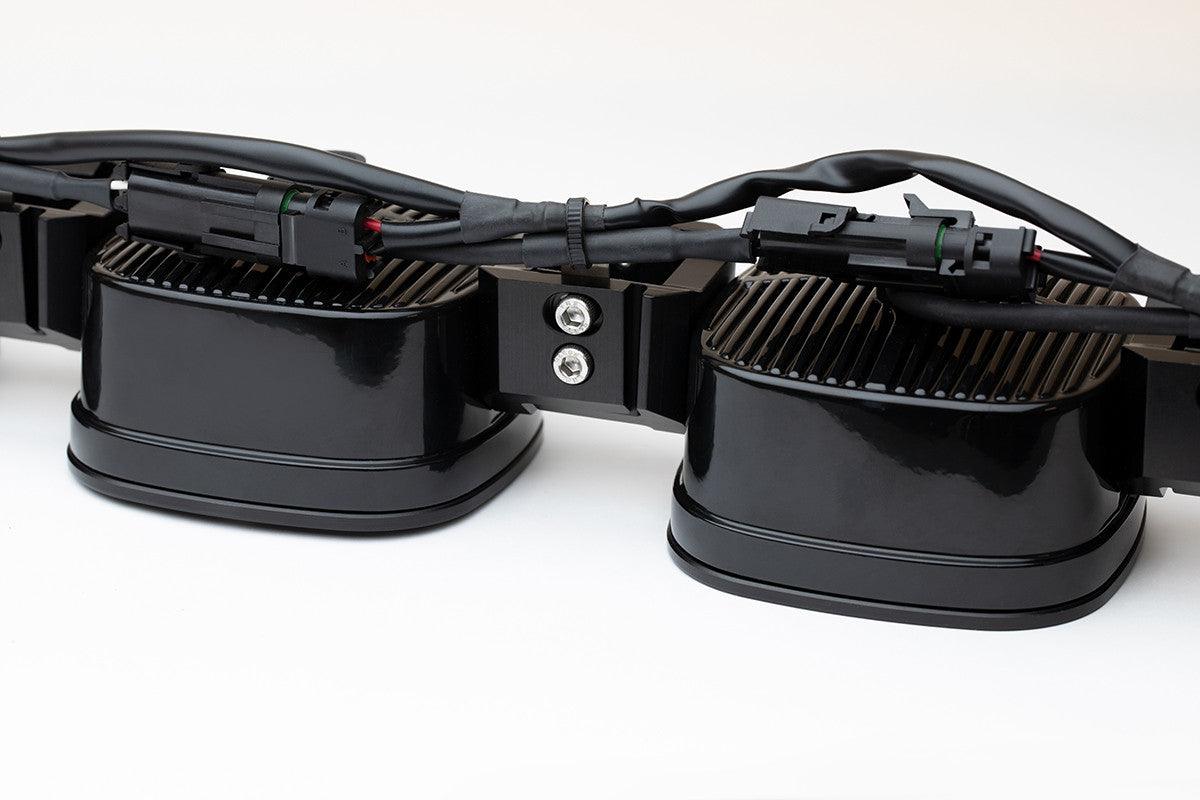

- Harness included (640115).
-

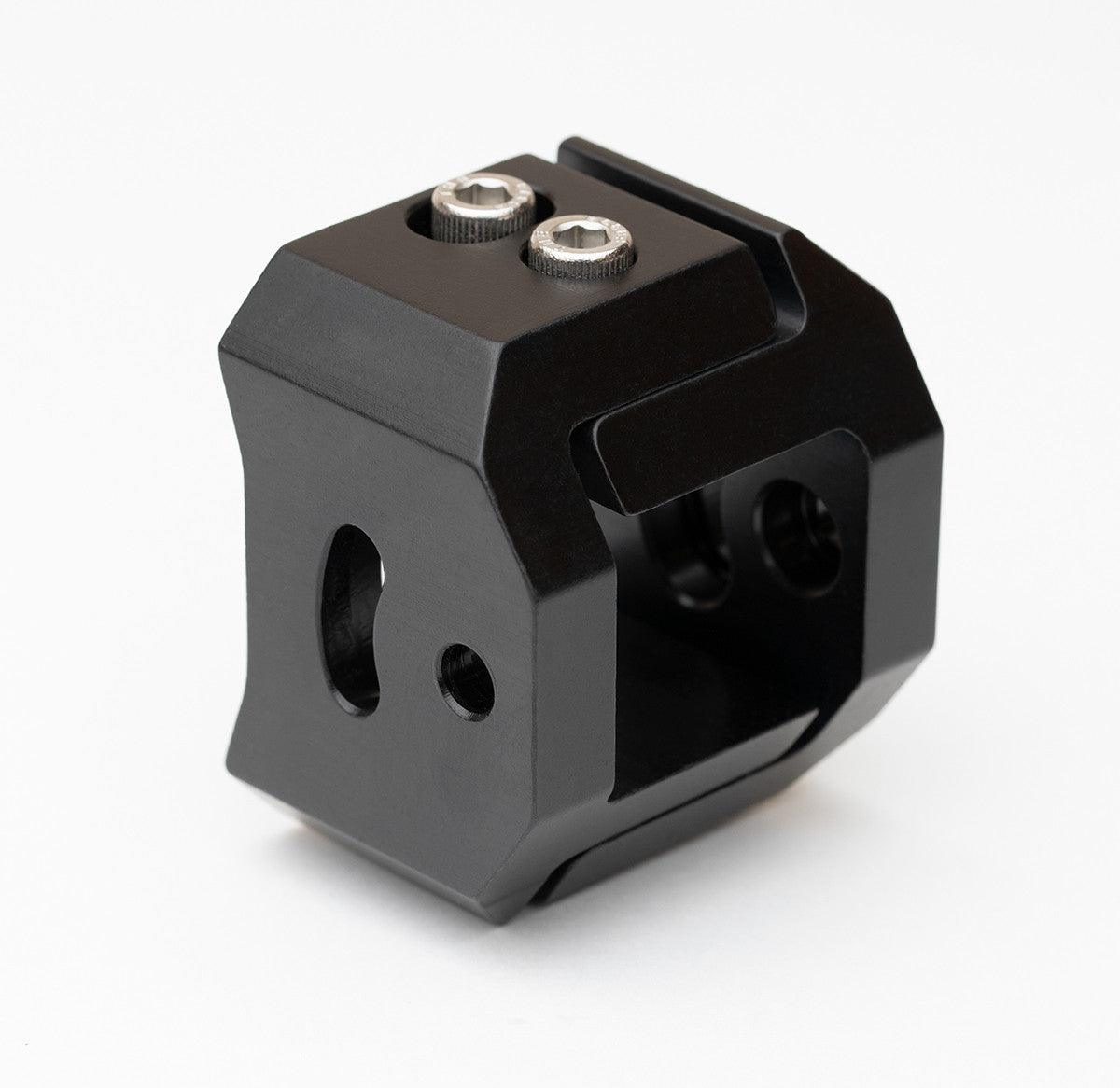

NOTE: XL Linkable mounting brackets not included. Applicable brackets will be (748000).
The Baja Designs Advantage:
• Satisfaction Guarantee – 30-Day Money Back Guarantee
• Limited Lifetime Warranty – Complete Purchase Protection
• uService – Replaceable Lenses And Optics
• ClearView – All The Light, Right Where You Need It
• MoistureBlock – Waterproof, Rain Proof, Submersible
• CopperDrive – Safely Driving LEDs at 100%
• 5000K Daylight – Less Driver Fatigue, Natural Color
Specifications
| Universal or Specific |
Universal |
| Product Type |
XL Linkable LED Light Bar |
| Overvoltage Protection |
Built-In |
| Mounting Hardware Material |
Stainless Steel |
| Mounting Hardware Included |
Yes |
| Mounting Hardware Description |
Links; Rock Guards |
| Lighting Type |
Forward Projecting |
| Lighting Technology |
LED |
| Lighting Quantity |
20 |
| Lighting Modes |
Beam |
| Wattage (W) |
130 |
| Wiring Harness Included |
Yes |
| Light Quantity |
5 |
| Lens Material |
Hardcoated Polycarbonate |
| Lens Color |
Clear |
| Housing Material |
Hard Anodized and Powder Coated Cast Aluminum |
| Housing Color |
Black |
| Description |
5XL Sport; Multi-Pattern; Clear |
| Brightness (Lumens) |
15,750 |
| Bezel Material |
Powder Coated Cast Aluminum |
| Beam Pattern |
Multi-Pattern |
| Average Rated Life (hr.) |
49,930 |
| Amperage Rating (A) |
10 |
Standards & Compliance
| Standards/Compliance (Water Resistance) |
IP69K (Waterproof up to 9ft & Pressure Washable) |
| Standards/Compliance (Impact Resistance) |
IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Durability) |
Exceeds MIL-STD810G (Mil-Spec Testing) |

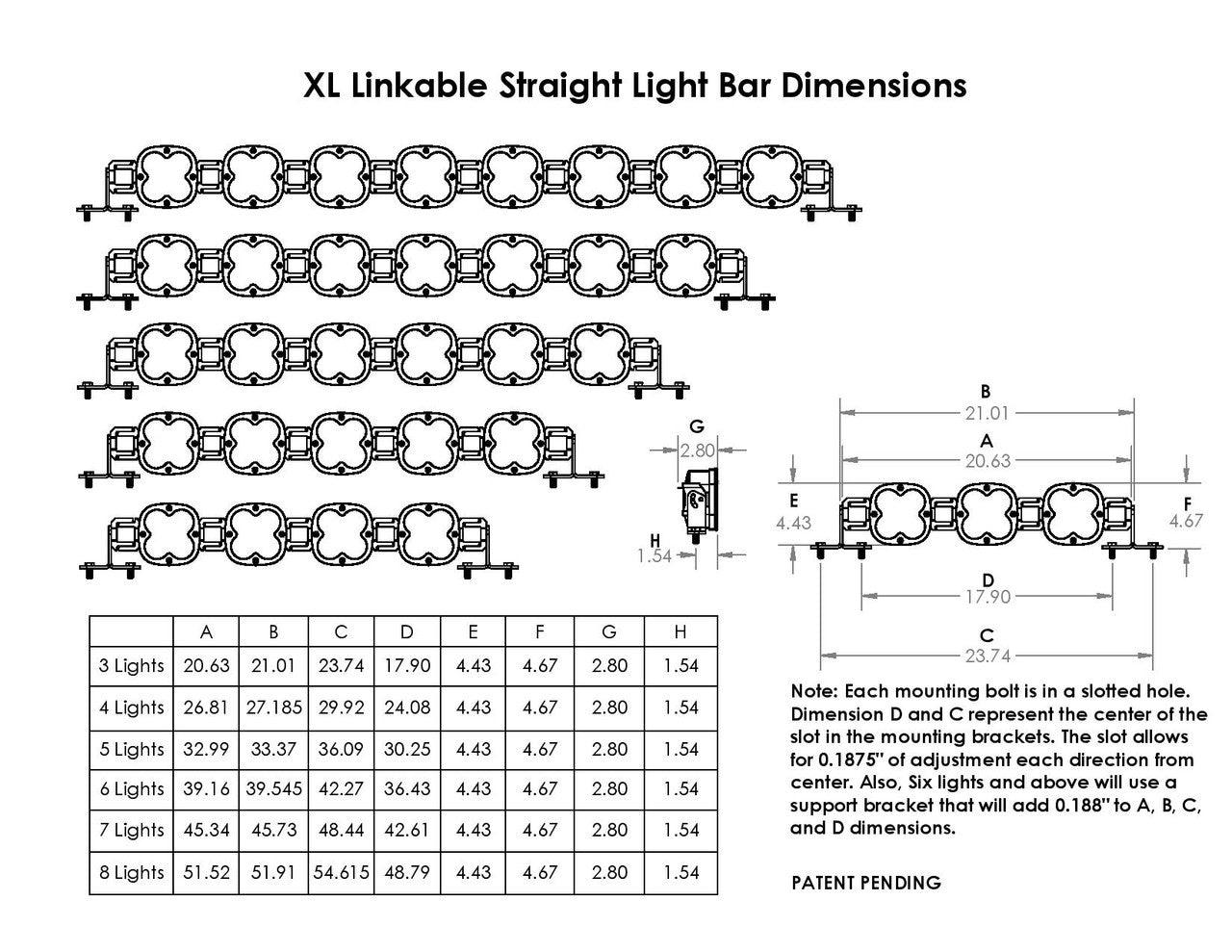

Dimensions
| Length (in.) |
32.99 |
| Height (in.) |
4.43 |
| Depth (in.) |
2.8 |
