Evolutionary: A simple design refresh would have been easy, but that's not what this is all about. These all-new XB Evo headlights are a showcase of everything Morimoto is made of. From concept to completion. Packed with features that demonstrate a true attention to detail including the latest in technology, compliance, quality, and styling, these headlights are designed for enthusiasts who are serious about all the above, even if it comes at a premium.

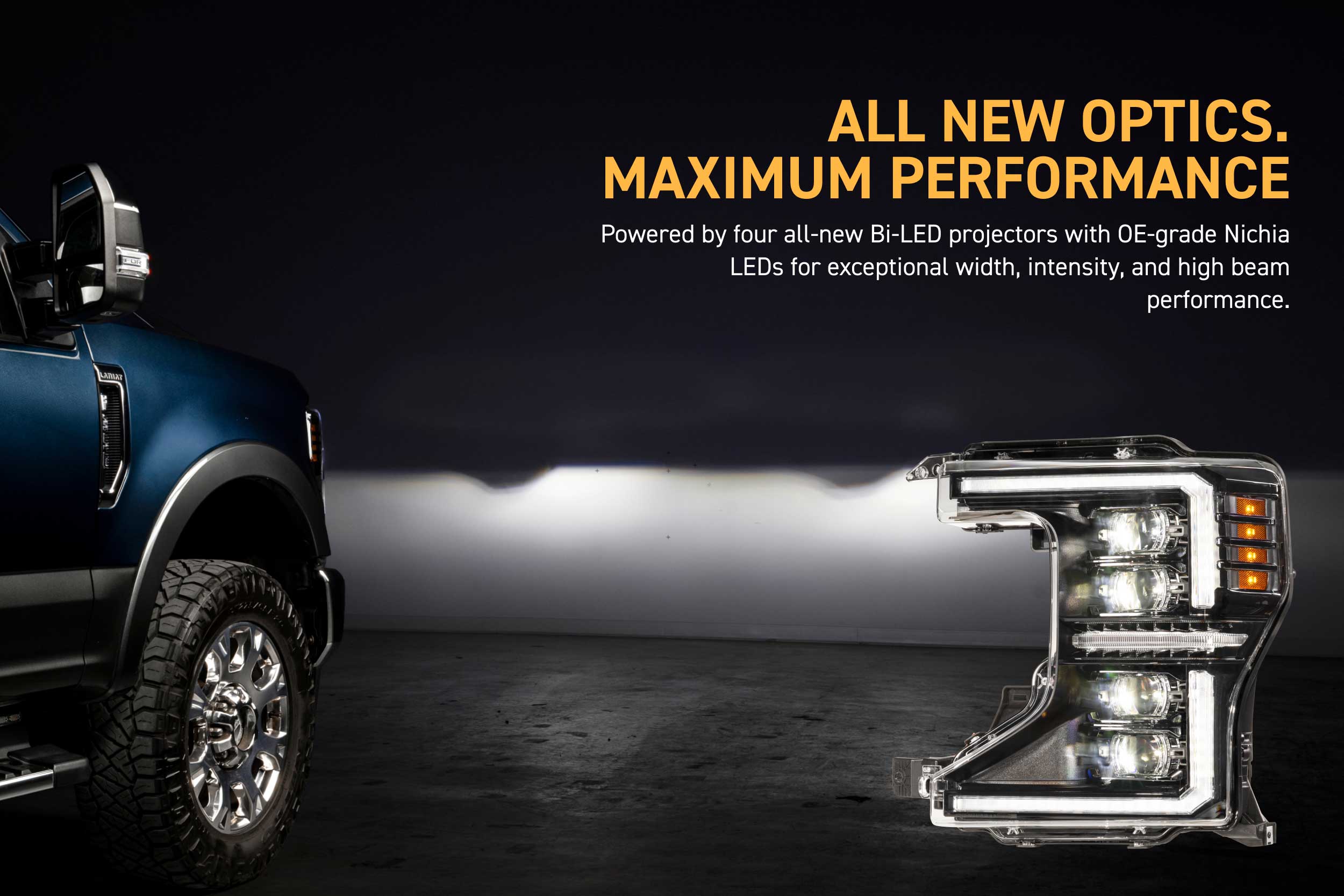

Maximum Performance: Thanks to an all-new generation of Morimoto Bi-LED projectors, the XB Evo headlights will meet & exceed the highest standards for headlight performance that are set by the Insurance Institute for Highway Safety... which is a tough mark even for most modern luxury automakers. Here, the Super Duty Evo headlight utilizes four Bi-LED projectors per headlight to deliver unmatched light output, with an incredibly bright and wide low beam, and a high beam that destroys darkness. All optics are powered by the latest OE-grade automotive LEDs from Nichia in Japan.
On Road: The Morimoto XB Evo Headlights are DOT compliant with all FVMSS108 regulations for on-road use in the USA. Their projector optics are so capable and efficient that their LEDs are only driven at about 50% of their full potential intensity to avoid exceeding limitations set by compliance. The vertical aim is fully adjustable within +/- 6 degrees for a perfect alignment on any truck, even with a lift or slammed. The system was designed in California by Morimoto’s lead optical engineer, Yoshi Ishida, to deliver maximum visibility, comfort, and safety, and that it does.
Off Road: Yes, you read that correctly. Out of the box, the XB Evos are only producing a fraction of their potential intensity for compliance reasons. Want more light for your off-road adventures? The optional Supercharged LED driver boosts both low and high beam intensity by approximately 30% without sacrificing reliability or warranty. While the Supercharged drivers easily enable the XB Evo to outshine every other headlight for the Super Duty on the market, we must reiterate that they will result in non-compliant levels of peak beam intensity and therefore should not be used on public roads. The result is a truly incredible amount of light.
Frost-Free System: Our patent-pending heating system warms the surface temperature of the headlight lens to minimize frost buildup when driving through wet and snowy conditions in the wintertime. When the temperature drops below 5 degrees Celsius (41 deg. Fahrenheit), the system is enabled to operate on your command by flashing the high beams four times. From there, it will automatically maintain temps within the headlight housing to mitigate frost buildup on the lens. A cold-climate game changer, this feature ensures the output of your XB Evo headlights will remain strong when you need it most.

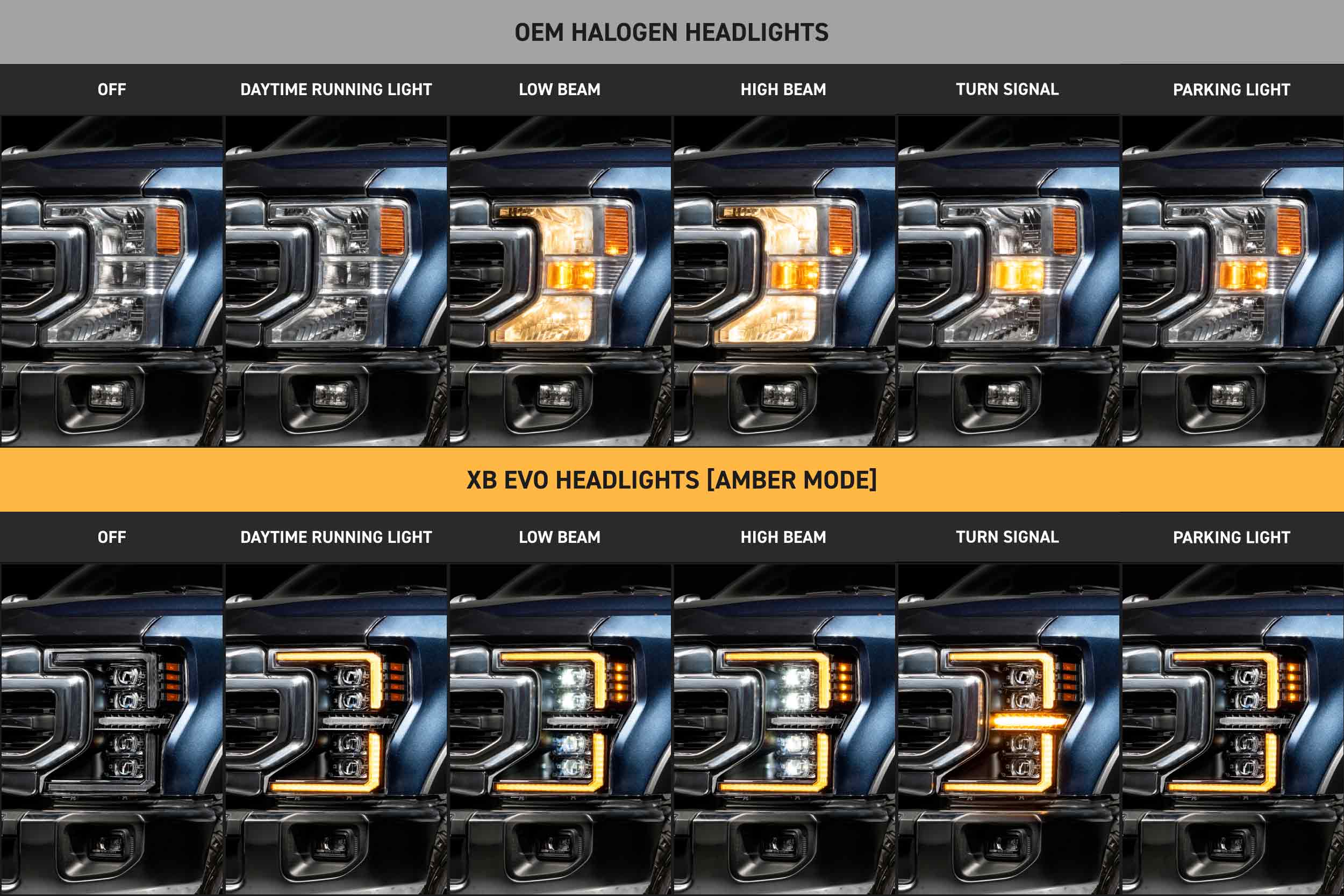

DRL Optics: The turn signals and daytime running lights illuminate with special surface textures, which enable maximum intensity from all viewing angles. Easily out-shining low-tech optics found in most every other aftermarket headlight, they also provide a one-off look.
Easy to Personalize: The proprietary signal swap system allows users to personalize how the daytime running lights and turn signals operate according to personal preference, all through a simple plug and play key on the back of each headlight. The daytime running light can be configured to run full-time in either white or amber with no compromise in intensity either way. The turn signals can operate sequentially from side to side, or in a more traditional on-off mode with an elegant fade-off effect.
Welcome Sequence: When starting your Super Duty, the optics will automatically illuminate in a multi-stage sequence before turning back off. Unlike every other feature baked into the XB Evo headlights, this does absolutely nothing to improve performance. But executed properly, it does look cool, and there's nothing wrong with that!
OE Fit & Installation: The XB Evo headlights are expertly crafted to match all OE specifications to ensure perfect fitment and hassle-free install. They will bolt onto the original mounting points and line up to the surrounding sheet-metal without any massaging and then plug into the factory wire harness and then work without errors on the dash, flickering, flashing, or radio interference. Thoughtfully engineered for modification-free installation. No factory warranties void. No headaches.
Well-Built: This product is completely designed, engineered, and tested in the USA by the Morimoto team to meet the high expectations of our customers. Nichia LEDs from Japan are used throughout. All wiring and connections are OE-grade. When it comes to UV protection, OE Toyota headlights are industry-best, which is why we've formulated a new hard coating that exceeds their standard for resistance against cracking, fading, and yellowing lenses from UV exposure. The list goes on but as the saying goes: you get what you pay for. XB Evo headlights aren't cheap, but they are built to a high standard and should easily last the life of your truck! We're proud to stand behind these headlights with an industry-leading five-year warranty.

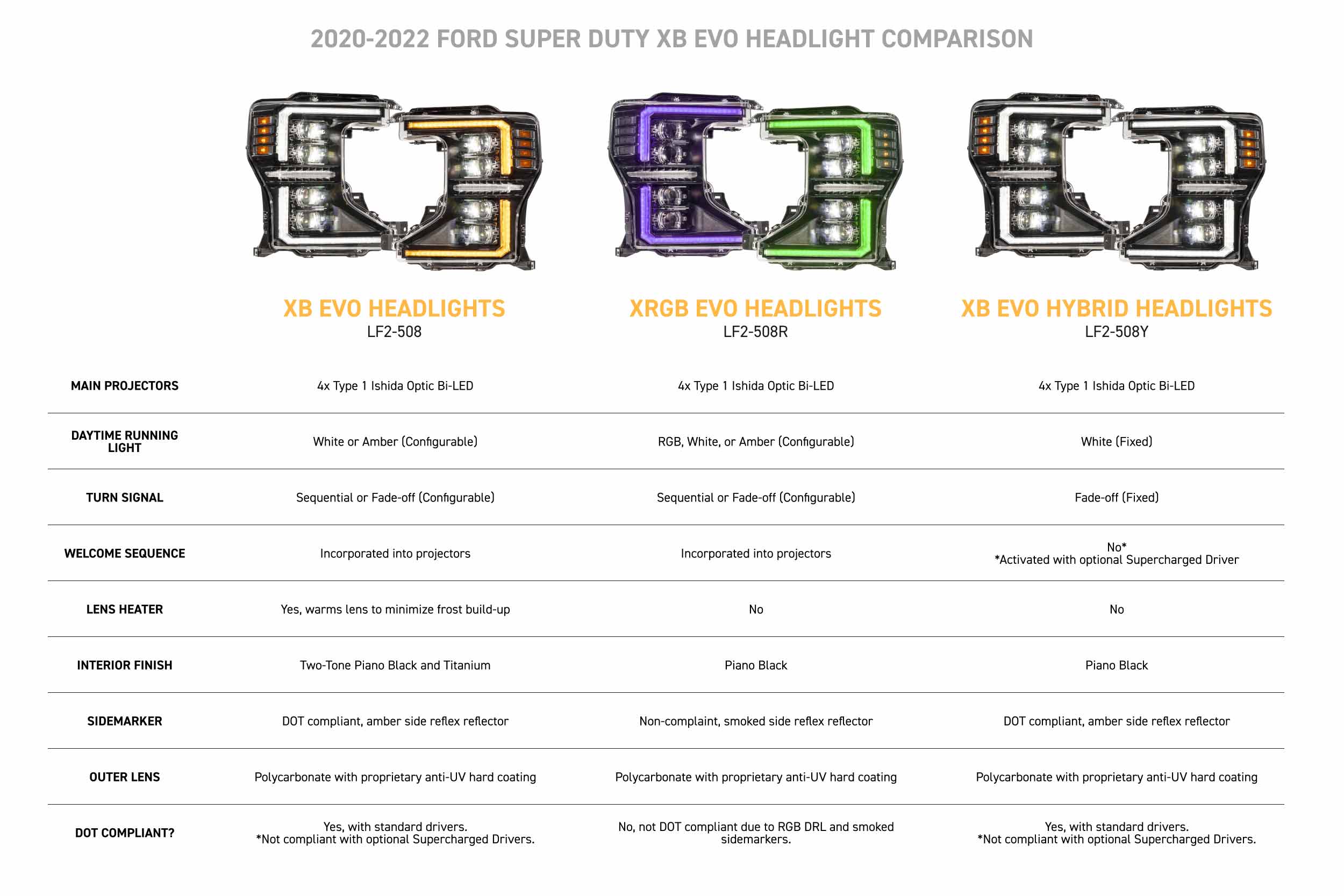

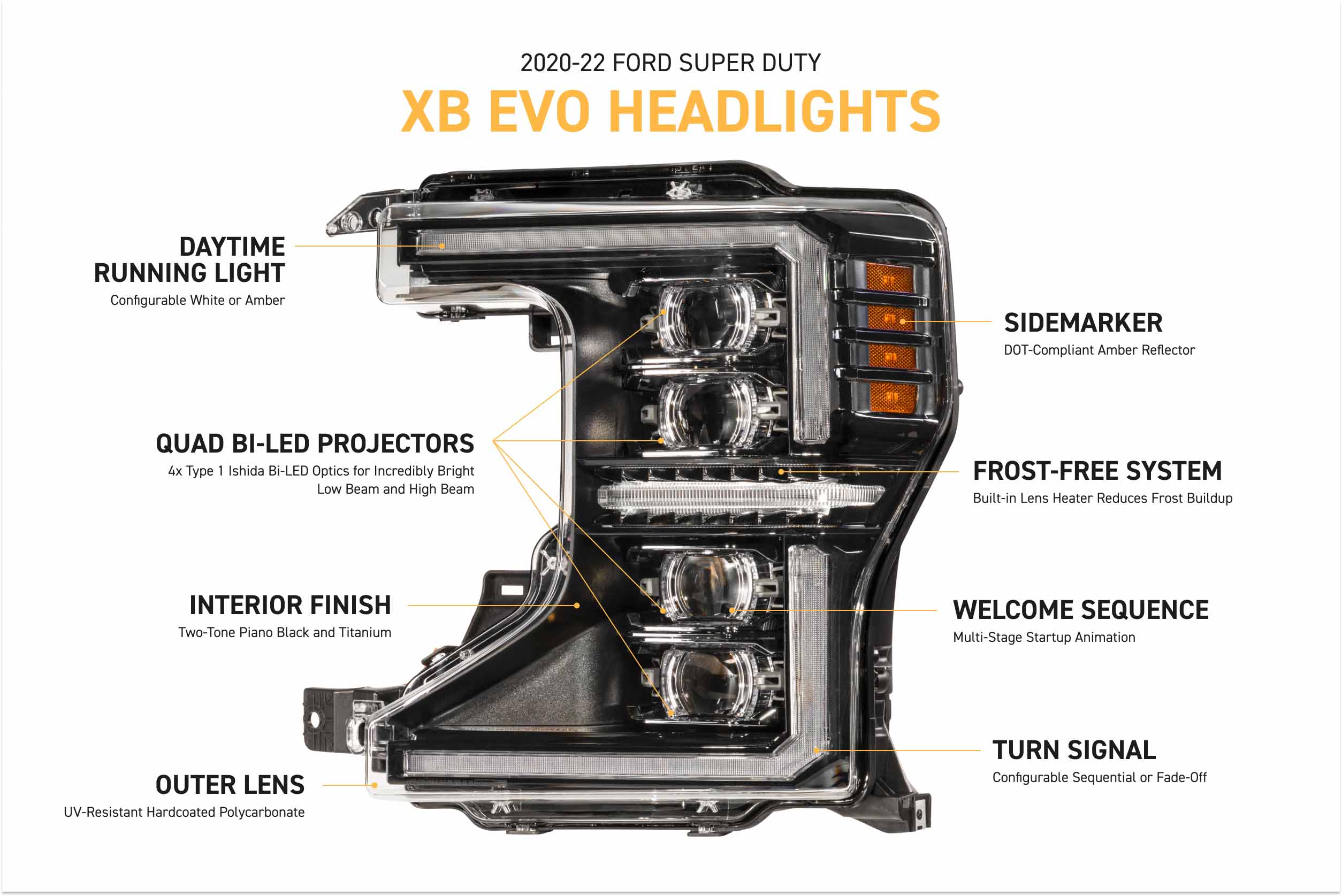

Specifications:
- Traffic Pattern: LHD / Right Hand Traffic Only (US/CA Standard)
- Output (Standard Drivers): DOT (FVMSS108) Compliant (LB2V and UB2)
- Output (Supercharged Drivers): Off-Road use only
- Main Optics: 4x Type 1 Ishida Optic Bi-LED
- Functions: Low, High, Park, Turn, DRL, Welcome, and Lens Heating
- Turn Signal Modes: Sequential or Fade Off (Configurable)
- DRL Colors: White or Amber (Configurable)
- Frost-Free System: Logic-controlled 50w ceramic w/ circulation fans
- Internal Finish: Two-Tone Piano Black and Titanium w/ contrasting textures
- Side marker: Amber side reflex reflector (DOT compliant)

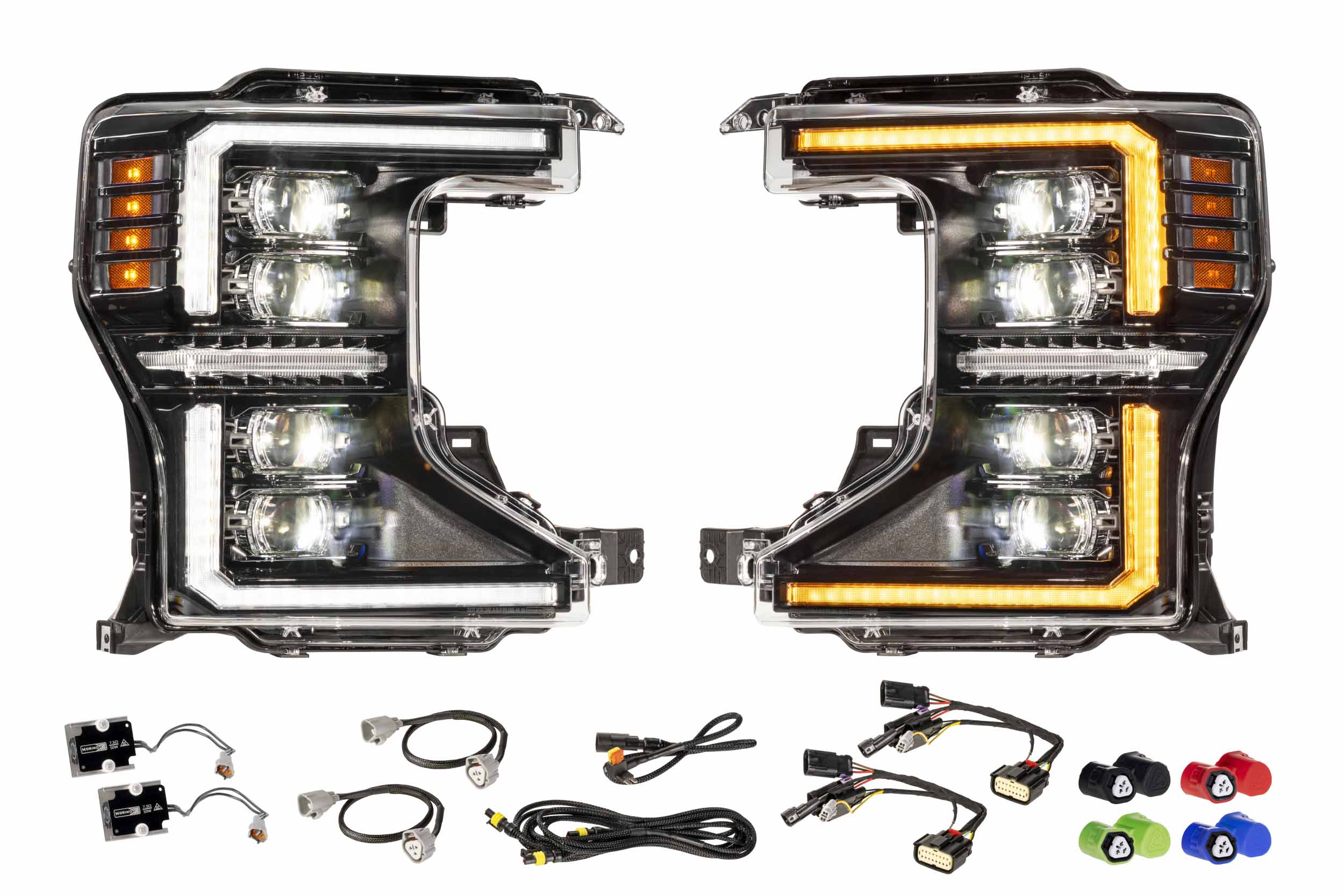

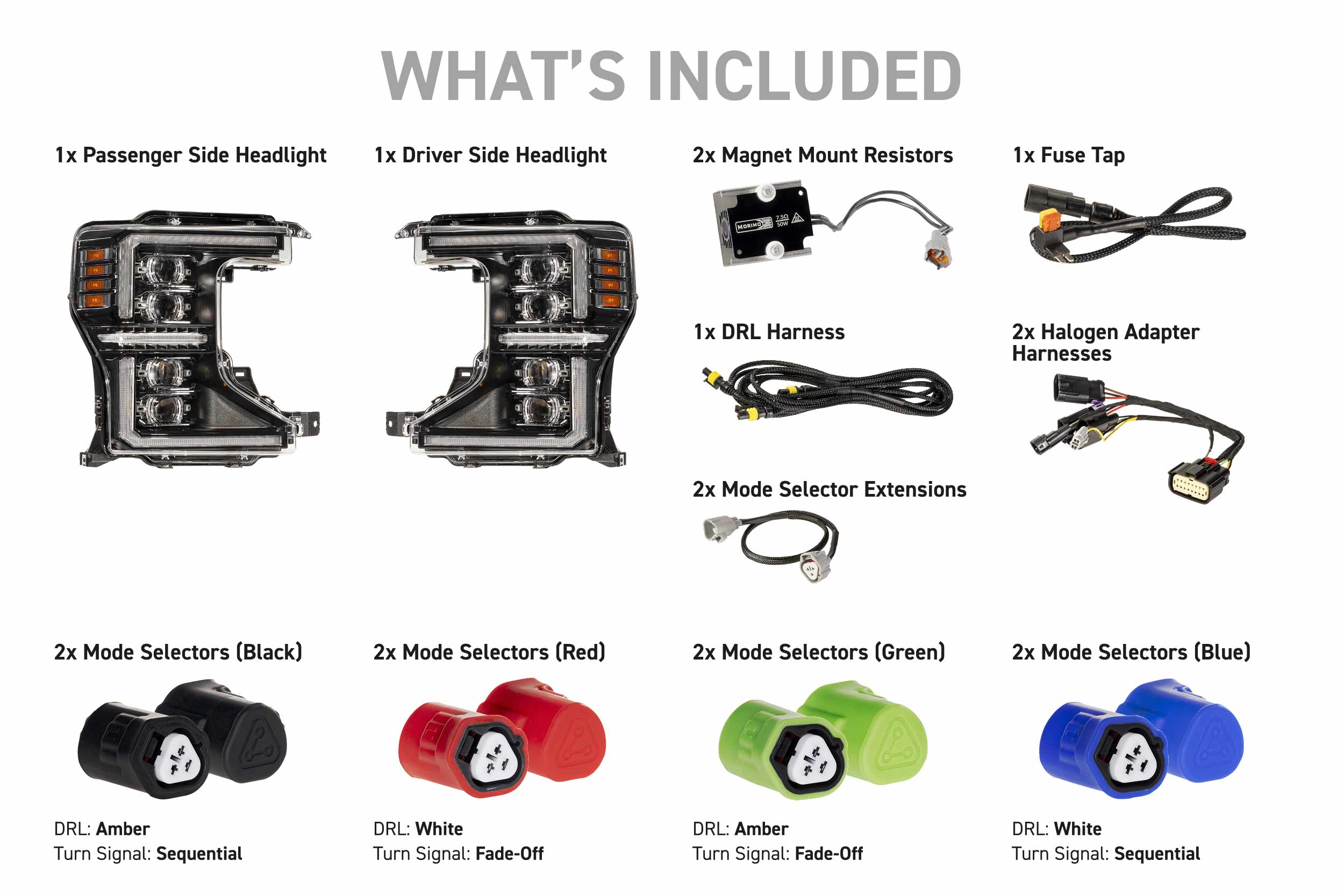

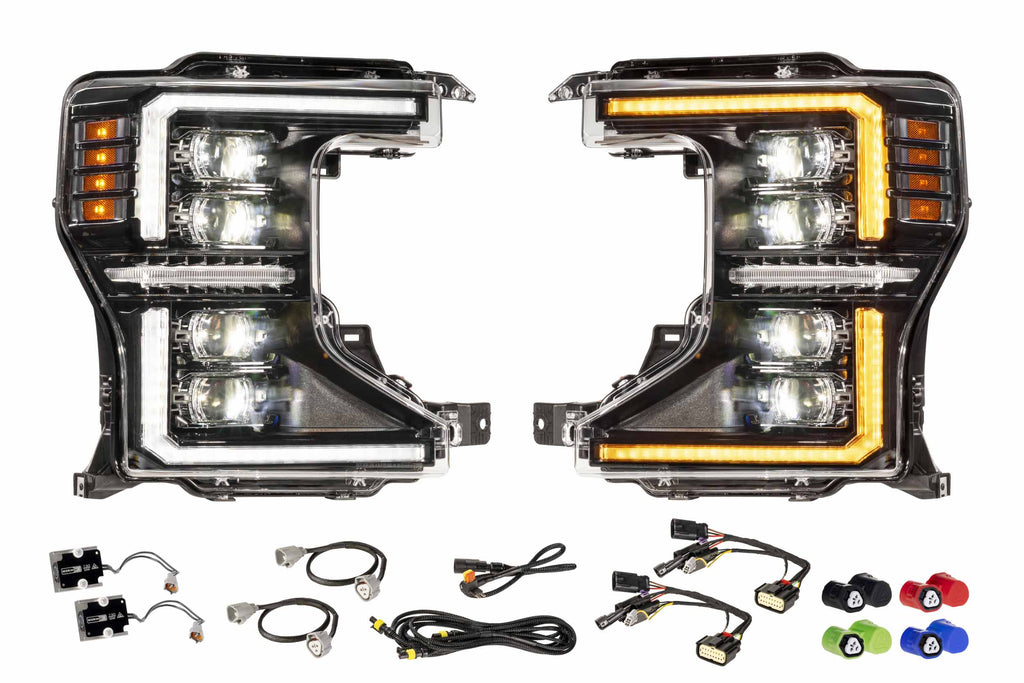

What's Included:
- Headlights: One Pair (1x RH / Passenger Side Headlight, 1x LH Driver Side Headlight)
- Accessories: 2x Halogen Adapter Harnesses, 2x Magnet Mount Resistors, 1x Fuse Tap, 1x DRL Harness, 2x Mode Selector Extensions, 8x (Four Pairs) Mode Selectors
- Warranty: Five (5) Years
Compatibility:
- Ford F-250 Super Duty: 2020-2022
- Ford F-350 Super Duty: 2020-2022
- Ford F-450 Super Duty: 2020-2022
- Replaces OE Part #: LC3Z13008B, LC3Z13008A, LC3Z13008K, LC3Z13008M, LC3Z13008J, LC3Z13008L
- Supercharged Drivers: Compatible with LF2-DRVSC28 drivers
- NOTE: These headlights were developed for compatibility with North American vehicles. Morimoto does not guarantee compatibility on trucks outside of North America.
