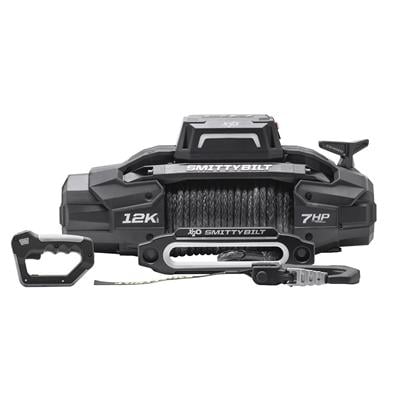

The Smittybilt X2O winches have been enhanced in almost every area for increased performance and trouble free operation. Every X2O GEN3 winch features a series wound 7HP motor that is completely sealed, as well as all-new forged gears.

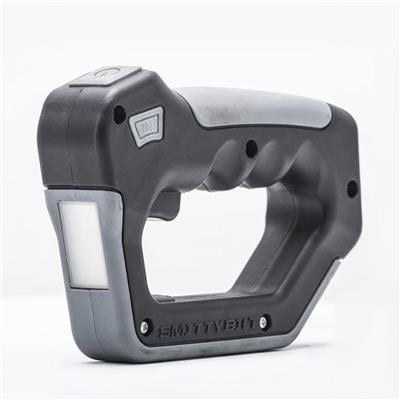

The X2O line features a completely waterproof 500 Amp control box that can be mounted in 2 different locations. All-new wireless controller with Usb connectivity that can be wired to the winch or unplugged for trouble-free wireless operation.
The X2O also features optimized gear ratios that deliver lightning- fast line speeds. The X2O series comes standard with a synthetic winch rope for maximum performance.
Features and Benefits:
- Waterproofing: IP68 Rating
- Rated Line Pull: 12,000Lbs (5,454kgs) Single Line
- Motor: 7hp Series Wound
- Control: Remote Switch, 12' (3.7m) lead
- Gear Train: 3-Stage Planetary
- Gear Ratio: 216:1
- Clutch: Sliding Ring Gear
- Brake: Automatic Out-of-Drum
- Drum Size: Diameter 2.5 inch
- Cable: 98.5' 3/8 inch Diameter
- Cable Type: Synthetic Rope

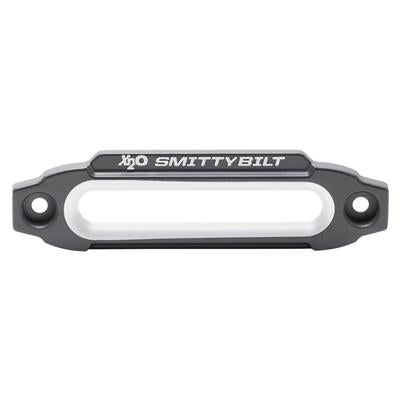

- Fairlead: Hawse
- Remote Control: Included
- Integrated Wireless Remote
- Recommended Battery: 650CCA Minimum for Winching
- Battery Leads: 25mm2, 72 inch(1.83m)1
- Finish: Textured Black
- Weight: 76.0Lbs (30.4Kgs)
- Mounting Bolt Pattern: 10.0 inch x 4.50 inch
- Overall Dimensions: (L x W x H) 22.3 inch x 5.4 inch x 9.4 inch
Details:
- Color: Black
- Fitment: Universal Fit
- Line Pull: 12000
- Line Type: Synthetic Rope
