Wiring Harness Options

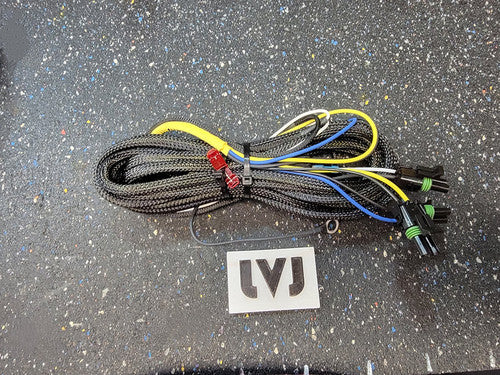

All wiring harnesses are cut to length and pre-terminated with weatherpack connectors and wrapped in soft loom for easy installation in your truck. The factory integration for the marker lights and cargo light uses the factory connector and does not require any cutting or soldering.
BASIC HARNESS
This harness provides integration of the 3 marker/brake light LEDs with factory wiring harness as well as connecting the center light to the cargo light circuit. Two additional circuits are provided to connect the outer lights to the factory upfitter switches in the passenger kick panel.
REVERSE LIGHT HARNESS
This harness has all the features of the basic harness, but also connects the center light to the brake light circuit so that it comes on automatically when the truck is placed in reverse.
REVERSE + AUX LIGHT HARNESS
This harness has all the features of the reverse harness but has an additional wire connection with a diode so that you can also turn on the center light with an AUX switch. Basically, the center light will turn on with cargo lights, when shifting into reverse, and with the flip of an AUX switch.
STOP/TAIL/TURN HARNESS WITH REVERSE
This harness includes a stop/tail/turn controller to integrate the outer to lights with the factory brake/turn signals. It includes inputs for connecting to your aux switches for:
- Master power to turn the system on/off
- Strobe Function
- Strobe pattern change (momentary switch to be optionally mounted in the dash)
- Constant on override to disable the turn/brake integration
- Center Light Functions as additional reverse light when shifted into reverse
