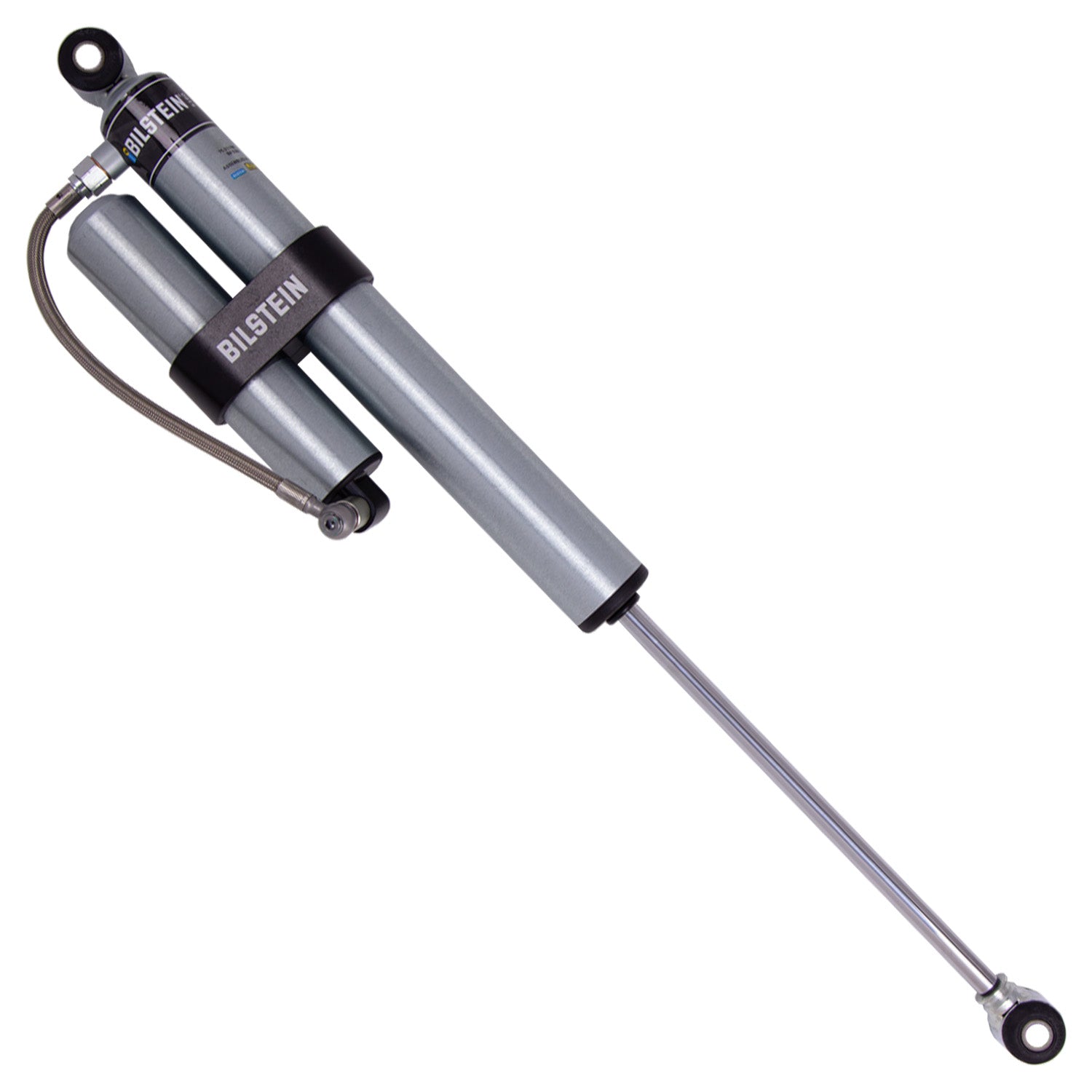

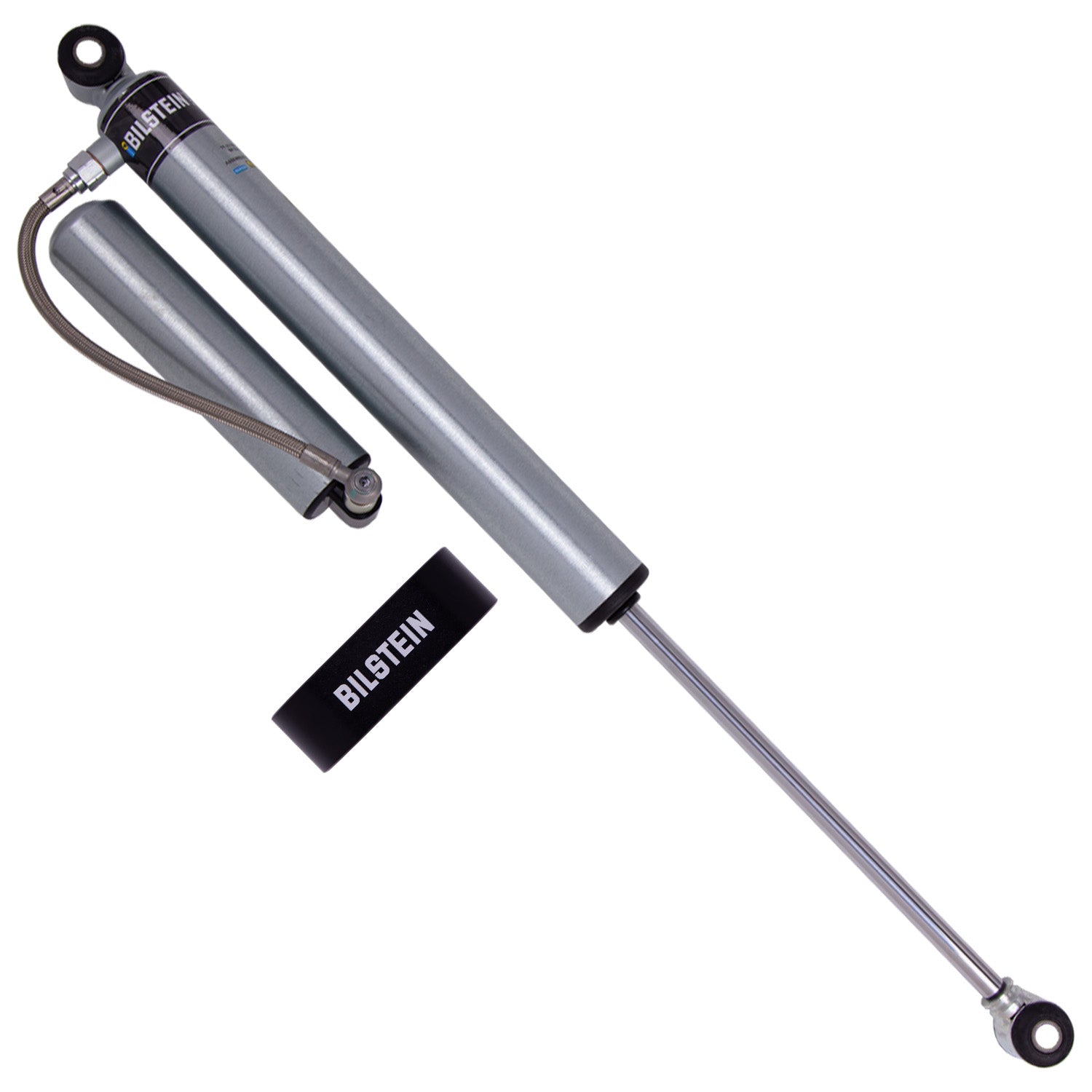

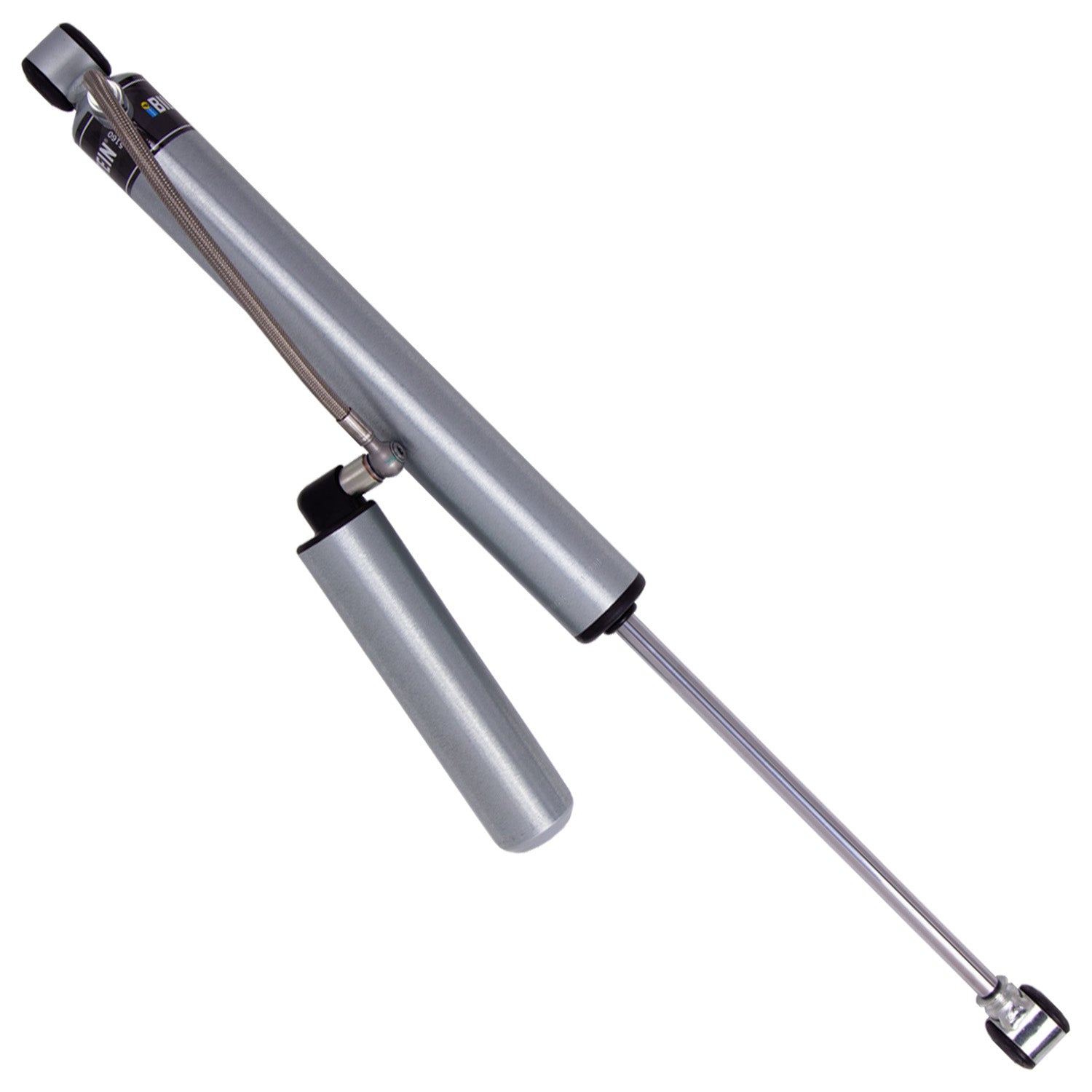

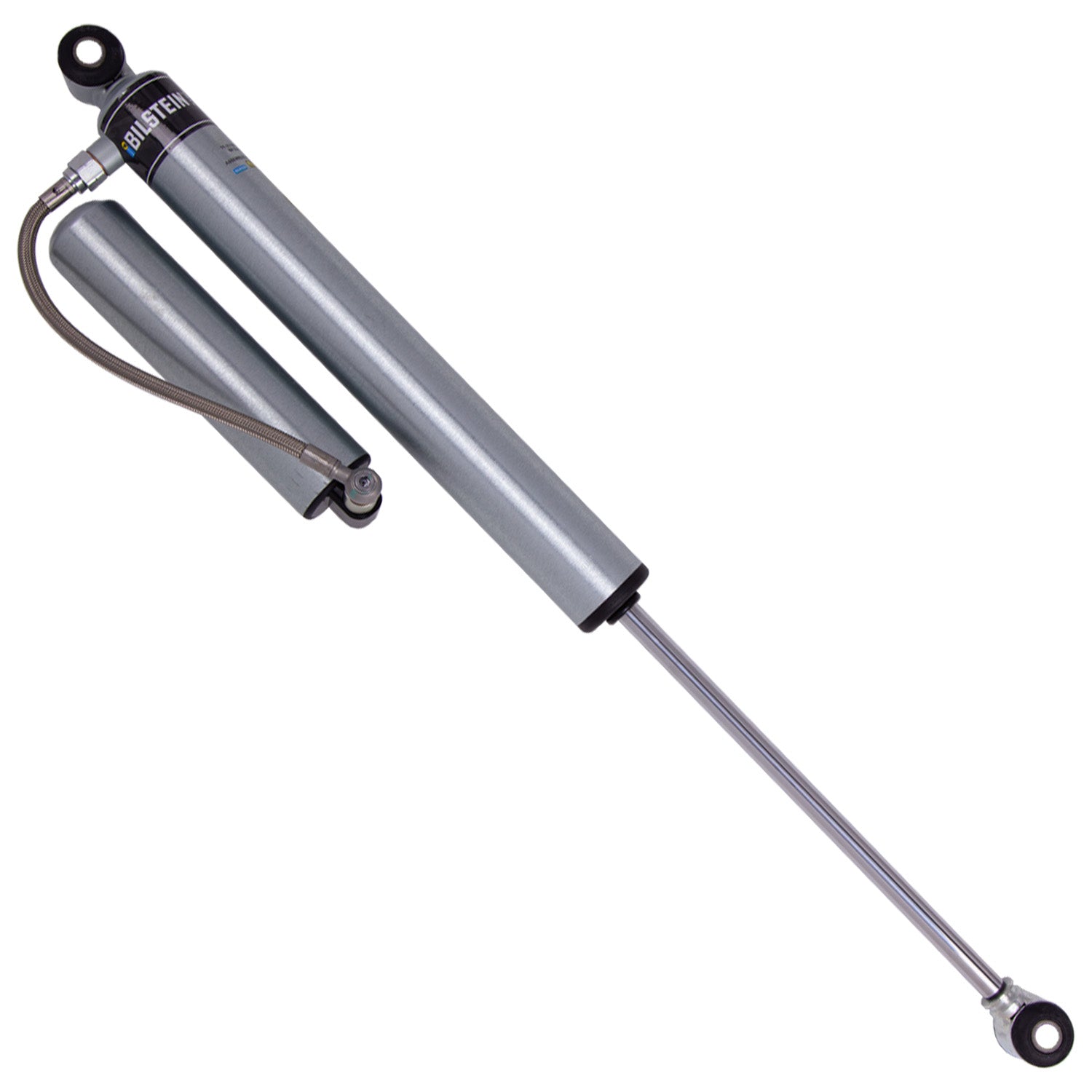

Bilstein B8 5160 remote reservoir shock absorbers are designed as a direct fit solution for lifted trucks and SUVs. The remote reservoir will offer increased cooling capacity and wheel travel to optimize overall performance compared to a traditional shock absorber.
These shock absorbers feature a monotube design for consistent fade free performance and utilize velocity sensitive Digressive valve settings which are tuned for each specific application.
Each shock absorber is fitted with a unique 360 degree swivel banjo hose fitting and an attractive billet reservoir mount where applicable providing a clean, low profile installation.
B8 5160 remote reservoir shock absorbers will increase overall durability of your vehicle allowing you to conquer the harshest of off-road environments
Details:
- Series: B8 5160
- Internal Design:Monotube
- Lift Height: 0-1 Inch
- Lower Mount Type: Eye 12mm
- Upper Mount Type: Eye 12mm
- Finish: Zinc Plated
- Adjustable: Non-Adjustable
- Body Design: Smooth Body (Non-Coilover)
- Collapsed Length Inch: 17.34

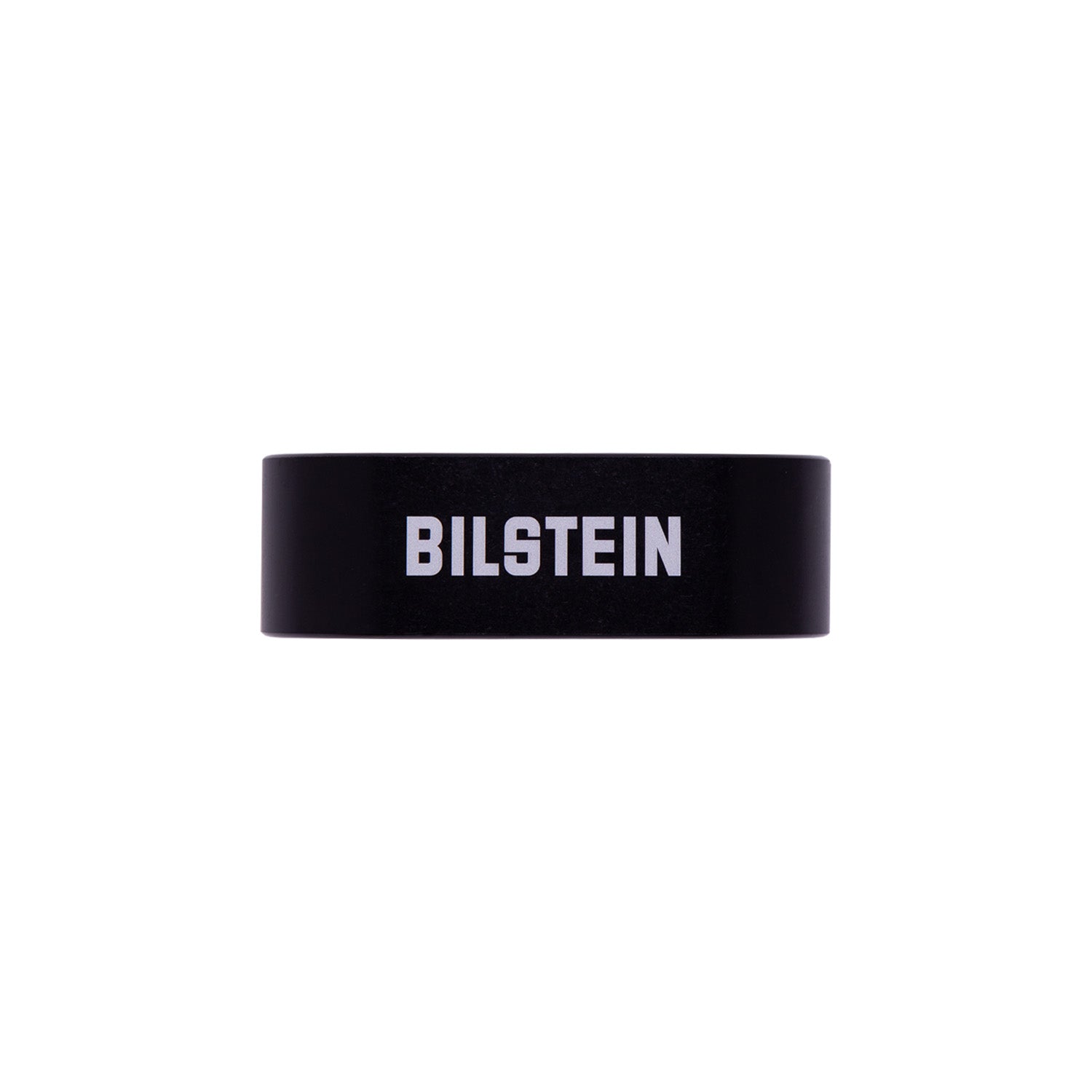

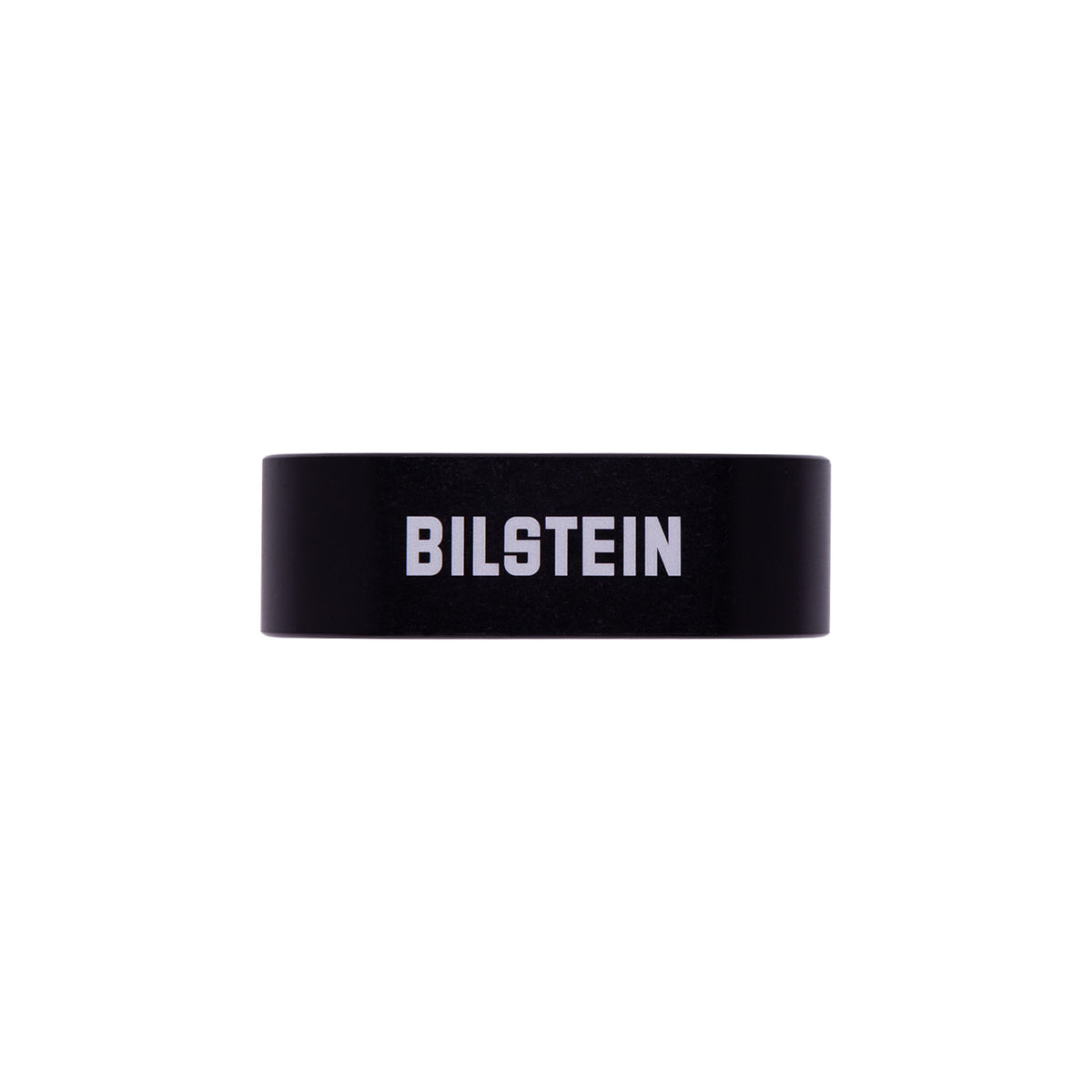

- Billet Reservoir Clamp Included: Yes
- Extended Length Inch: 28.93
- Boot Included:No
- Pistion Diameter: 46mm
- Postion: Rear
- Reservior: Yes
- Shaft Diameter: 14mm
- Stroke Travel Length In: 11.59
- Stroke Travel Length In: 294.4
- Notes: 4WD Only For Rear Lifted Height 0-1 Inch
- Applications: Ford F-150 2013-2009
- Warranty: Limited Lifetime Warranty
