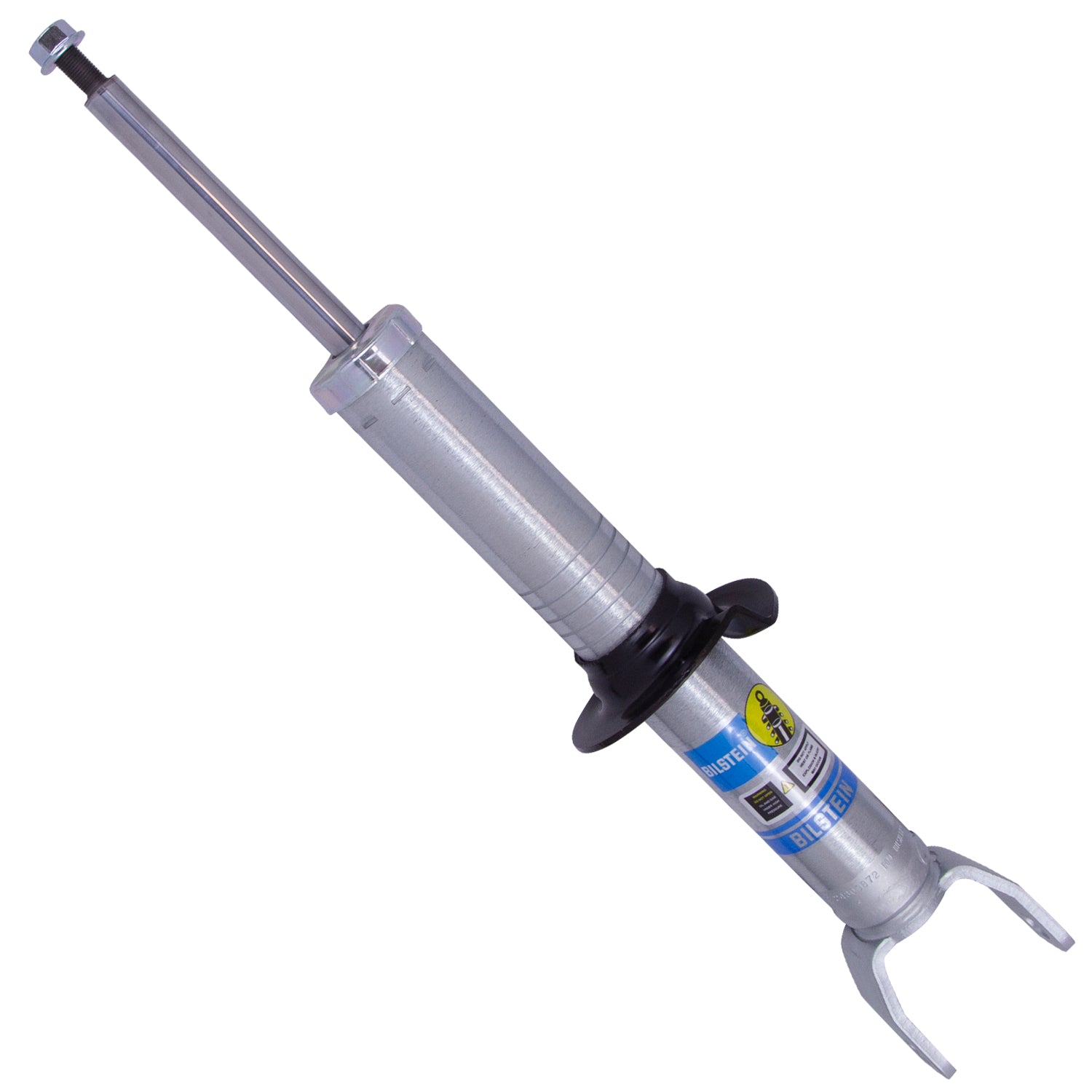

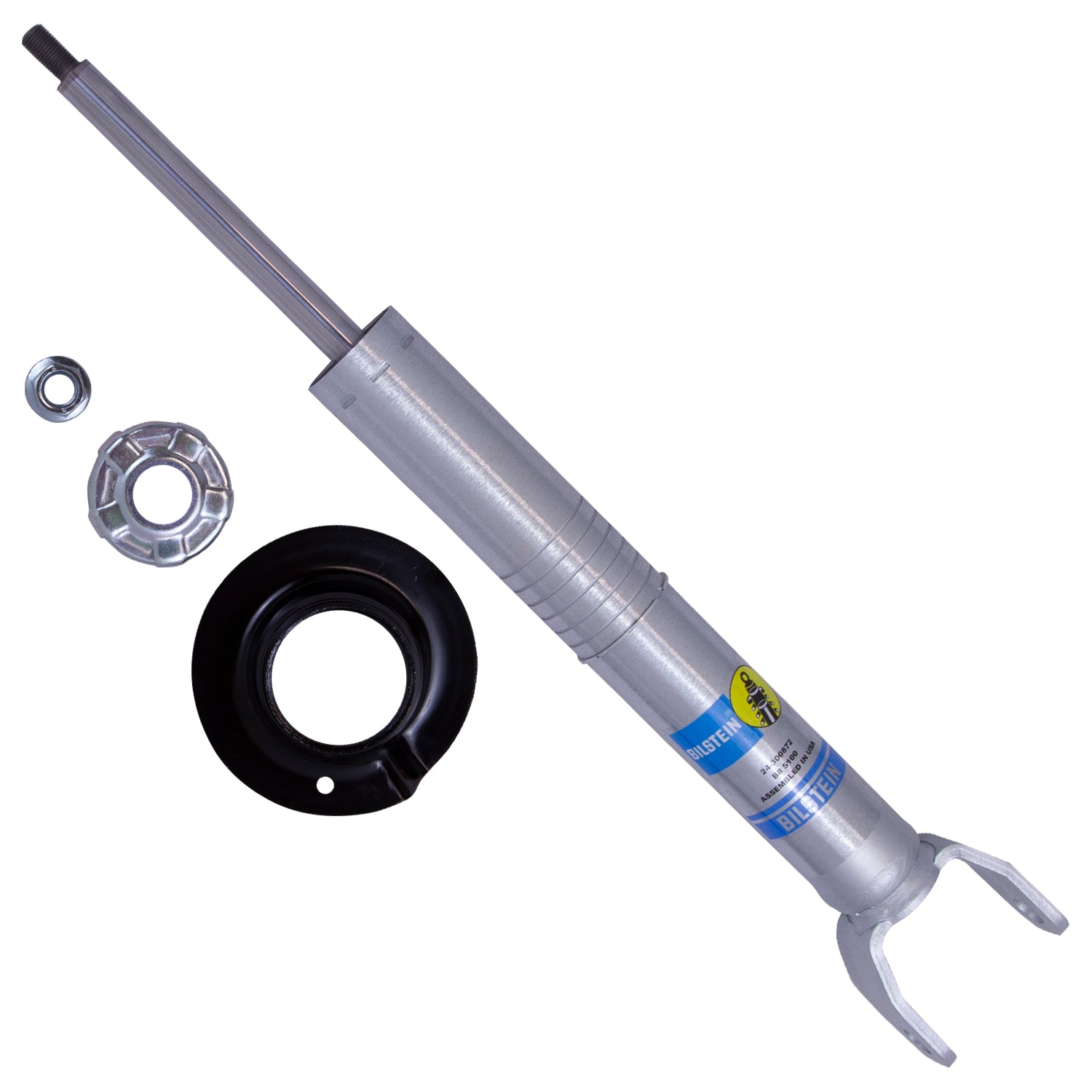

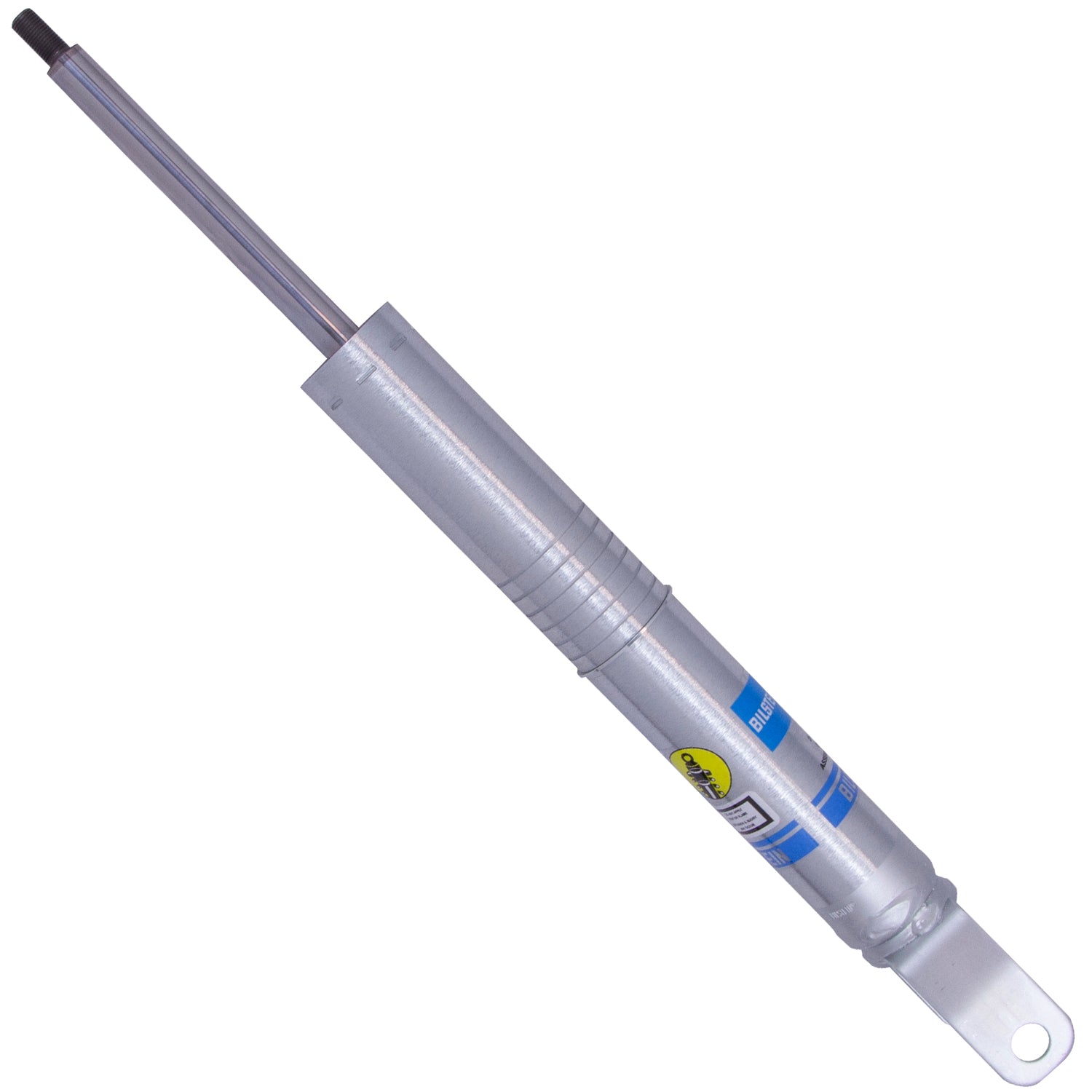

Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a Front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of Front lift with OE springs (depending on application).
- The monotube shock absorbers feature a 46mm Digressive piston a with self-adjusting deflective disc valve setting.
- Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling.
Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.
Details:
- Series: B8 5100 (Ride Height Adjustable)
- Internal Design:Monotube
- Lift Height: 0-2.6 Inch
- Lower Mount Type: Clevis
- Upper Mount Type: Stem
- Finish: Zinc Plated
- Adjustable: Non-Adjustable
- Body Design: Snap Ring Grooved Body (Coilover)
- Collapsed Length Inch: 16
- Extended Length Inch: 22.08
- Boot Included:No
- Pistion Diameter: 46mm
- Postion: Front
- Reservior: No
- Shaft Diameter: 18mm
- Stroke Travel Length In: 6.08
- Stroke Travel Length In: 154.4
- Notes: Front Lift Height 0-2. 6 Inch Without Air Suspension
- Applications: Ram 1500 2024-2019
- Warranty: Limited Lifetime Warranty
