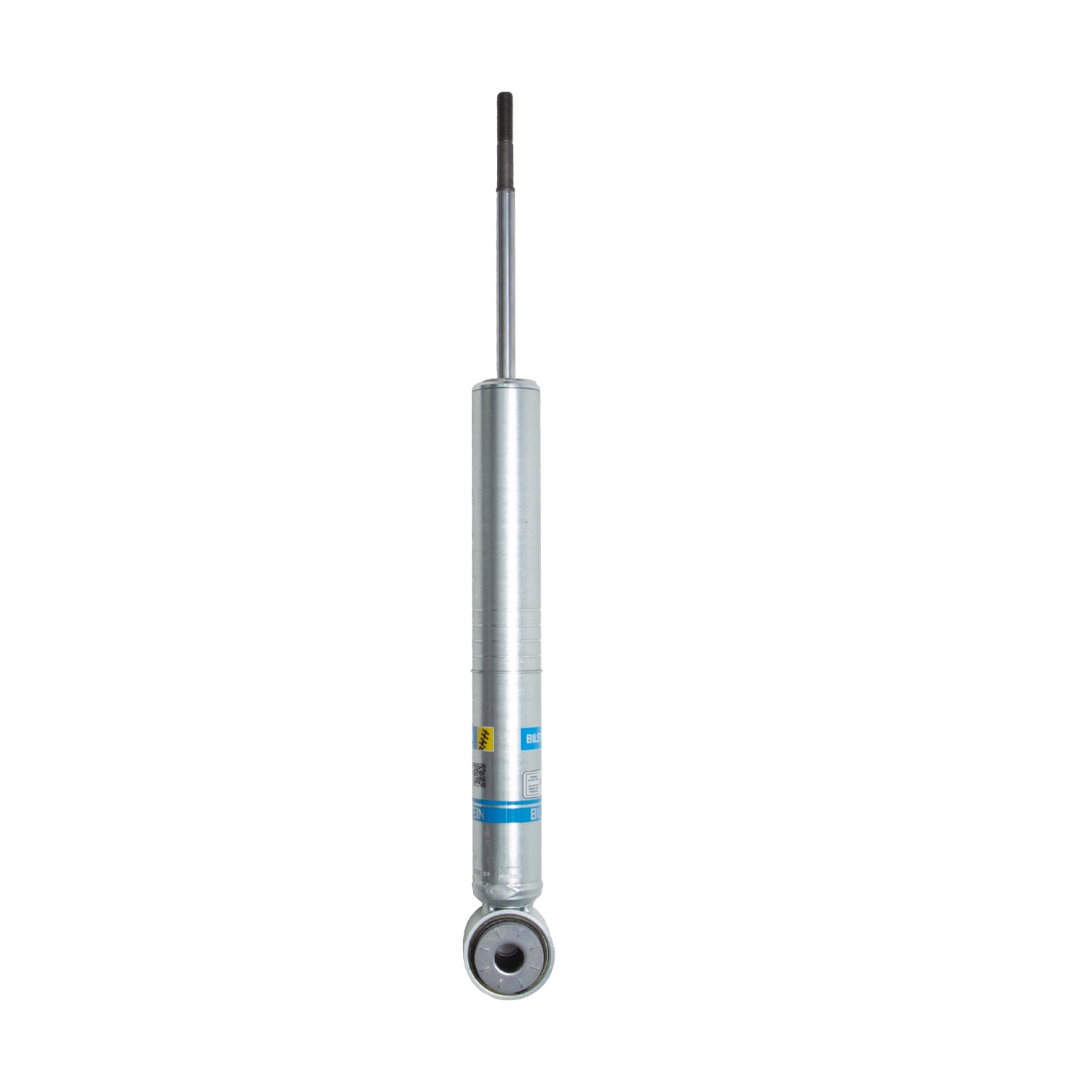

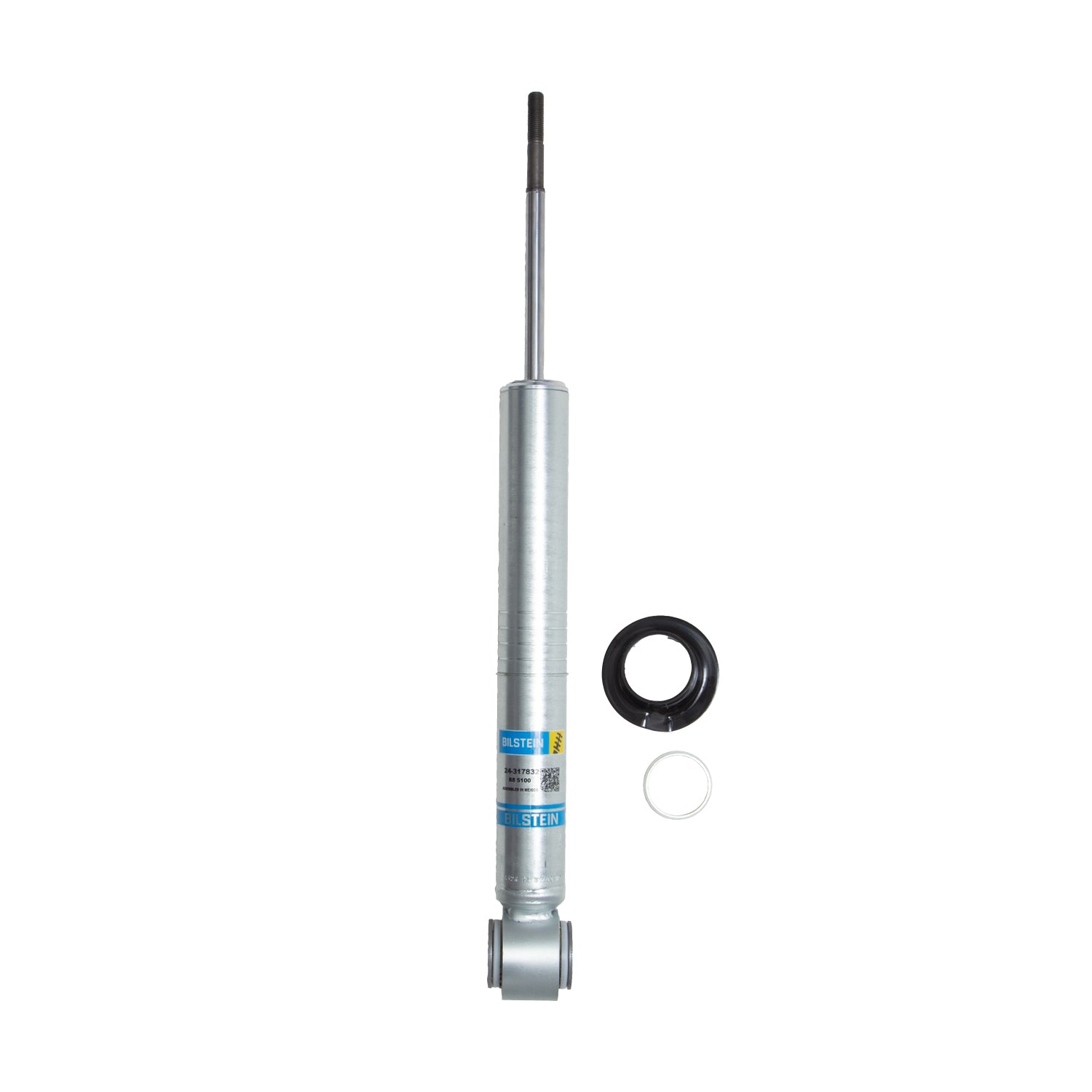

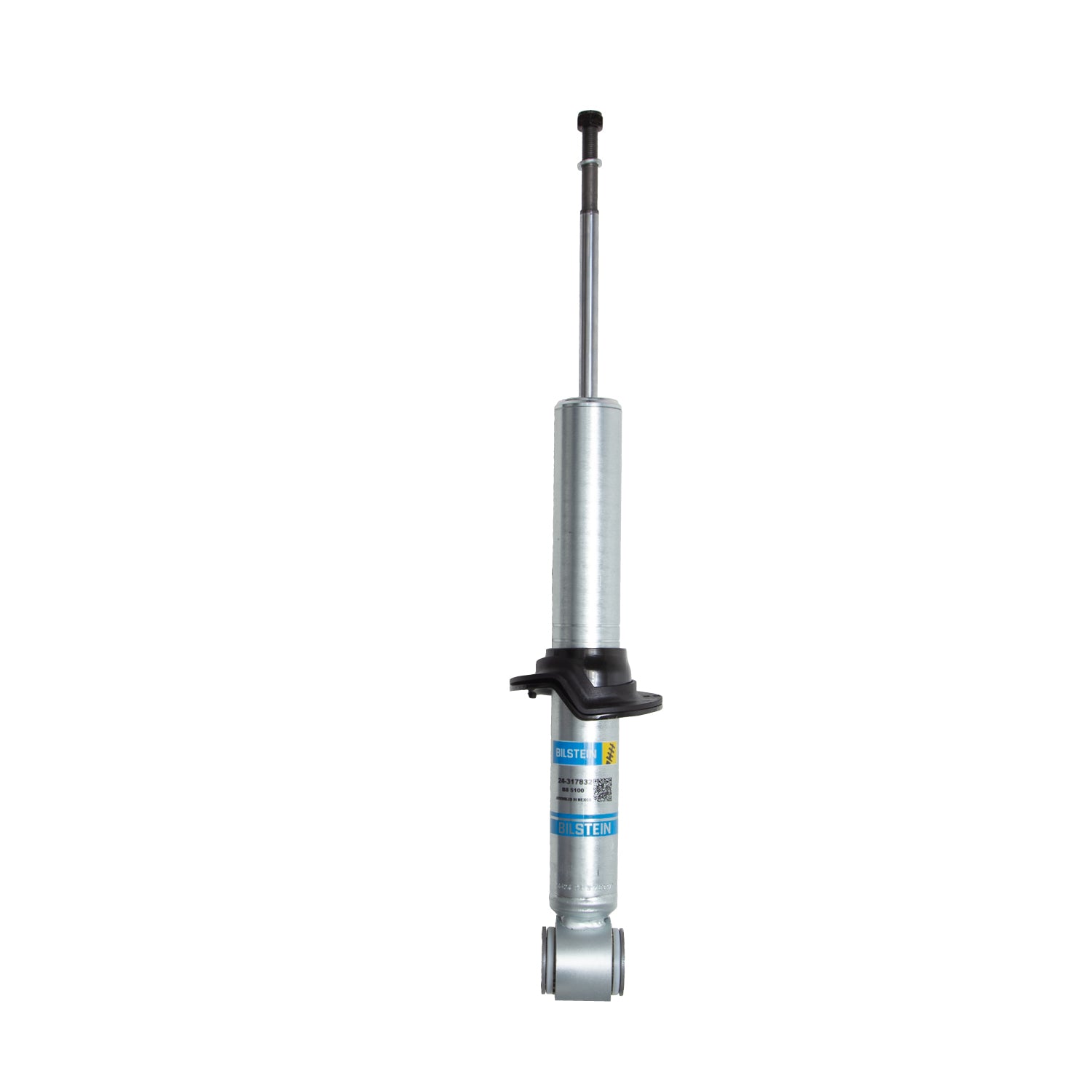

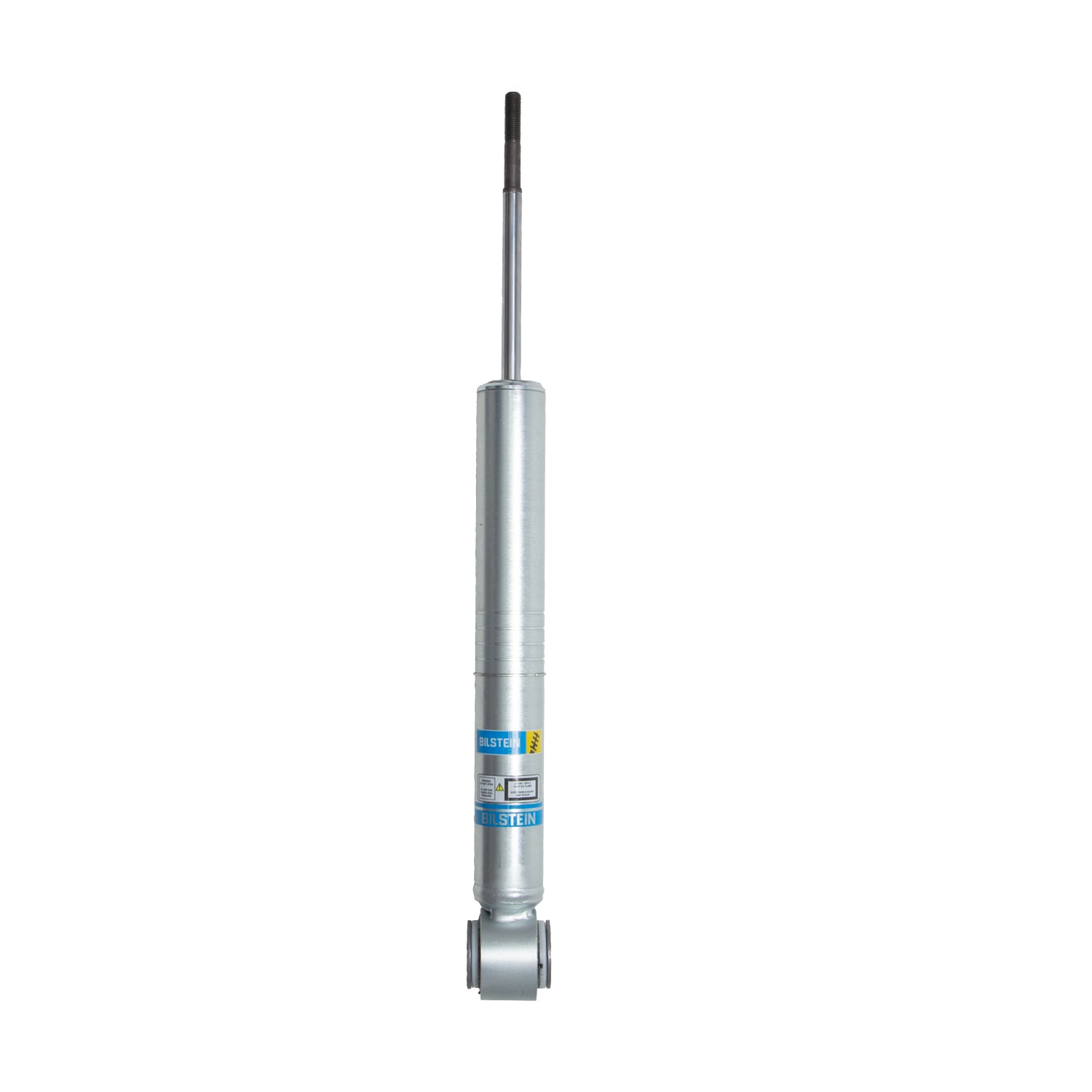

Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a Front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of Front lift with OE springs (depending on application).
- The monotube shock absorbers feature a 46mm Digressive piston a with self-adjusting deflective disc valve setting.
- Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling.
Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.
Details:
- Series: B8 5100 (Ride Height Adjustable)
- Internal Design:Monotube
- Lift Height: 0-2.5 Inch
- Lower Mount Type: Eye 20.3mm
- Upper Mount Type: Stem
- Finish: Zinc Plated
- Adjustable: Non-Adjustable
- Body Design: Snap Ring Grooved Body (Coilover)
- Collapsed Length Inch: 16.22
- Extended Length Inch: 21.74
- Boot Included:No
- Pistion Diameter: 46mm
- Postion: Front
- Reservior: No
- Shaft Diameter: 14mm
- Stroke Travel Length In: 5.52
- Stroke Travel Length In: 140.2
- Notes: RWD Front Lift Height 0-2. 5 Inch
- Applications: Ford F-150 2013-2009
- Warranty: Limited Lifetime Warranty
