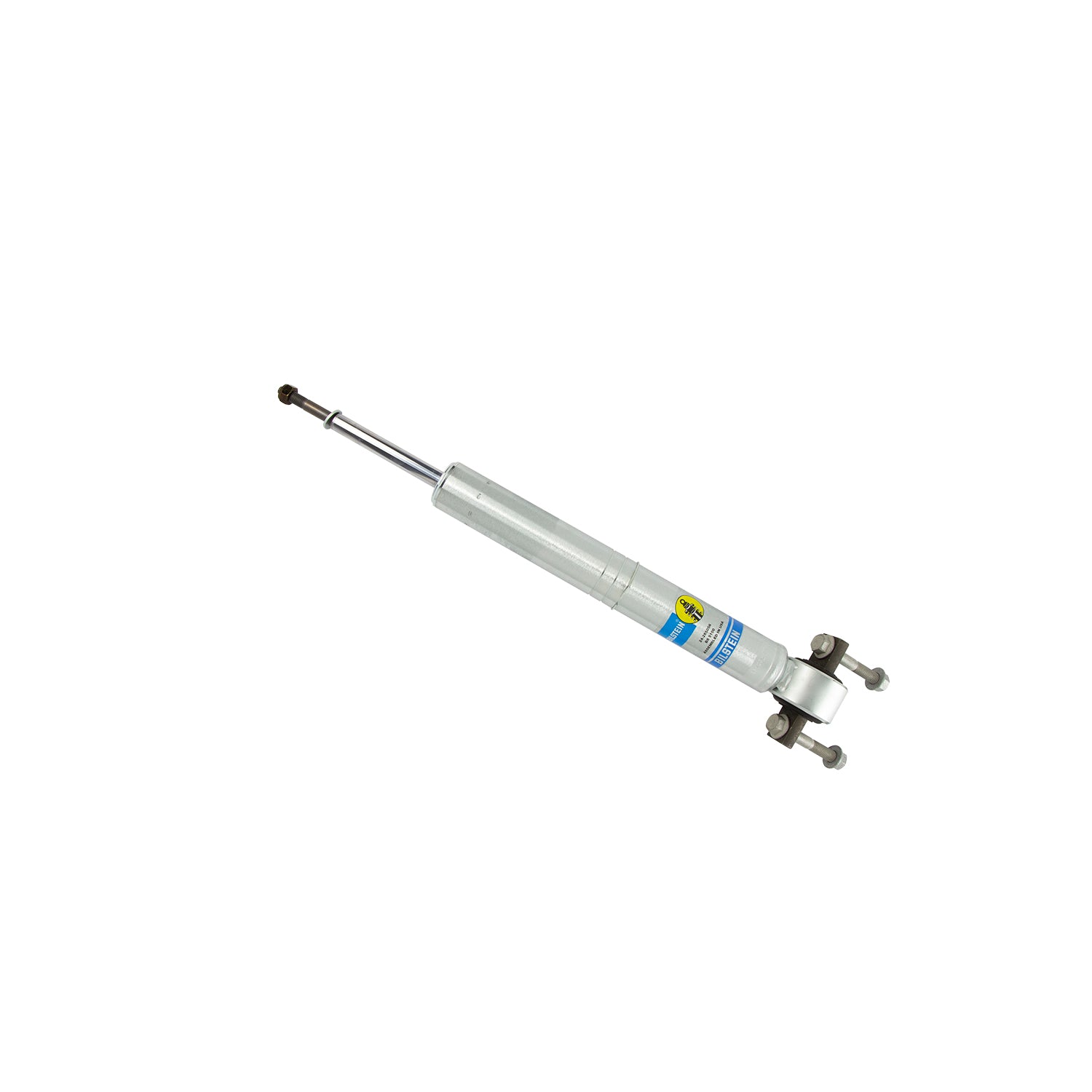

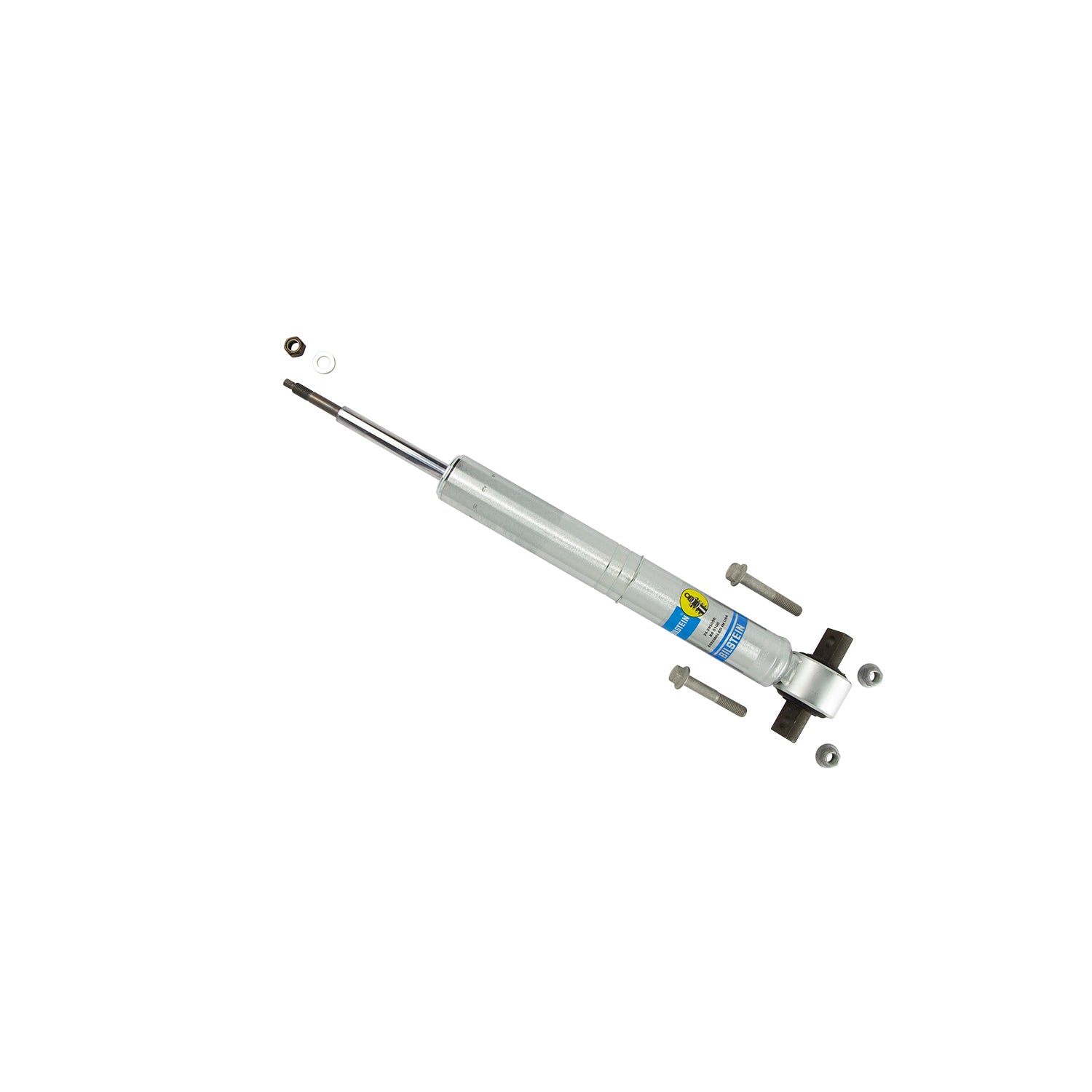

Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a Front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of Front lift with OE springs (depending on application).
- The monotube shock absorbers feature a 46mm Digressive piston a with self-adjusting deflective disc valve setting.
- Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling.
Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.
Details:
- Series: B8 5100 (Ride Height Adjustable)
- Internal Design:Monotube
- Lift Height: 0-1.6 Inch
- Lower Mount Type: Crossbar
- Upper Mount Type: Stem
- Finish: Zinc Plated
- Adjustable: Non-Adjustable
- Body Design: Snap Ring Grooved Body (Coilover)
- Collapsed Length Inch: 16.1
- Extended Length Inch: 20.95
- Boot Included:No
- Pistion Diameter: 46mm
- Postion: Front
- Reservior: No
- Shaft Diameter: 18mm
- Stroke Travel Length In: 4.85
- Stroke Travel Length In: 123.2
- Interchange: JL1Z 18124-E, JL1Z 18124-F, JL1Z 18124-G, JL1Z 18124-U, JL1Z 18124-V, JL1Z 18124-W, NL1Z 18124-R
- Notes: Front Lift Height 0-1. 6 Inch
- Applications: Ford Expedition 2025-2014, Lincoln Navigator 2015-2014, Navigator 2019-2017
- Warranty: Limited Lifetime Warranty
