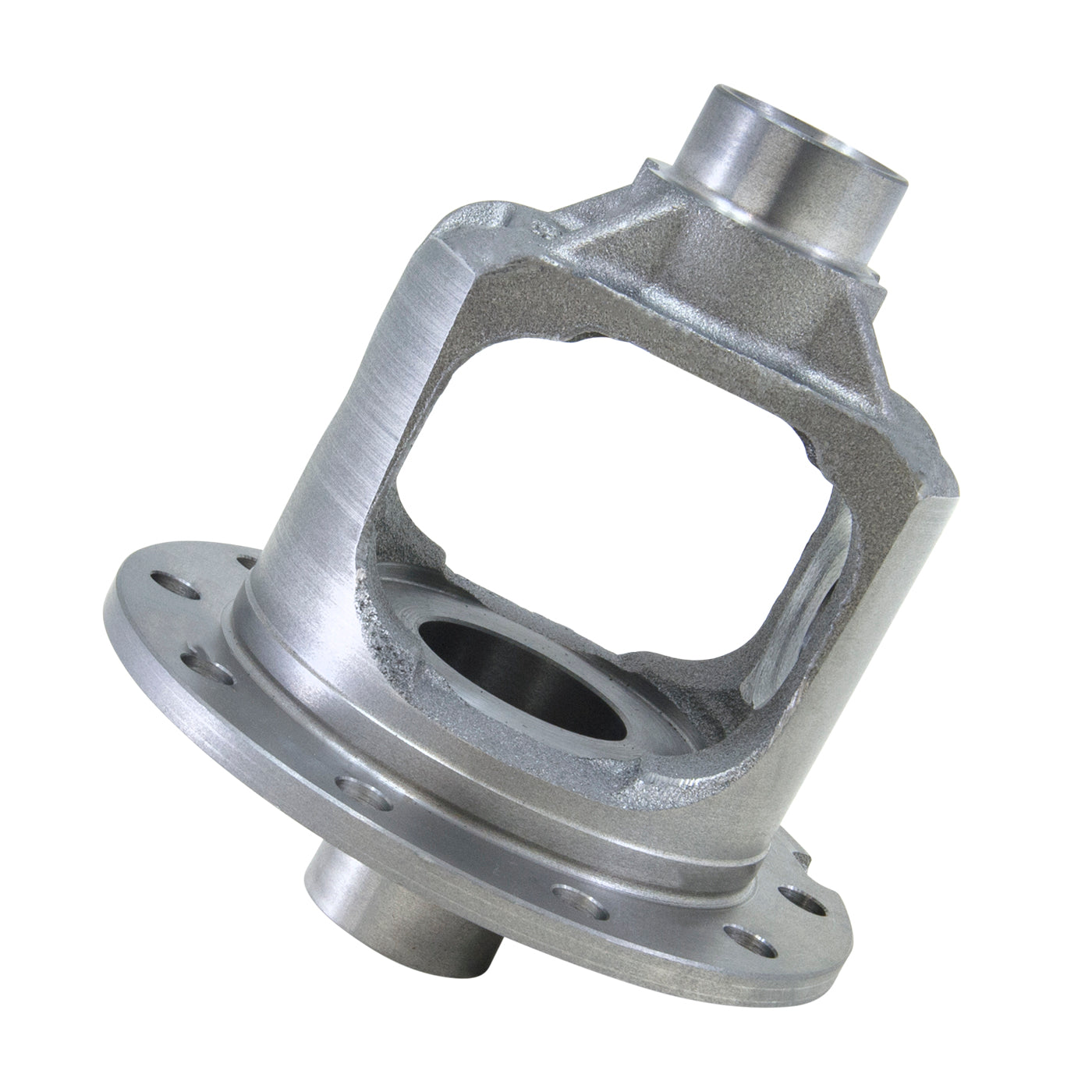

8.8 inch 31 spline standard Open case (7/8 X-PIN Hole). Yukon Gear & Axle manufactures a full line of standard open and positraction limited slip carrier cases for a variety of applications.
Each unit is cast and machined to exacting specifications to produce a carrier that provides both high strength and tight tolerances for a long and reliable service life. This case does not come with spider and side gears.
Features:
Standard open carrier case Fits Ford 8.8 inch with 31 spline axles Does not include spider gears 0.875 inch cross pin shaft diameter
Details:
- AAP Selling Package Quantity UOM: EA
- Aap uda 12: EA
- Aap uda 22: 1
- Axle Shaft Spline Quantity: 31
- Cover Bolt Quantity: 10
- Material: Steel
- Type: Non Locking
This case uses a 7/8 inch diameter cross pin shaft. If you have the older design which used a 3/4 inch cross pin shaft you will also need to purchase spider gear set Ypkf8.8-S-31.
Fitment Notes:
- Ford 8.8 inch.
- Standard
- 31 Spline
- -7/8 inch. Cross Pin Hole, Ford 8.8 inch.
- IRS
- Standard
- 31 Spline
- -7/8 inch. Cross Pin Hole, Ford 8.8 inch.
- 3.250 inch. OD Pinion Bearing
- Standard
- 31 Spline
- -7/8 inch. Cross Pin Hole, Ford 8.8 inch
- IRS
- Standard
- 31 Spline
- -7/8 inch. Cross Pin Hole
