Description
Perfect fitment. The Stage Series 2 Inch LED Ditch Light Kit for the 2019-2020 Ford Ranger allows you to easily mount two Stage Series 2 Inch Pods above the hood near your A-Pillars. These application-specific brackets were CAD-designed to install using factory mounting points. No cutting or drilling required! This kit features a low profile design while minimizing glare and will not interfere with raising or lowering the hood.
Built to last. The brackets in this kit are constructed out of thick-gauge stainless steel. Unlike other options made out of mild steel these brackets are full stainless steel and won't corrode over time. With their thick-gauge construction you also won't experience any vibration or bouncing while driving.
Focused. Traditional optics like reflectors or simple lenses lose light internally and to glare so not all of the light shines on target. Instead the custom-engineered TIR optic in the Stage Series 2 Inch collects all of the light from the LED and directs it only where you need it drastically reducing glare and improving total efficiency.
From there while other options on the market lose as much as 10 percent of the light output shining through an outer lens the custom-molded TIR optic in the Stage Series 2 Inch serves as both the optic and main lens for greater efficiency and light output (patent pending). Thanks to this innovative feature when coupled with high-intensity LED chips the total intensity of the Stage Series 2 Inch is much greater than other LED pods using basic optics or reflectors with a standard outer lens.
Functional output. The Stage Series Driving beam pattern is designed to supplement your high beams but it's great for general illumination as well. Rather than a traditional spot pattern the Stage Series Driving pattern shines in an 18x8 degree spread providing just enough width to fully illuminate the road ahead at high speeds. For states that require them we also offer snap-on covers for your Stage Series 2 Inch Pod. These covers are available in a variety of colors and keep your Stage Series 2 Inch Pod clean and protected from dirt dust or whatever else the road throws your way!
White or Yellow. All Stage Series LED pods are available in a cool white or selective yellow color. The white is a 6000K color temperature which is a true cool white output and matches most factory LED lighting. The selective yellow is a 3000K color temperature great for high contrast in poor weather or a distinctive look on the road. We also offer replacement lenses that allow you to change the color or optic of your Stage Series 2 Inch Pods.
Sport or Pro. Stage Series LED pods are available at two different power levels. Both options use high-intensity LED emitters and TIR optics for unmatched focus and overall output. However the Pro option is double the amount of total power.
Backlight Functionality. All SSC2 Ditch Light Kits include a distinctive Amber backlight feature. The SSC2's backlight fully illuminates the TIR optic providing a more unique and modern look than the small indicator LEDs found in other products.
Proven Reliability. Stage Series LED lighting has been extensively tested for long-term operation from -40 to 185 degrees F along with vibration moisture intrusion and corrosion testing. All of these tests are completed to SAE standards just like factory components. They've also been put to the test on-road by racers and enthusiasts alike.
Experience. After over a decade in business Diode Dynamics is one of the most trusted names in automotive LED lighting. We directly assemble and engineer our own products in the United States allowing for higher quality and performance with the newest and brightest LED technology. No matter what you're driving we pride ourselves in offering only the best possible LED solutions.
Features:
- Bolt-on fitment for 2019-2020 Ford Ranger.
- Allows you to mount two Stage Series 2 Inch LED Pods above the hood near your A-Pillars.
- Utilizes existing mounting points and hardware for a simple installation.
- Thick-gauge stainless steel construction.
- Low-profile design.

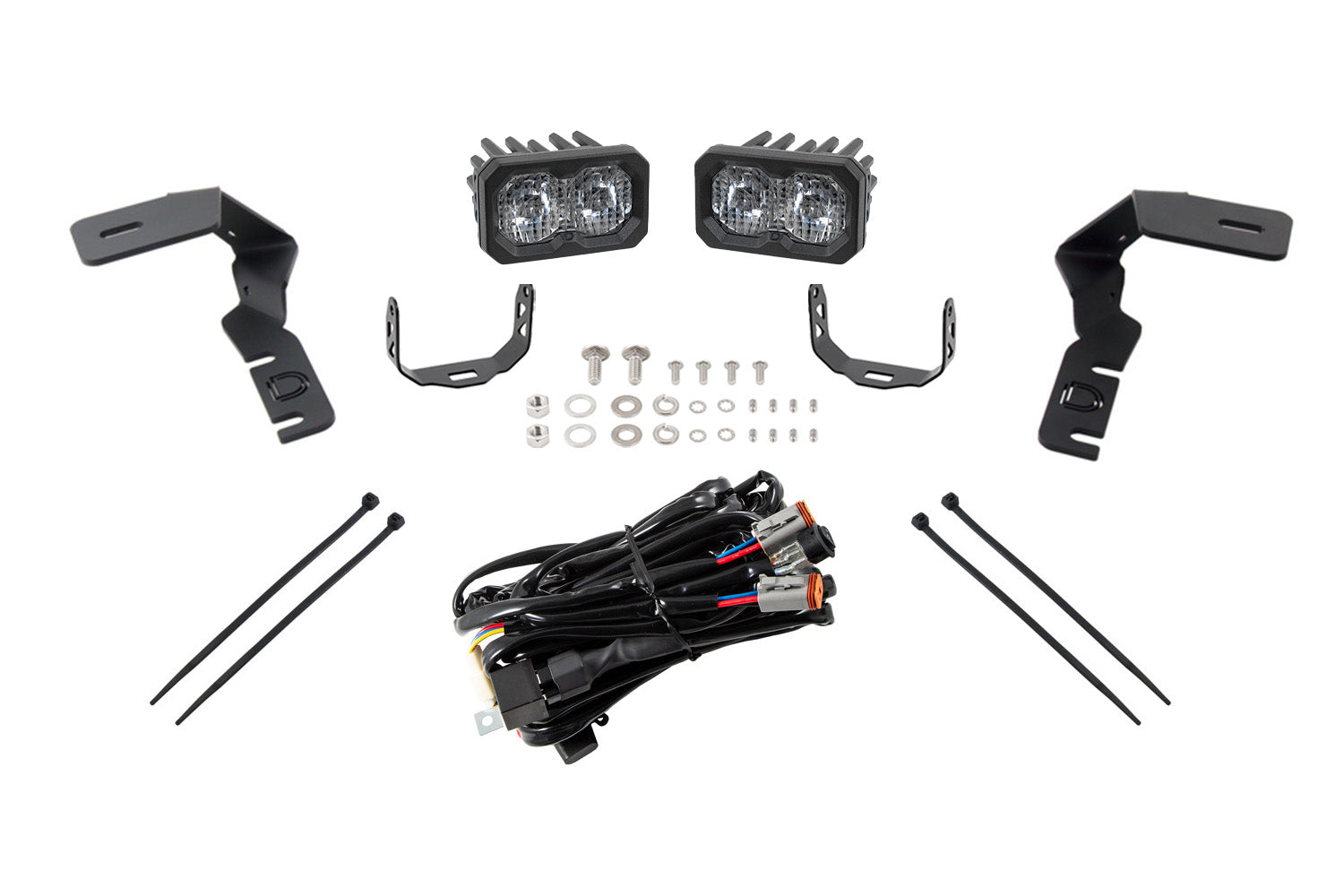

Included in the box:
- Two (2) Stage Series 2 Standard LED Pods
- Two (2) Ditch Light A-Pillar brackets
- Two (2) Stage Series 2 inch Mounting brackets
- One (1) Heavy-duty 4-pin dual output wiring harness
- Mounting hardware
- Mounting guide
