Features
- Bolt-on replacement for your factory fog lamps
- SAE-compliant road-legal output
- Backlight feature provides amber accent light
- Plug-and-play wiring, with included harness
- Advanced TIR optics, with Osram Boost HX 20W LED chip
- Engineered and Assembled in USA
Overview

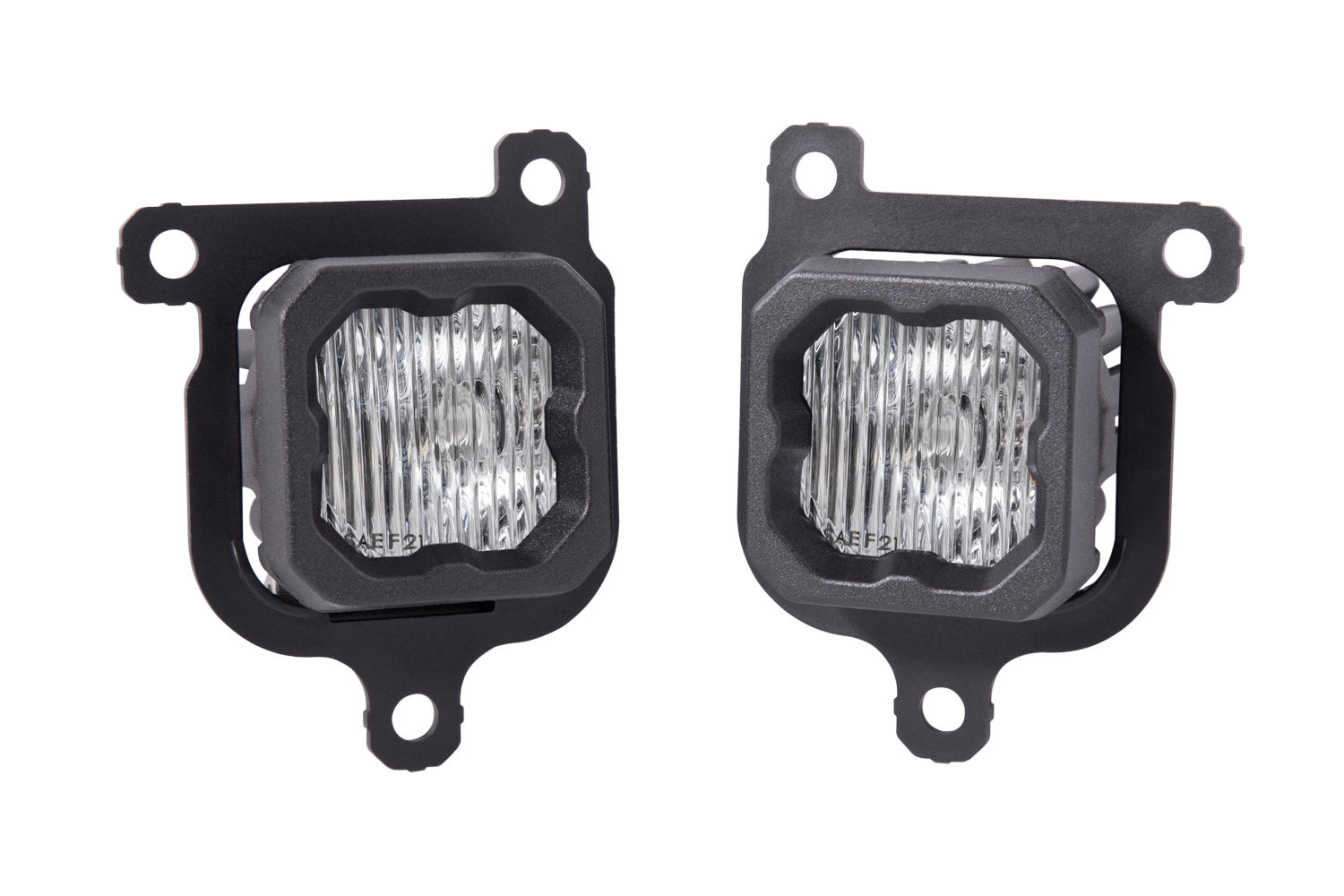

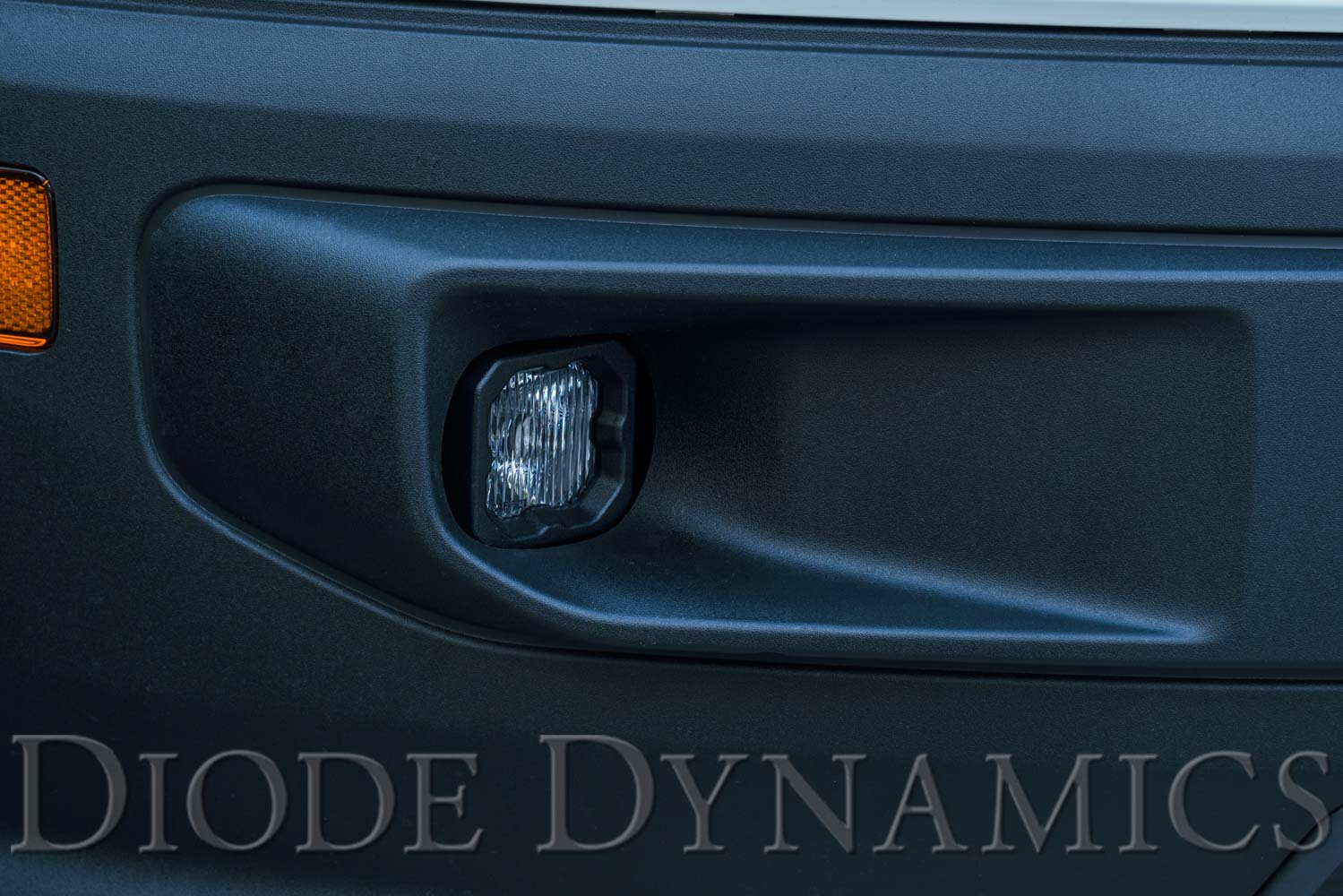

Upgrade your fog lights with our SSC1 Type FBS Fog Light Bracket Kit! Featuring custom-engineered TIR optics combined with the newest LED chip technology, these pods deliver road-legal light output, in our most compact package yet. With the included custom bracket with bezel, the SSC1 Fog Kit has a clean, factory-style appearance, only much brighter!
Plug and Play. The SSC1 Fog Light Bracket Kit can be installed on your vehicle in minutes. Simply remove your factory fog light assembly and ours will bolt right in its place! Two H11-size DT adapter wires are included with the kit, allowing you to connect the lights to your factory bulb sockets - no extra wiring needed!
Focused. Traditional optics like reflectors or simple lenses lose light internally and to glare, so not all of the light shines on target. Instead, the custom-engineered TIR optic in the SSC1 collects all of the light from the LED, and directs it only where you need it, drastically reducing glare and improving total efficiency.
Backlight Functionality The Stage Series C1 LED Pod includes a distinctive backlight feature as well. The SSC1's backlight fully illuminates the TIR optic, providing unique accent lighting that you won't find in other single-LED pods on the market.

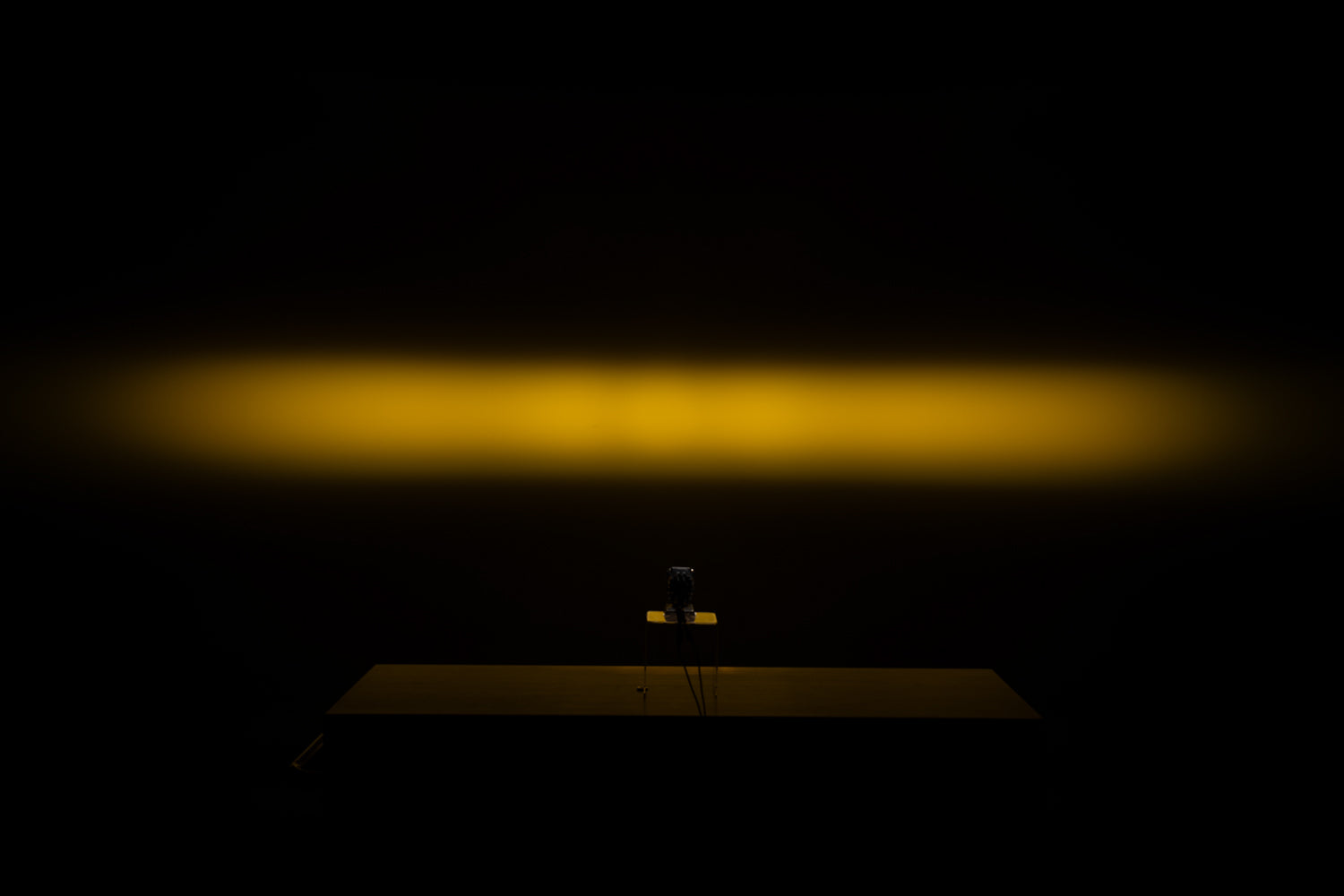

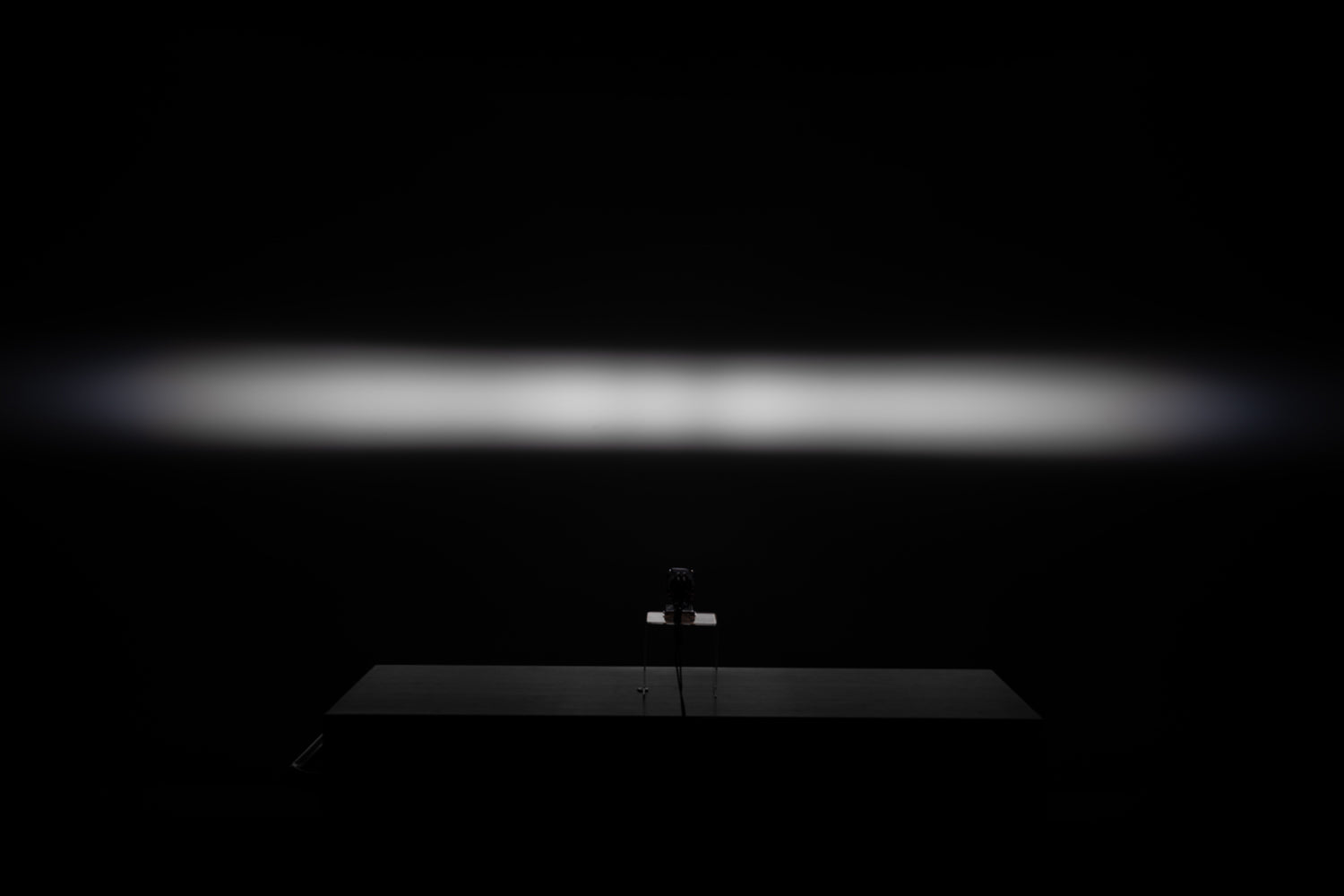

SAE Compliant When installed as a pair and aimed in accordance with your state's regulations, this Fog pattern meets the SAE J583 standard as a Foglamp for legal on-road use, and will fully illuminate the area in front of your vehicle.
SAE-compliant road-legal output

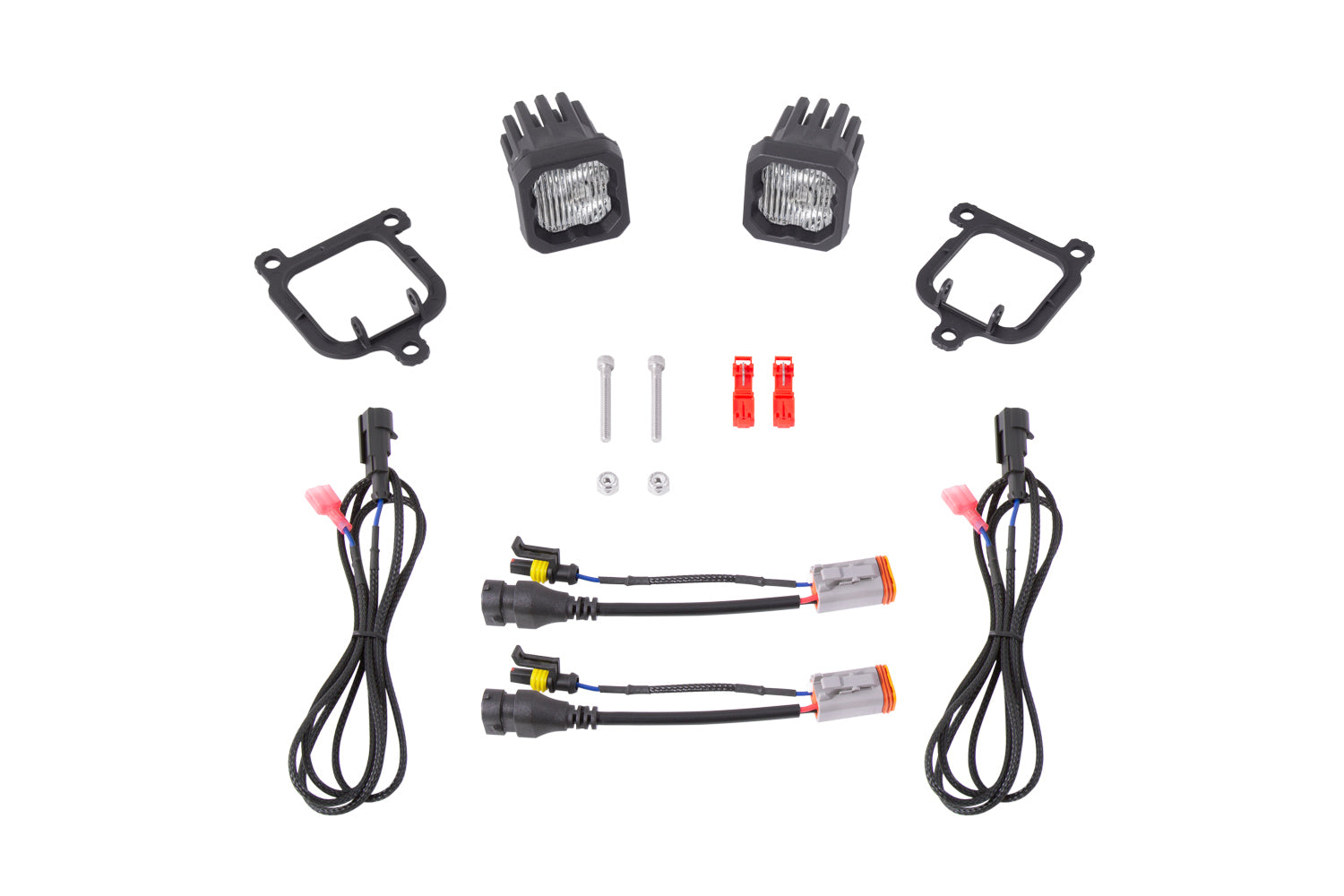

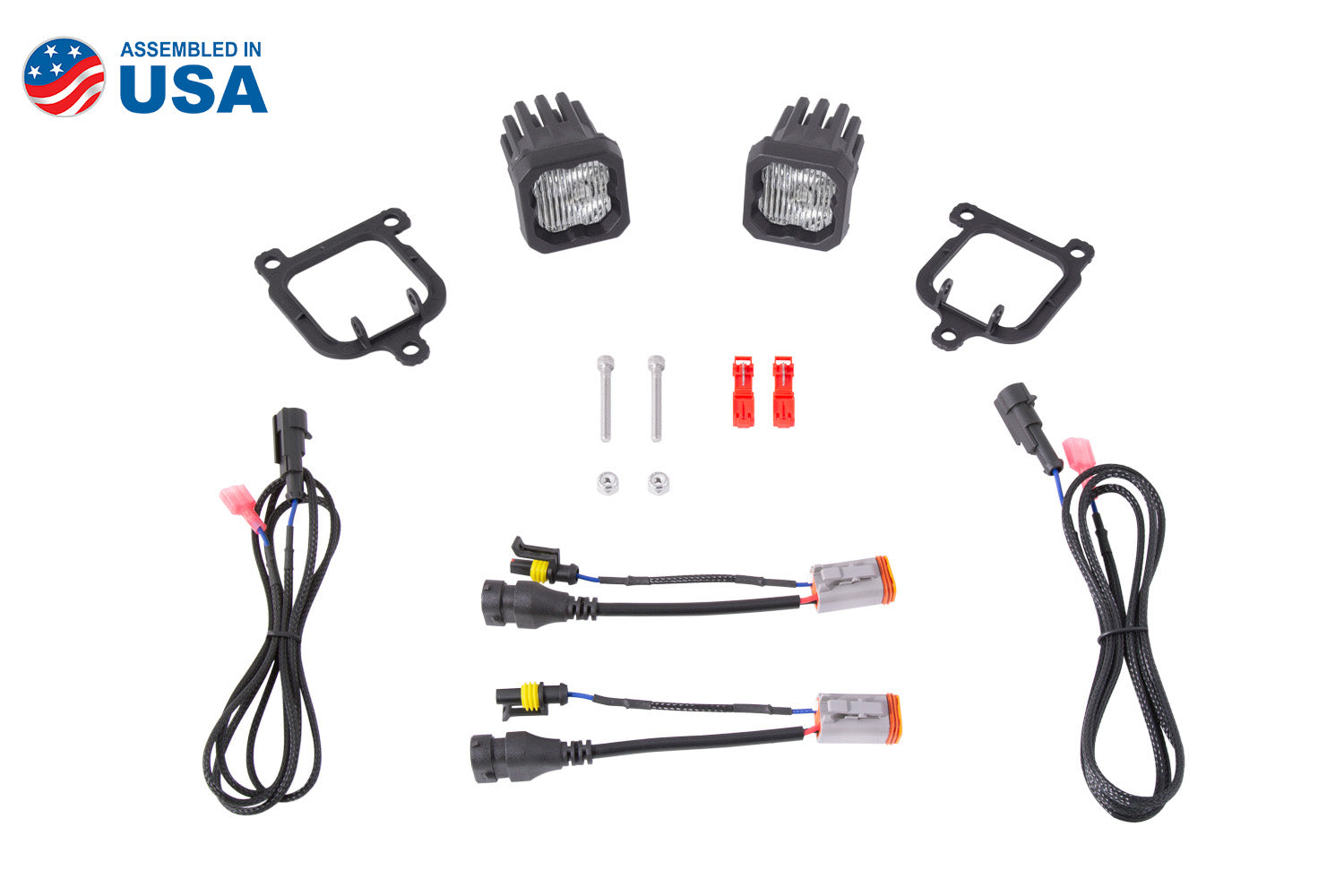

Included in the box:
- Two (2) SSC1 standard LED pods
- Two (2) T-taps
- Two (2) H11 DT 4-Pin adapters
- Two (2) Type FBS brackets
- Mounting hardware
