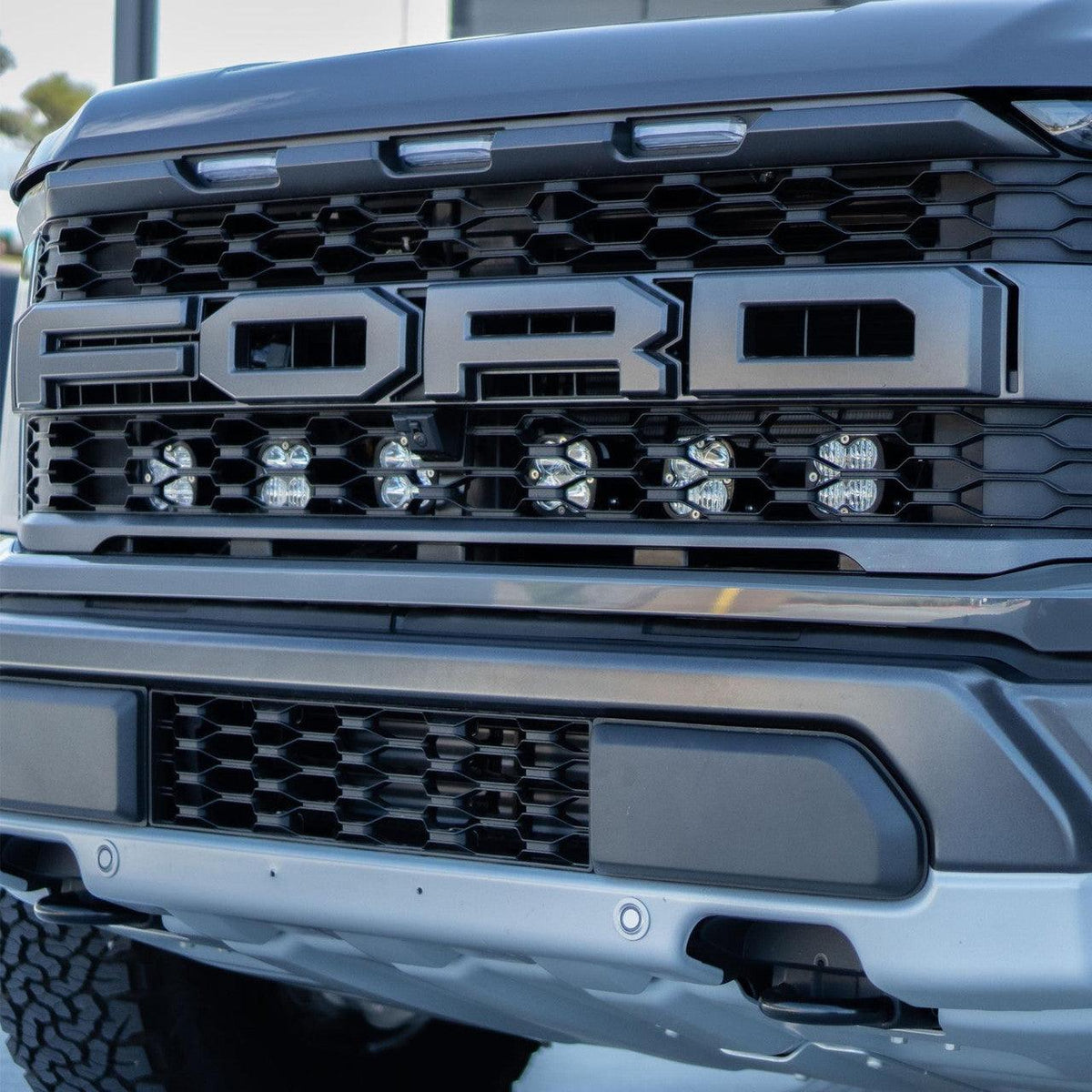

Baja Designs' 2021+ Ford Raptor Behind the Grill kits were designed with both functionality and visual appeal in mind. This kit offers six Squadron Pros, mounting brackets, and hardware.

To give these kits and easier wiring installation each kit includes an up-fitter harness that will allow you to tap your lights into the factory up-fitter switches.

Baja Designs Features:

• Satisfactions Guarantee30 Day Money Back Guarantee
• Limited Lifetime WarrantyComplete Purchase Protection
• uService Replaceable Lenses And Optics
• ClearViewAll The Light, Right Where You Need It.
• MoistureBlock Waterproof, Rain Proof, Submersible
• CopperDrive Only LED Driven At 100 percent
• 5000K Daylight Less Driver Fatigue, Natural Color

Specifications (per light):

• Lumens: 4,600 Utilizing 2 types of Cree LEDs
• Wattage/Amps: 40W / 2.90A
• Dimensions: 3.07 Inch x 2.77 Inch x 3.07 Inch
• Weight: 12 ounces
• LED Life Expectancy: 49,930 Hours
• Front Lens: Hard Coated Polycarbonate
• Housing: Hard Anodized and Powder Coated Cast Aluminum
• Bezel: Billet Machined Aluminum
• Hardware and Bracket Material: Stainless Steel
• Exceeds MIL-STD810G (Mil-Spec Testing)
• Built-In Overvoltage Protection
• IP69K (Waterproof, Submersible to 9ft)
• IK10 Compliant (Mechanical Impact Testing)

Applications:

2021+ Ford Raptor

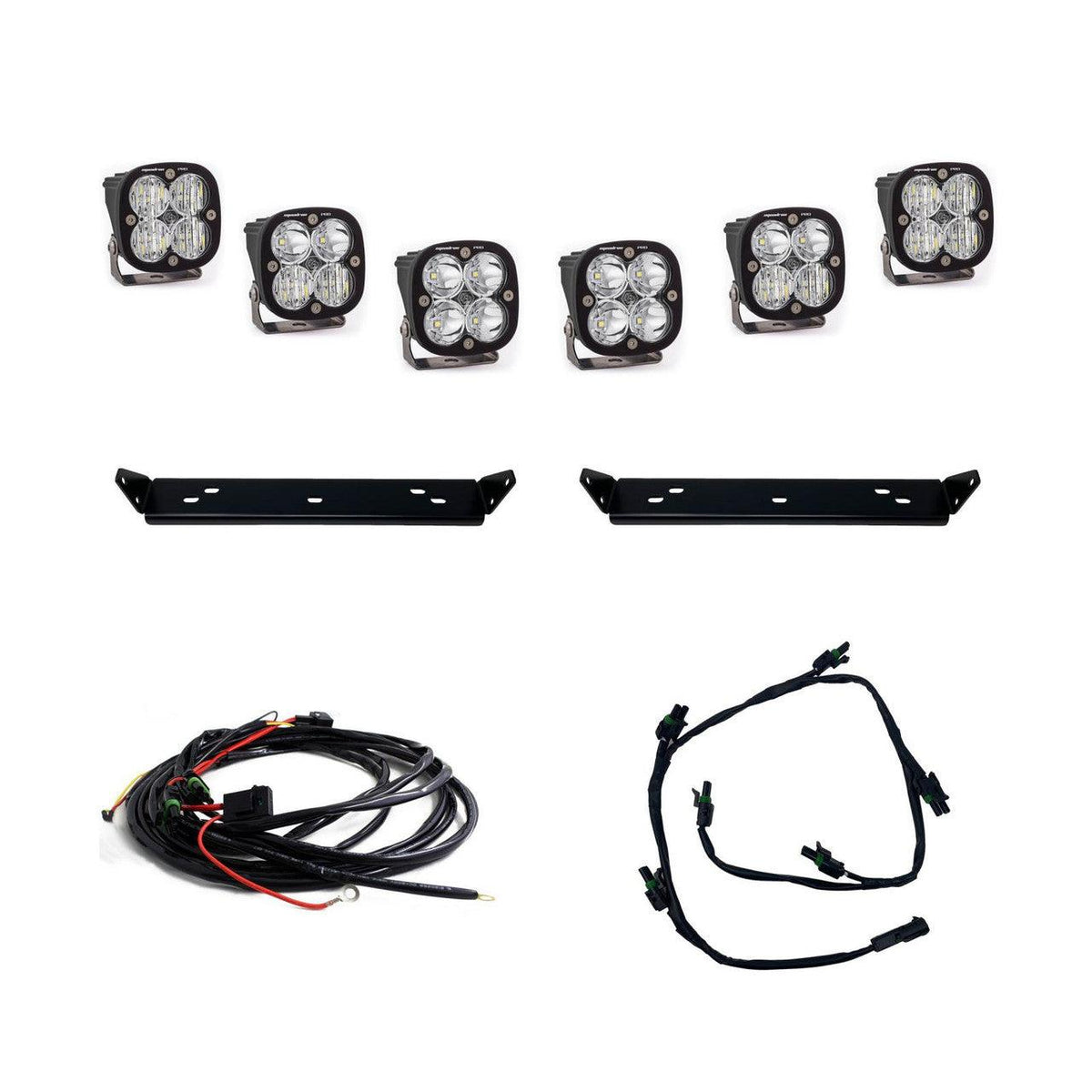

Included:

• x2 Squadron Pros in Wide Cornering
• x2 Squadron Pros in Driving Combo
• x2 Squadron Pros in Spot
• x1 Upfitter harness
• x2 Mounting Brackets
• All necessary hardware

Patterns:

Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42 Degree) and spot (9 Degree) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)

Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42 Degree flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 and 2)

Spot: A longer and narrower 9 Degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 and 5)

Buy your Baja Designs lights with FREE SHIPPING from Apollo Optics today!
