The Baja Designs Squadron 2.0 Sport Fog Pocket kit is the perfect mix of high-quality on and off-road performance for your Ram 2500/3500 Big Horn! This kit is controlled by the factory fog switch and is offered with the Squadron 2.0 Sport LED lights with an impressive 3,200 lumens at 30W each - a 26 percent increase in performance over the previous generation Squadron - while delivering improved beam control and higher efficiency.
Squadron 2.0 Sport include updated lens patterns optimized for the new redesigned optics, a durable 4-pin Deutsch connector, and an all-new color selectable backlight with nine selectable colors to match your vehicle's style. Enhanced uService features clip-in reflectors for secure, simple lens swaps, paired with a redesigned gasket for superior sealing and long-term weather protection. Fitted with our wide cornering lens pattern to illuminate zones 1 and 2 for a larger spread and blend angle improving situational awareness, enthusiasts can choose the clear lens option or our amber option to help reduce glare and minimize reflections in dust or fog situations.
Experience the assurance of our 30-day satisfaction guarantee and Lifetime limited warranty, providing unparalleled protection for your investment.
Note: If the vehicle was not originally equipped with the halogen fog lights, the following parts must be purchased:

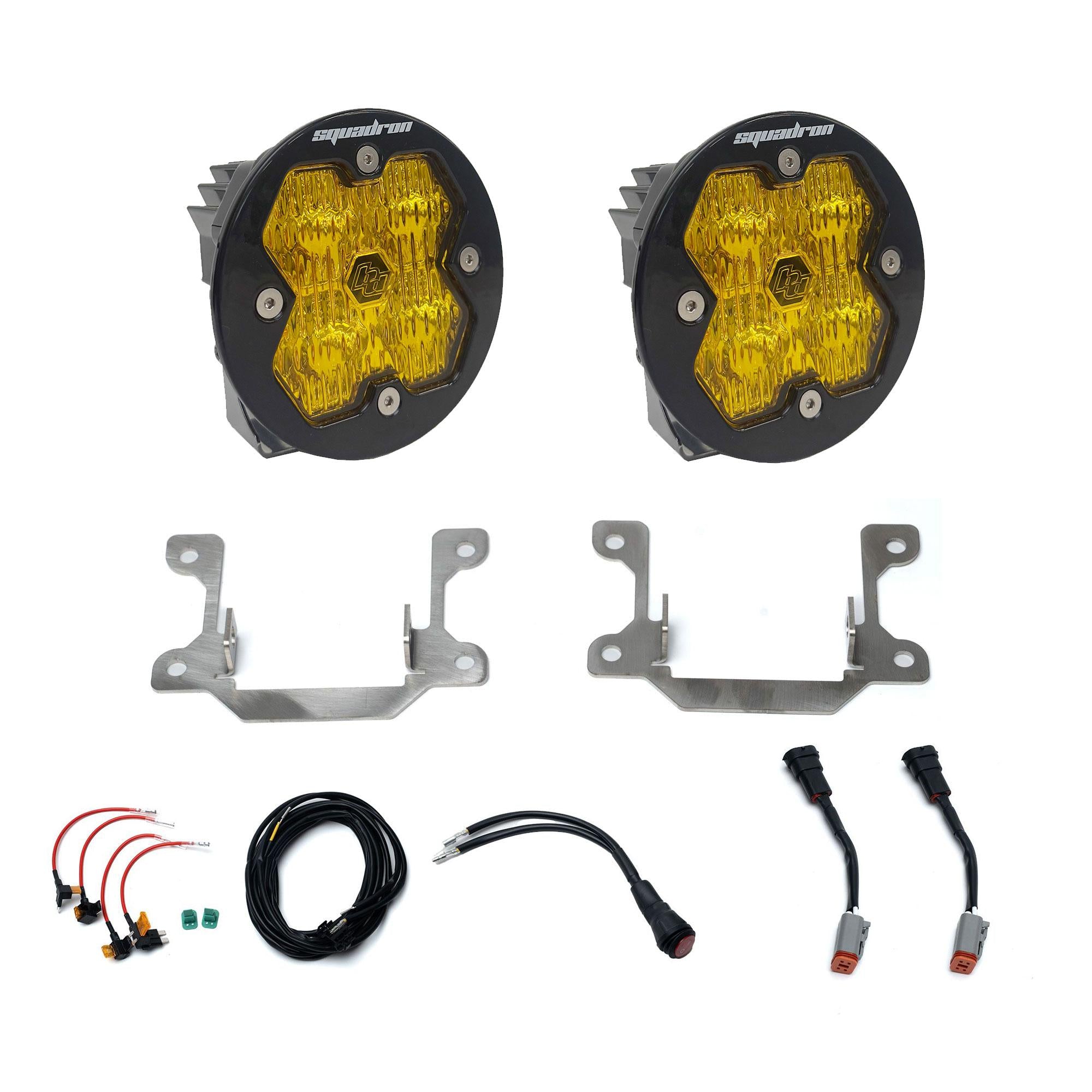

Includes:
- (2x) Squadron 2.0 Sport Wide Cornering; Clear or Baja Amber
- (2x) Mounting Brackets
- (2x) Adaptor, Deutsch 4-pin to H11
- (1x) Harness, Backlight Add-on
- (1x) Harness, Inline Backlight Switch Adapter
- All Necessary Mounting Hardware
Squadron 2.0 Sport Specifications (Per Light):
- Lumens: 3,200
- Watts/Amps: 30W/2.2A
The Baja Designs Advantage:
- Satisfaction Guarantee - 30-Day Money Back Guarantee
- Limited Lifetime Warranty - Complete Purchase Protection
- uService - Replaceable Lenses and Optics
- ClearView - All the Light, Right Where You Need It
- MoistureBlock - Waterproof, Rain Proof, Submersible
- CopperDrive - Safely Driving LEDs at 100 percent
- 5000K Daylight - Less Driver Fatigue, Natural Color
- Specifications:
- Brightness (Lumens): 3,200 lm
- Amperage Rating (A): 30W / 2.2A at 13.8V
- Voltage: Operating White Light Voltage: 10 - 36V; Operating Backlight Voltage: 11-14V
- Description: Backlight: 9-Colors
- Terminal Connector: Deutsch
- Standards & Compliance:
- Standards/Compliance (Water Resistance): IP69K
- Dimensions:
- Depth (in.): 3.32 Inch
- Height (in.): 3.29 Inch
- Length (in.): 2.84 Inch
