The Baja Designs Squadron 2.0 Sport Fog Pocket LED light kit for the Ford F-150 ('15-20) / F-250/350 Super Duty ('17-22) allows you to mount two Squadron 2.0 Sport auxiliary lights in the factory location. This plug and play kit include two vehicle specific mounting brackets, a pair of the all-new Squadron 2.0 Sport LED lights with wide cornering clear lenses, and adapter harnesses that allows you to use your factory switch and mounting hardware. The Squadron 2.0 Sport LED lights offer an impressive 3,200 lumens at 30W each - a 26 percent increase in performance over the previous generation Squadron - while delivering improved beam control and higher efficiency.
New enhancements to the Squadron 2.0 Sport include updated lens patterns optimized for the new redesigned optics, a durable 4-pin Deutsch connector, and an all-new user selectable backlight with nine selectable colors to match your vehicle's style. Enhanced uService features clip-in reflectors for secure, simple lens swaps, paired with a redesigned gasket for superior sealing and long-term weather protection. Fitted with our clear wide cornering lens pattern to illuminate zones 1 and 2 for a larger spread and blend angle improving situational awareness while on the trail. Experience the assurance of our 30-day satisfaction guarantee and Lifetime limited warranty, providing unparalleled protection for your investment.
Note: This kit is designed to replace the OEM halogen-style fog lights and will Not work for the OEM-style LED fog light strip.

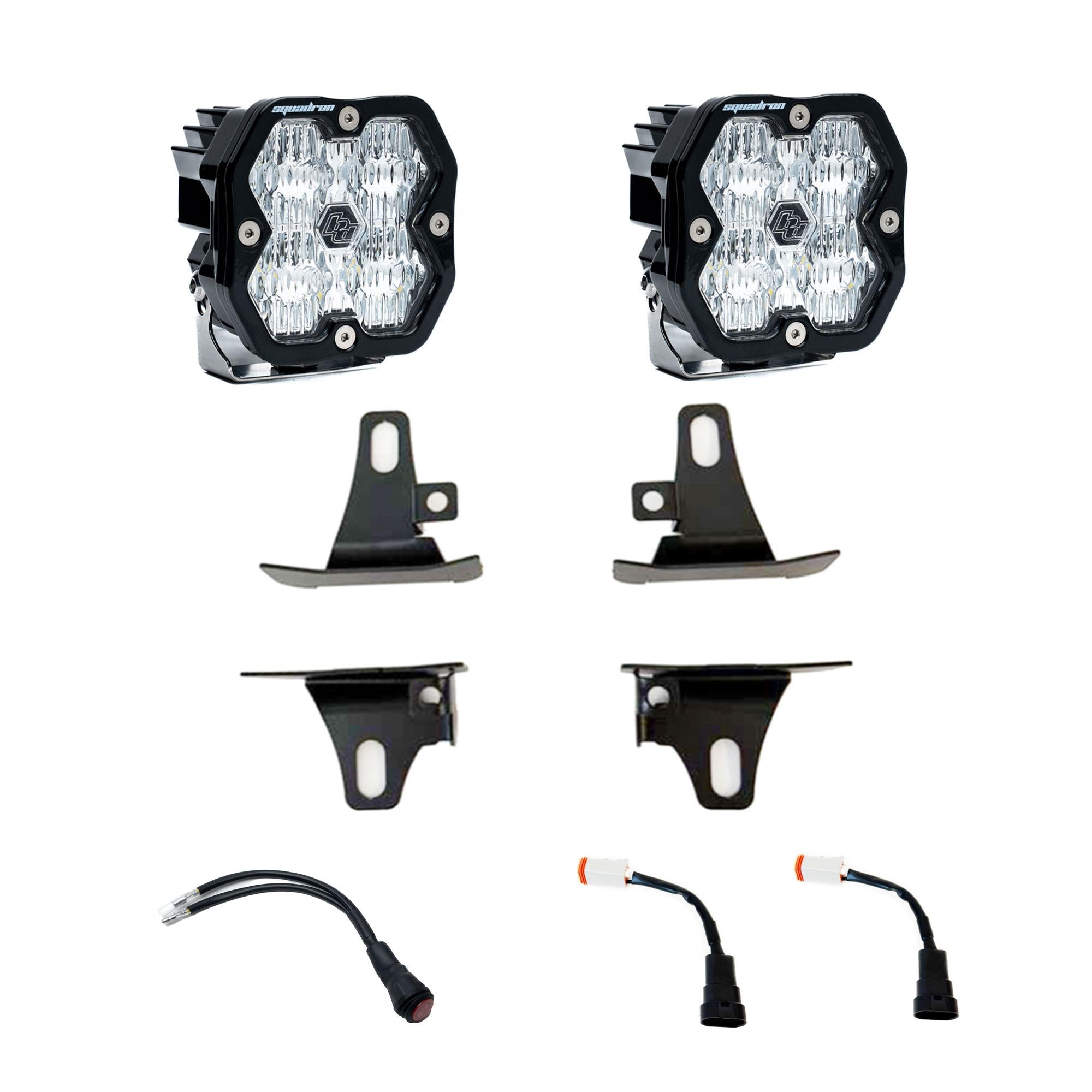

Includes:
- (2x) Squadron 2.0 Sport; Clear Wide Cornering
- (2x) Mounting Brackets Inner
- (2x) Mounting Brackets outer
- (1x) Harness, inline Backlight Switch Adapter
- (2x) Adaptor H10 to 4-pin Deutsch
- (1x) Harness, Backlight Add-on
Squadron 2.0 Sport Specifications (Per Light):
- Lumens: 3,200
- Watts/Amps: 30W/2.2A
The Baja Designs Advantage:
- Satisfaction Guarantee - 30-Day Money Back Guarantee
- Limited Lifetime Warranty - Complete Purchase Protection
- uService - Replaceable Lenses and Optics
- ClearView - All the Light, Right Where You Need It
- MoistureBlock - Waterproof, Rain Proof, Submersible
- CopperDrive - Safely Driving LEDs at 100 percent
- 5000K Daylight - Less Driver Fatigue, Natural Color
- Specifications:
- Brightness (Lumens): 3,200 lm
- Amperage Rating (A): 30W / 2.2A at 13.8V
- Voltage: Operating White Light Voltage: 10 - 36V; Operating Backlight Voltage: 11-14V
- Description: Backlight: 9-Colors
- Terminal Connector: Deutsch
- Standards & Compliance:
- Standards/Compliance (Water Resistance): IP69K
- Dimensions:
- Depth (in.): 3.32 Inch
- Height (in.): 3.29 Inch
- Length (in.): 2.84 Inch
