The Baja Designs Squadron 2.0 Pro A-Pillar LED Light Kit is the ultimate upgrade for Toyota 4Runner owners who want significantly more trail visibility while keeping their lighting package sleek and compact. Purpose-built for the 4Runner, this complete two-light kit is engineered to complement the truck's body lines and deliver maximum performance exactly where you need it. With mounting brackets included, a toggle harness, and all essential hardware, installation is seamless and straightforward.
Completely redesigned from the inside out, the Squadron 2.0 Pro features next-generation optics and an impressive 5,921 lumens at 65W per light - a 21 percent increase in performance over the previous generation, with improved beam control and efficiency. The refined optical system projects a cleaner, farther-reaching, and wider beam while minimizing unwanted spill, giving 4Runner owners more usable illumination for any terrain. Whether you're tackling tight wooded trails, exploring open desert, or logging miles on long road trips, the Squadron 2.0 Pro provides unmatched clarity and confidence when the sun goes down.
New enhancements include updated lens patterns optimized for the redesigned optics, a durable 4-pin Deutsch connector, and an all-new Rgbw backlight with nine selectable colors to match the 4Runner's style. Enhanced uService features clip-in reflectors for secure, simple lens swaps, paired with a redesigned gasket for superior sealing and long-term weather protection.
A newly engineered universal mounting bracket offers increased vertical adjustability, giving Toyota 4Runner owners more precise aiming and expanded field of view - ideal for spotting hazards and obstacles on the trail. Backed by our 30-Day Satisfaction Guarantee and Limited Lifetime Warranty, this A-Pillar kit delivers premium performance, rugged reliability, and peace of mind for every 4Runner adventure.
Squadron 2.0 Pro Features:
- Refined beam pattern provides greater distance, wider coverage, and reduced light spill
- Rgbw backlight with 9 selectable colors to match any vehicle
- New clip-in reflectors stay secure during lens changes, improving uService
- New gasket design improves sealing and protection against the elements
- Redesigned mounting bracket allows greater vertical adjustability
- Standard 4-pin Deutsch connector for improved wiring harness durability
Specifications (Per Light):
- Lumens: 5,921
- Watts/Amps: 65W/5.2A at 13.8V
- Operational Voltage: 12-32V
- IP69K Rated

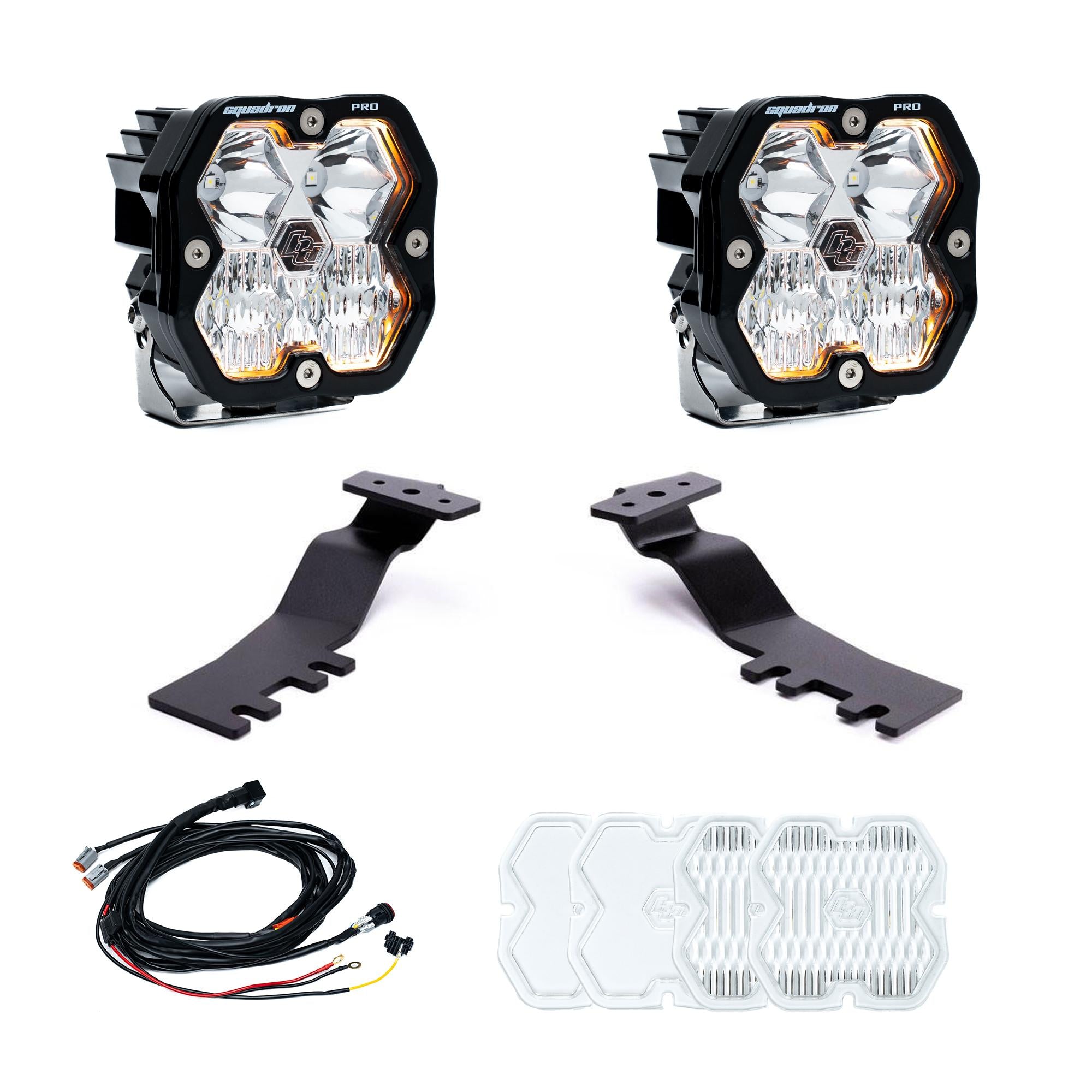

Includes:
- (2x) Squadron 2.0 Pro (Clear/Driving Combo)
- (2x) A-Pillar Brackets
- (1x) Toggle Switch 4-pin Harness
- (2x) Squadron 2.0 Lens Kit (Clear/Spot)
- (2x) Squadron 2.0 Lens Kit (Clear/Wide Cornering)
- All necessary mounting hardware
The Baja Designs Advantage:
- Satisfaction Guarantee - 30-Day Money Back Guarantee
- Limited Lifetime Warranty - Complete Purchase Protection
- uService - Replaceable Lenses And Optics
- ClearView - All The Light, Right Where You Need It
- MoistureBlock - Waterproof, Rain Proof, Submersible
- CopperDrive - Safely Driving LEDs at 100 percent
- 5000K Daylight - Less Driver Fatigue, Natural Color
- Specifications:
- Brightness (Lumens): 5,921 lm
- Amperage Rating (A): 65W / 4.7A at 13.8V*
- Voltage: Operating White Light Voltage: 10 - 36V; Operating Backlight Voltage: 11-14V
- Description: 9-Colors
- Terminal Connector: Deutsch
- Standards & Compliance:
- Standards/Compliance (Water Resistance): IP69K
- Dimensions:
- Depth (in.): 3.32 Inch
- Height (in.): 3.29 Inch
- Length (in.): 2.84 Inch
