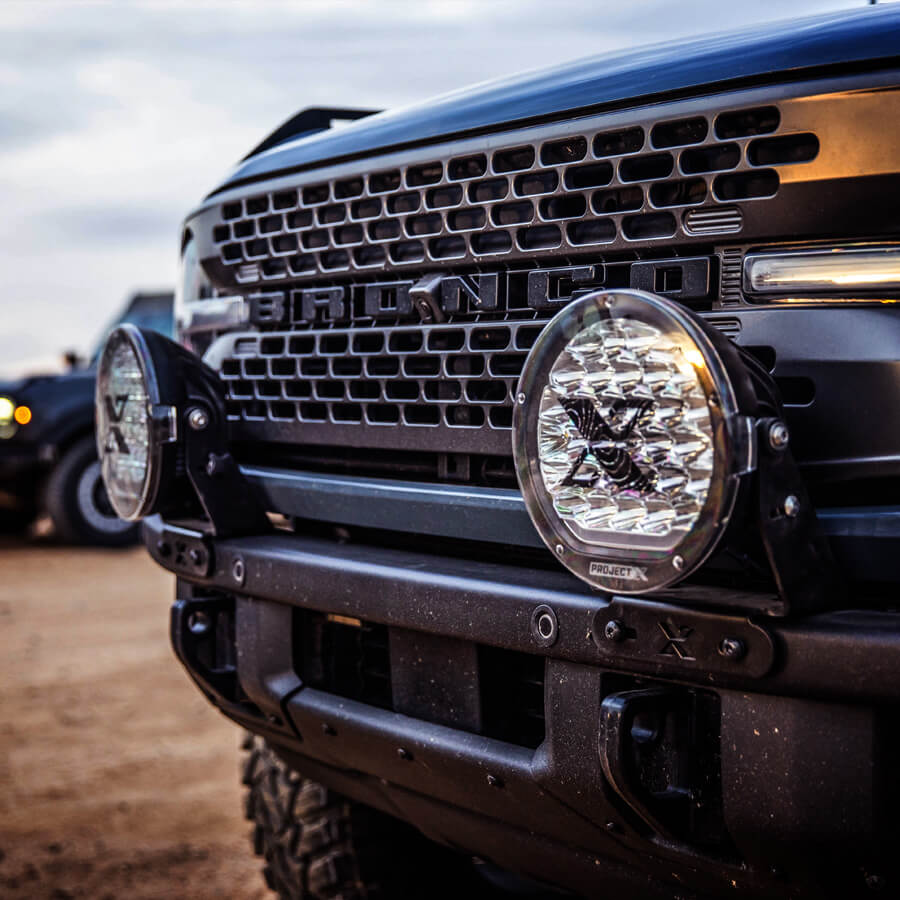

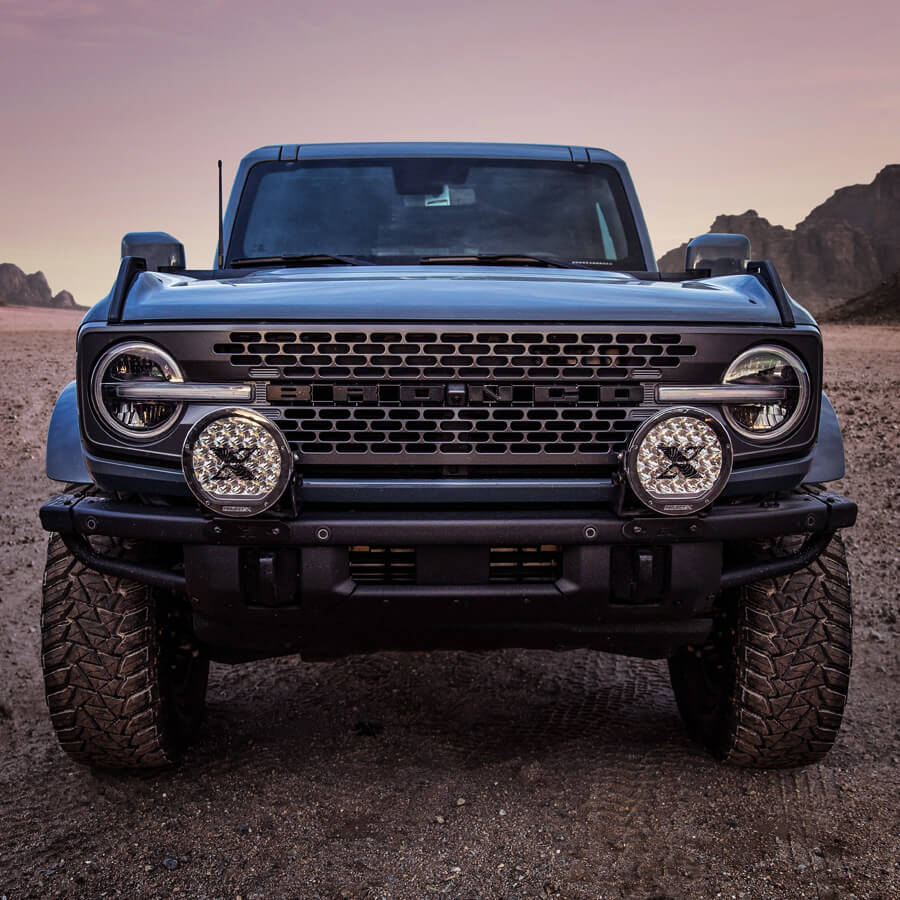

Easy bolt-on solution for installing two Series X HP.85 lights on your 2021-Present Bronco modular front bumper using factory accessory ready hardware and mounting locations.

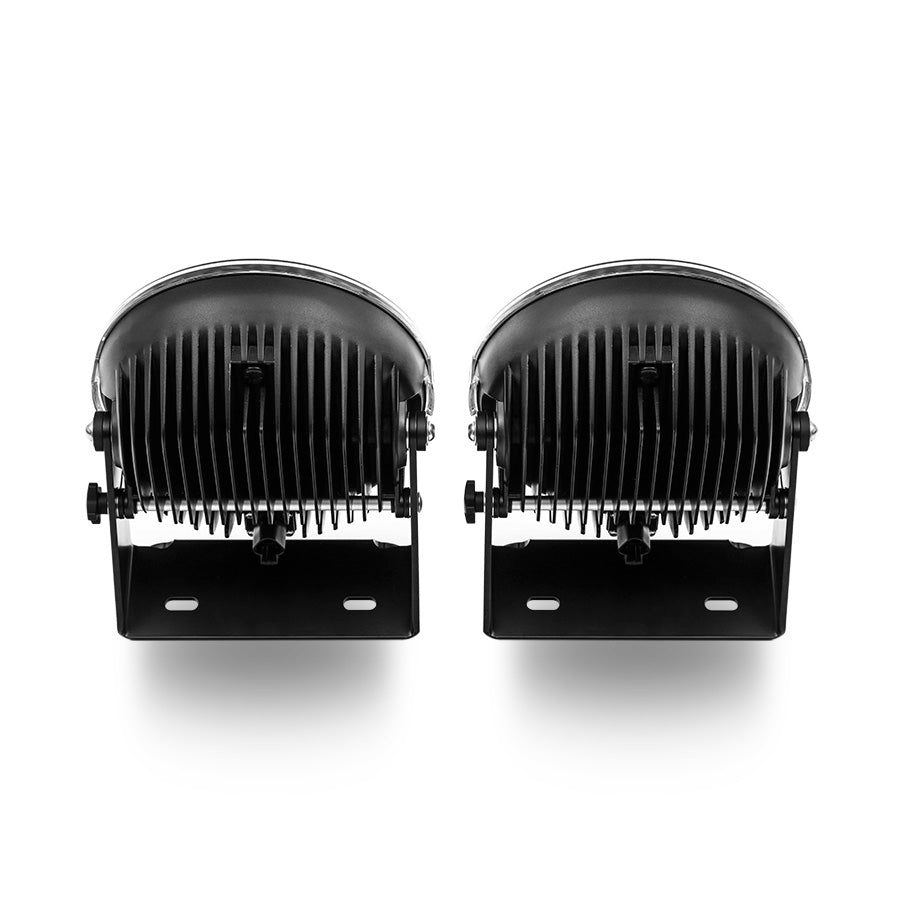

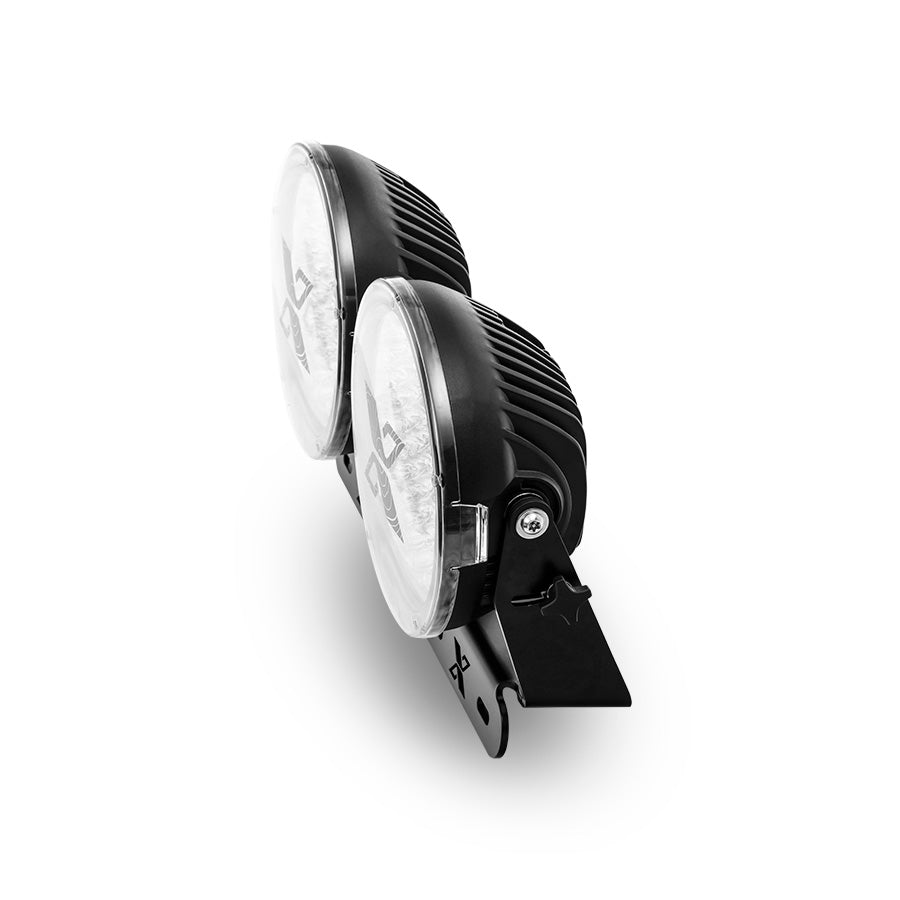

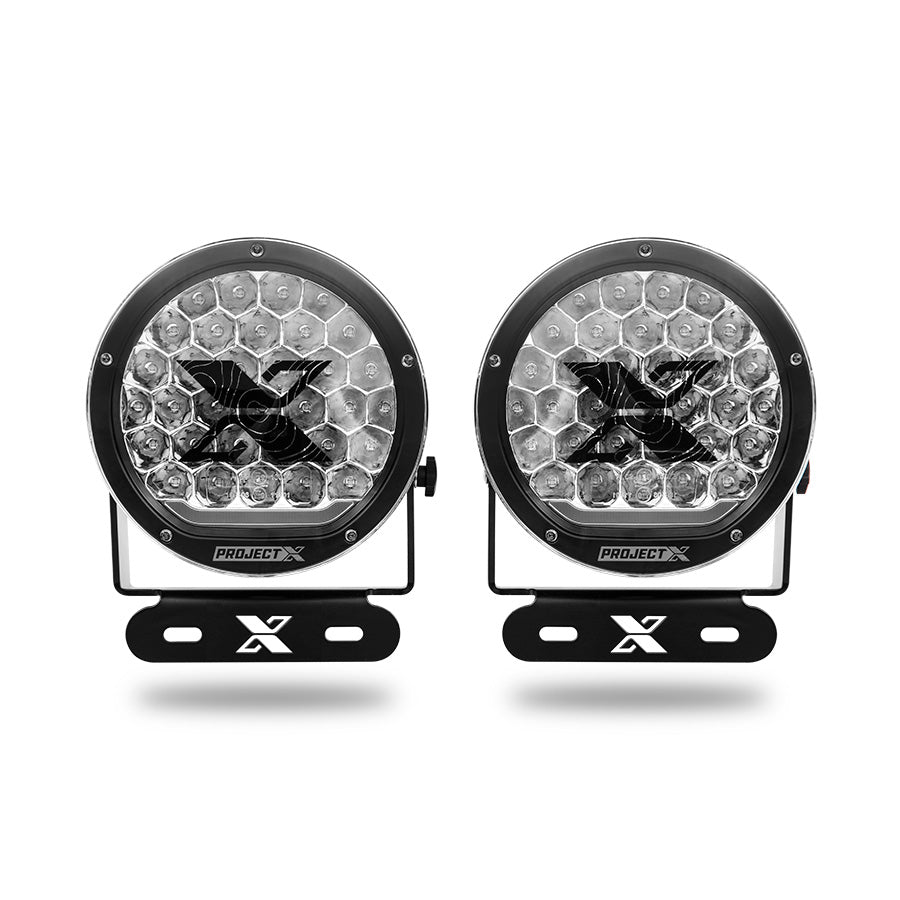

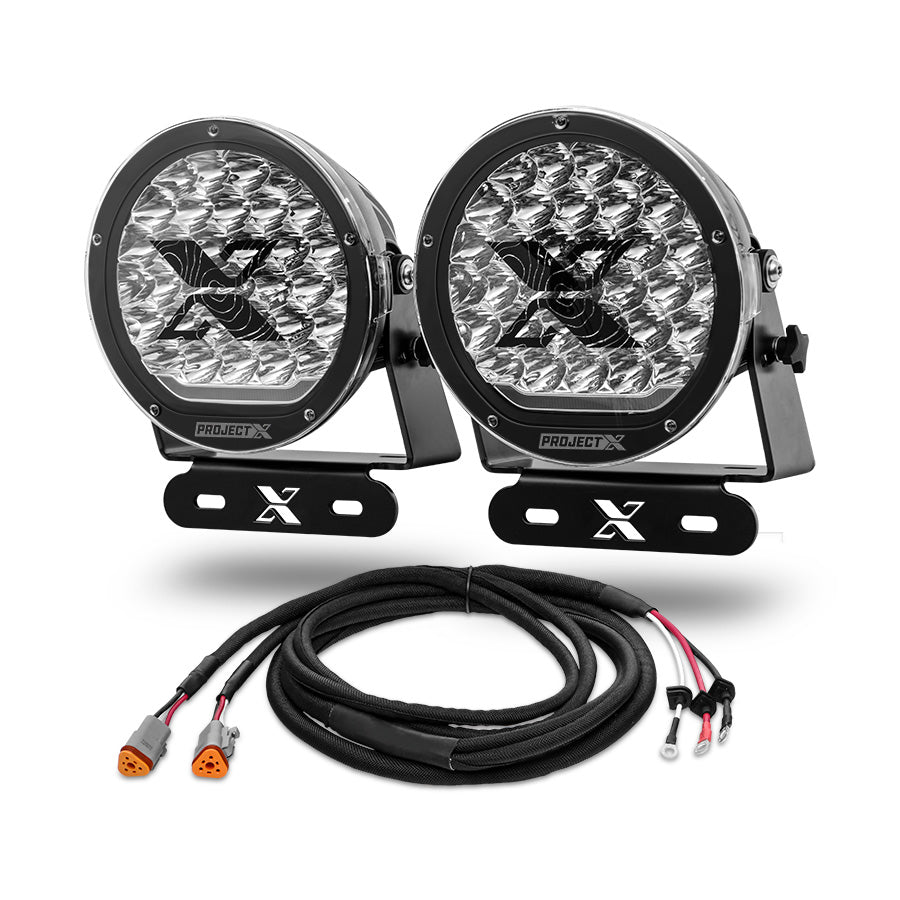

This kit comes with everything you need to get the optimal performance out of Series X HP.85 LED lights totaling 43,560 lumens on the front of your Bronco. The Kit includes two Project X Series X HP.85 Lights, two HP.85 Modular Bumper Brackets, and a wiring harness.
Pair and control your new Bumper kit with our the top-rated 12V Switch Panel, Ghost Box by Project X (Sold Separately). Its wiring made simple, allowing you to quickly and easily install and start managing any 12V circuit. Control the Ghost Box via an optional keypad and/or your mobile device. Each circuit offers constant on, strobe, and dimming functions.
Quickly cycle through the functions in order from a single button, via the app: turn off any functions you don't need and adjust the strobing and dimming. Each Ghost Box also features adjustable low voltage protection and over-current protection. Enhance your 12V experience with Ghost Box.
Application:
- 2021-Present Ford Bronco 2-door w/ Modular Bumper
- 2021-Present Ford Bronco 4-door w/ Modular Bumper
- 2022-Present Ford Bronco Raptor w/ Modular Bumper
- Does not fit Bronco Sport
Features:
Power:
- Input Voltage: 9 - 33V
- LED Power Output: 330W
- Current Draw at 12V: 28.8A
- Power Consumption: 345.6W
- Operating Temp: -40 degrees F to 149 degrees F
- Heat Management: Active Thermal Management System (ATMS)
- Protection: Reverse Polarity, Protection
- EMC: ECE R10
LED:
- LED Type: Osram LEDs
- No. LED's: 33 per Light
Lumens:
- Color Temp: 5700 degrees K
- Color Rendering Index: 72
- Raw Lumens: 43,560
- Effective Lumens: 30,820
- Candela: 1,129,624
- Beam Length (1 lamp): 1 lux at 1443 Feet
- Beam Length (2 lamps): 1 lux at 2034 Feet
- Beam Width (1 lamp): 1 lux at 147 Feet
- Beam Width (2 lamps): 1 lux at 206 Feet
Construction:
- Mount Material: 304 Stainless Steel
- Mount Coating: Black Powder Coat
- Light Housing: Pressure die-cast aluminum
- Lens: Hard coated Polycarbonate
- IP Rating: IP66 and IP67
- Includes: Mount, Two-HP.85, Hardware and Wiring Harness
