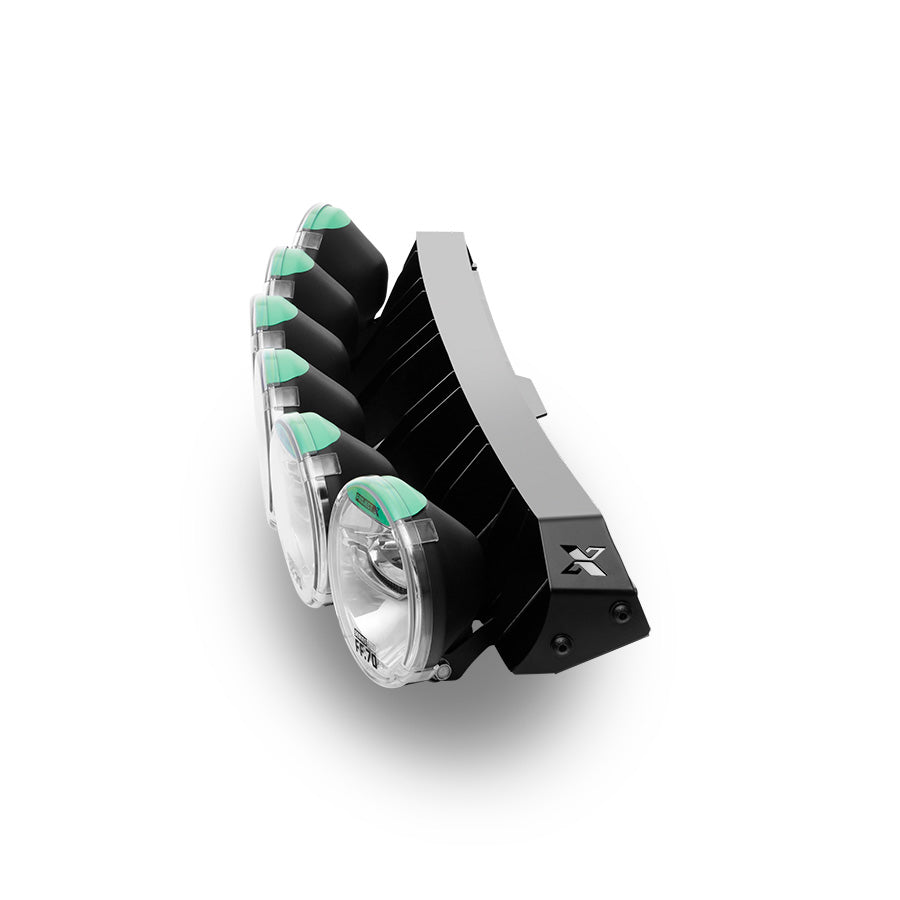

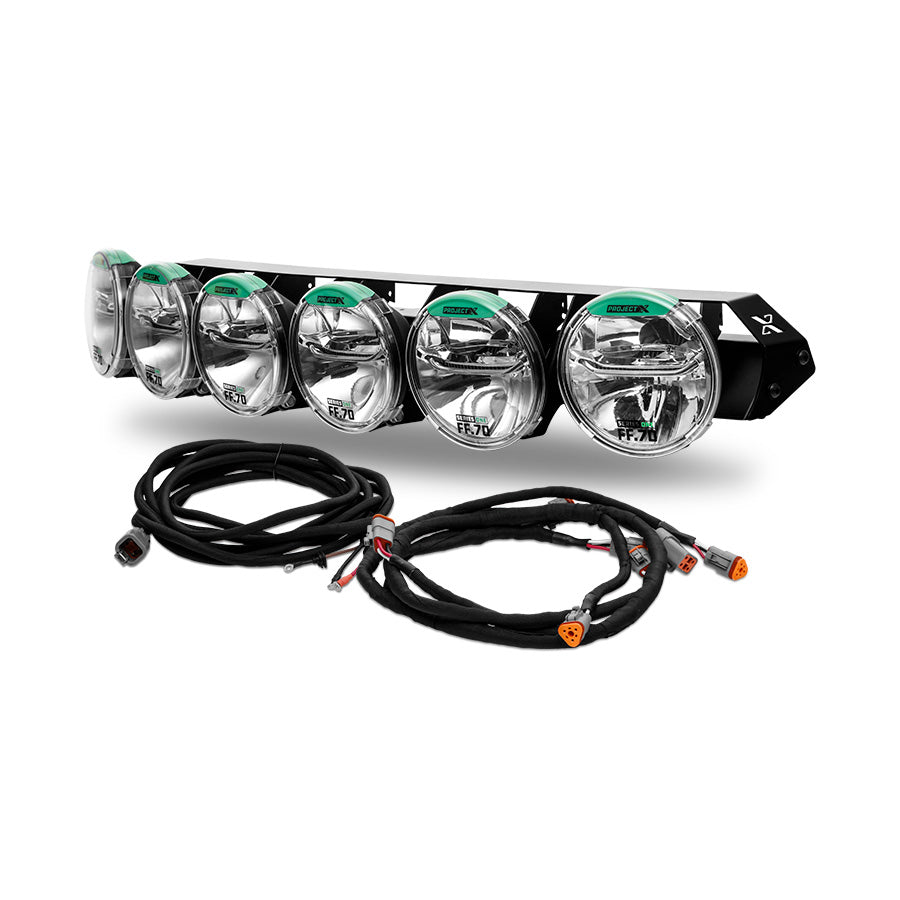

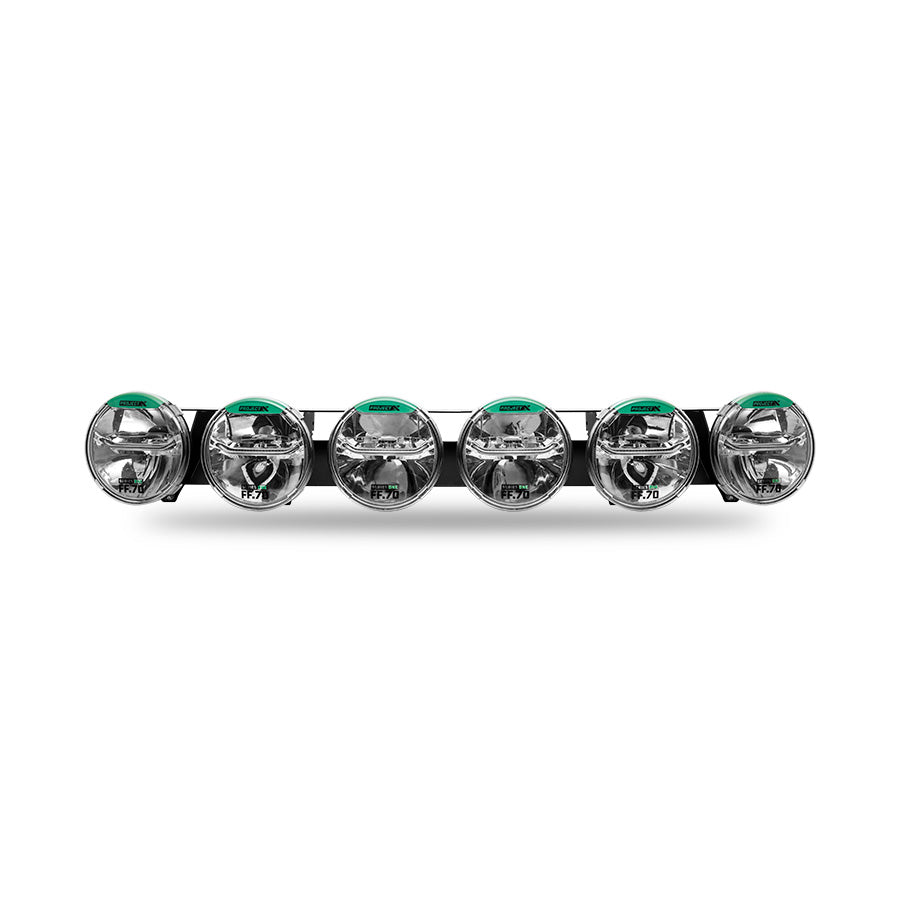

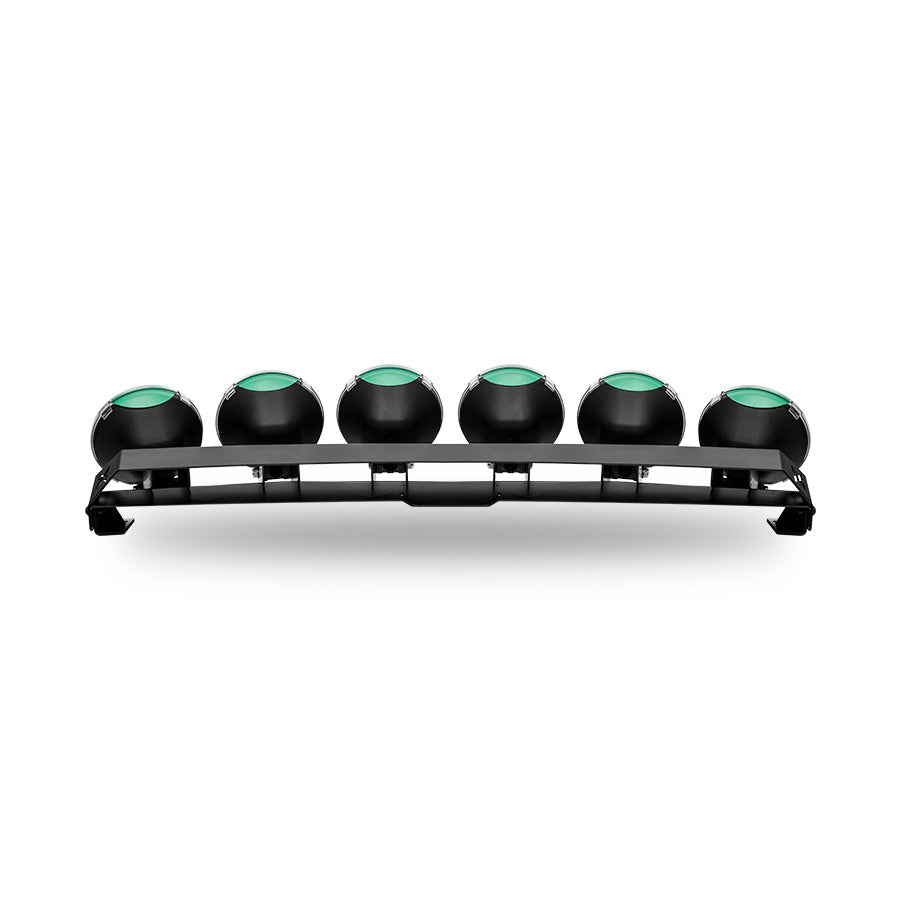

The Ultimate 2021-Present Bronco LED Roof Bar package! This kit contains our bolt-on roof bracket, six Series One FF.70 Lights, our 6-into-1 roof bar harness, including all hardware and accessories. Everything you need for maximum forward-facing light output from your Bronco's roof.
Transform your 2021-Present Ford Bronco's night-time trail-riding experience with the Project X Series One 2021-Present Bronco Roof Light Bar Kit. This comprehensive package is specifically designed to enhance your vehicle's forward-facing light output, combining modern power with a classic aesthetic.

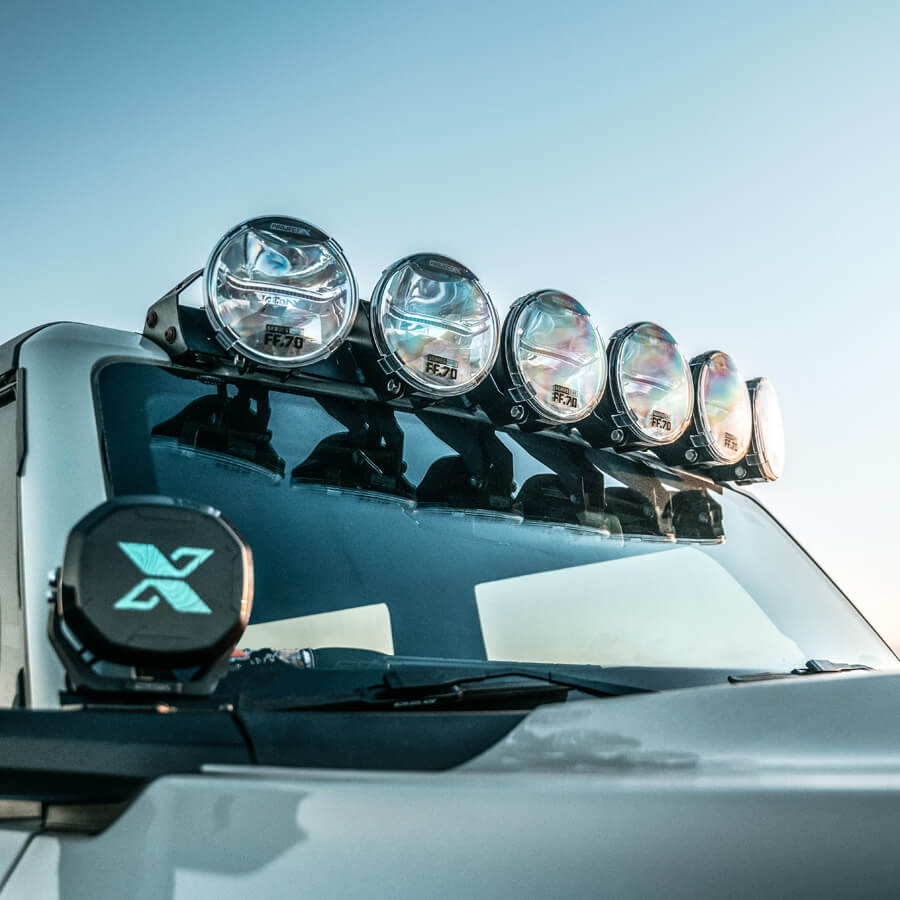

Ideal for Bronco owners looking to upgrade their off-road lighting setup, this comprehensive solution combines ease of installation, powerful illumination, to elevate your off-road experience. We engineered our brackets to pay homage to classic Baja race truck styling, while keeping wind noise to a minimum by keeping the mounting surface below the windshield line.
Pair and control your new Roof Light Bar with our the top-rated 12V Switch Panel, Ghost Box by Project X (Sold Separately). Its wiring made simple, allowing you to quickly and easily install and start managing any 12V circuit. Control the Ghost Box via an optional keypad and/or your mobile device.
Each circuit offers constant on, strobe, and dimming functions. Quickly cycle through the functions in order from a single button, via the app: turn off any functions you don't need and adjust the strobing and dimming. Each Ghost Box also features adjustable low voltage protection and over-current protection. Enhance your 12V experience with Ghost Box.
Application:
- 2021-Present Ford Bronco 2-door
- 2021-Present Ford Bronco 4-door
- 2022-Present Ford Bronco Raptor
- Does not fit Bronco Sport
Features:
Power:
- Input Voltage: 9 - 33V
- LED Power Output: 180W
- Current Draw at 12V: 18A
- Power Consumption: 216W
- Operating Temp: -40 degrees F to 149 degrees F
- Heat Management: Active Thermal Management System (ATMS)
- Protection: Reverse Polarity, Protection
- EMC: ECE R10
LED:
- LED Type: 15W XHP50.2, Cree LEDs
- No. LED's: 2 per Light
Lumens:
- Color Temp: 5000 degrees K
- Color Rendering Index: 70
- Raw Lumens: 22,800
- Effective Lumens: 9,978
- Candela: 1,179,000
- Beam Length (1 lamp): 1 lux at 1443 Feet
- Beam Length (2 lamps): 1 lux at 2034 Feet
- Beam Width (1 lamp): 1 lux at 147 Feet
- Beam Width (2 lamps): 1 lux at 206 Feet
Construction:
- Mount Material: 304 Stainless Steel
- Mount Coating: Black Powder Coat
- Light Housing: Fiber Reinforced Polymer
- Lens: Hard coated Polycarbonate
- IP Rating: IP67
- Includes: Mount, Six-FF.70, Hardware and Wiring Harness
