Important Notes: The nozzle at high-flow fuel stations (truck stops) will not be able to fill automatically.

This tank holds approximately 60 gallons of fuel. The float's empty position in the S&B Tank is the same as the OEM tank. Since the bottom surface area on the S&B Tank is larger, the 60-gallon tank with have a greater fuel reserve.

According to the Ford TSB 17-0046. If your truck has a build date prior to 3-20-17. Replace the fuel Level Sender Resistor Card Assembly with Ford part # HC3Z-9A299-N.

If you purchased this tank prior to 1/1/2024, it won't fit 2023+ High Output models as a revision was made to accommodate the fuel line going to the DPF.

Do you have an Auxiliary Fuel Tank? Read why using these with our tanks will void the Lifetime Warranty.

ALMOST DOUBLES YOUR RANGE.

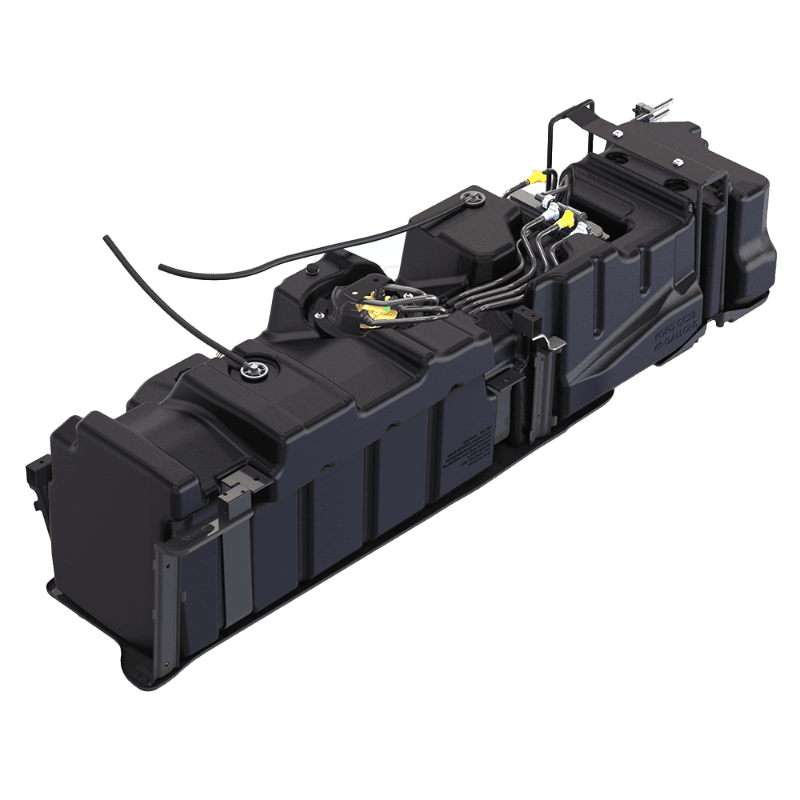

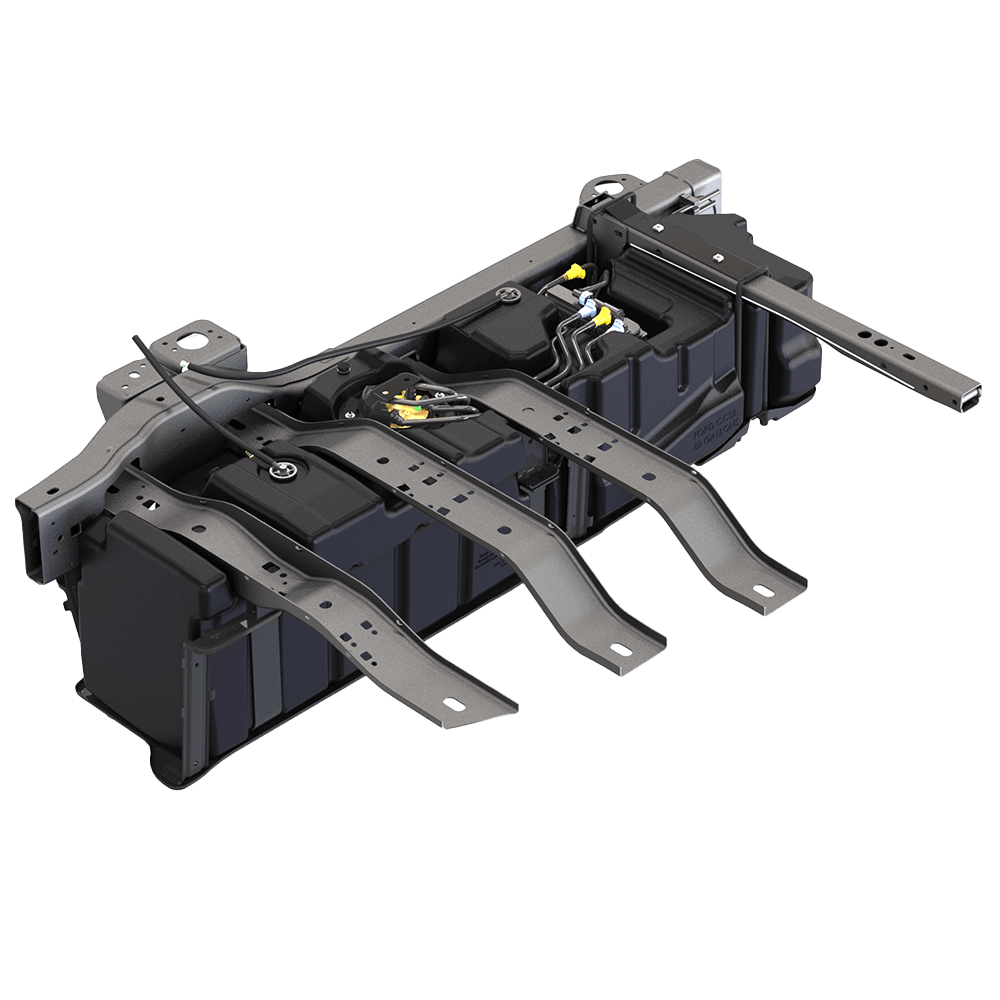

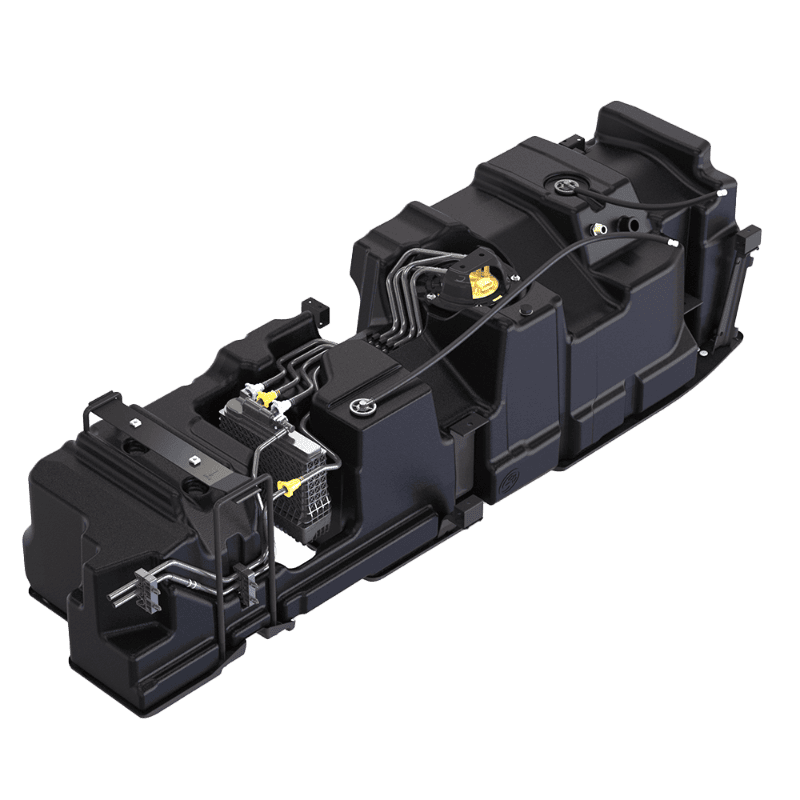

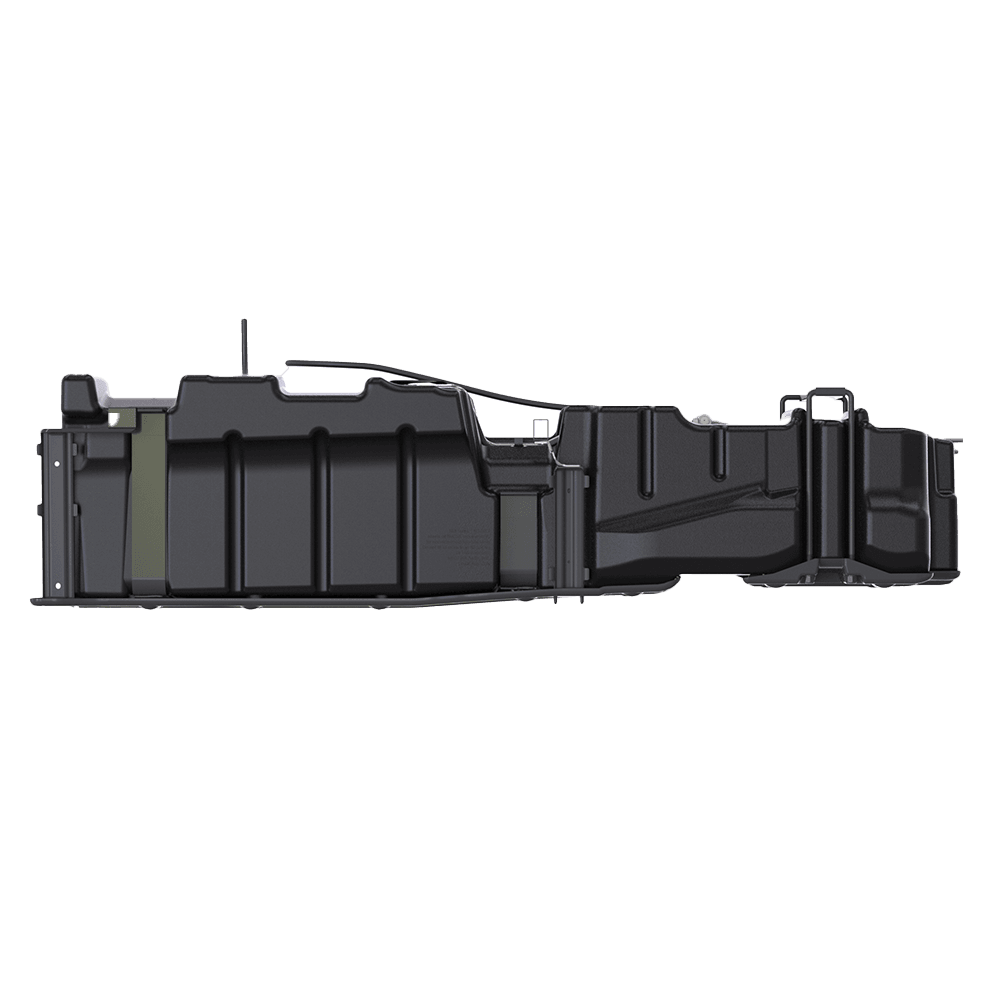

S&B's 60-gallon fuel tank directly replaces the OEM 34-gallon tank without any cutting, drilling, or special modifications. This makes for a trouble-free, faster installation process. S&B's replacement fuel tank holds 5 more gallons than competitor tanks, allowing you to save time, go further, and get more out of your truck! Go big or go home!

EASY RECALIBRATION FOR DISTANCE TO EMPTY

We offer a free service to update the computer in your truck so the Distance to Empty (DTE) displays the accurate range. This works for 2011-2022 Ford trucks. For '23+ Ford Super Duty trucks, we offer TI1532-00 .

COMPATIBLE WITH THE OE SKID PLATE.

If you don't have a skid plate on your truck already, no problem! But if you do, unlike other competitor tanks, we designed the S&B Tank to allow you to reuse the factory skid plate. We also designed a smaller, factory style skid plate to cover the front of the larger S&B Tank.

AFTERMARKET LIFT PUMP

S&B Tanks work with OEM and aftermarket lift pumps. Aftermarket lift pumps(FASS & Airdog) provide more fuel to your diesel engine but face issues at a 1/4 tank fuel level. The S&B Sending Unit allows you to drive to empty with your aftermarket lift pump. Completely plug and play, with no need to modify your OEM tank or sending unit.

23+ Ford Super Duty Product Lineup

Take a closer look at S&B’s full lineup of performance upgrades for the 2023+ Ford Super Duty trucks. In this video, we showcase our top-selling products built to increase airflow, extend range, increase towing and overall reliability.

Featured S&B products include: 10-1004 – 60 Gal. Fuel Tank (current page) 75-5140 – Cold Air Intake Kit 71-1000 – Low-Profile Valance 102101 – Torxz Traction Bar Kit 83-1001 – Cold Side Intercooler Pipe

See What Others Are Saying

This video highlights the benefits of the S&B 60-Gallon Fuel Tank, including extended driving range, easy installation, and the convenience of fewer fuel stops for towing and long trips.

More Range = Less Stops = More Fun

See what our friends over @Keep Your Daydream on YouTube had to say about our 60 Gallon High Capacity Fuel Tank for the 2017 - 2026 Ford Super Duty 6.7L Powerstroke trucks.
