Description

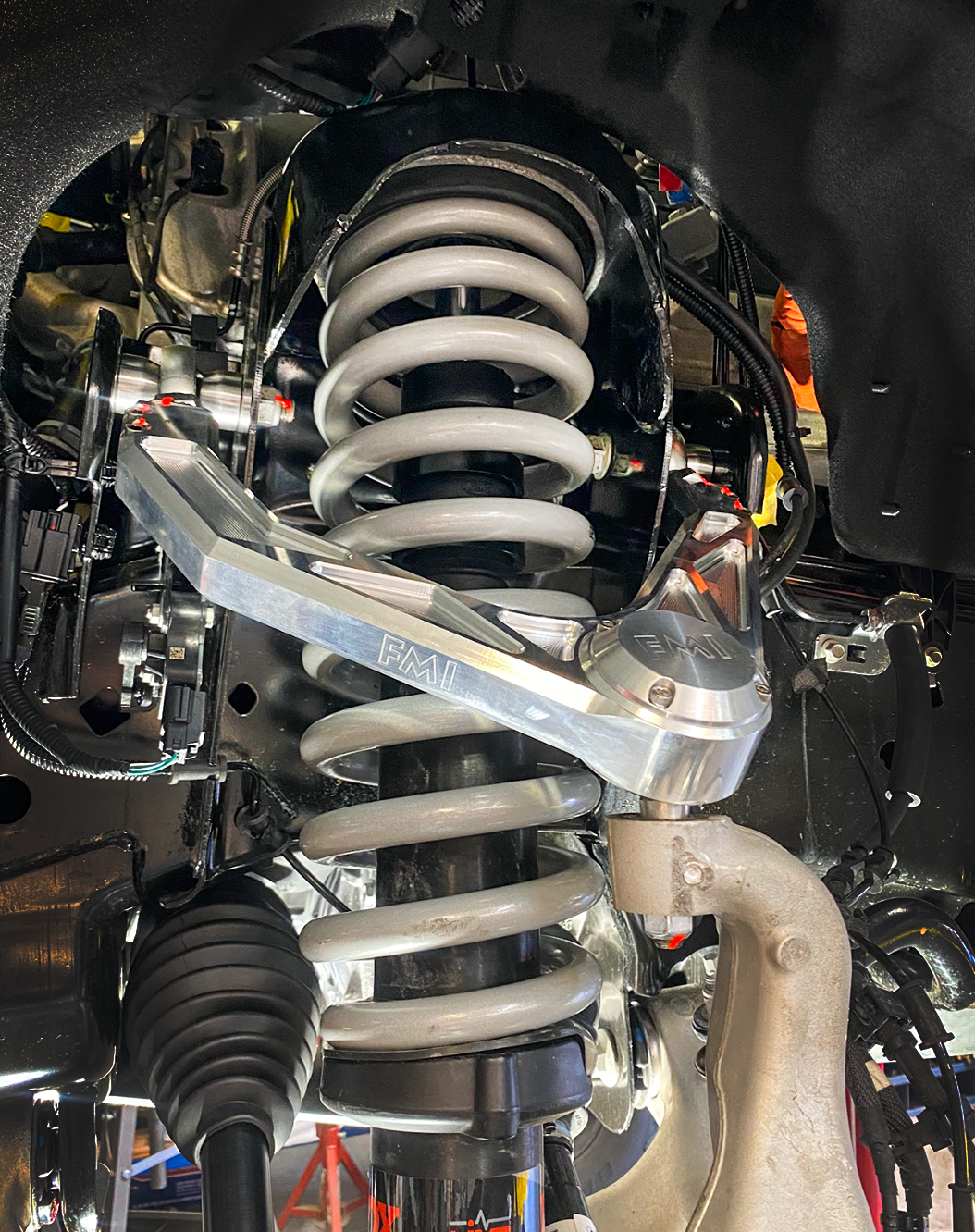

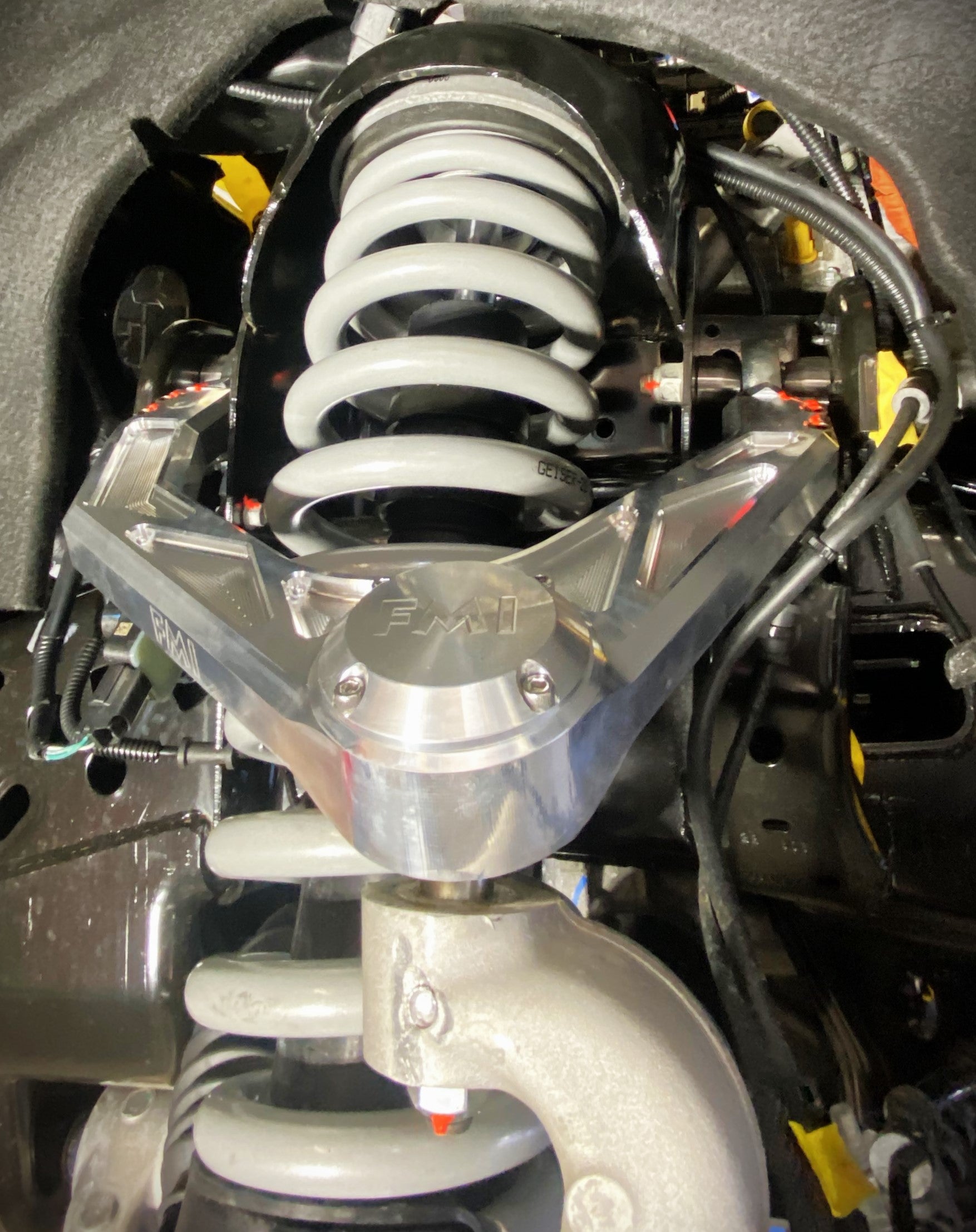

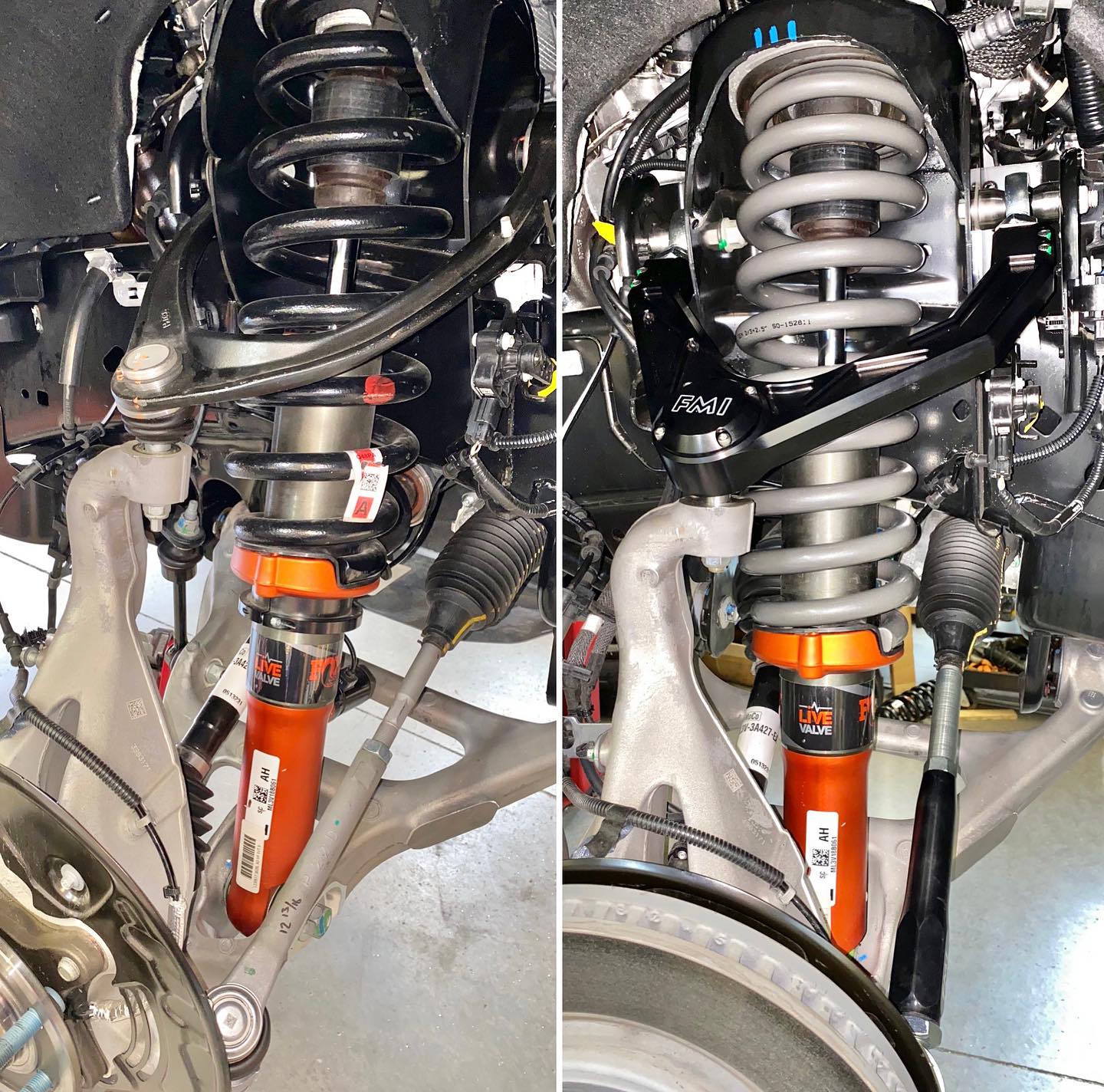

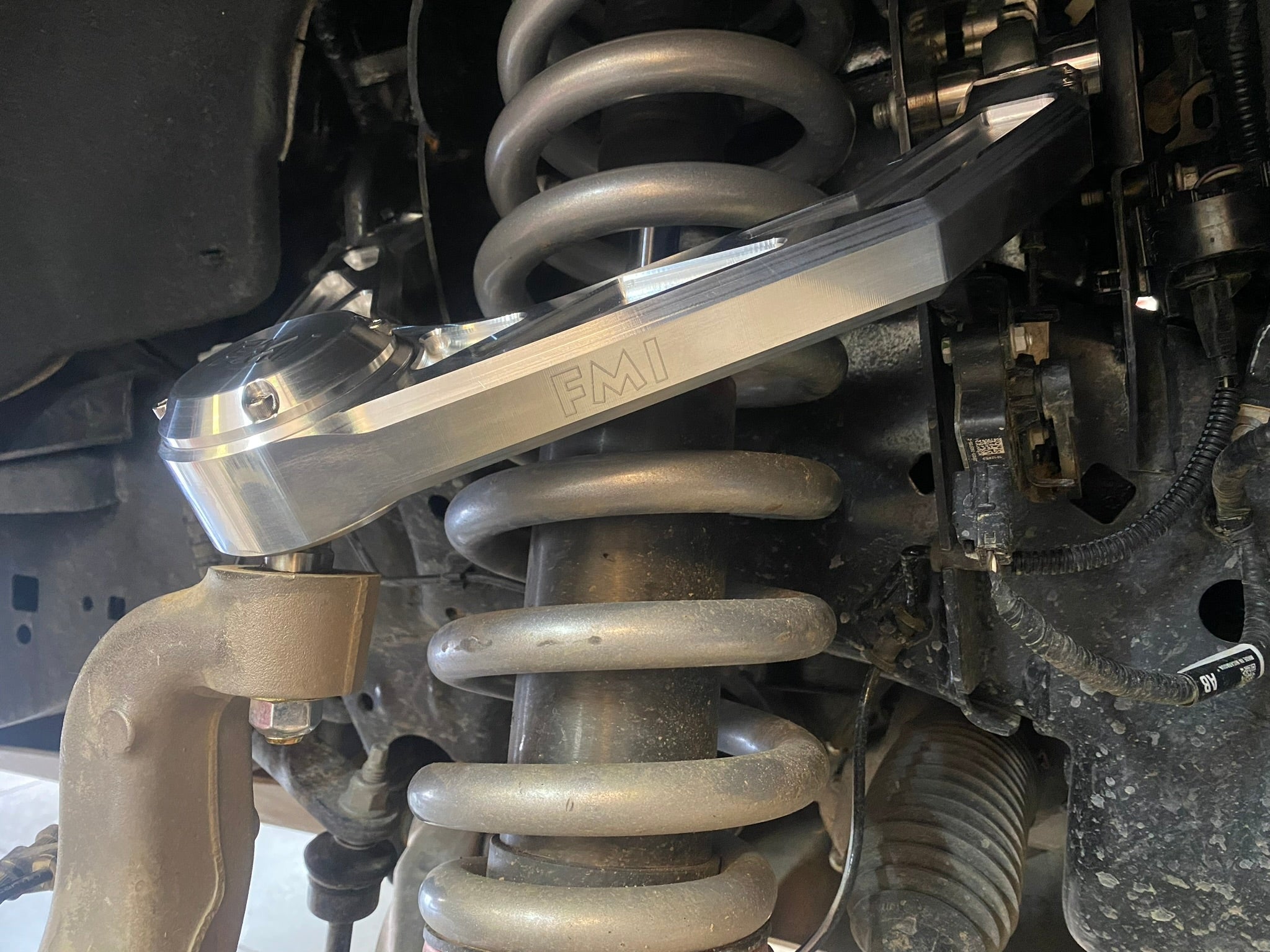

A stock-length billet aluminum upper control arm kit for the Ford F-150 Raptor R, designed to bolt on with the factory spindle. Each arm is CNC machined from billet aluminum at our Mesa, Arizona facility and runs a 1.25" FK uniball at the spindle and 7/8" FK rod ends at the frame.
The upper control arm locates the top of the spindle, so its joints decide how precisely the front wheel holds its alignment when the suspension is loaded. This kit puts a uniball and rod ends at those pivots and makes caster and camber adjustable at the frame mounts, without changing arm length.

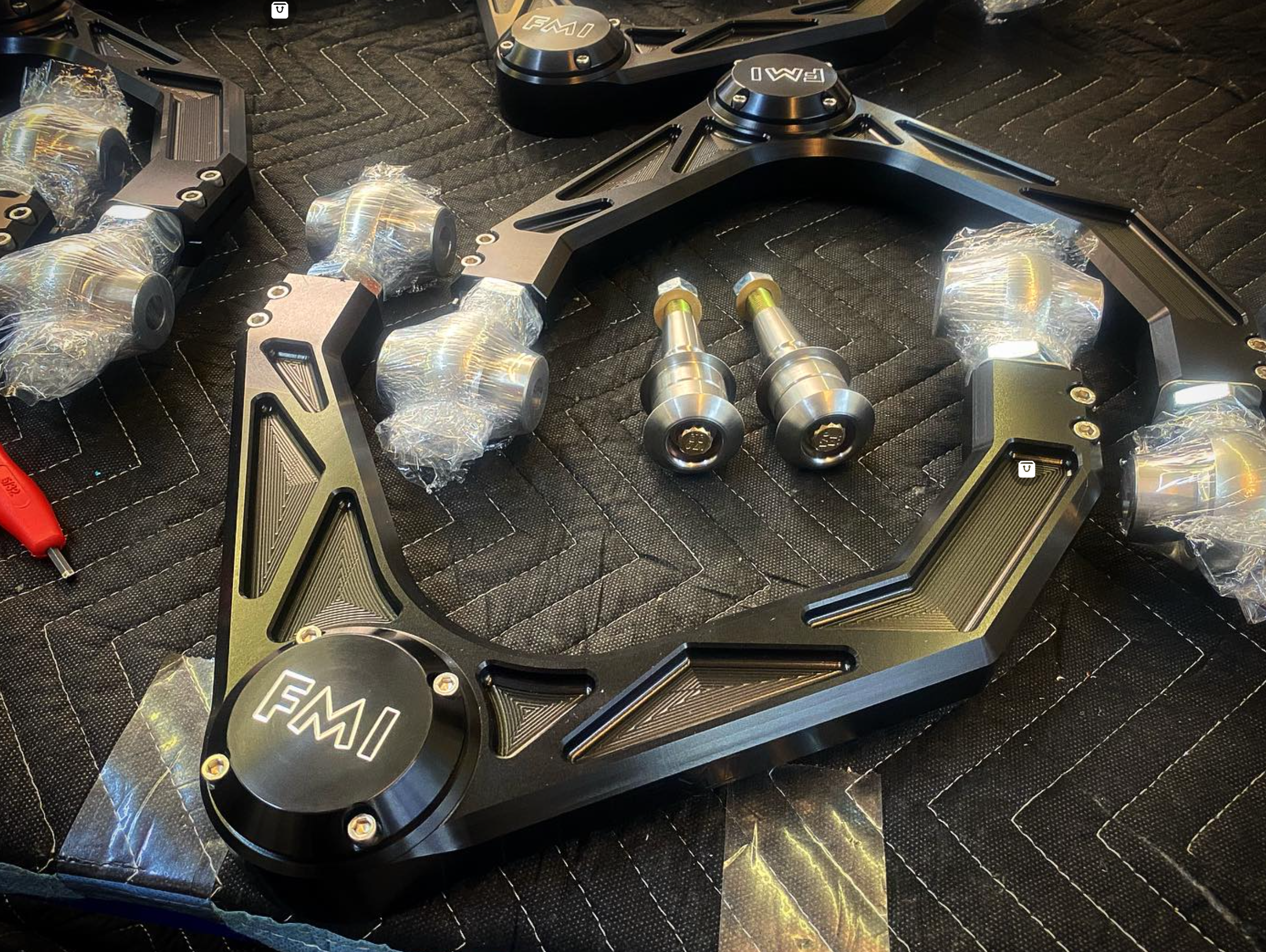

What Is In The Kit

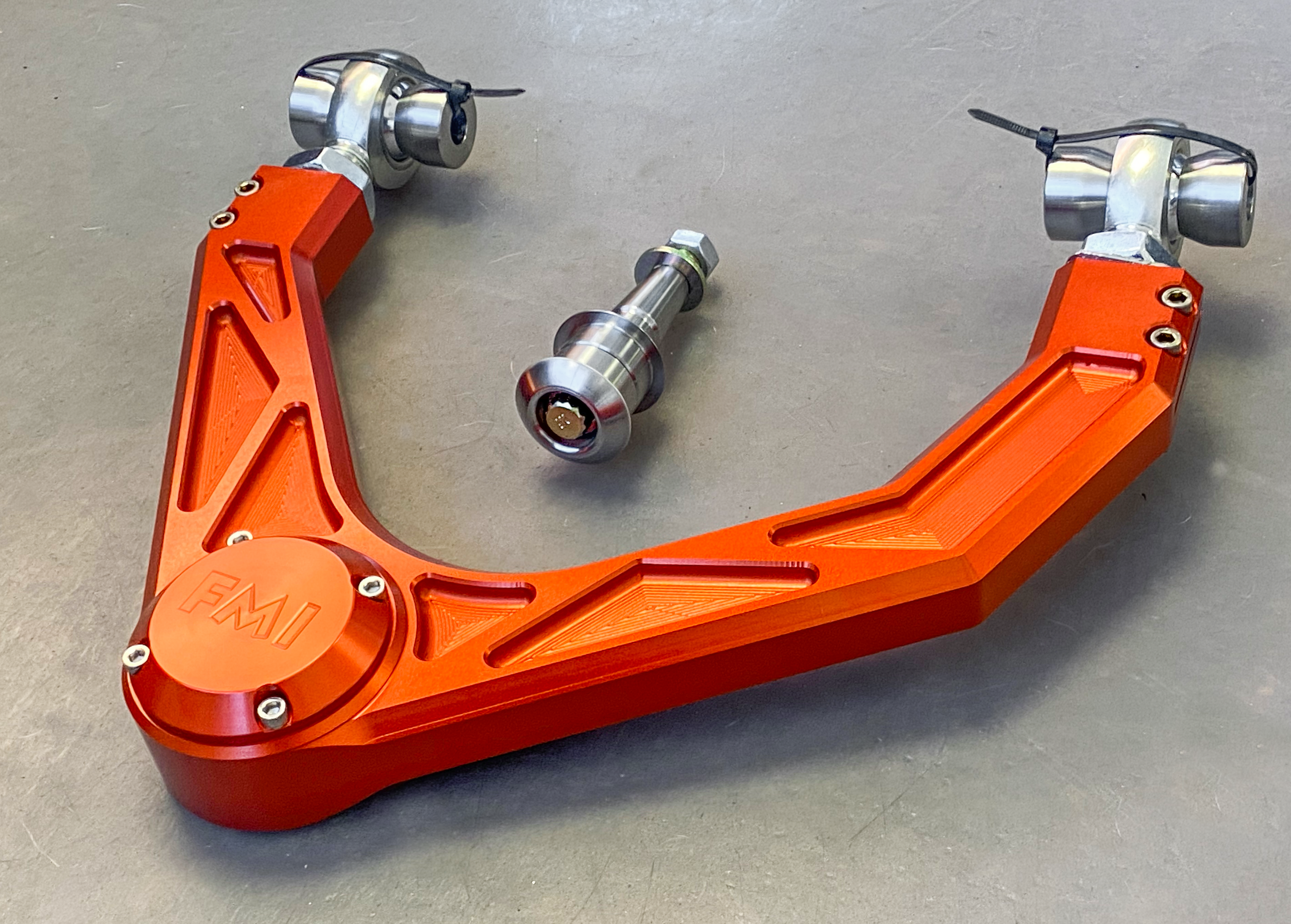

- 1 right side and 1 left side billet aluminum upper control arm
- 7/8" FK rod ends at the frame mounts, with 17-4 stainless steel spacers
- 1.25" FK uniball at the spindle, with 17-4 stainless steel spacers
- 2 FMI billet bearing caps
- 1 hardware kit

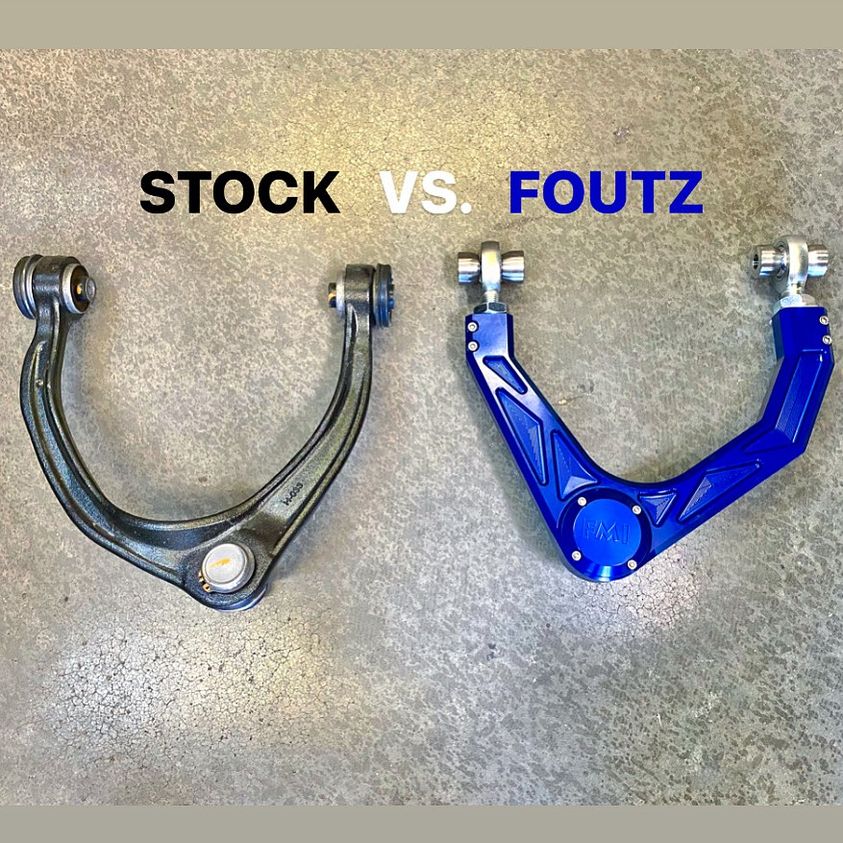

Why Billet Upper Arms
Every bump, landing and hard corner pushes on the upper control arm. Any movement in its joints shows up as the wheel changing angle when you do not want it to. A uniball at the spindle and rod ends at the frame give each pivot a defined, solid joint.
The rod ends at the frame also make the arm fully adjustable for caster and camber, so the front end can be set up for how the truck is actually driven instead of living with a fixed geometry.
Because the kit is stock length and works with the factory spindle, you get those changes without stepping into a longer-travel front end.

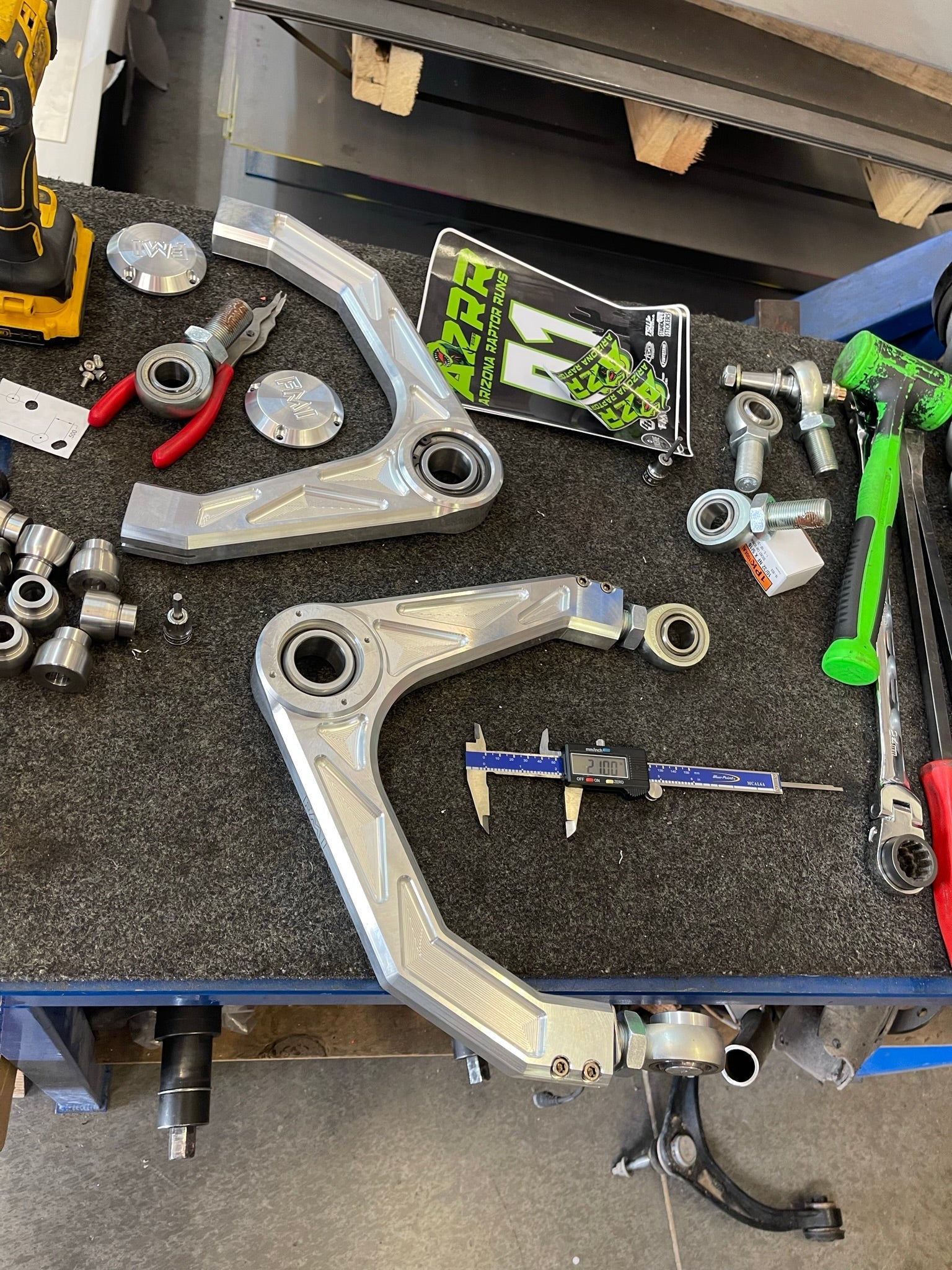

How It Is Built
- Billet aluminum arms, each CNC machined at the Foutz Motorsports facility in Mesa, Arizona.
- 1.25" FK uniball at the spindle.
- 7/8" FK rod ends at the frame mounts, which is where caster and camber are adjusted.
- 17-4 stainless steel spacers for every uniball and rod end, machined for durability and strength.
- FMI billet bearing caps, one per arm.
Made in the USA.
Fitment
Fits the Gen 3 Ford F-150 Raptor R, model years 2023–2026.
Stock length, designed to work with the factory spindle. This is not a long travel arm.

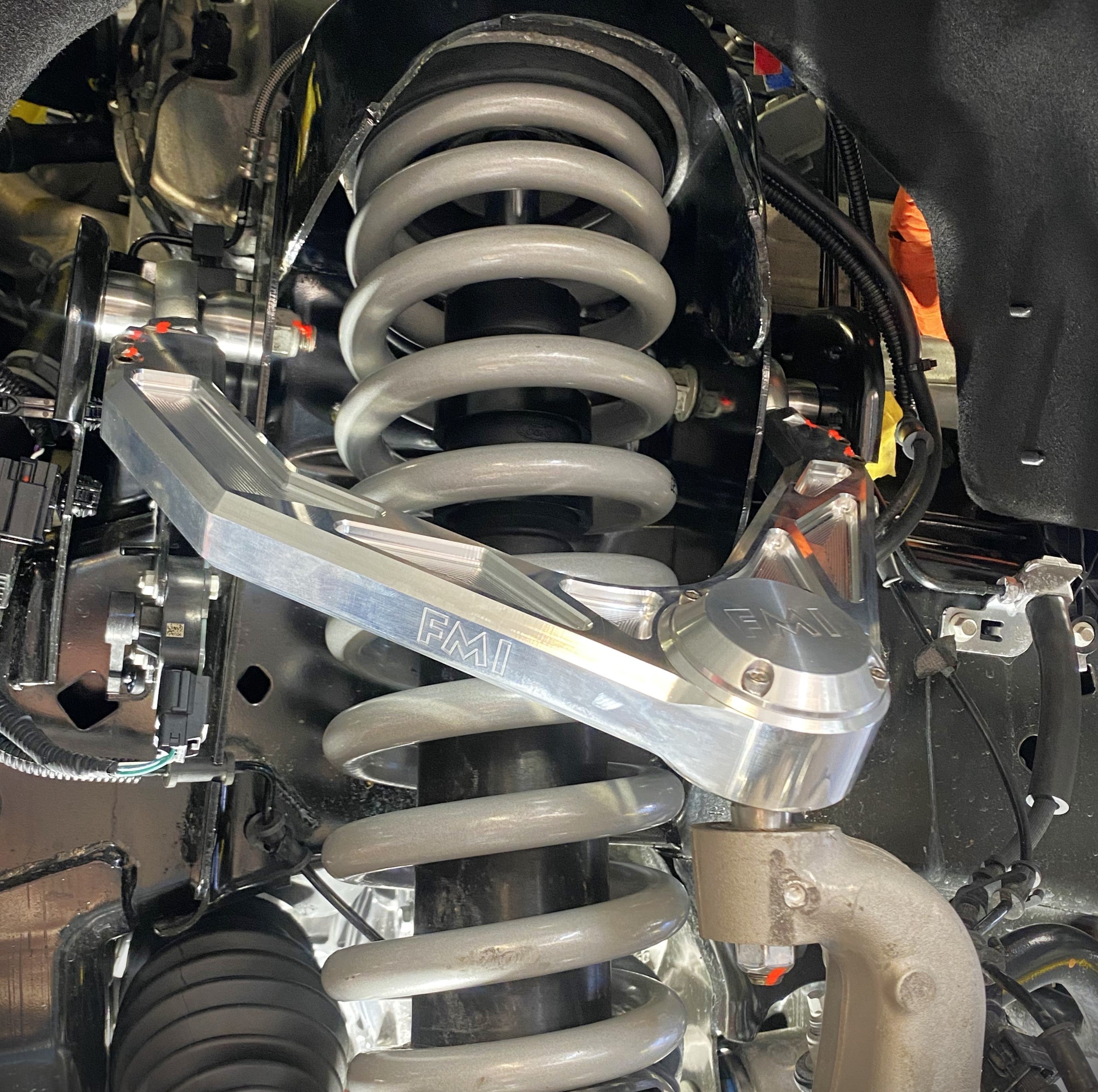

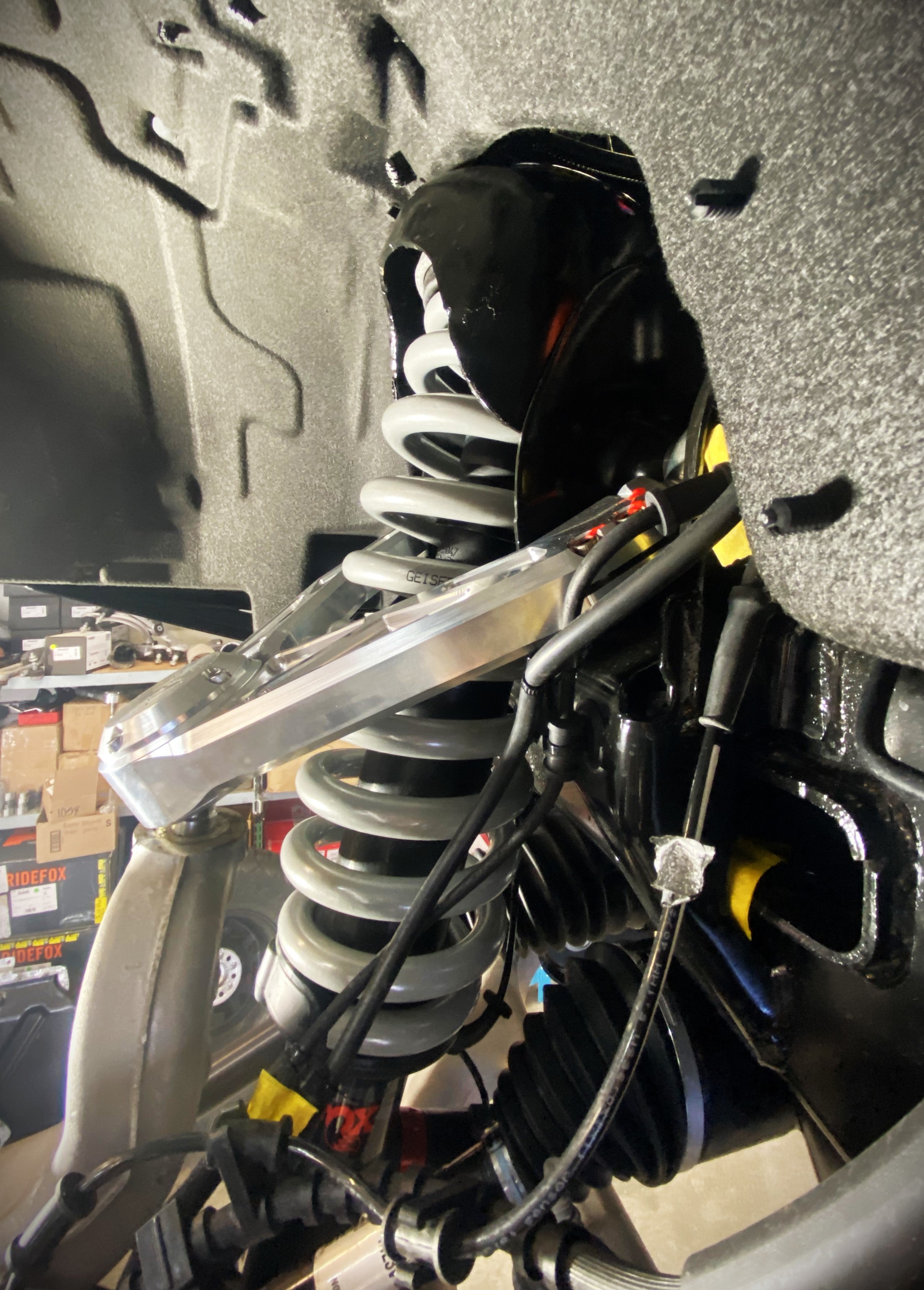

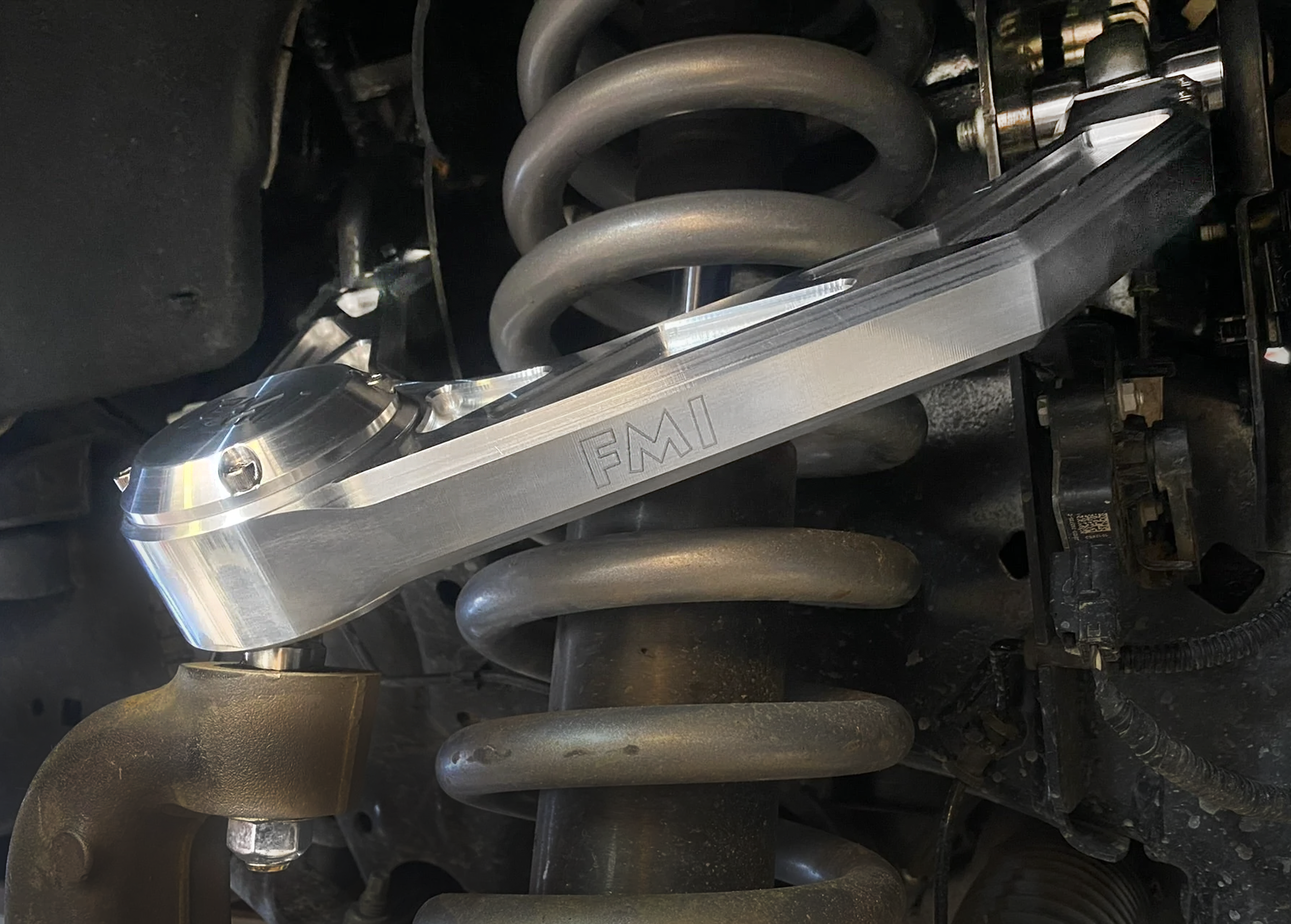

Installation
A direct bolt-on part, designed around the stock spindle, with the hardware kit included. Caster and camber are set at the rod ends on the frame side of each arm, so plan to set them as part of the front-end alignment.

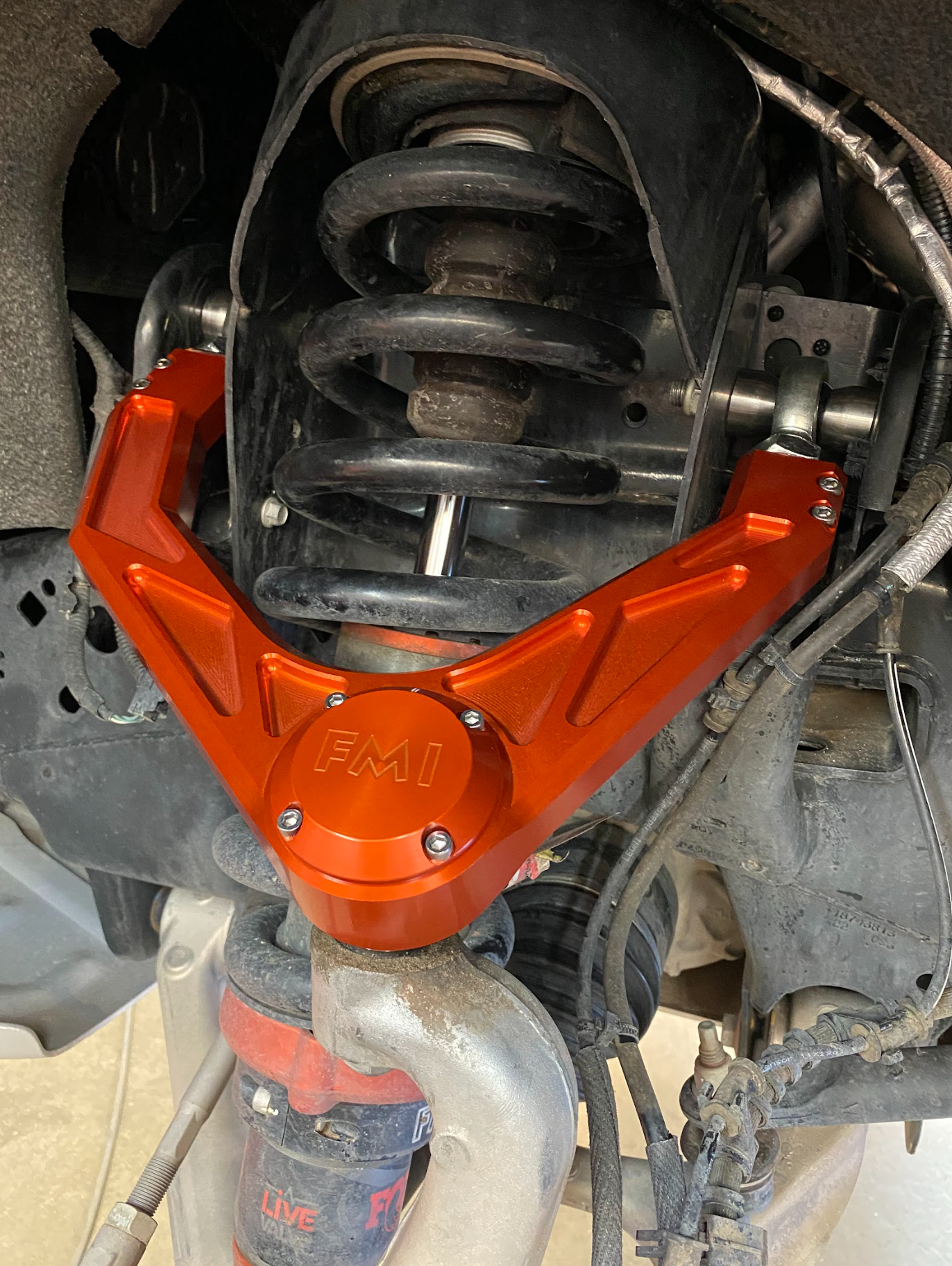

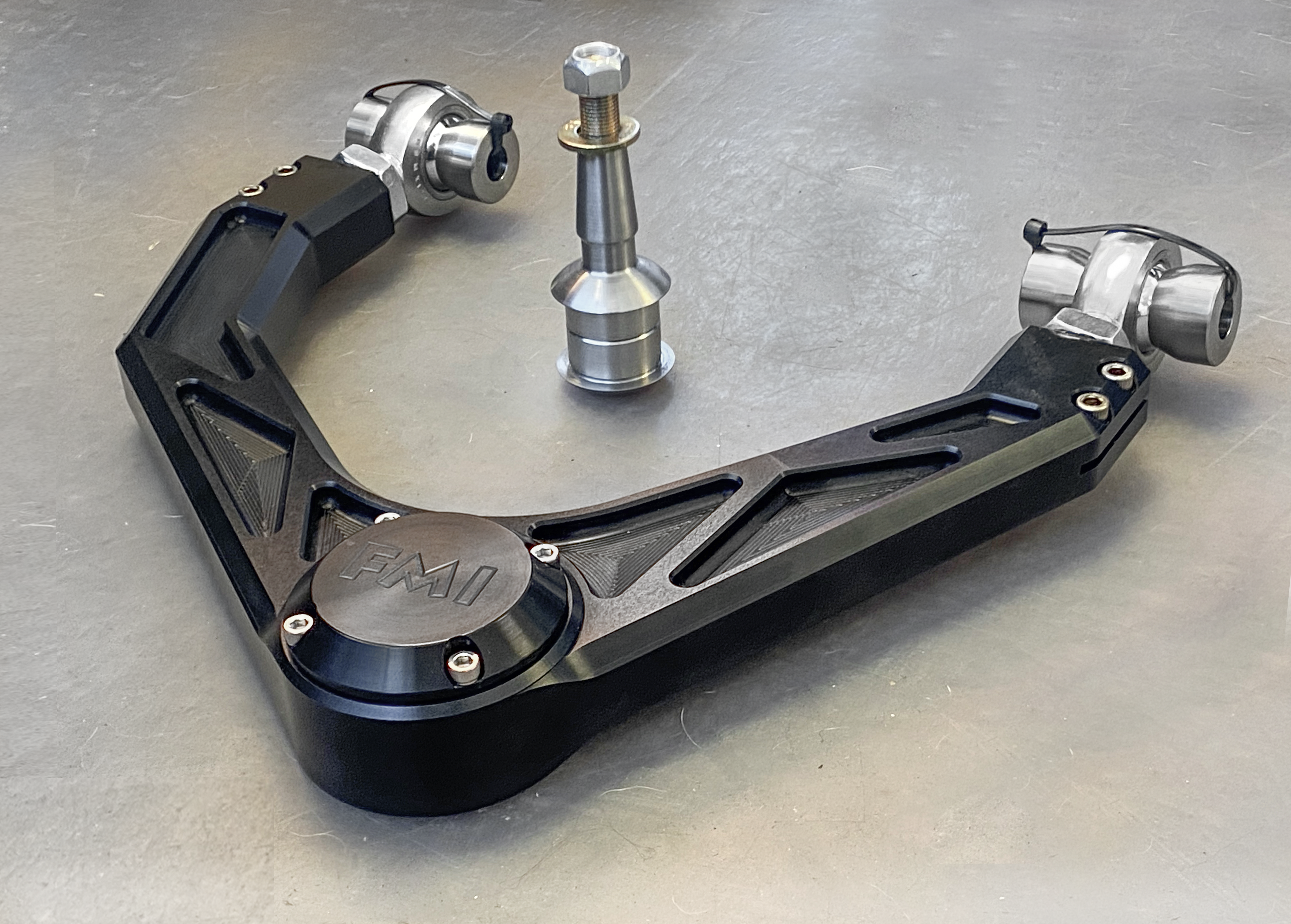

Finishes

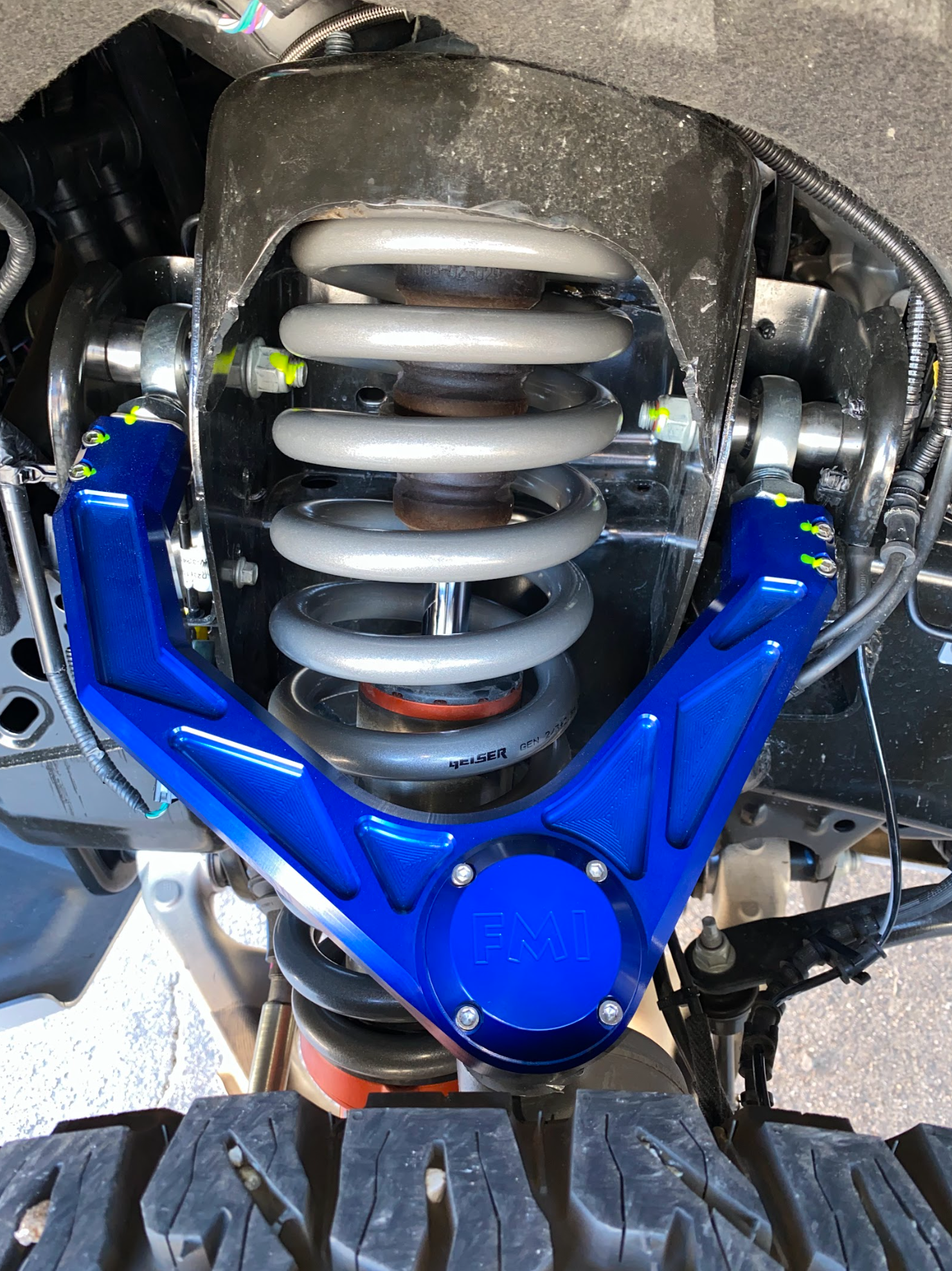

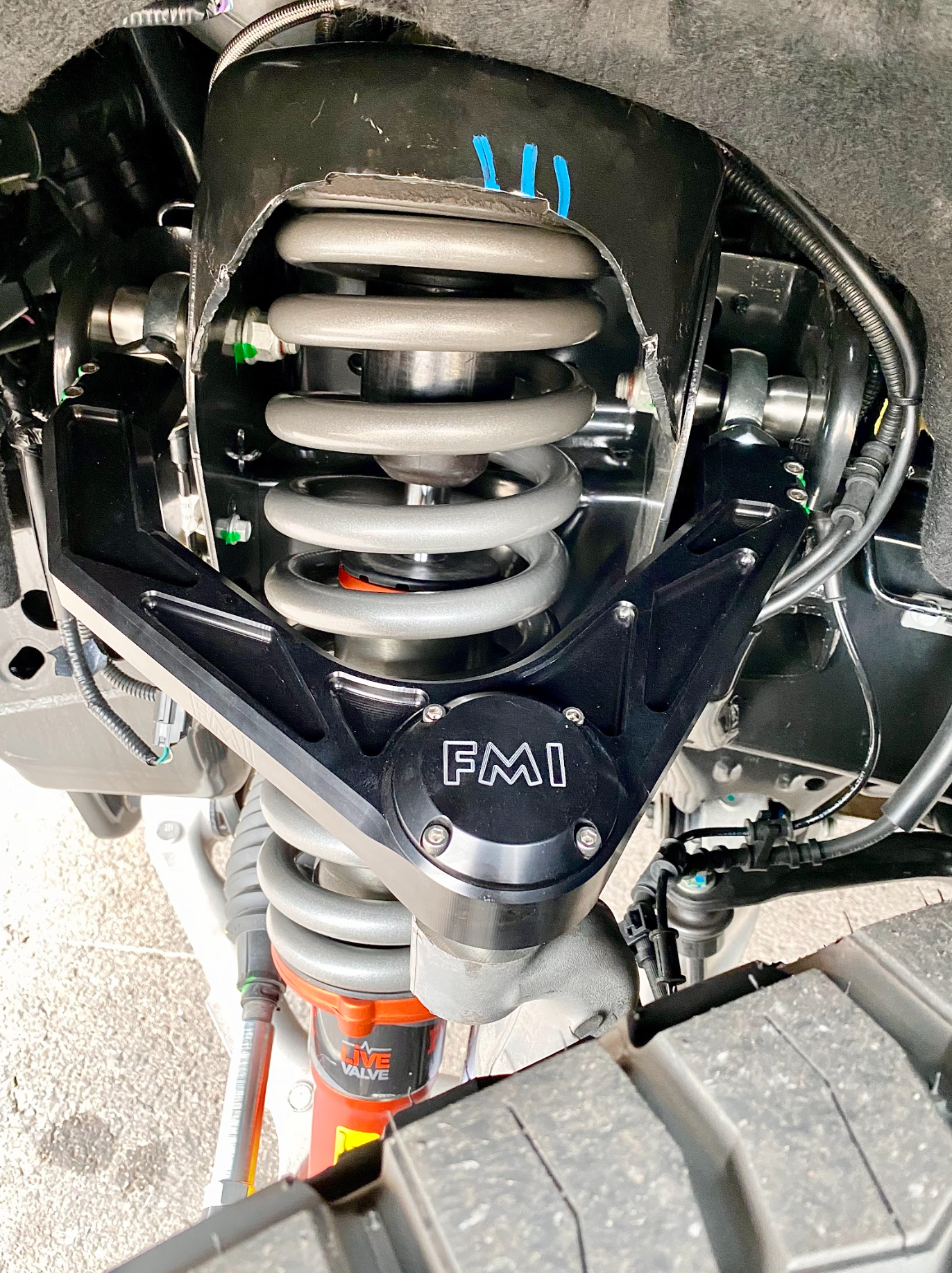

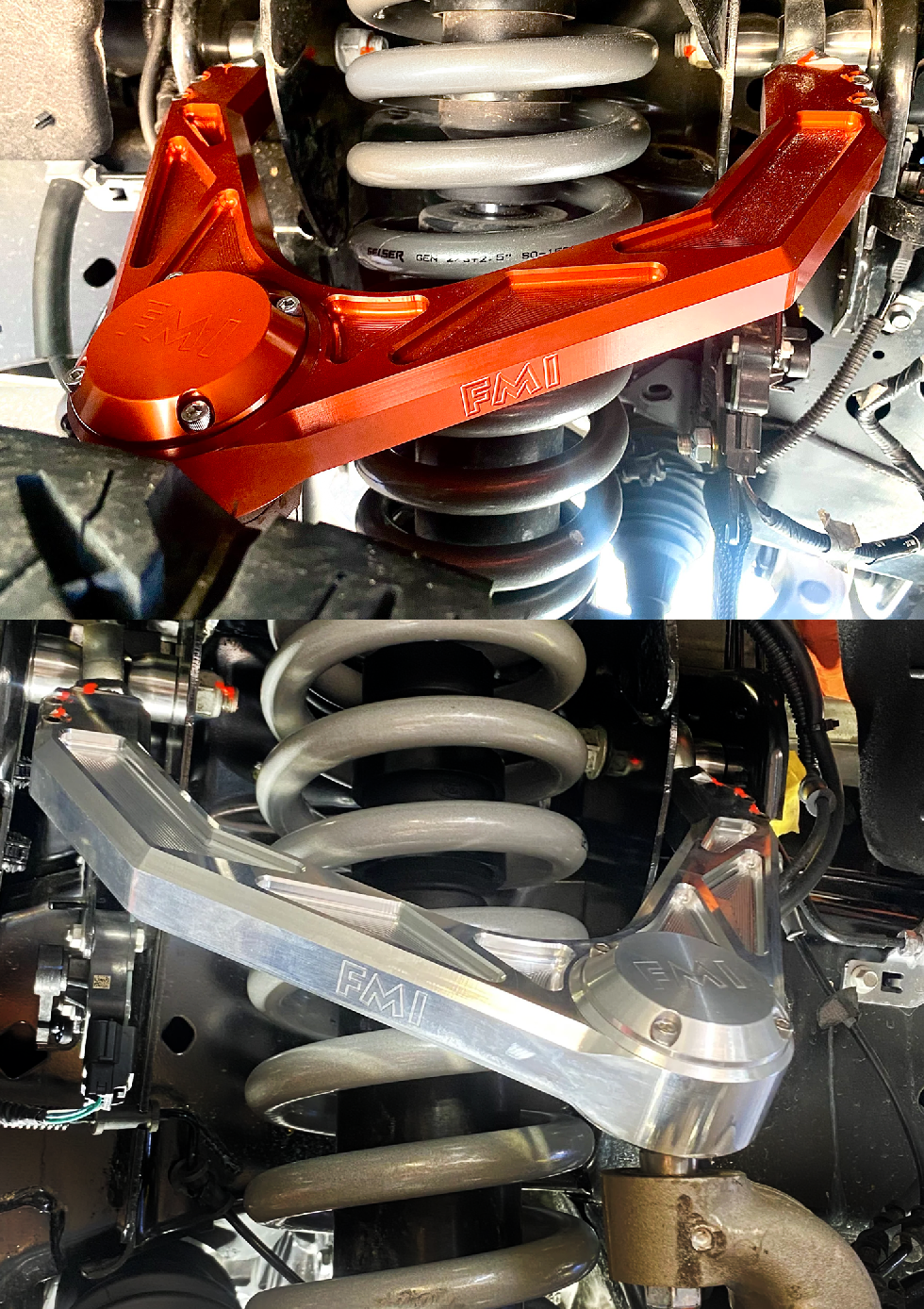

Four options: raw billet aluminum, black anodized, FOX orange anodized and blue anodized.
Questions
Does this work with the factory spindle?
Yes. The arm is designed to work with the stock spindle and bolt directly on.
What joints does it use?
A 1.25" FK uniball at the spindle and 7/8" FK rod ends at the frame mounts, all with 17-4 stainless steel spacers.
Can I adjust caster and camber?
Yes. The arm is fully adjustable for caster and camber through the rod ends at the frame.
Is this a long travel arm?
No. It is stock length.
Where is it made?
CNC machined from billet aluminum at our facility in Mesa, Arizona, USA.
