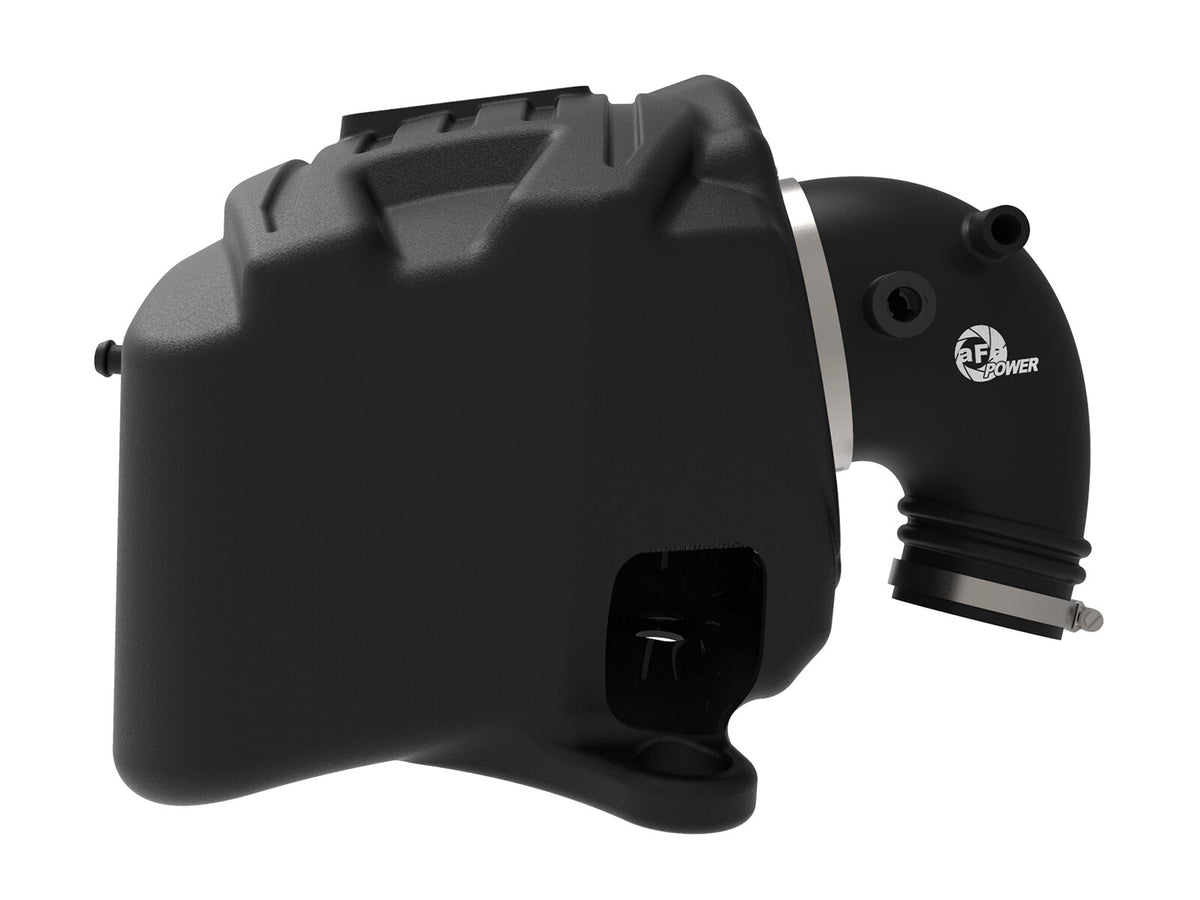

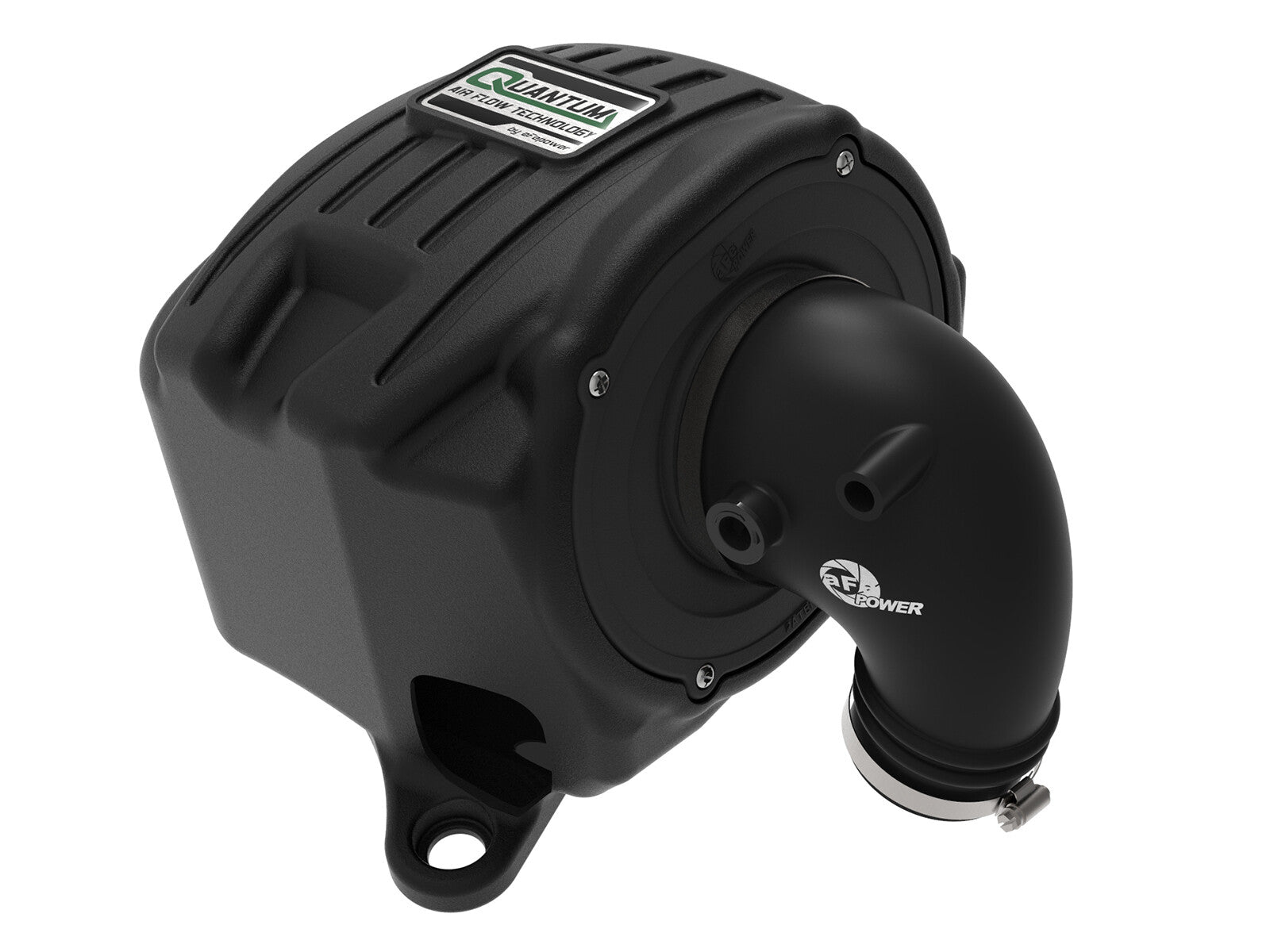

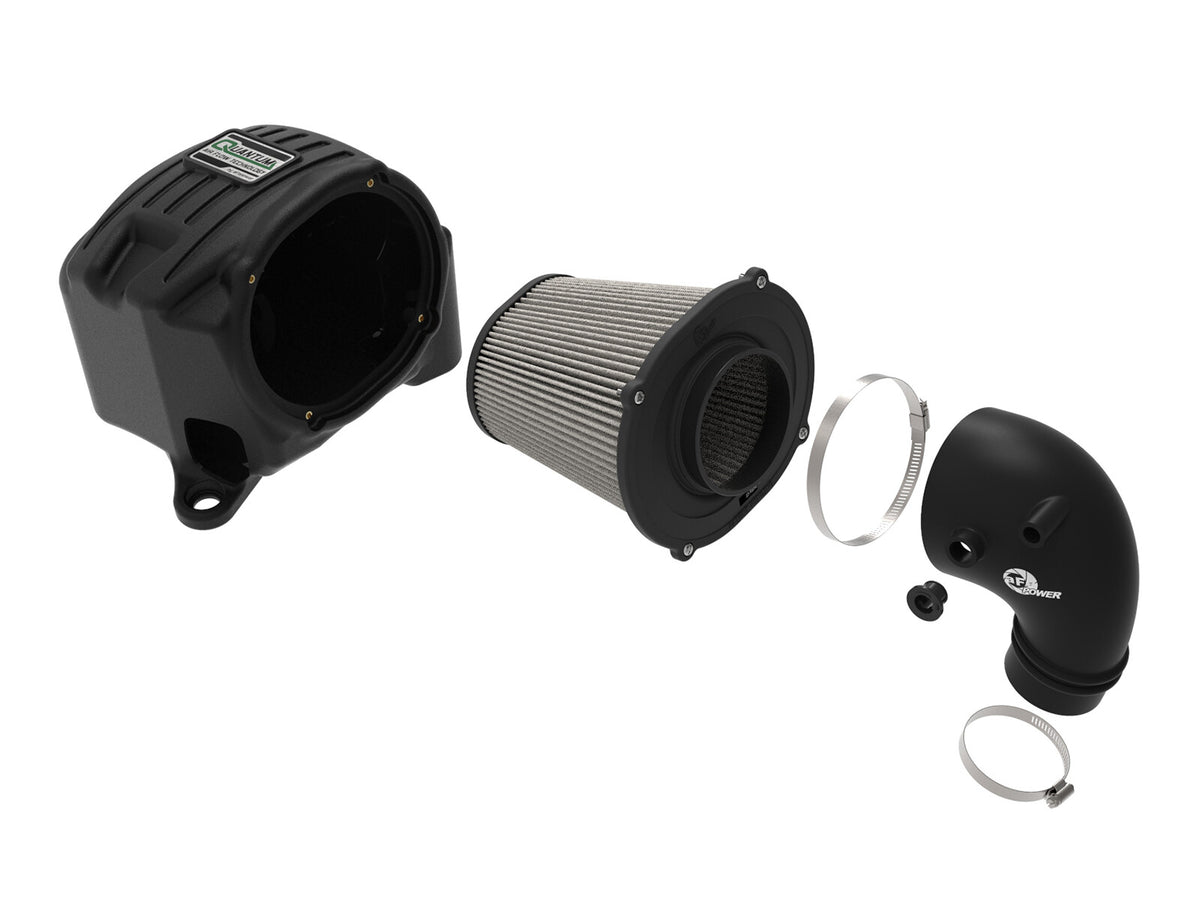

Large Three Layer Performance Air Filter: This 360-degree radial flow air filter features a 5 Inch flange and our oil-free Pro Dry S media with three layers of synthetic media for maximum convenience. Its progressive layering provides great filtration efficiency and dust holding capacity, while not requiring the use of oils. This media is best suited for street and light off-road use.
The filter features an injection molded base and top for lighter weight and rigidity. Its base includes a built-in 3-angle velocity stack for smooth, even airflow and captive screws to easily attach the filter to the housing. Unique Integrated Filter-to-Housing Design: Quantum uses an integrated filter-to-housing design that attaches both components with four captive screws, making for a positive surface area seal and easy installation.

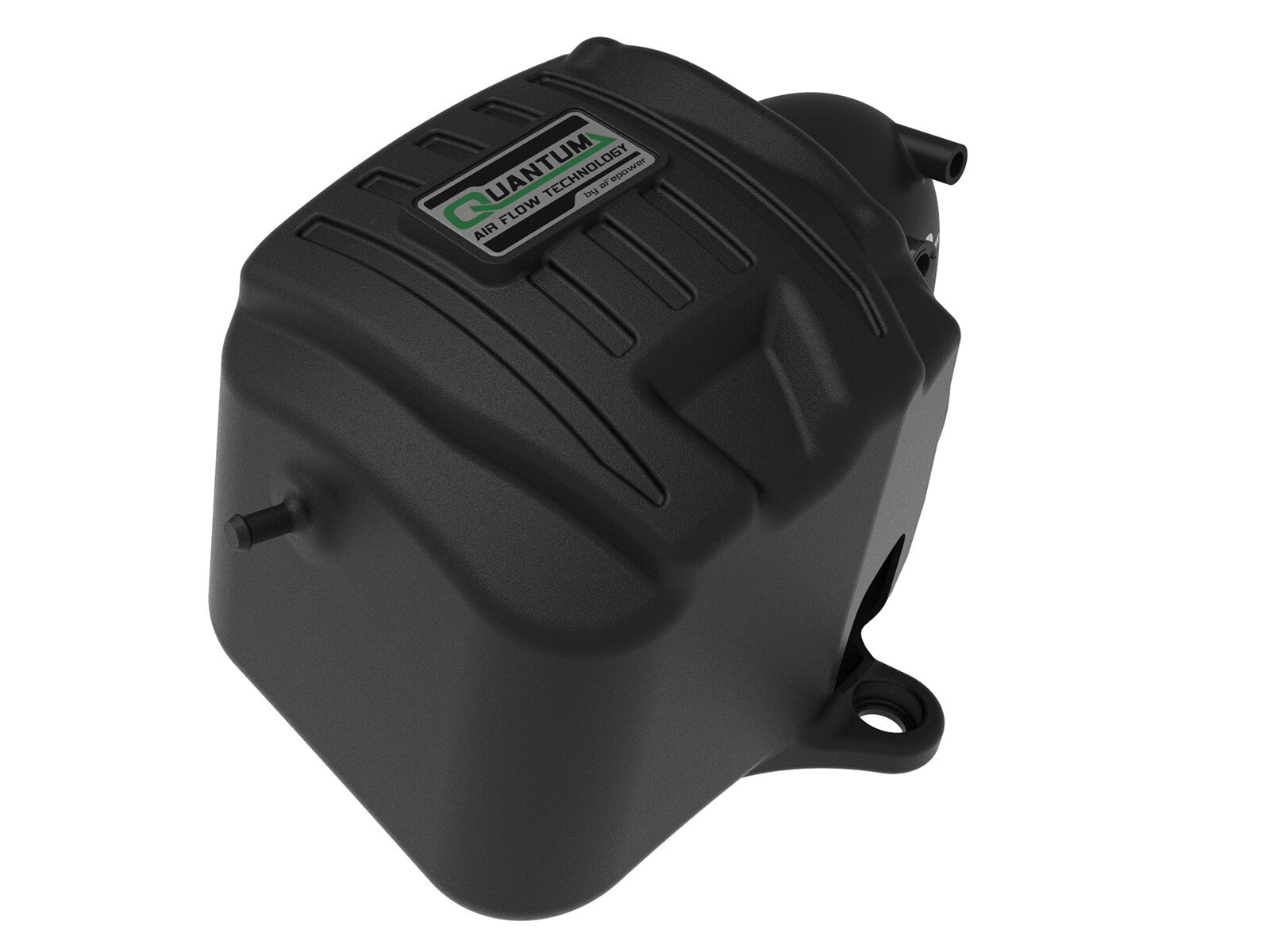

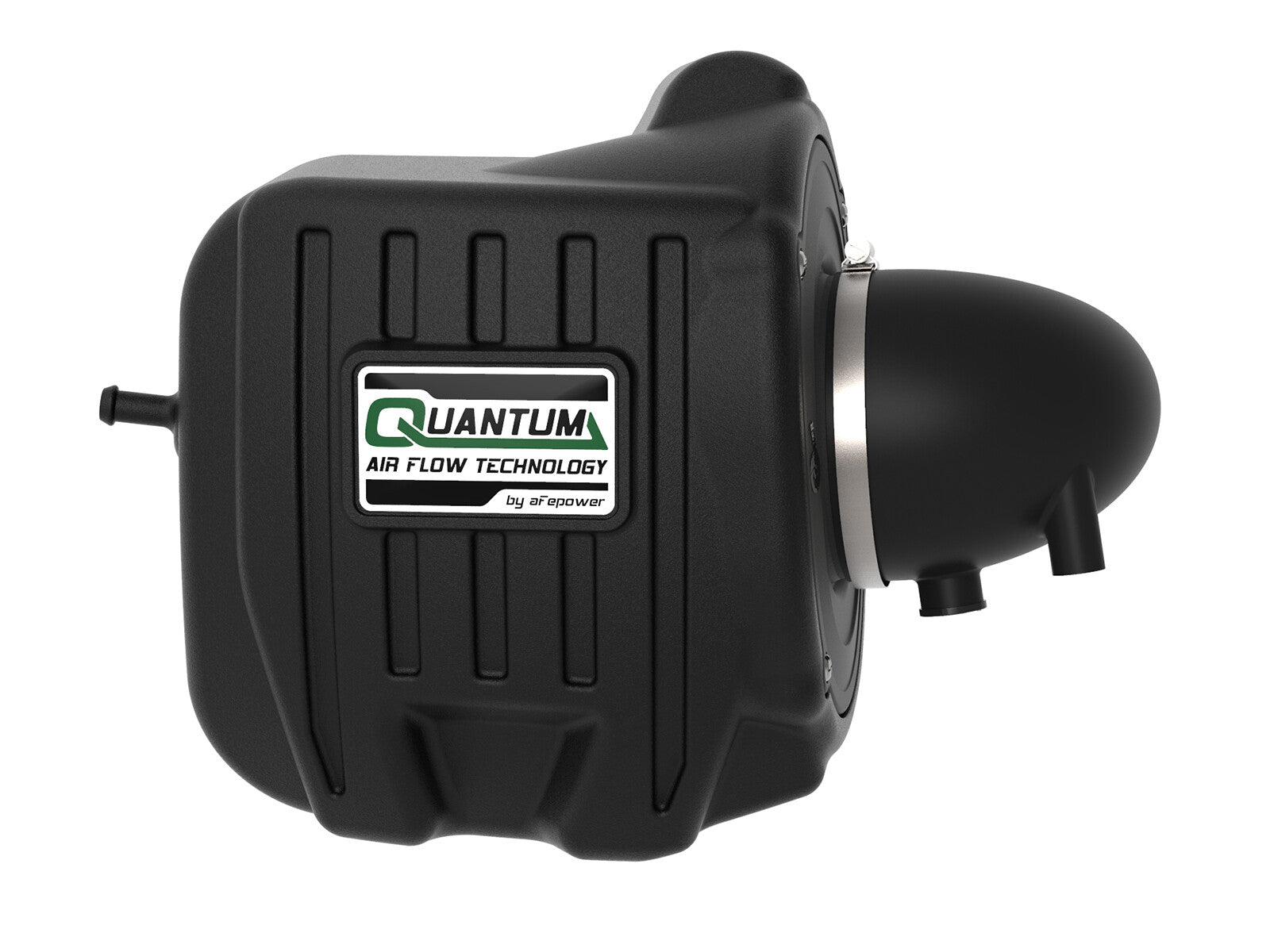

Its durable sealed housing features a unique, five rib, industrial-grade look for aFe quality recognition. Reinforced Silicone Intake Tube: This intake system utilizes a flexible silicone intake tube that is reinforced with three layers of nylon material, making it virtually resistant to wear and deterioration. It features two port holes; one for an air temperature adapter and one for a vaccuum port fitting utilized from the OE intake.

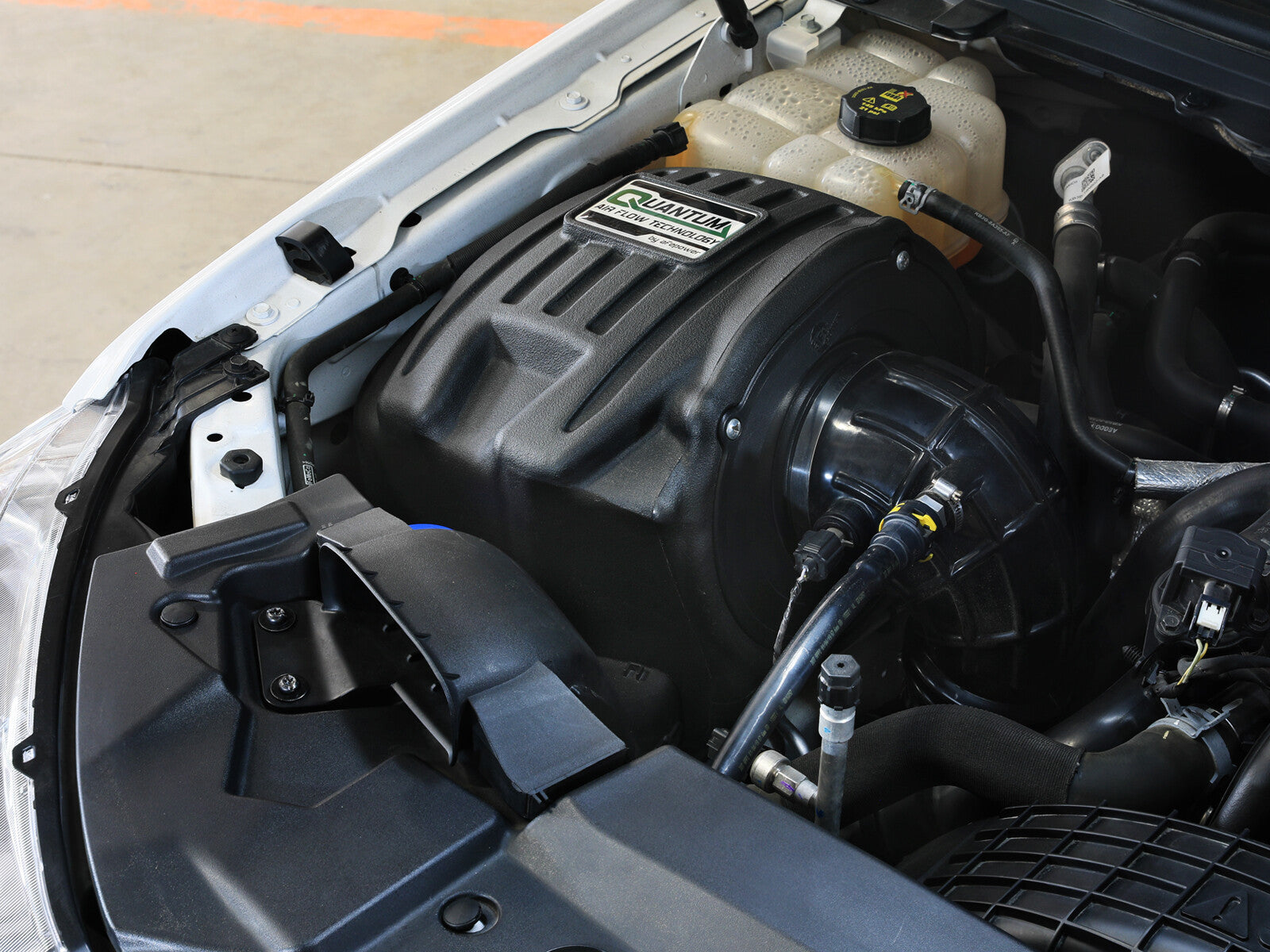

Hassle-Free Installation: Quantum intakes are designed with fewer parts for a quick and easy installation. This is a direct fit intake system that utilizes factory mounting points and requires no cutting or modifications. All necessary clamps, couplings, and hardware are included.
Features and Benefits:
- +7 lbs. x ft. Tq & +6 HP
- Outflows Factory Intake by 18 percent
- Measured Flow: 290 CFM at 7 Inch H2O
- Includes Pro Dry S Air filter with 3-layer synthetic media
- Durable Xlpe Polymer Construction is Heat and Impact Resistant
Details:
- Air Box Type: Closed
- Air Flow Gain: 18 Percent
- ECU Tuning Required: No
- Emission Code: 1
- Filter Color: Gray
- Filter Material: Non-woven Synthetic
- Fuel Type: Gas
- Grade Type: Performance
- Heat Shield Included: Yes
- Horse Power Increase: 6
- Liter: 2.3 Liter
- Mass Air Flow Sensor Mounting Provision: Yes
- Mounting Hardware Included: Yes
- Series: Quantum
- Torque Increase: 7 ft-lbs
- Warranty: 2 Year
Applications:
- Ford Ranger 19-23 L4-2.3L (t)
