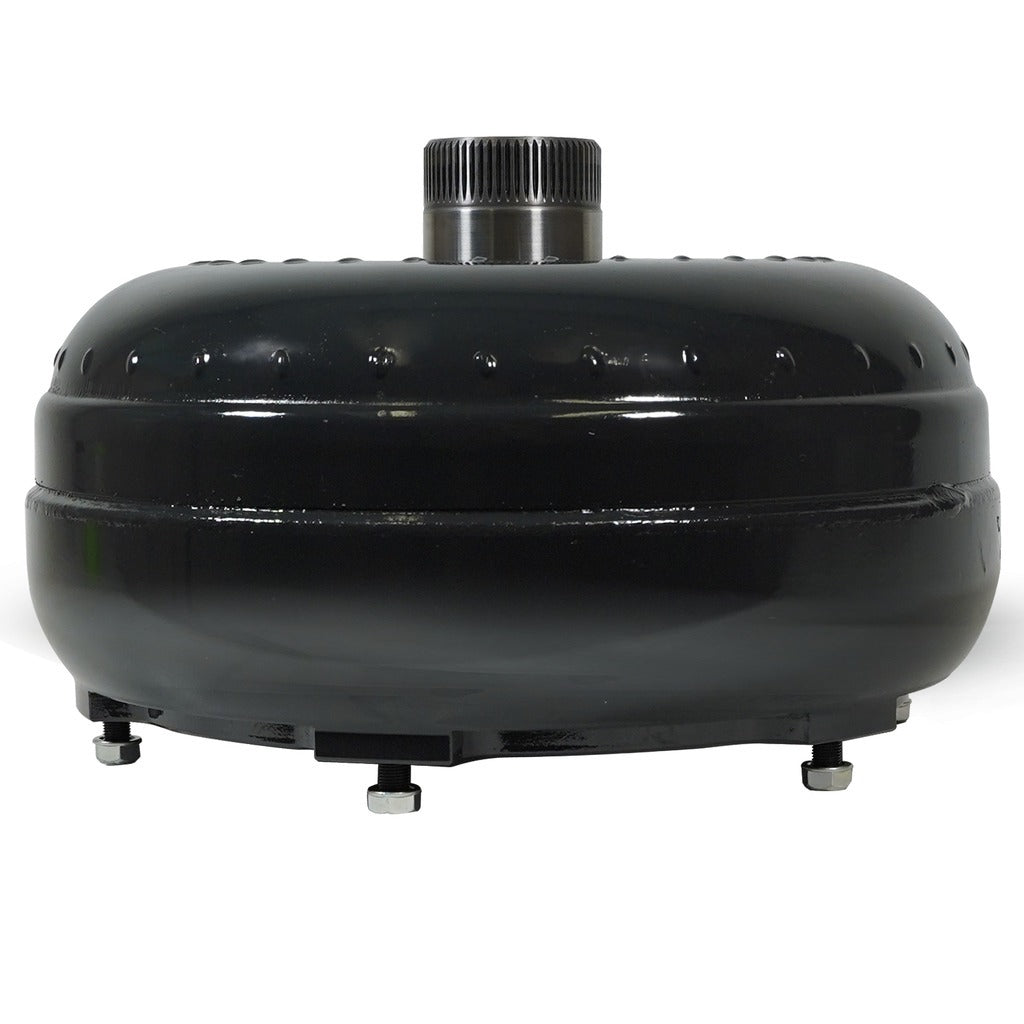

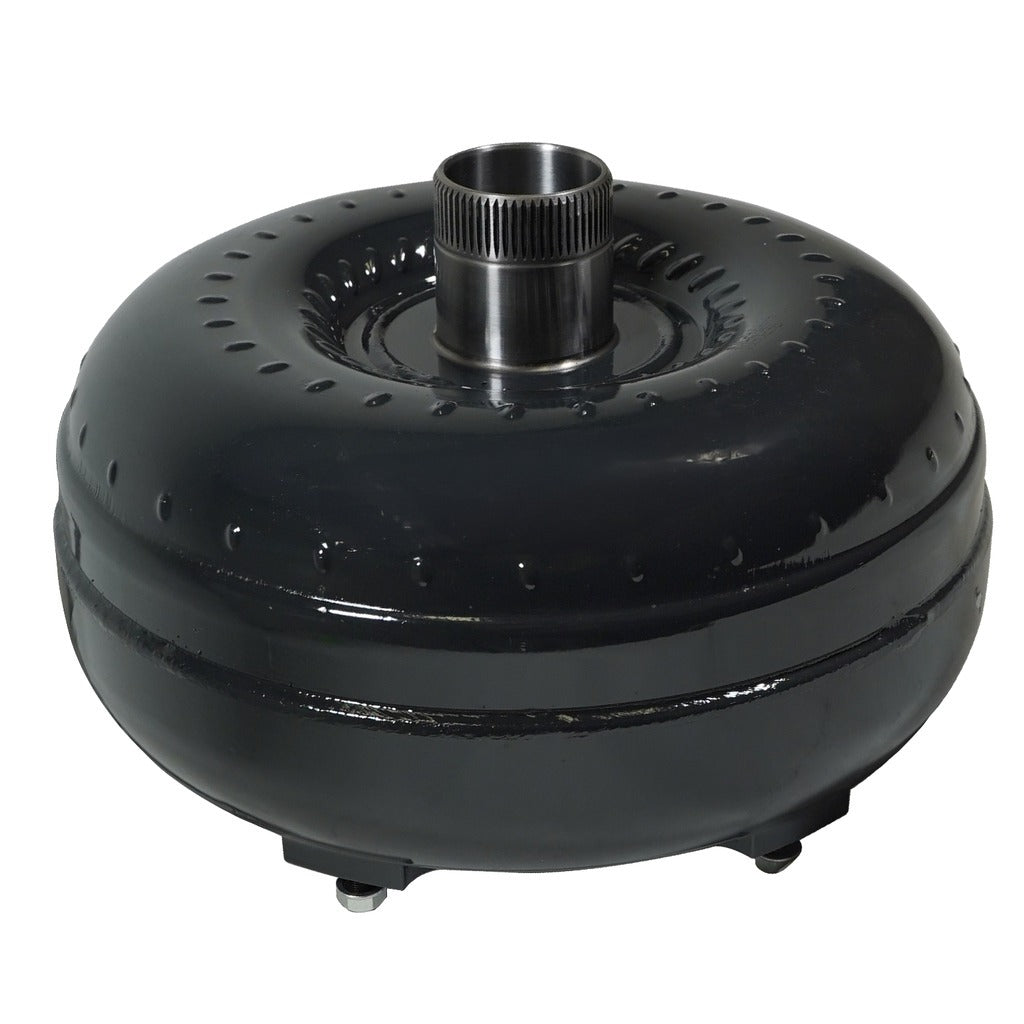

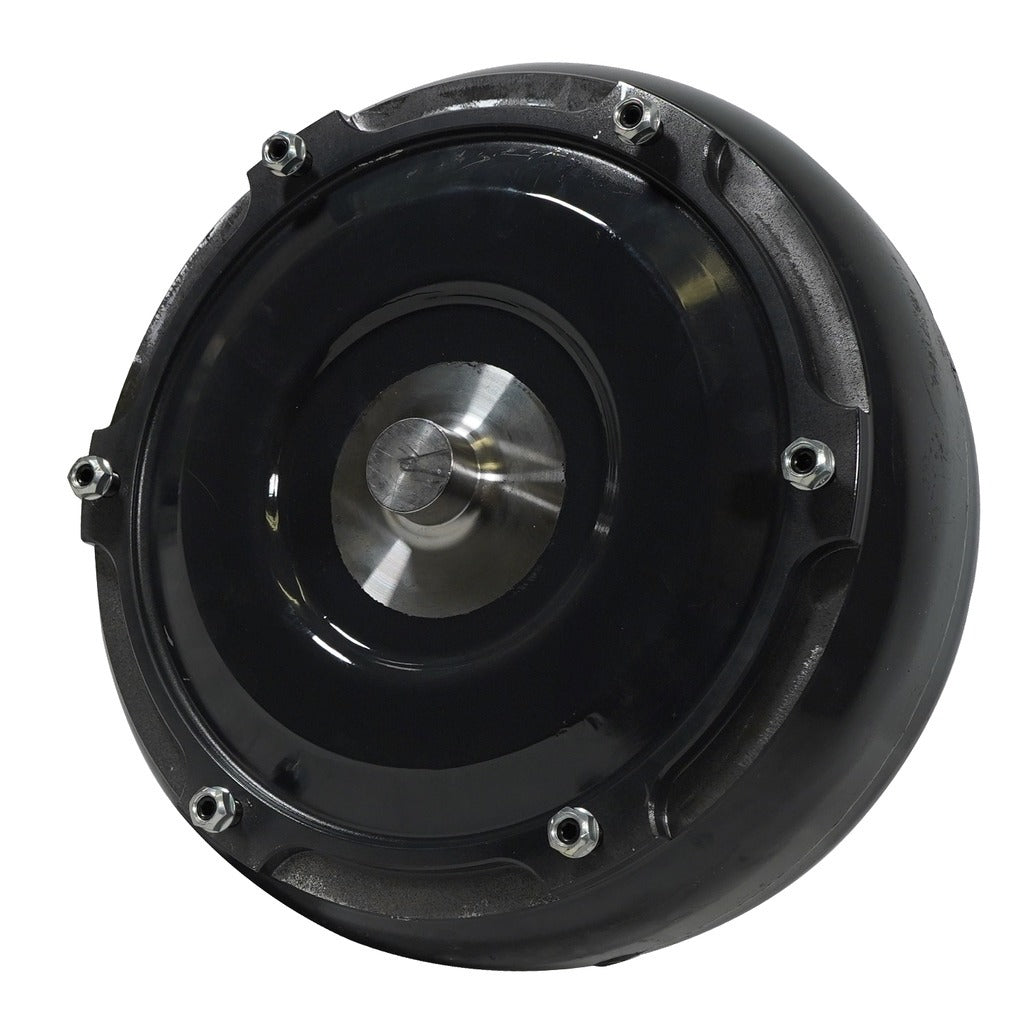

The BD 6R140 ProForce 4D Torque Converter is designed for hard-working and modified 6.7L Power Stroke Diesels. This Torque Converter is equipped with 4 clutch surfaces designed to handle heavy towing loads and is intended for up to 900+ horsepower.
Our in-house CNC machined forged cover is designed to prevent warping and improper balance while facilitating the increased clutch count without sacrificing strength.
In addition to a new cover, BD has designed a custom piston, bearing hub, release springs and backing plate to retain the OEM captured clutch design which delivers the same great drivability 6R140 owners are accustomed to.
Install Time:
7 Hours
Warranty:
Parts
Labor
Note:
Note:
Will not fit early 2011 trucks with 8-bolt flex plate - will have to update to 6 bolt flex plate.
Emissions:
This product does not require an EO in California. By nature of its design, it is legal for sale and use in all 50 states. Replacement Parts included. (EMS:4)
Features:
- 23 percent increased piston area for additional clutch clamping force
- Billet bearing hub, piston and clutch retainer
- Captured clutch design with clutch return springs
- Increased clutch and steel plate count for improved heat dissipation
- Comes with hardware
- Factory furnace-brazed pump and turbine fins
- Four friction surfaces instead of the factory two surfaces
- Stamp forged 1-piece cover
