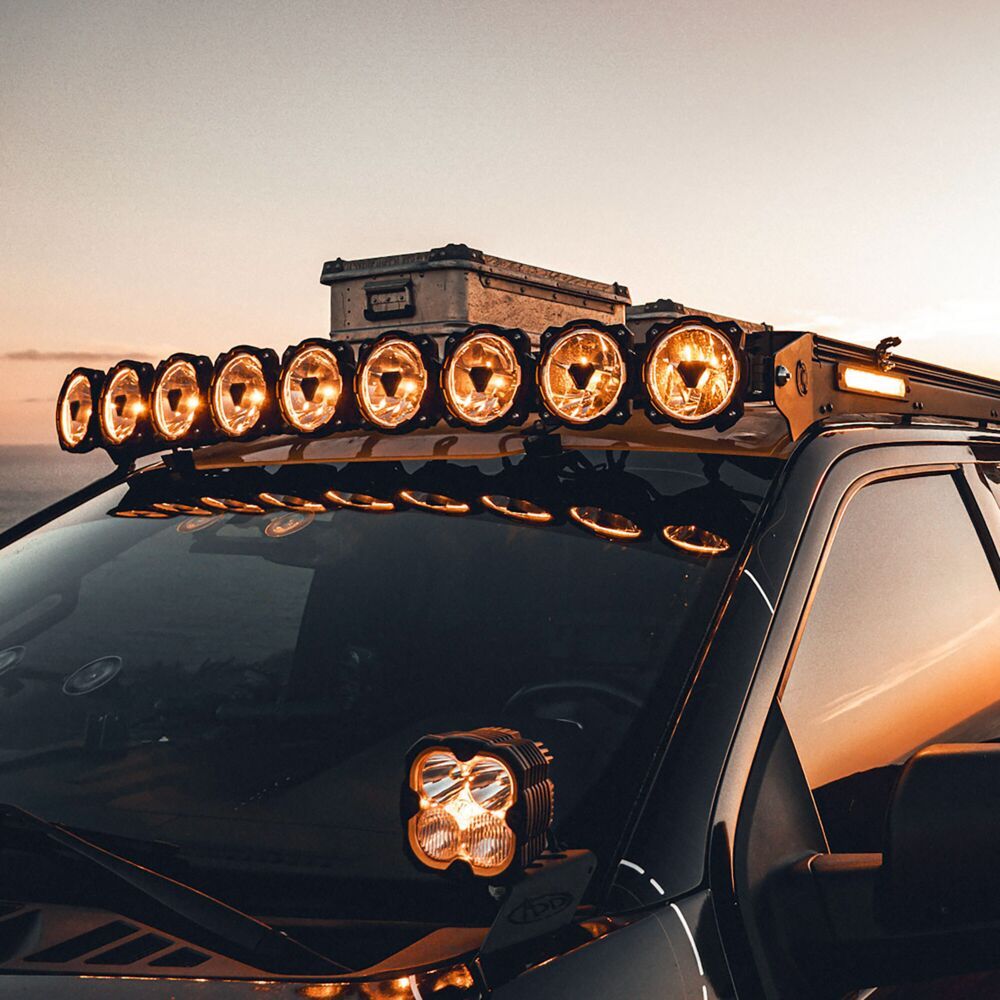

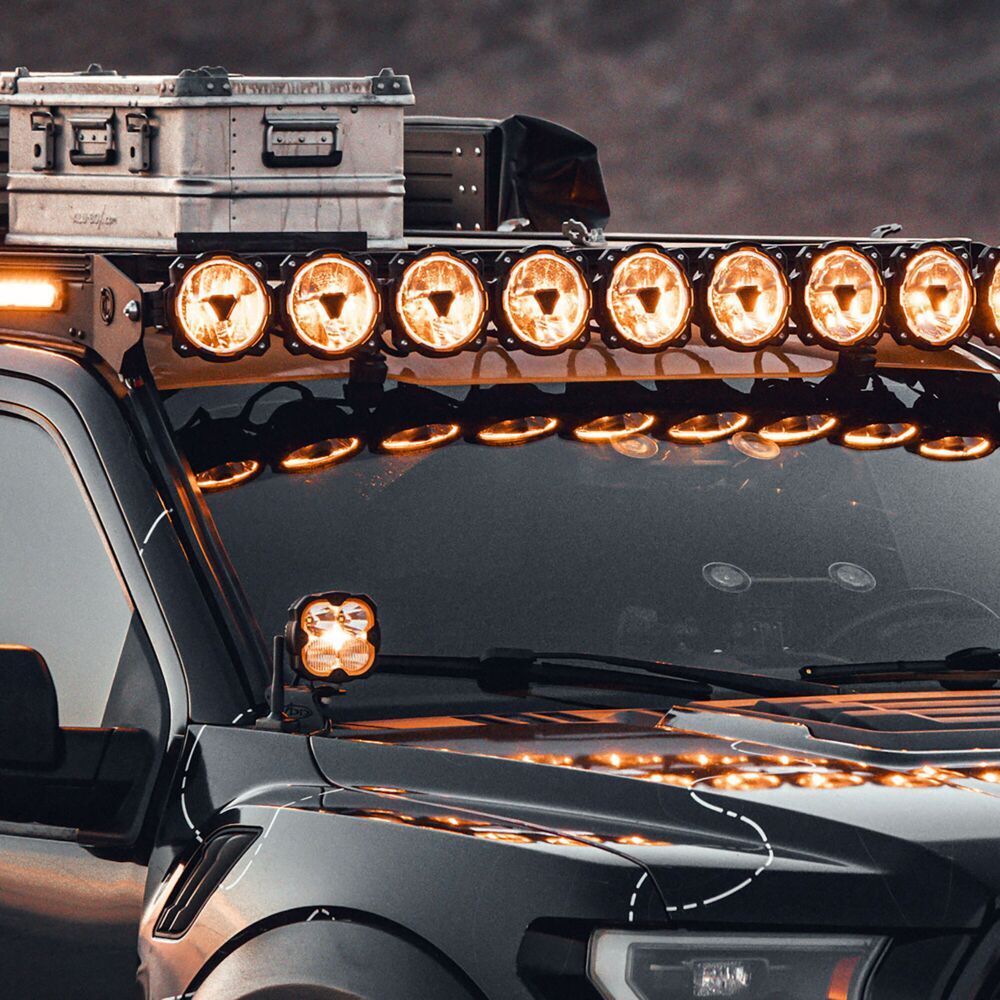

Forward lighting is handled by the Gravity Titan 57 Inch LED Light Bar (Sku 91419), KC's most advanced lighting platform. Powered by the Titan Core and 3-Source LED optics, Titan delivers a larger illumination zone, increased peak intensity, and greater beam distance than previous Gravity platforms.

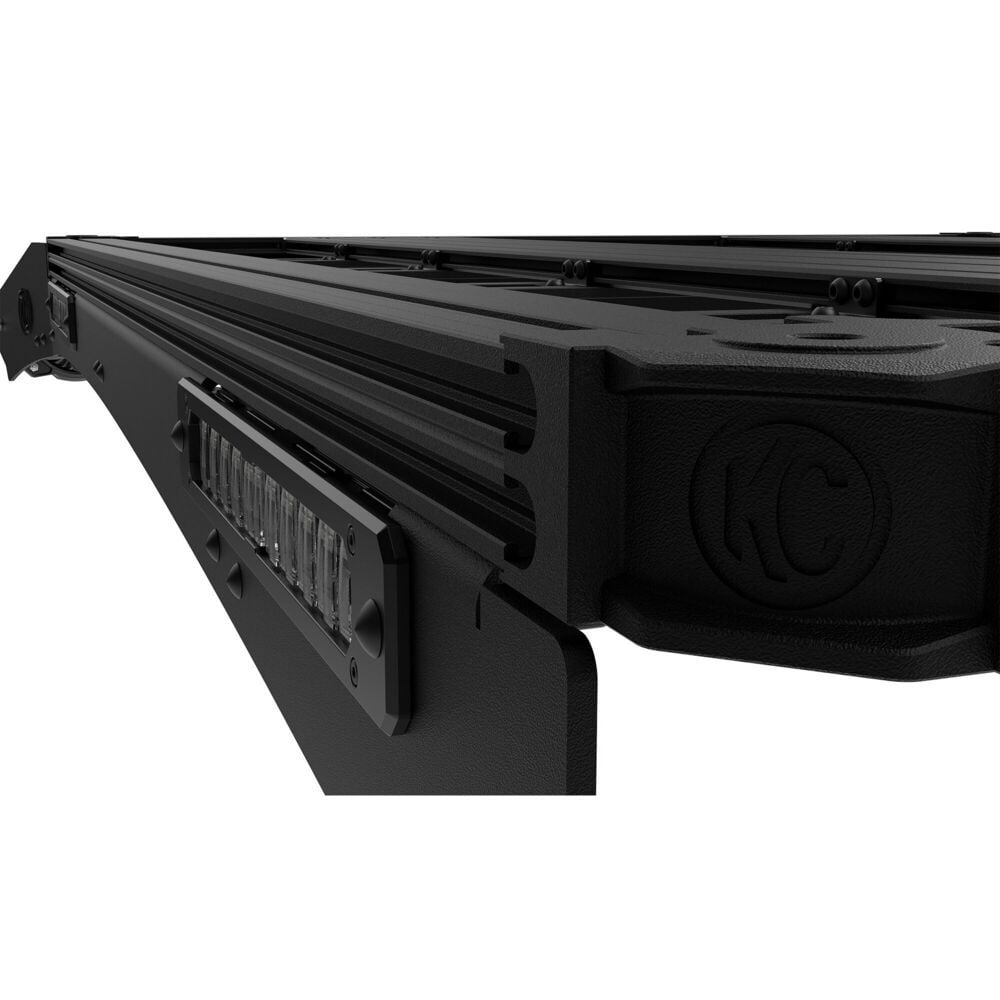

Dual Power Modes allow you to switch between full High Power Mode for nighttime trail driving and an integrated Amber Dust Light that acts as a highly visible marker in dusty, snowy, or low-visibility conditions. Side lighting is integrated into the Platform One side rails using Profile 10 Inch SideCast flush-mount lights.
Using KC's custom BiasBeam optics, each light casts focused illumination from +10 degrees above to -50 degrees below the horizon, making them ideal for jobsite use, trail repairs, campsite lighting, and low-speed technical terrain. DualColor output allows you to switch between white light for maximum visibility or amber light for reduced glare and dust penetration.
Built with Power-Ready architecture, the Platform One roof rack includes hidden internal wire management channels and dedicated access points, allowing for clean, protected routing of all lighting wiring. The result is a refined, factory-style installation that integrates seamlessly into KC's lighting ecosystem.

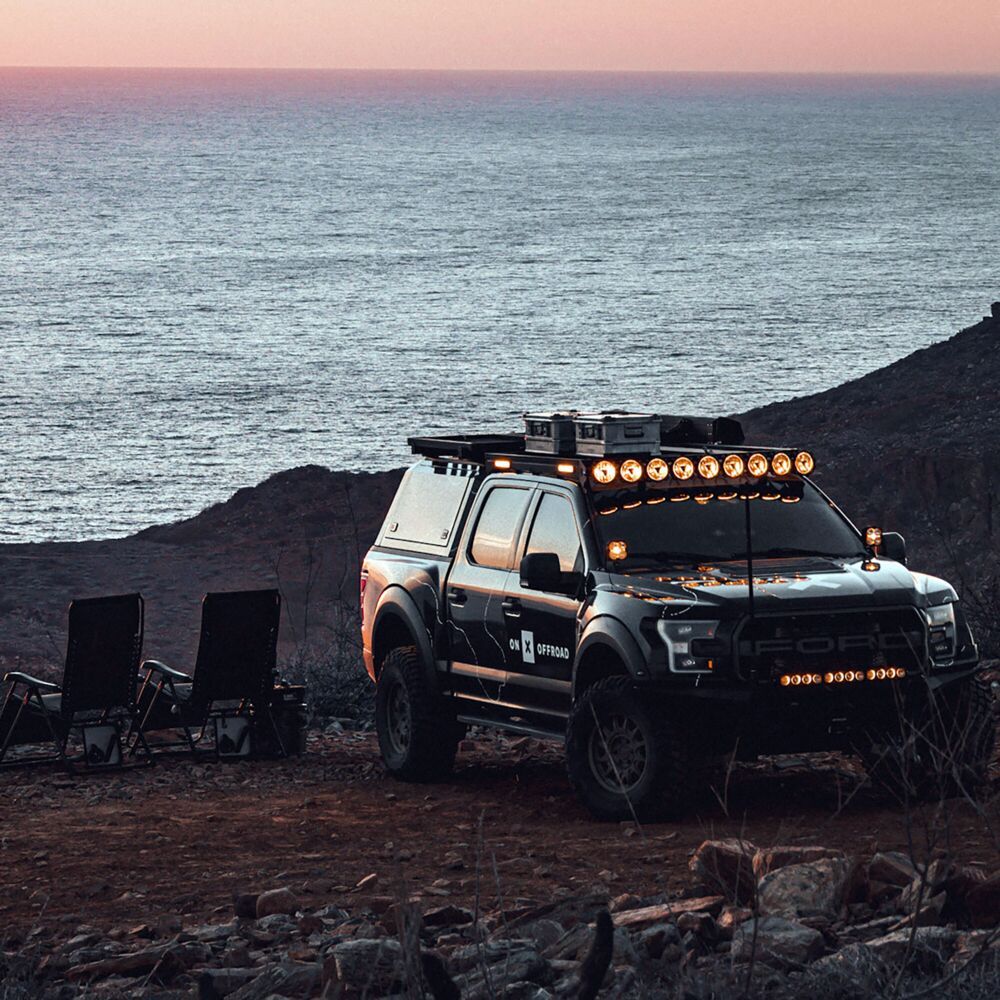

The KC Platform One Roof Rack with 360 Lighting is a fully integrated roof rack and lighting system designed specifically for Ford F-150 (2015-2026) and Raptor (2017-2026) SuperCrew cab trucks. Built as a complete solution, this bundle combines a vehicle-specific roof rack with KC's most advanced overhead and side lighting to deliver all-around visibility, utility, and Power-Ready integration in one cohesive setup.

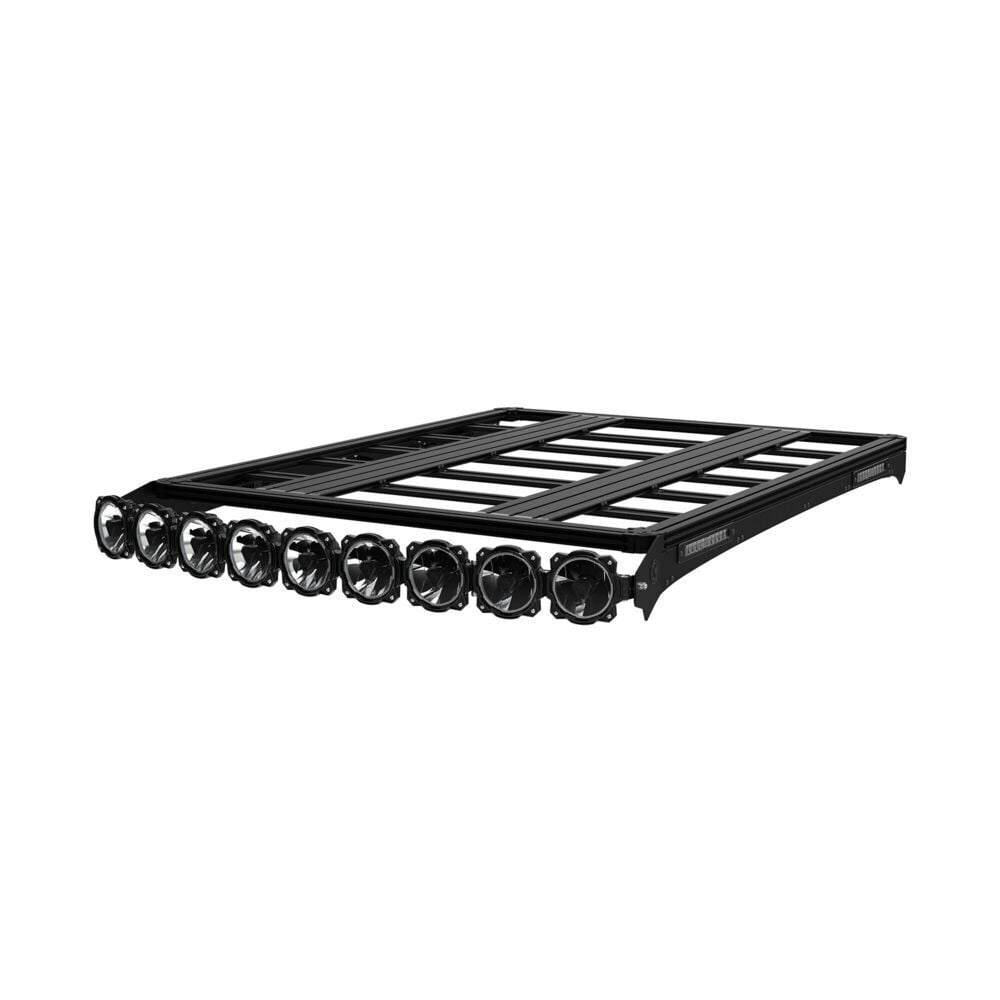

At the core of the system is the Platform One (Pl1) roof rack, a hybrid rack design that blends the clean styling of precision-formed sheet metal with the versatility of a full platform rack. Precision-cut side rails, adjustable support crossbars, and a slotted upper mounting deck provide a modular foundation for rooftop tents, gear, and accessories.
Designed specifically for SuperCrew cab trucks, Pl1 delivers a secure, low-profile fit and the strength required for demanding use, with a drill-required installation for a permanent, confidence-inspiring mount.
Features & Benefits:
- 1X Complete Wiring Kit with 3-Position Switch
- 1X Cover Removal Tool
- 1X Gravity Titan 57 Inch LED Light Bar 9-Light Combo Beam (SKU 91419)
- 1X Power-Ready Wiring Harness Kit and all required mounting hardware
- 1X Profile 10 Inch SideCast Flush-Mount 4-Light Kit (SKU 98150)
- 3-Source LED Optics for comprehensive mid- and long-range coverage

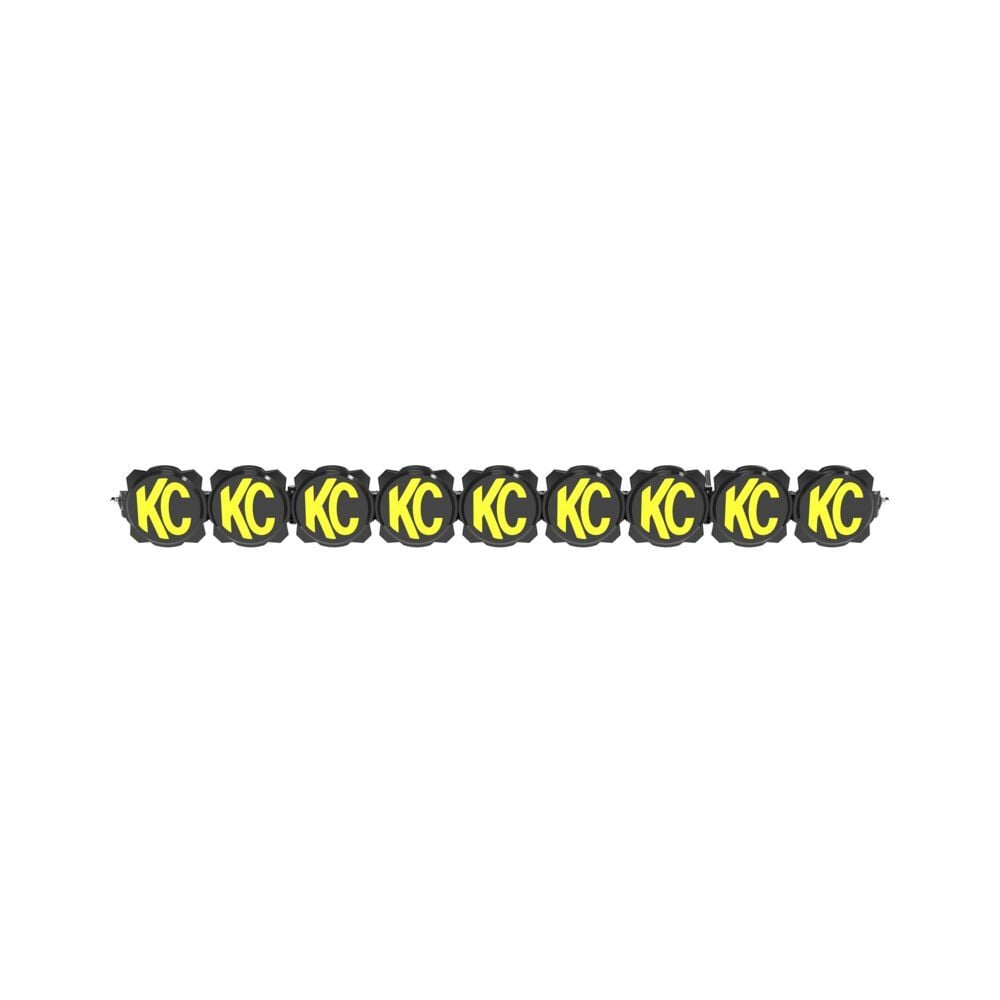

- 9X Gravity 6 Inch Light Covers - Black with Yellow KC Logo
- Adjustable Support Crossbars & Slotted Upper Deck
- Designed for clean, protected wiring
- Drill-Required Installation: Permanent, vehicle-specific mounting solution
- DualColor Side Lighting: Switch between white and amber output
- Fitment & Installation Notes
- Hybrid Roof Rack Design: Combines sheet-metal styling with full platform utility
- Installation: Drill-required installation
- Integrated Lighting System: Gravity Titan 57 Inch LED Light Bar with Dual Power Modes
- Low-Profile & Aerodynamic Design: Reduces wind noise and drag
- Modular mounting for gear and accessories
- Mounting Location: Roof
- Power-Ready Architecture: Hidden internal wire management channels
- Professional installation recommended
- Profile 10 Inch SideCast Flush-Mount Lights with BiasBeam optics
- Titan Core Technology: Patented Pass-Through Front Cooling for superior thermal management
- Vehicle Fitment: Ford F-150 SuperCrew (2015-2026)/Ford Raptor SuperCrew (2017-2026)
- Vehicle-Specific Fit: (2015-2026)Ford F-150 SuperCrew, (2017-2026) Ford Raptor SuperCrew
- What's Included: 1x Platform One Roof Rack - Ford F-150 / Raptor SuperCrew
Application:
- 2015-2026 Ford F-150/Raptor
Details:
- Series: Platform One
- Color: Black
- Beam Pattern: Combo
- Cab Size: Crew Cab Pickup
- Candela: 144,250cd (Spot) / 77,500cd (Wide 40)
- Fitment Notes: Fits Crew Cab Pickups Only (Including Raptor)
- Warranty: Lifetime Warranty
