Carli Pintop Systems provide a moderate lift and the added confidence of larger diameter (2. 5 inch) shocks.
They are a perfect blend of a comfortable on-road ride with all the harsh edges rounded and confident light- to medium-duty off-roading.
Features and Benefits:
- The Carli Pintop is a Jack-of-all-trades system that delivers a sedate yet confident on-road ride with all the harsh edges rounded and smoothed while making light- to medium-duty off-road escapades completely controlled and uneventful. The system features Carli-specific, blueprinted, King 2.5 shocks on all four corners. With a 2.5-inch diameter shock body these Pintop shocks delver 55 percent more piston surface area than a 2.0-inch shock. Carli engineers have designed a custom piston to produce proper base flow rates and optimize performance in robust 3-4-ton and one-ton platforms. The Carli-spec shocks also feature shafts machined and polished from a solid piece of 17-4 stainless. The system delivers a dramatic increase is travel and the included adjustable track bar adds stability countering the sloppiness that can lead to Death Wobble. The truck will sit higher in the front for a level look and have more wheel travel thanks to the lighter rate Carli coil springs.
- This specific SKU is Custom Tuned to work with the Auto-Leveling-Air-Suspension equipped RAM 3500's equipped with Carli 3.25 Lift System and Carli Progressive Leaf Springs.
- Not recommended for use with any lift systems other than Carli RAM 3500 Air Ride Specific kit.

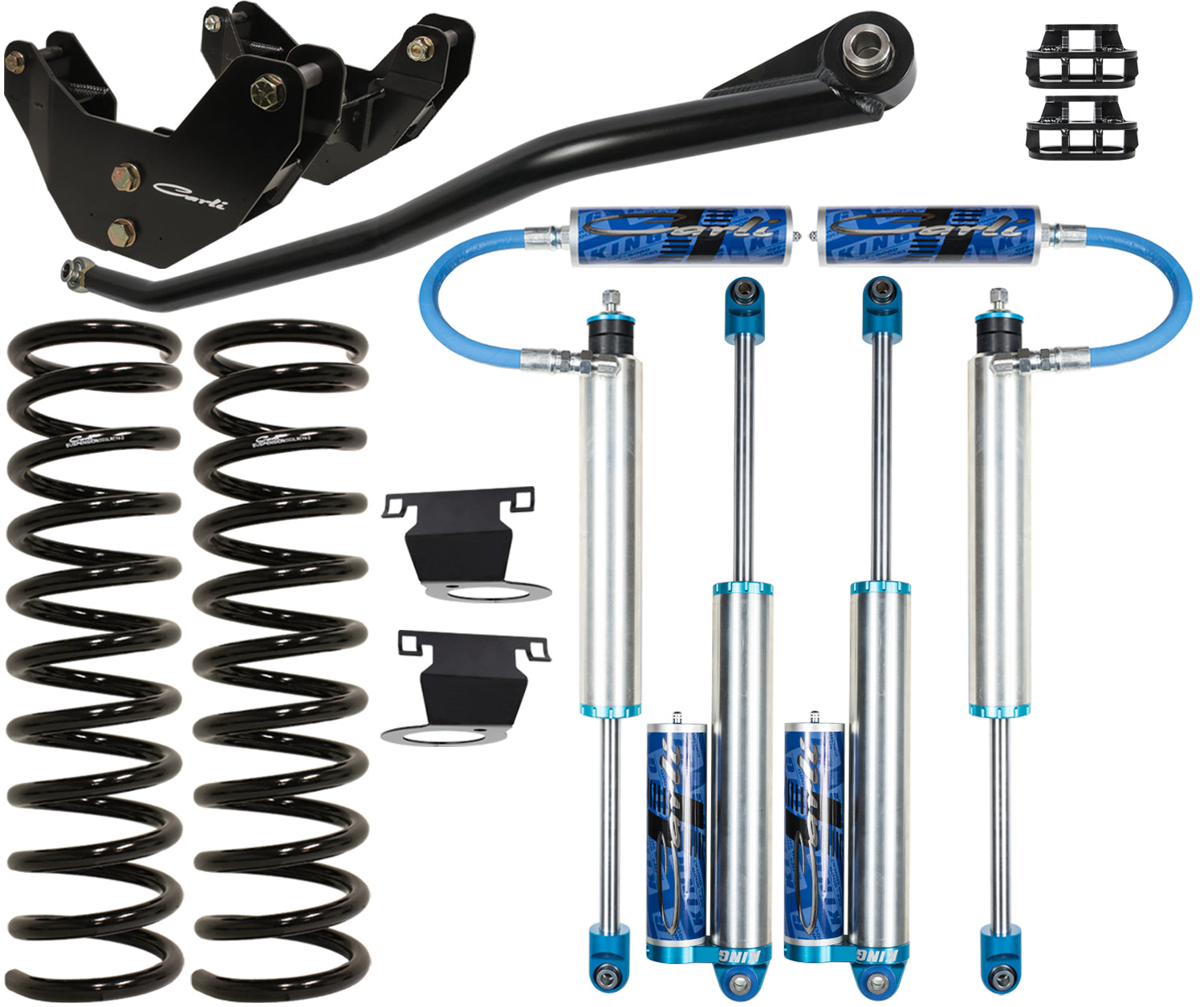

- Includes Carli front coil springs, four Pintop 2.5 external reservoir shocks, adjustable track bar, front bump drops, radius arm drops, transmission crossmember, reservoir mounts, and all Required hardware
Details:
- Drive: 4WD
- Fuel Type: Diesel
- Lift Height: 3.25 inch
- Warranty: Limited Lifetime Warranty
Fitment:2013-2026 RAM 3500 (Fuel: Diesel and Rear Spring: Leaf and Drive: 4WD)
